ID # 24554158

Jacto - A 270

  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
  • Jacto A 270
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

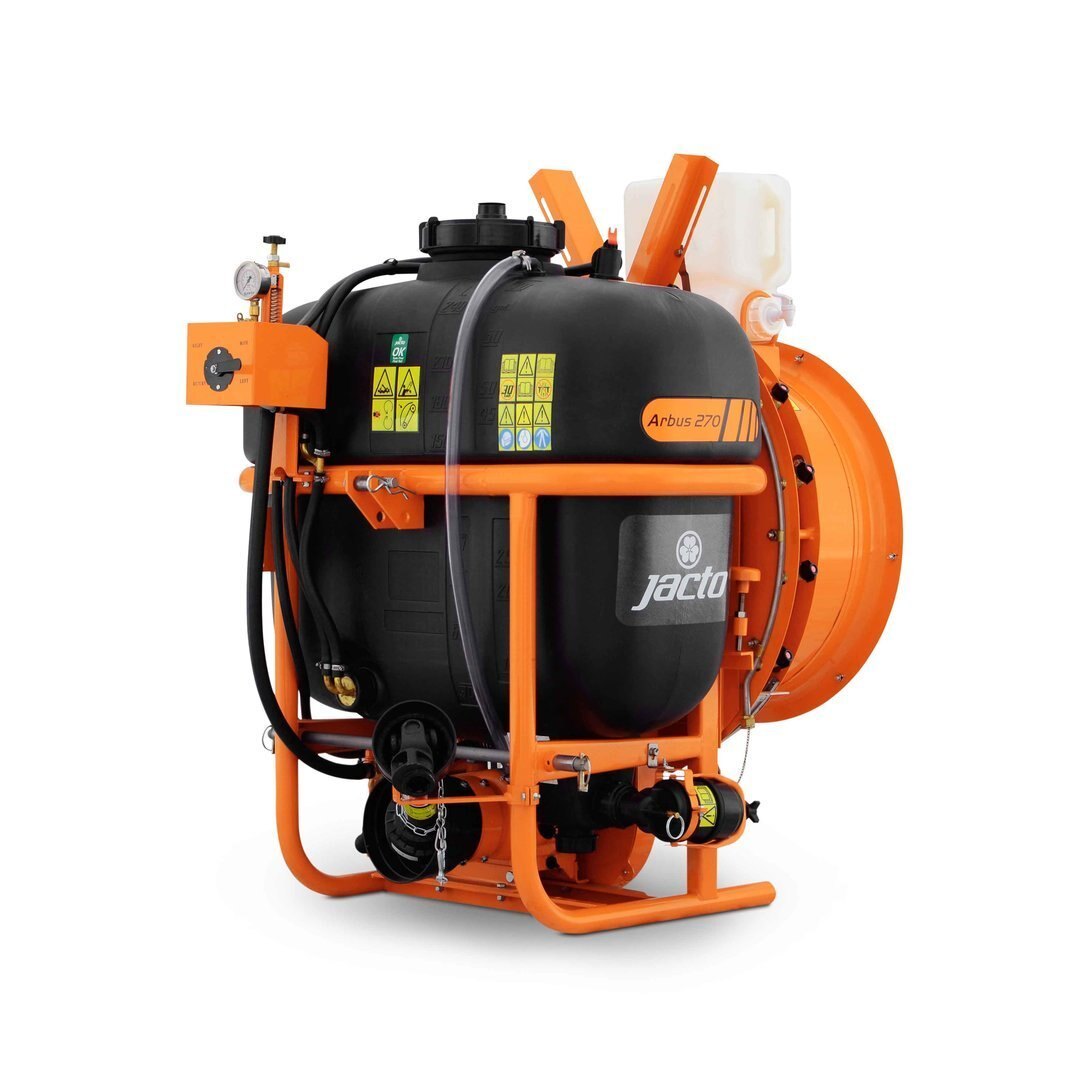

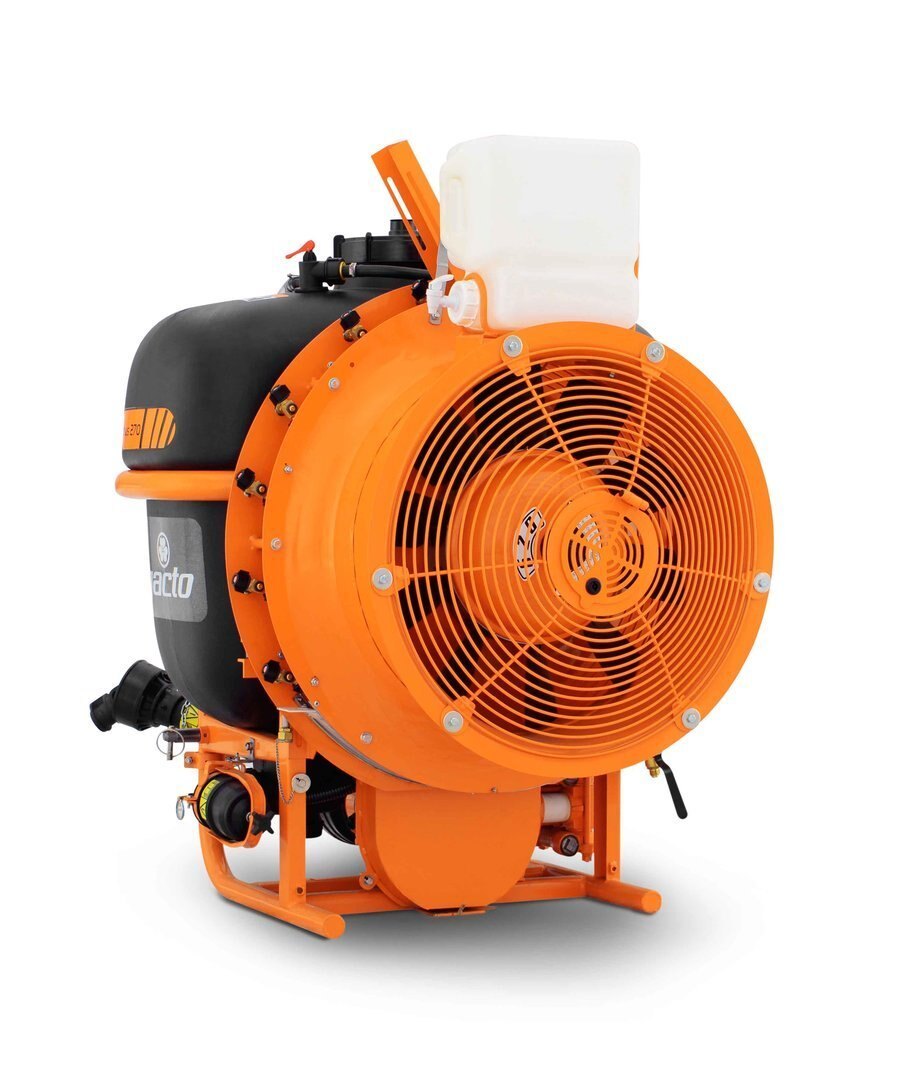

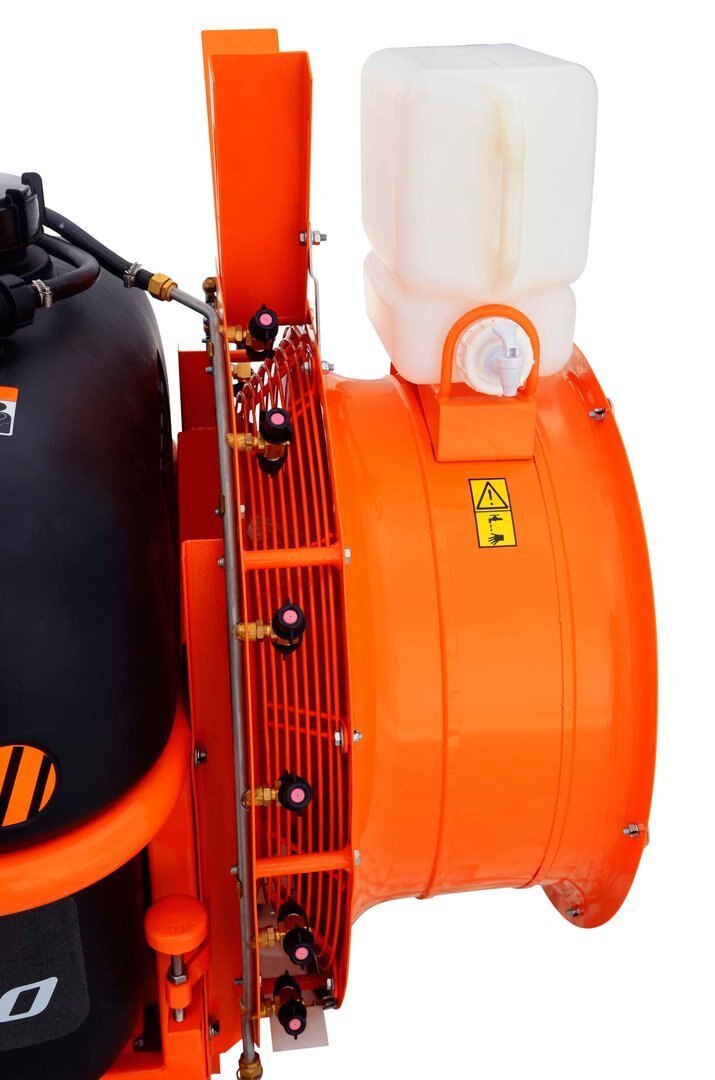

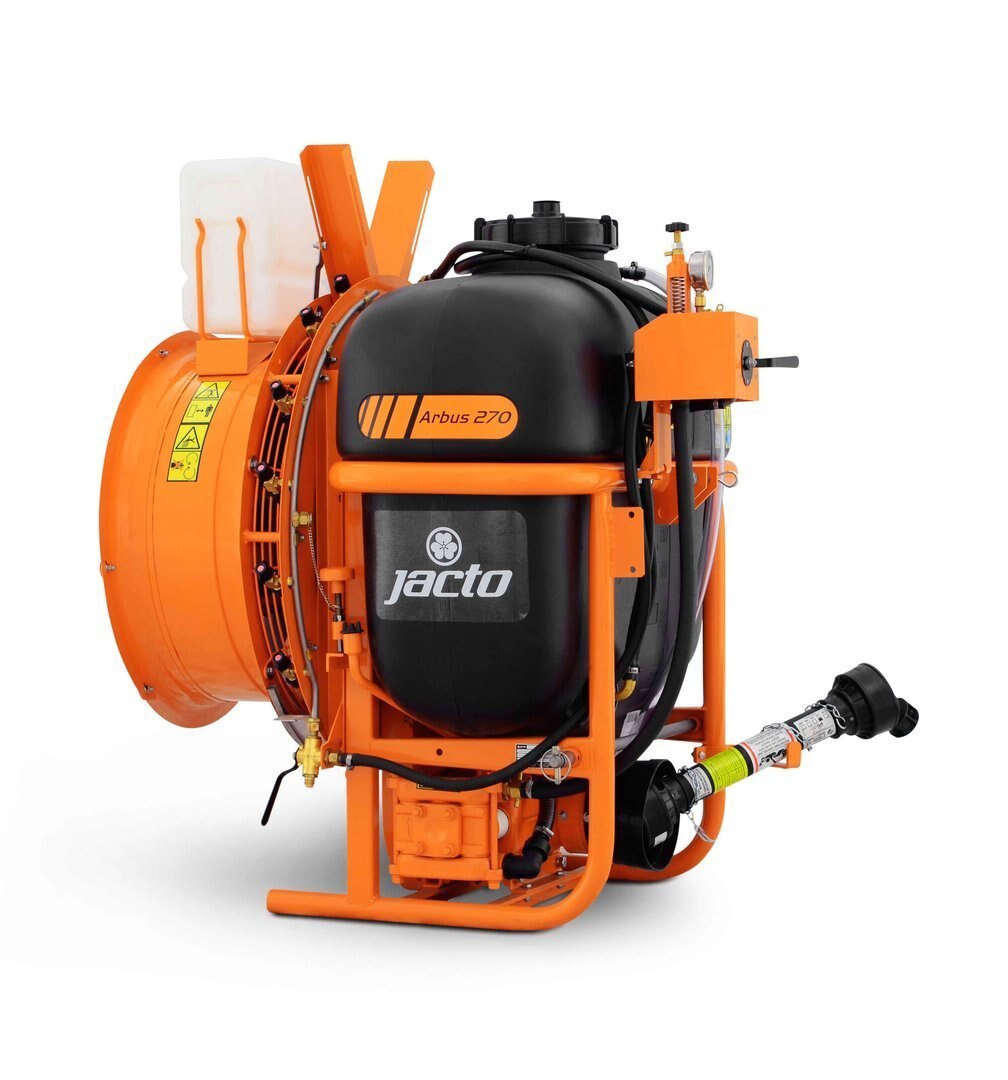

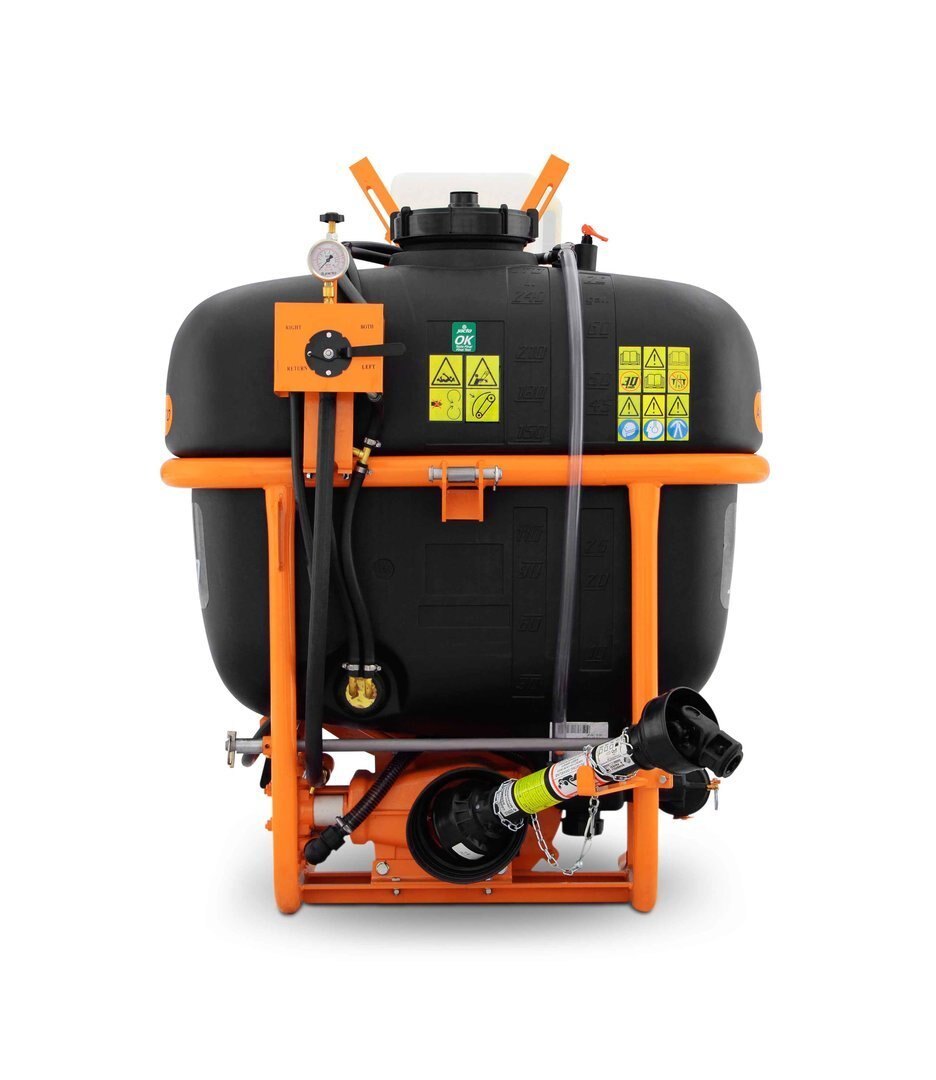

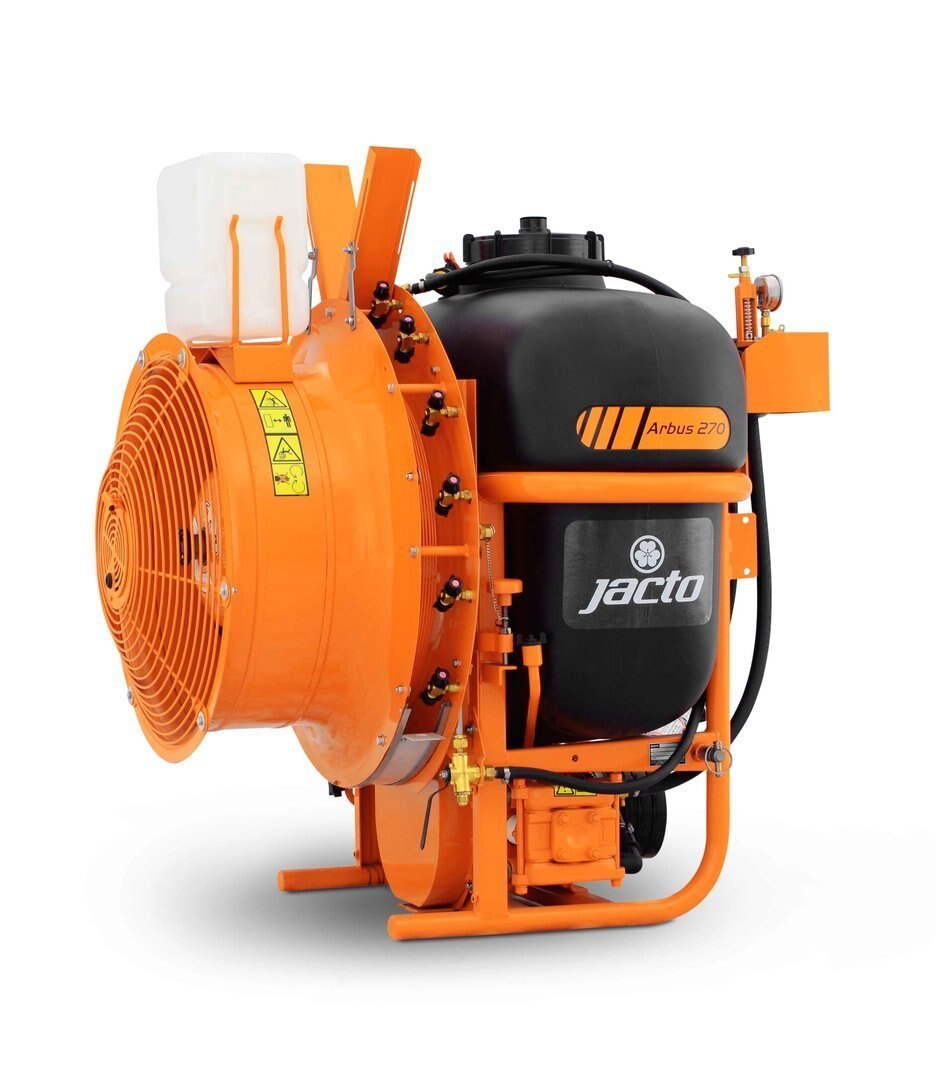

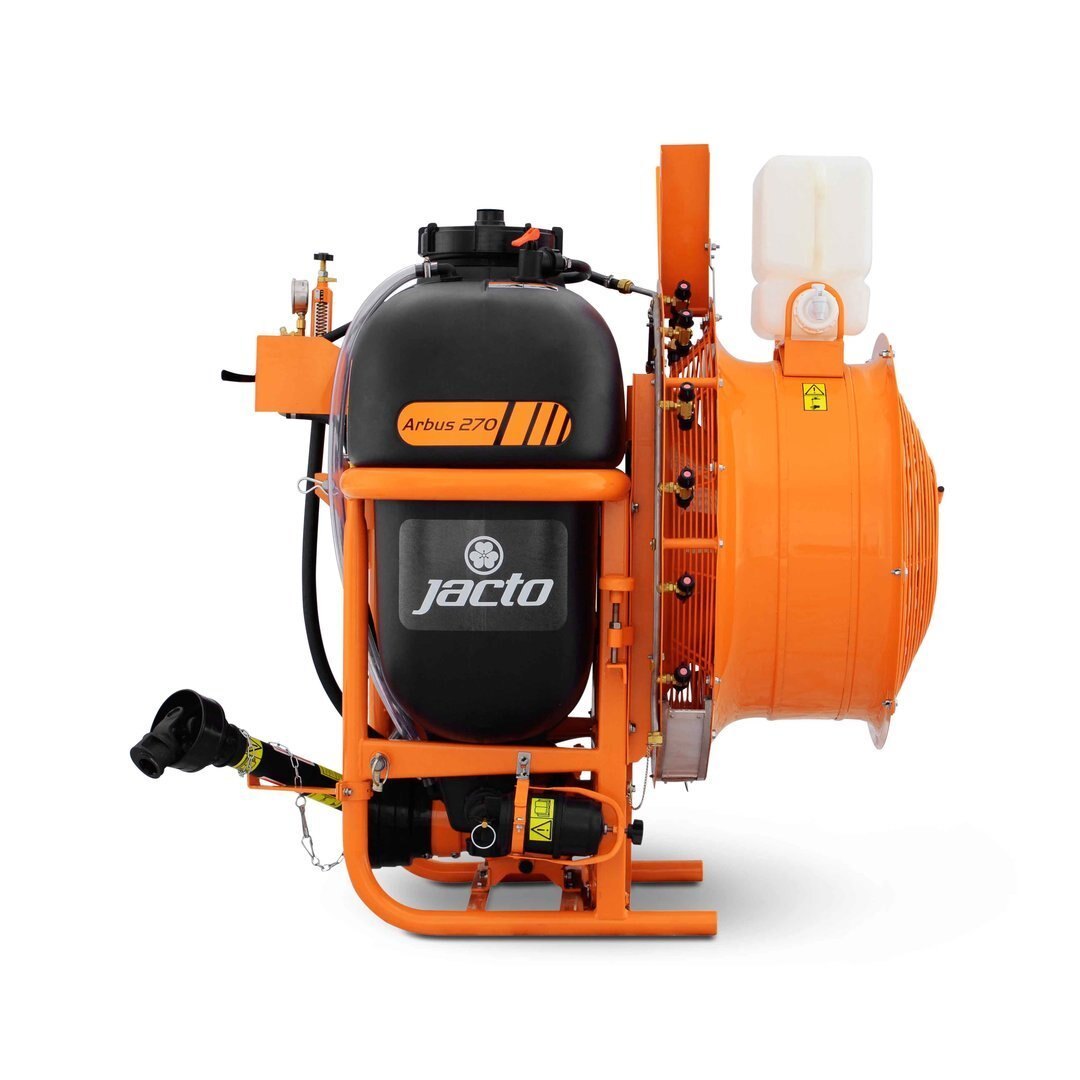

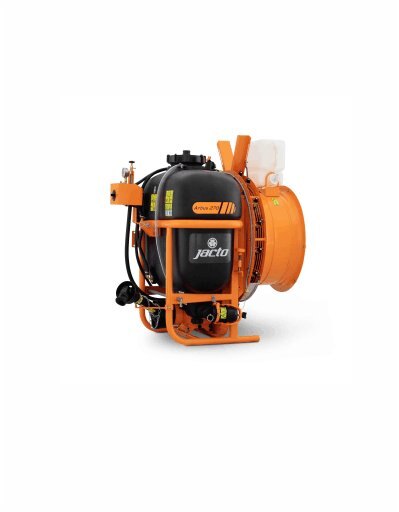

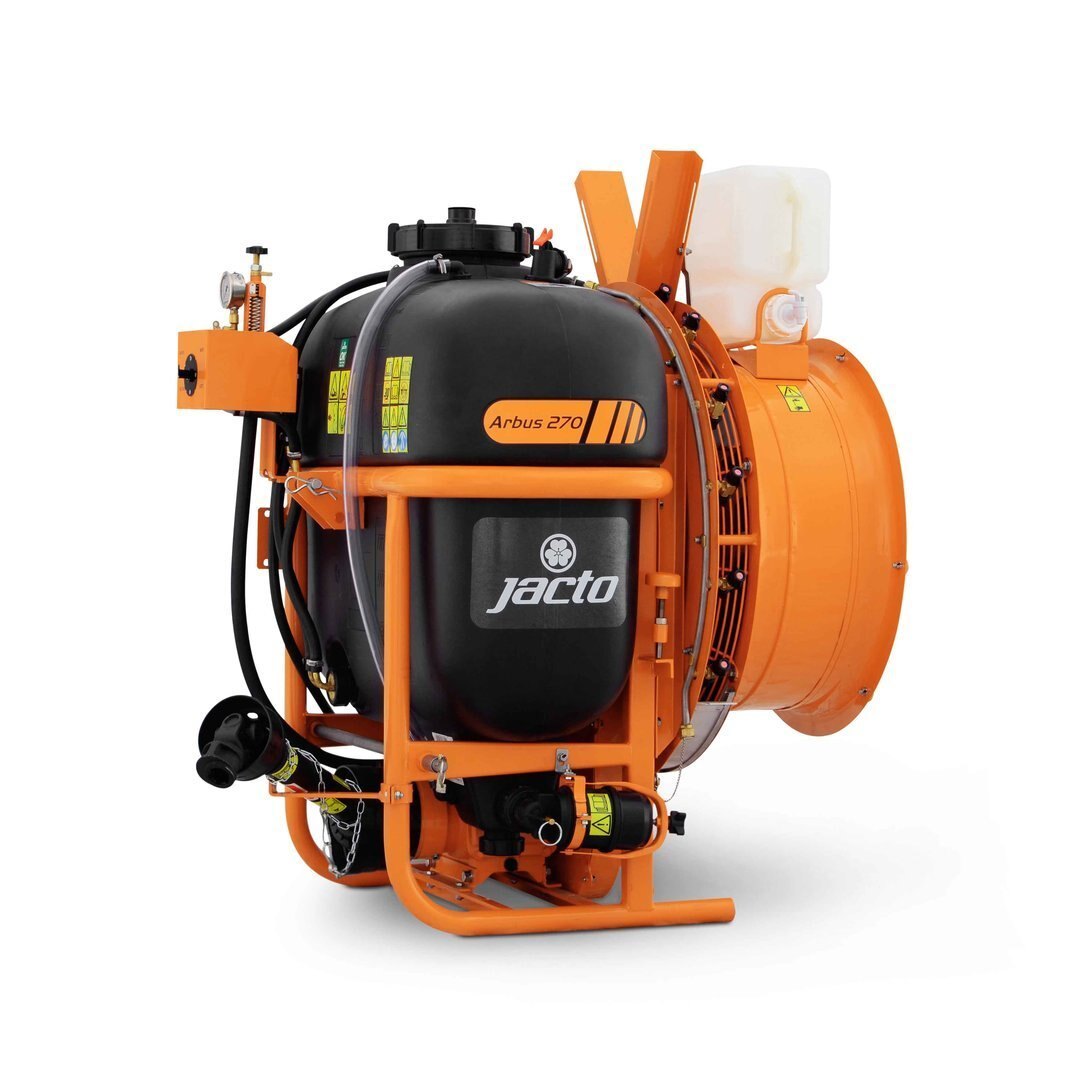

Jacto A 270Jacto's Arbus 270 has approximately 20% more capacity and fan performance over our smaller A200 and will give you excellent coverage at a very competitive price. It's components are light and chemical resistant; a thick wall high density polyethylene tank, stainless steel nozzle branches, flip over nozzle holders and ceramic nozzles, a single three way control valve with regulator, bypass with venturi agitation and Jacto ceramic cylinder piston pump are just some of the standard features.

It can be mounted on compact tractors as small as 22 HP to spray a wide variety of crops such as; blueberries, apples, pears, cherries, grapes, plums, vegetable crops, nursery stock, nut trees and Christmas trees.
Specifications
Model
A 270
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
features

Features

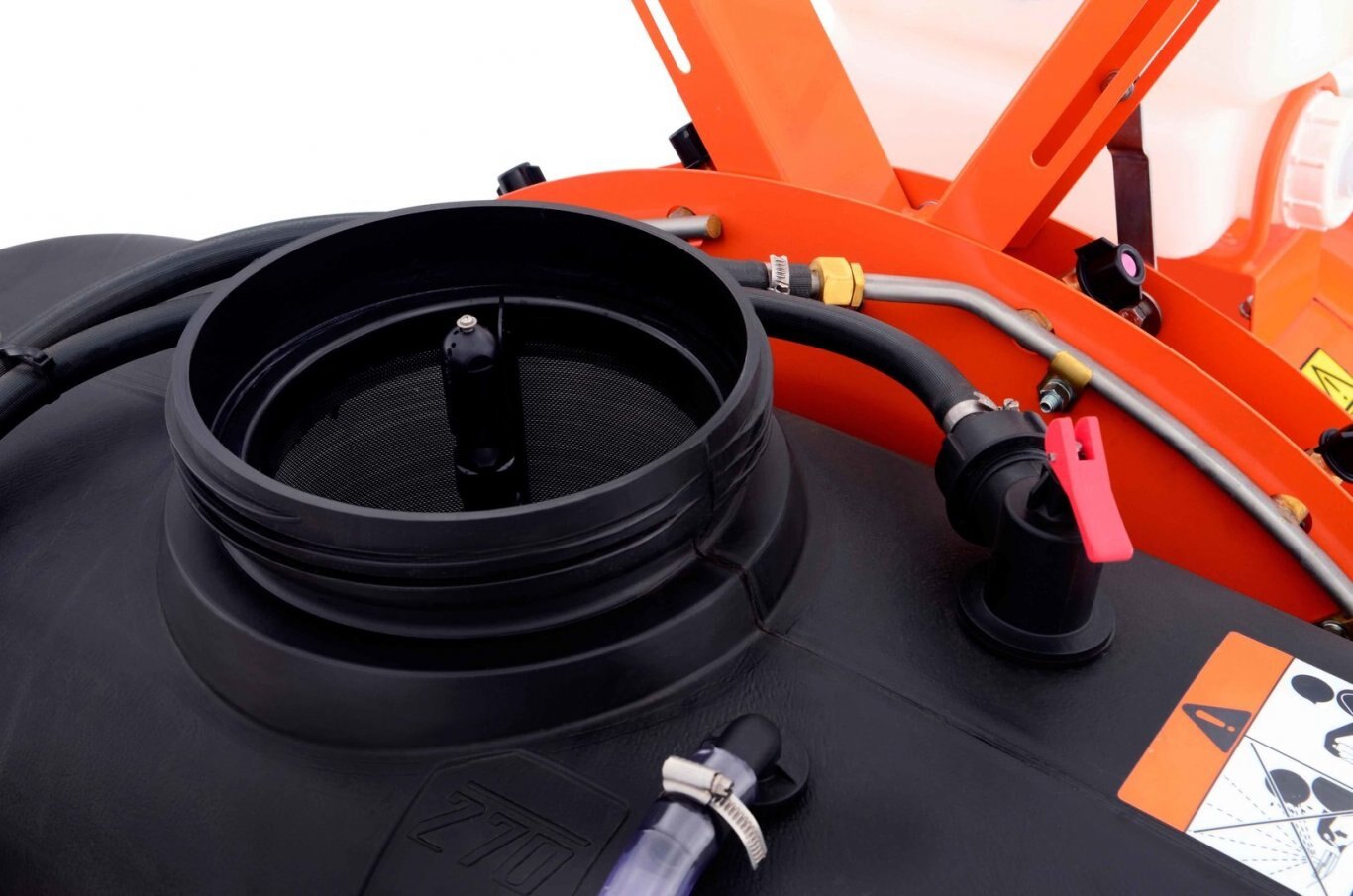

• 70 gallon poly tank

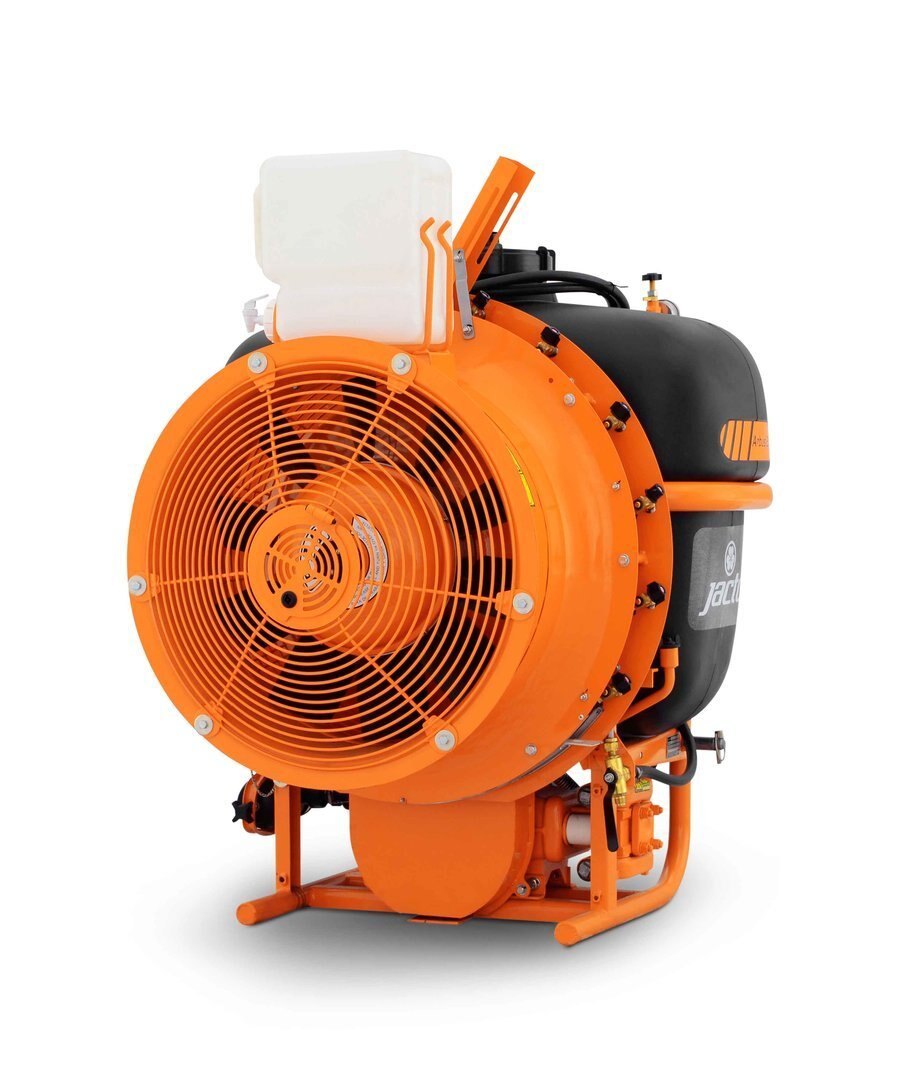

• 24 inch diameter fan

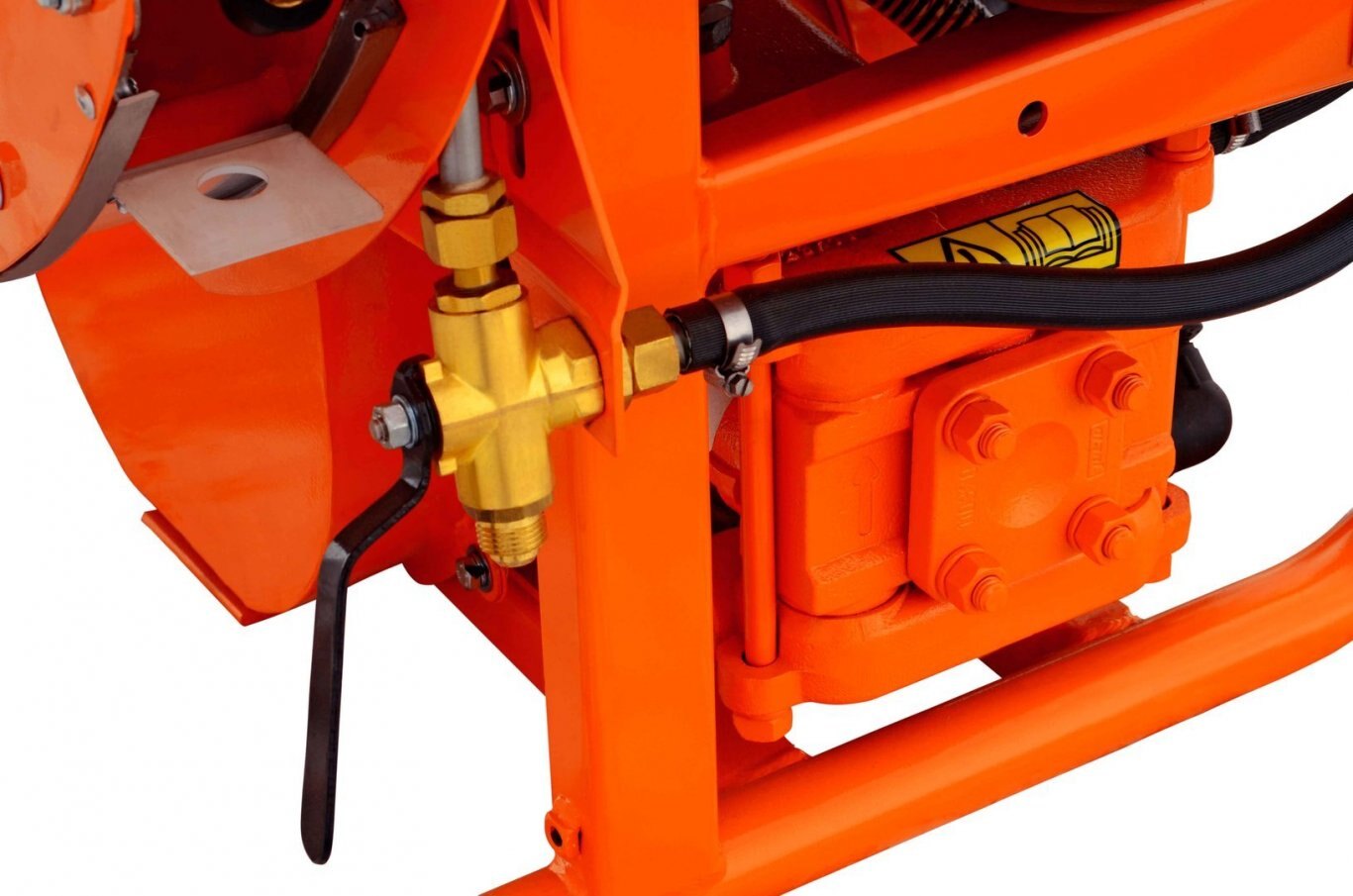

• Jacto JP50 piston pump – 13 gpm, @ up to 300 psi

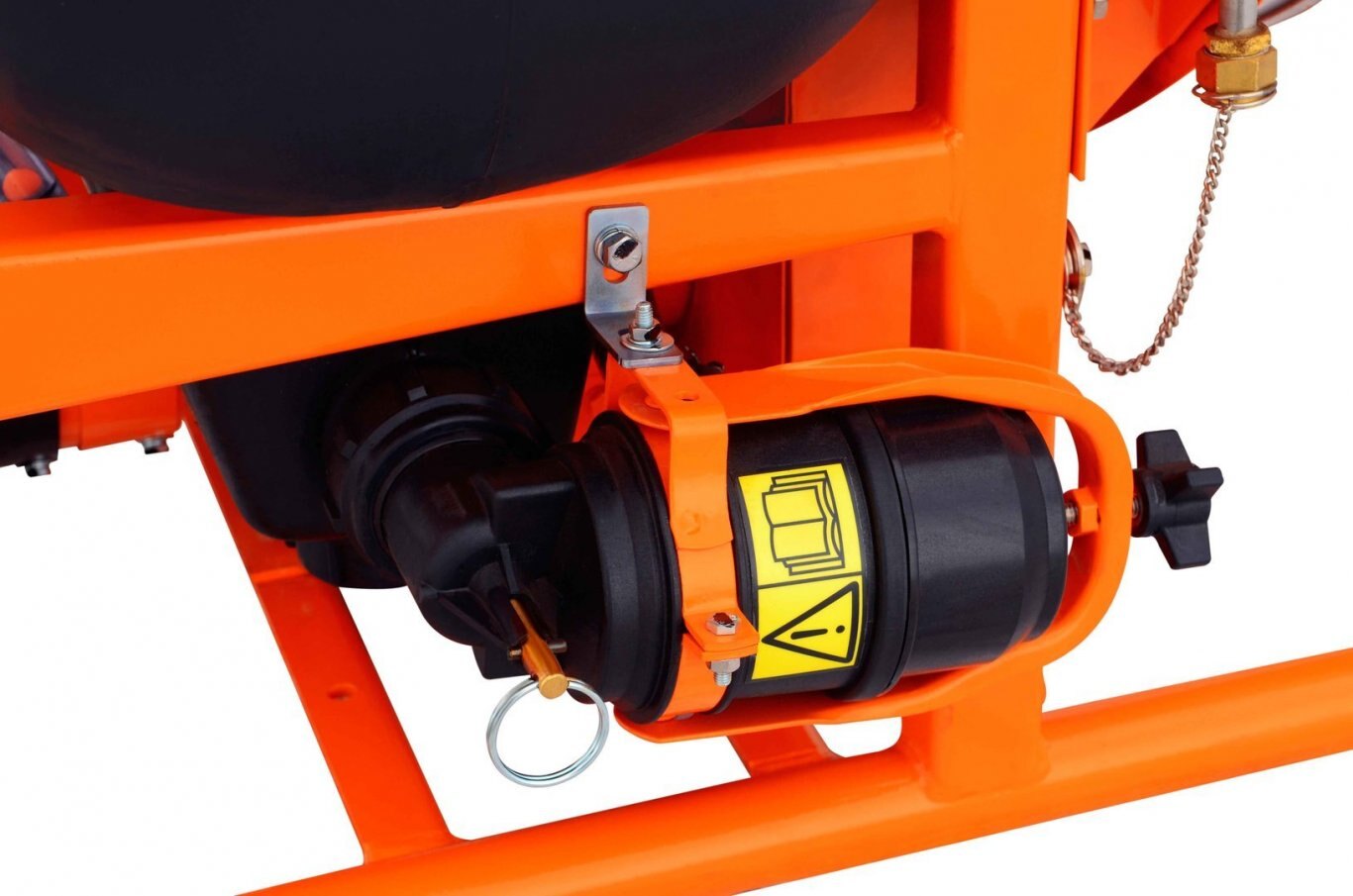

• Suction filter with shutoff and washable 60 mesh element

• Manual spray controls standard
• Chemical container rinse system
• 4 gallon freshwater hand wash/eye wash tank
• Plumbed for optional hand spray guns
• Fan disconnect, important for continuious agitation when travelling to spray site
• Hydraulic agitation
• 10 double flip-over nozzle holders with ceramic nozzles and nozzle screens
• Empty weight – 374 lbs
• Recommended tractor – 22 HP and above
• Optional electric valve kit #ELKIT2A

Jacto A 270 Optional Electric on/off Control Valves

This kit consists of two high pressure valves, one for each nozzle branch, an in-cab controller and all the hardware for installation. For operators with cab tractors this optional kit allows for easy operation of the sprayer without having to open the cab window.
resources
Operators Manual                     Download
Illustrated Parts List                  Download



spraying
Mesh
60 mesh
Weight
399 Lbs
Material
Polyethylene
Agitation
Hydraulic With Venturi
Rotation
2,000 rpm
Air Speed
83 mph
Air Volume
14,493 cfm
FAN / Model
24 Inches
PUMP / Model
JP-50
TANK / Capacity
70 Gallons
Pumping Capacity
13 gpm
Fan Power Consumption
8.7 hp
CHEMICAL FILTER / Model
FVS 100
Length X Width X Height
39 x 41 x 45 Inches
Maximum Working Pressure
300 psi
Recommended Tractor Size
1 to 4 mph
Fresh Water Tank / Capacity
4 Gallons
Minimum Recommended Tractor
22 hp and above
