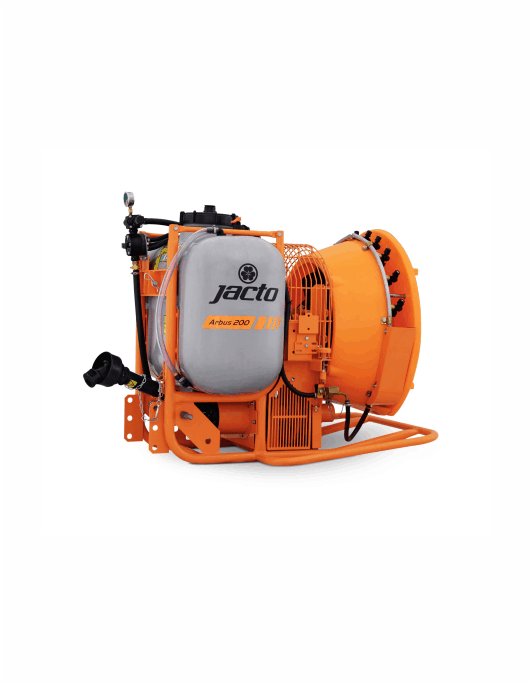

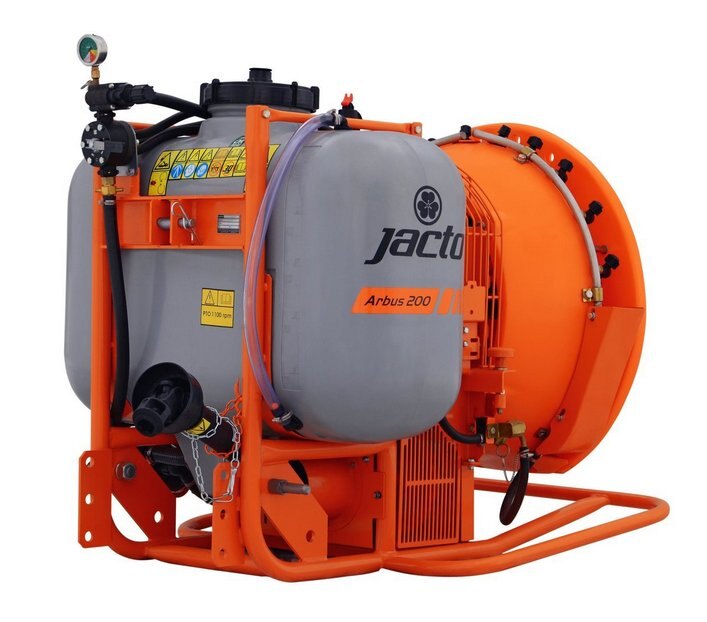

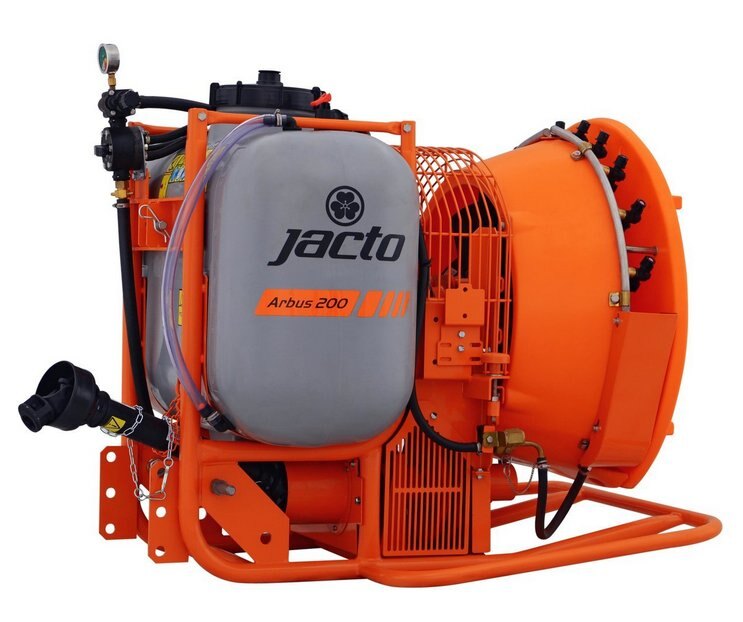

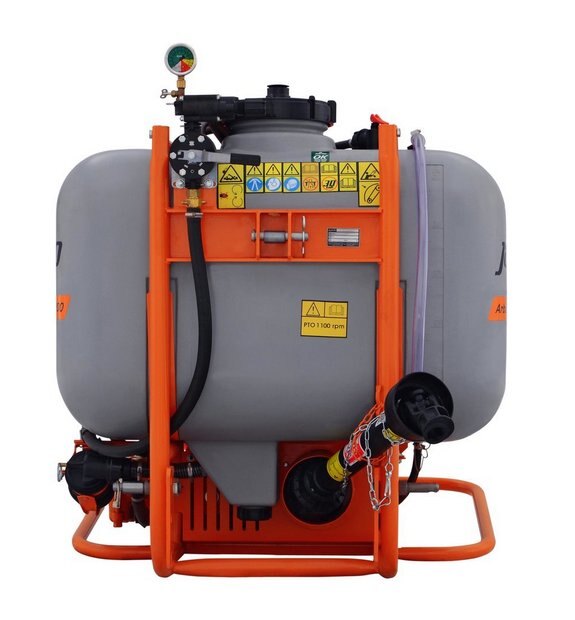

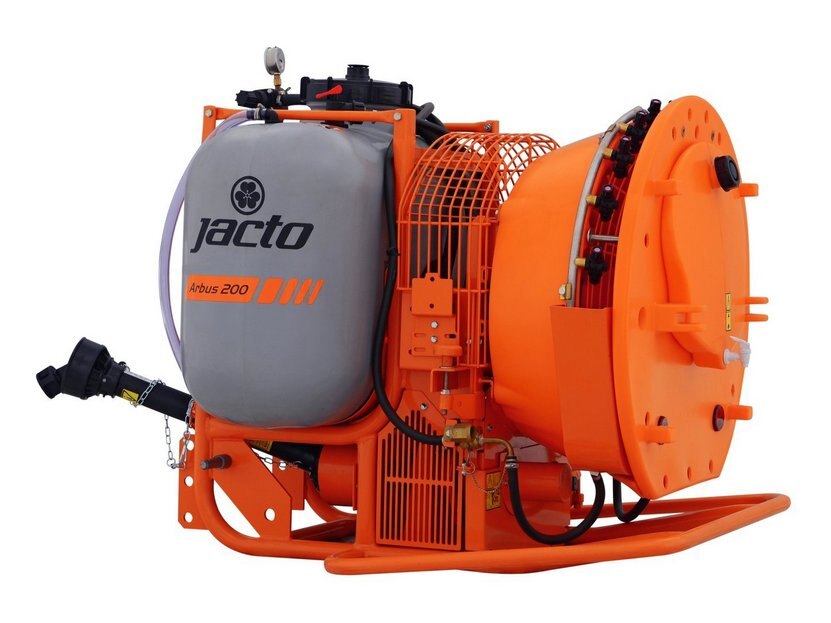

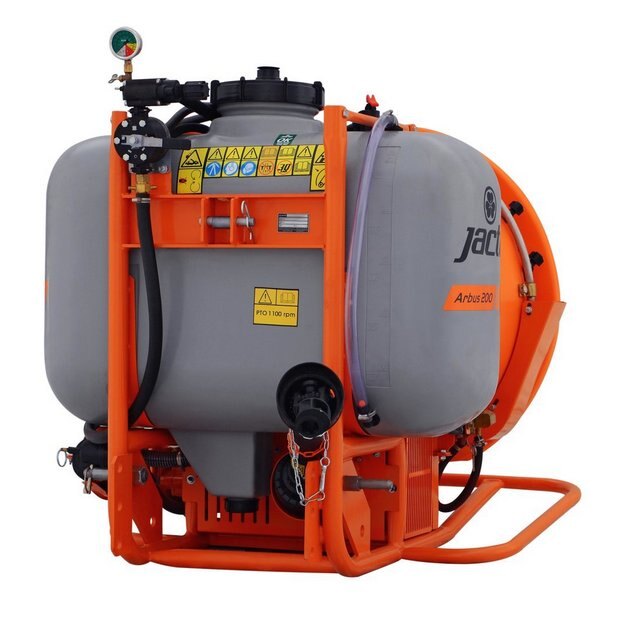

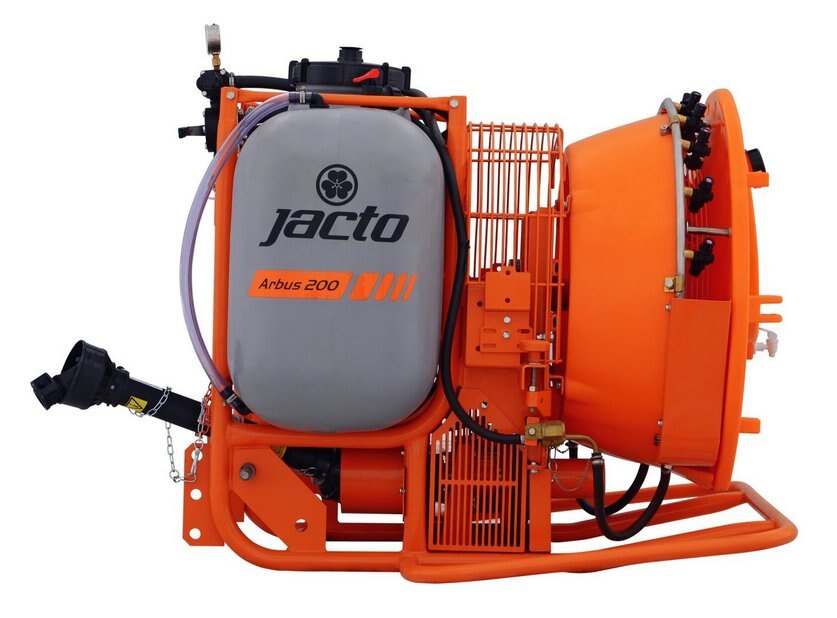

Features

• 50 gallon poly tank
• 22 inch diameter fan
• Jacto JP42 piston pump – 11 gpm, @ up to 300 psi

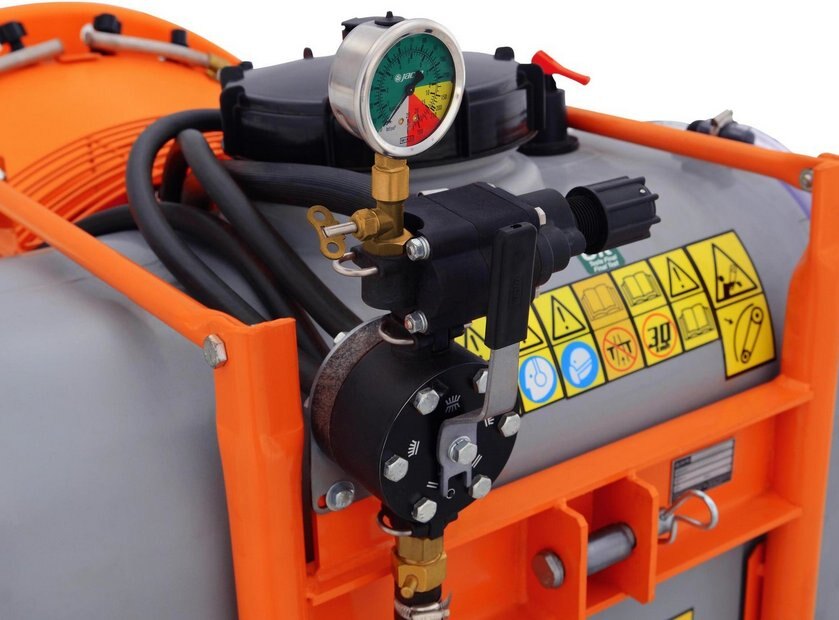

• 4-way manual control valve
• Chemical container and 4 gallon fresh water hand rinse systems
• Fresh water tank is removable and can double as a manual main tank rinse aid
• Plumbed for optional hand spray guns, fitting and handgun sold separately
• Fan disconnect, important for agitation when traveling to the field or handgun spraying
• Bypass agitation
• 16 double flip-over ceramic nozzles with washable nozzle screens

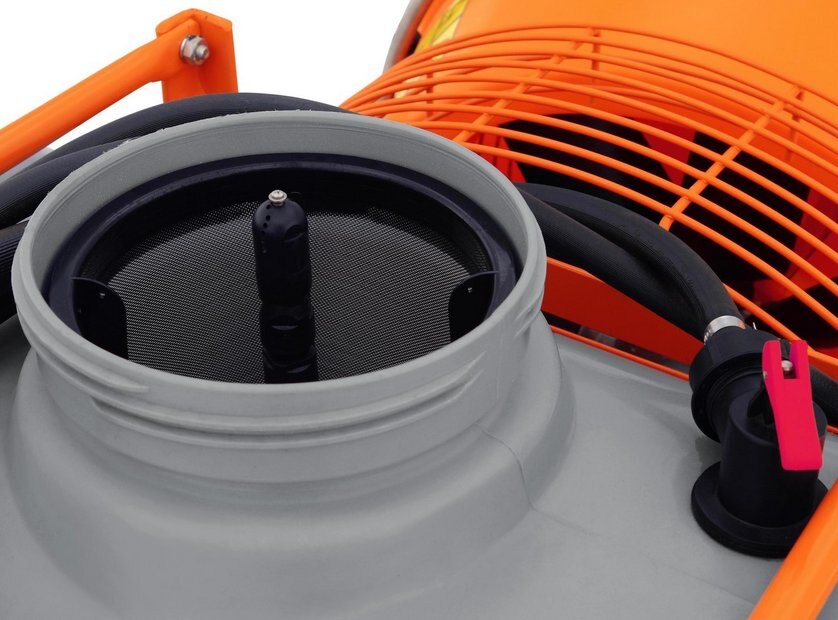

• Suction filter with shutoff and washable mesh element
• Heavy duty up swept skid frame protects the pump and fan
• Empty weight – 374 lbs
• Recommended tractor – 18 HP and above
• Optional Mini-Tower available #1197701
• Optional Electric valve kit available - #ELKIT200
• Optional handgun fitting, #086447 + #706792 o-ring

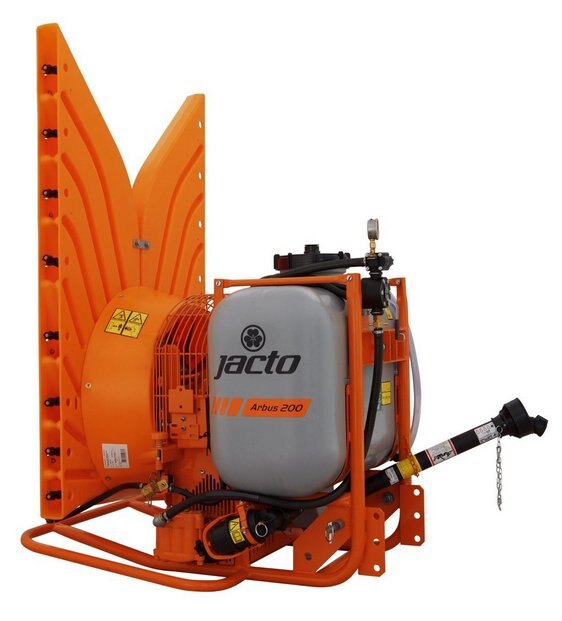

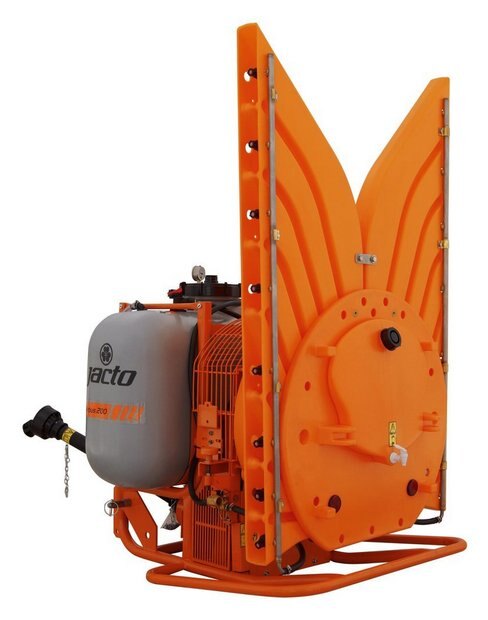

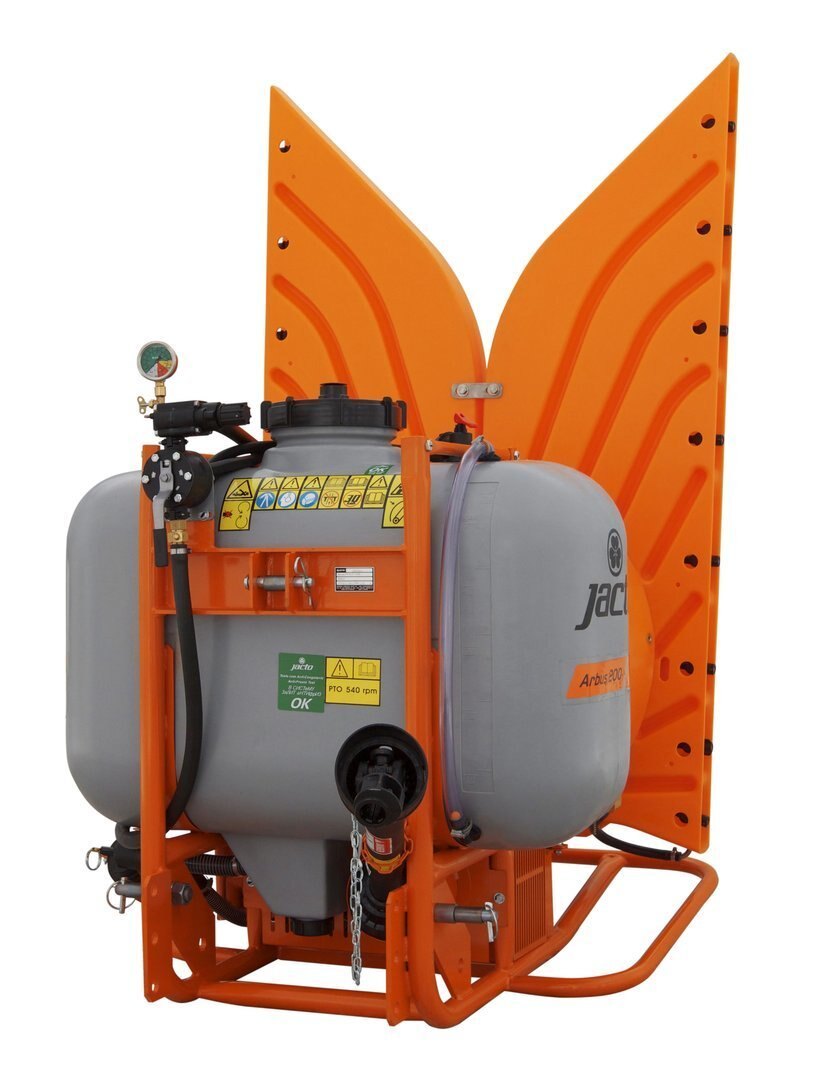

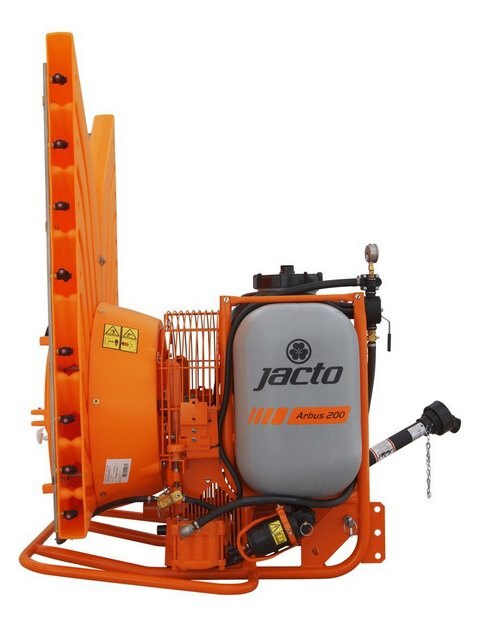

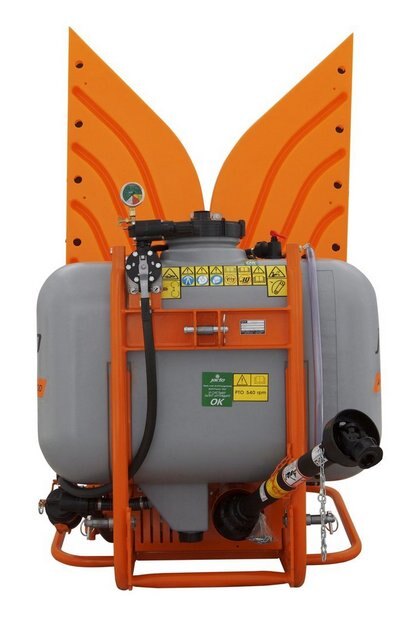

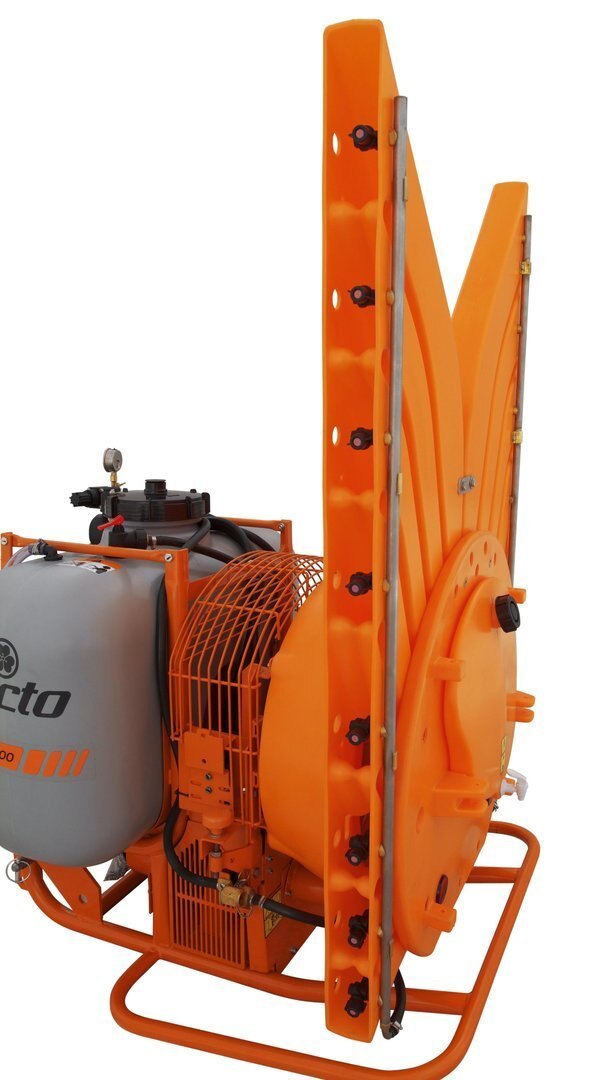

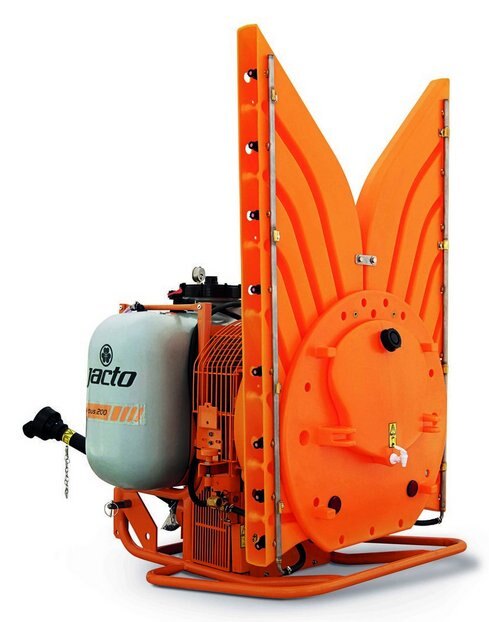

Optional A200 MINITOWER

The optional minitower directs the air flow evenly from top to bottom and more efficiently delivers the spray material to the target. This changes the spray pattern from a circle to a vertical pattern, more evenly matching the crop to the plant canopy. It also brings the nozzles closer to the plants, reducing the distance the droplets have to travel to reach the target and minimizes drift factors. These features provide better spray deposition and coverage.
Our minitower has been a very popular option for growers in vertically grown crops such as grapes, blackberries, raspberries, spindle orchards and many other tall crops up to approximately 12 feet.
The optional minitower can be easily added to any new or existing A200 in about one hour.

Optional Electric on/off Control Valves

This kit consists of two high pressure valves, one for each nozzle branch, an in-cab controller and all the hardware for installation. For operators with cab tractors this optional kit allows for easy operation of the sprayer without having to open the cab window.
