Jacto

ID # 24548956

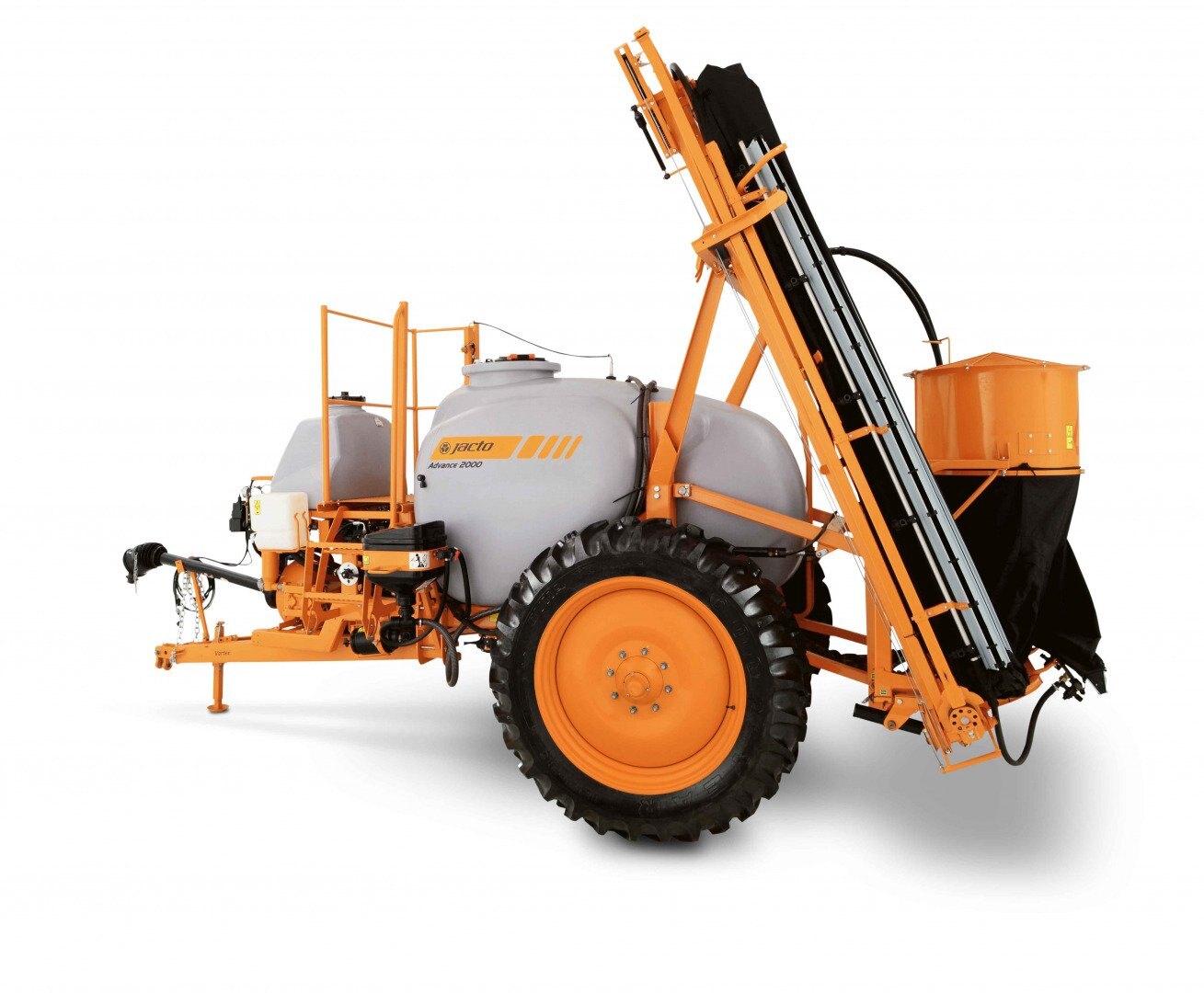

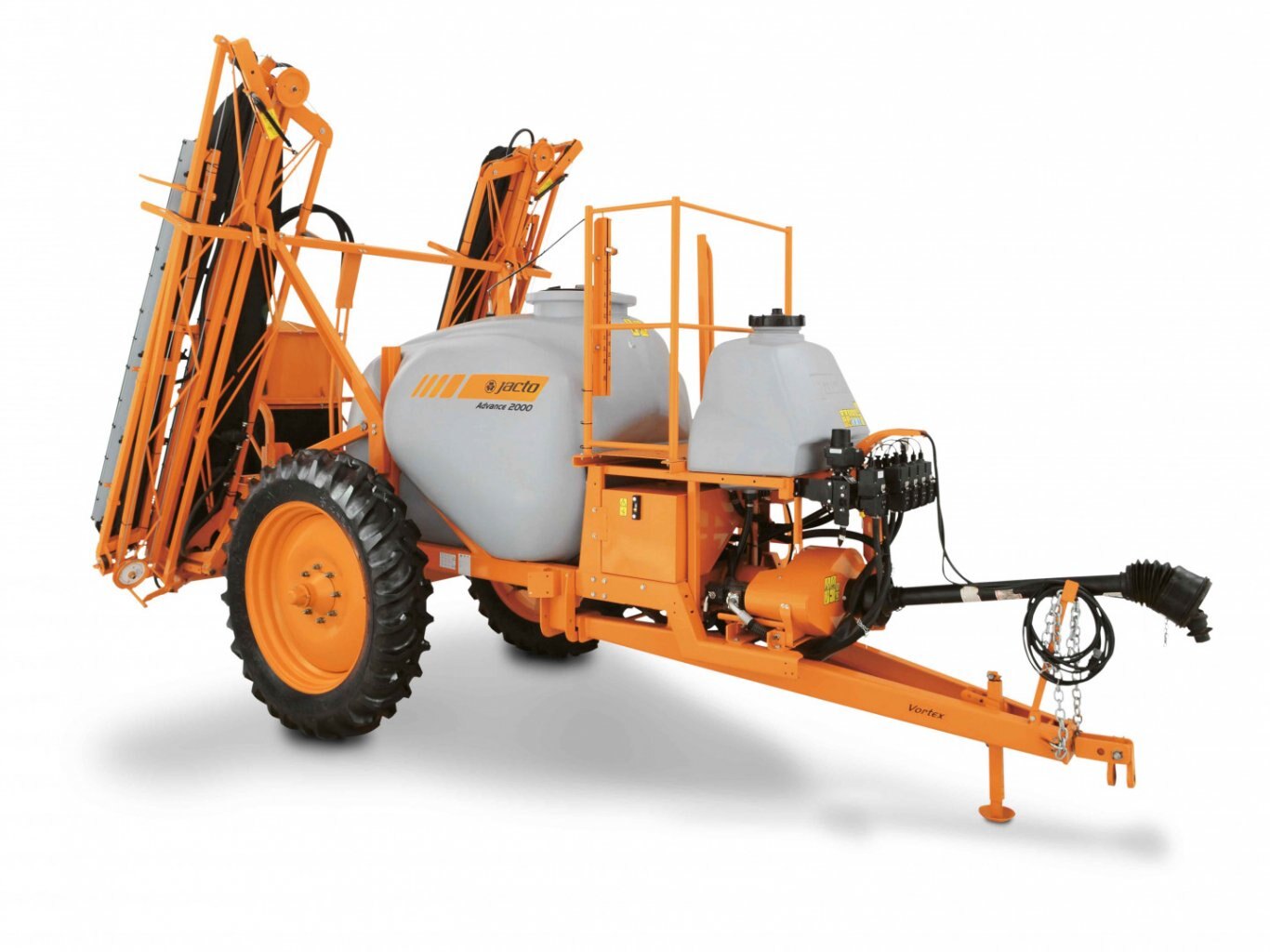

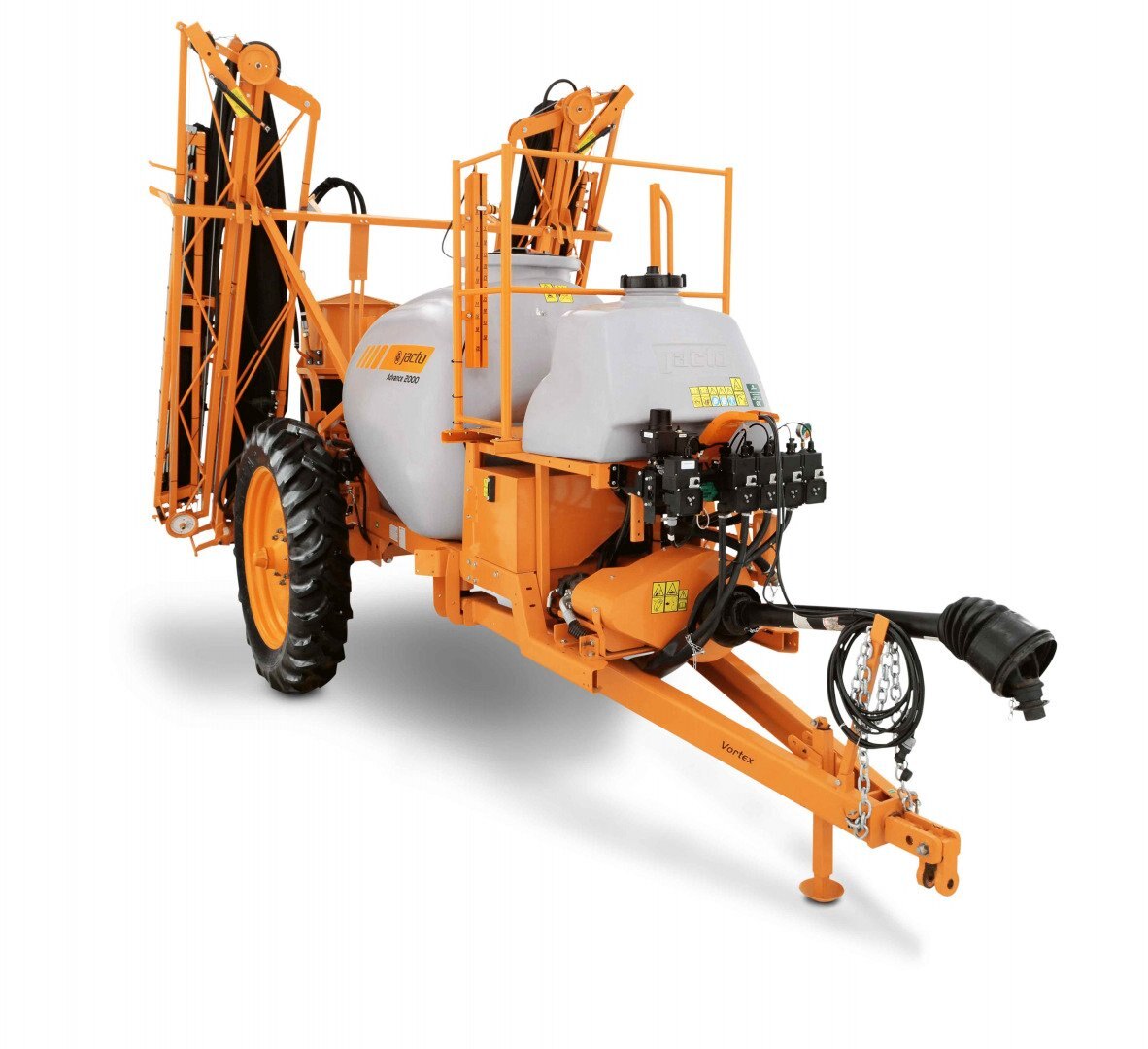

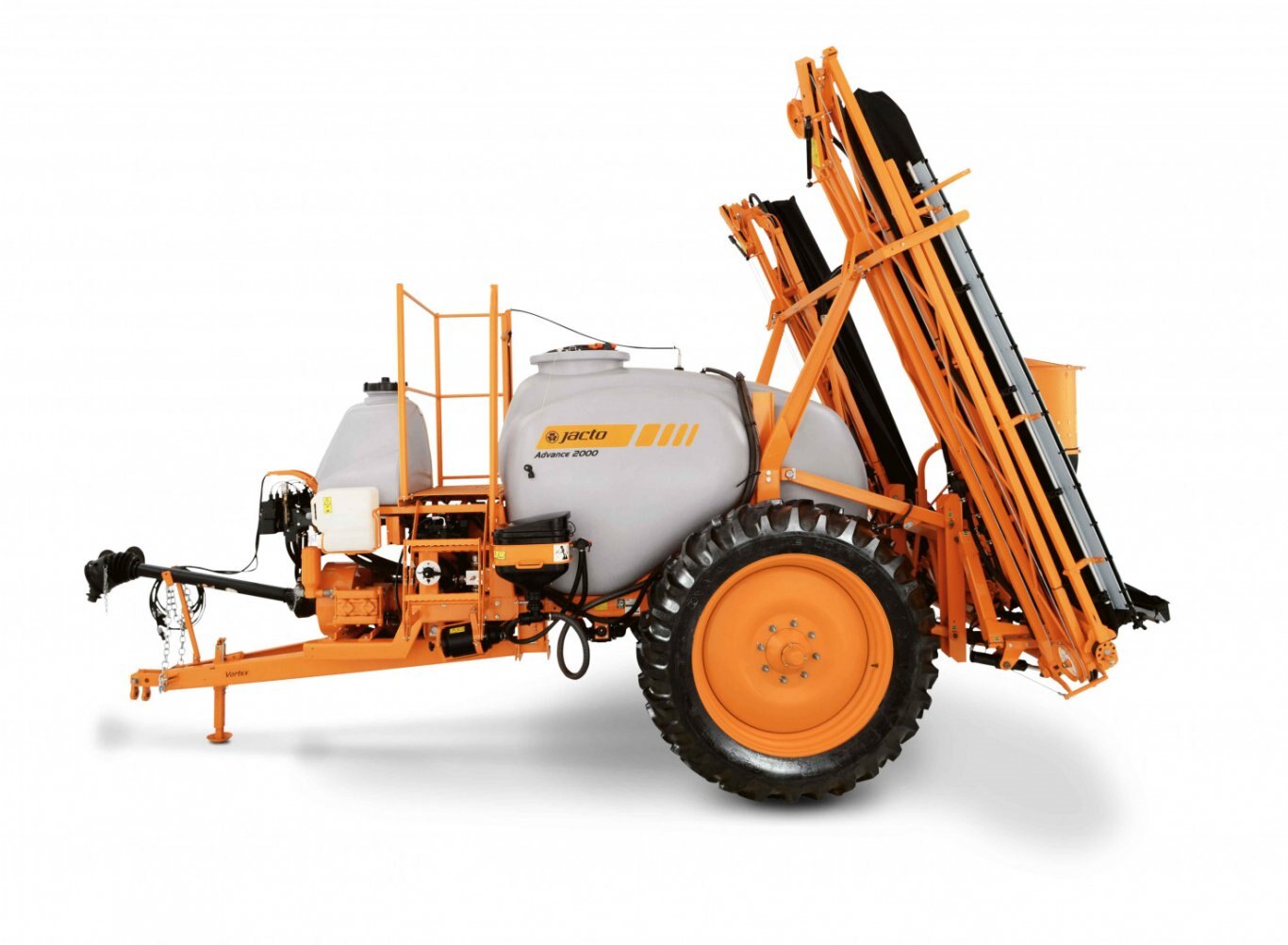

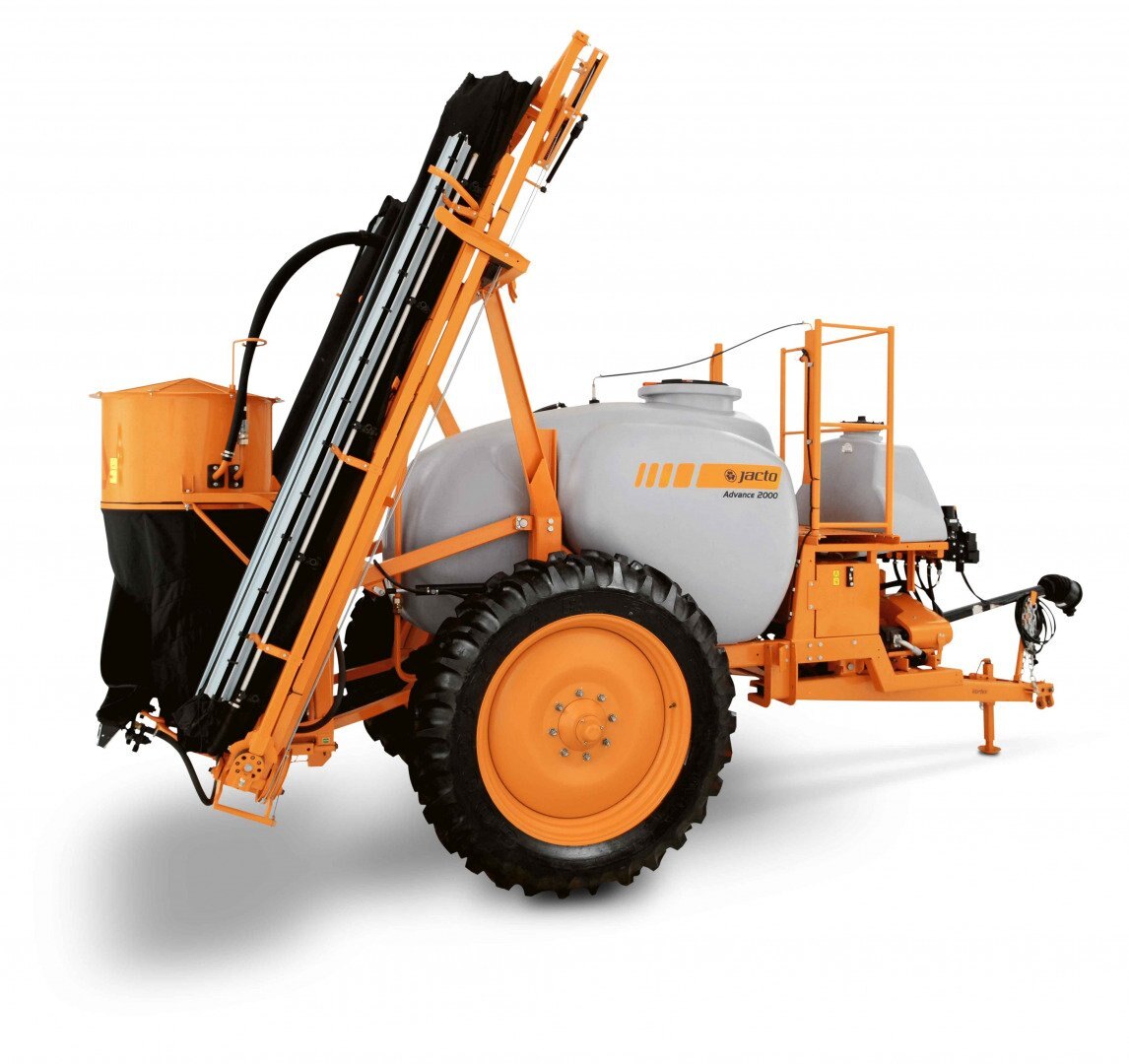

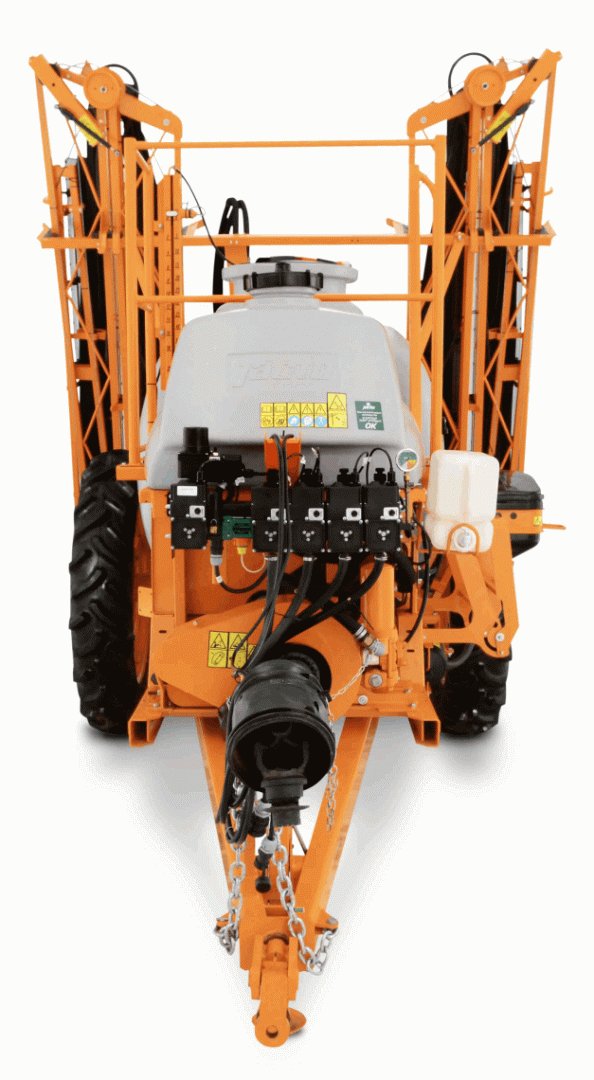

Jacto - Advance 3000 AM 18 Vortex

Call for Price
Overview

Higher daily production with

excellent cost benefit

The wind does not interrupt the work

The drift reduction avoids the interruption of work on stronger wind days.

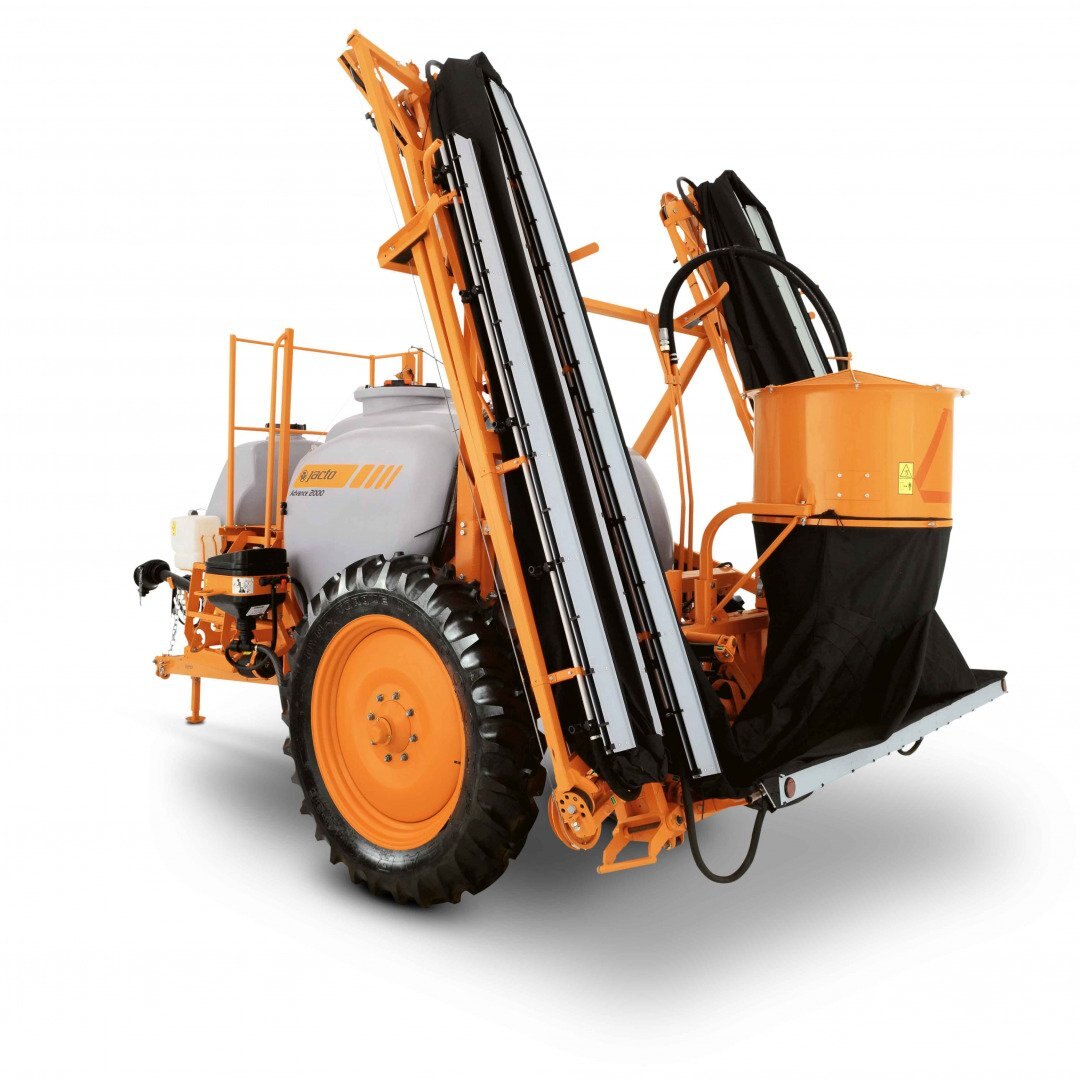

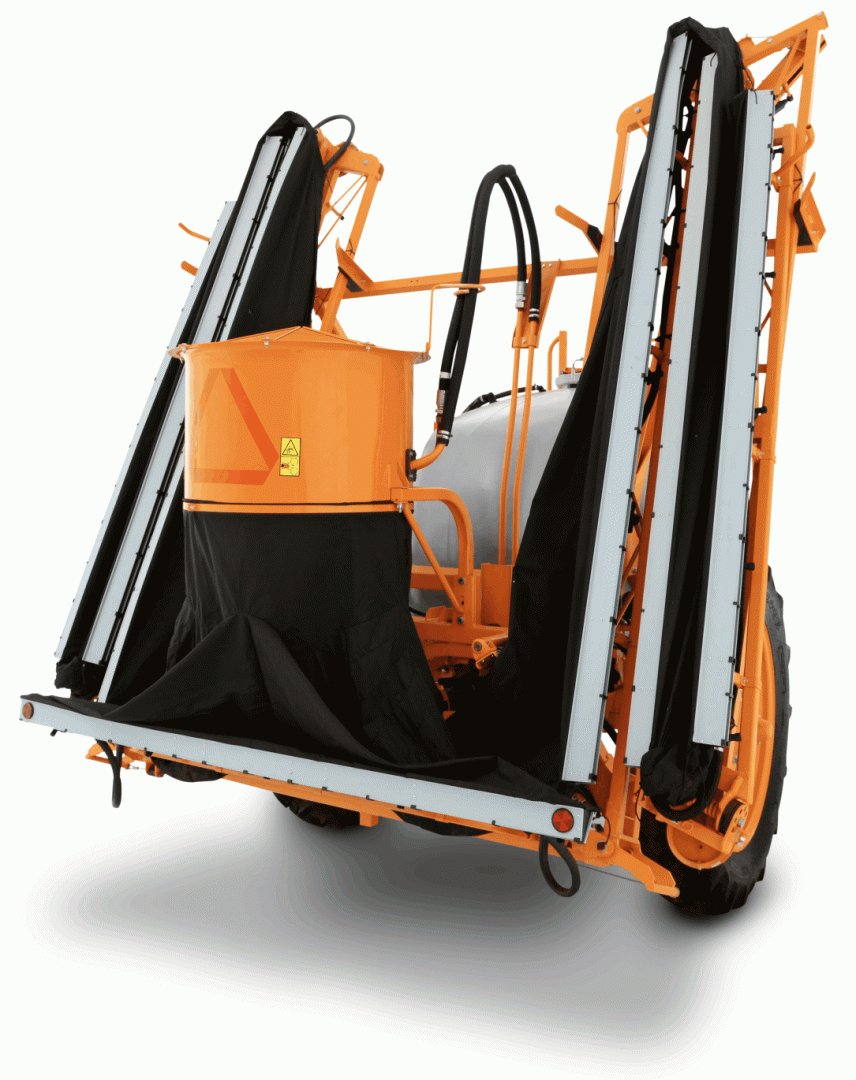

Jacto Advance 3000 AM 18 Vortex Better penetration and coverage in the plant

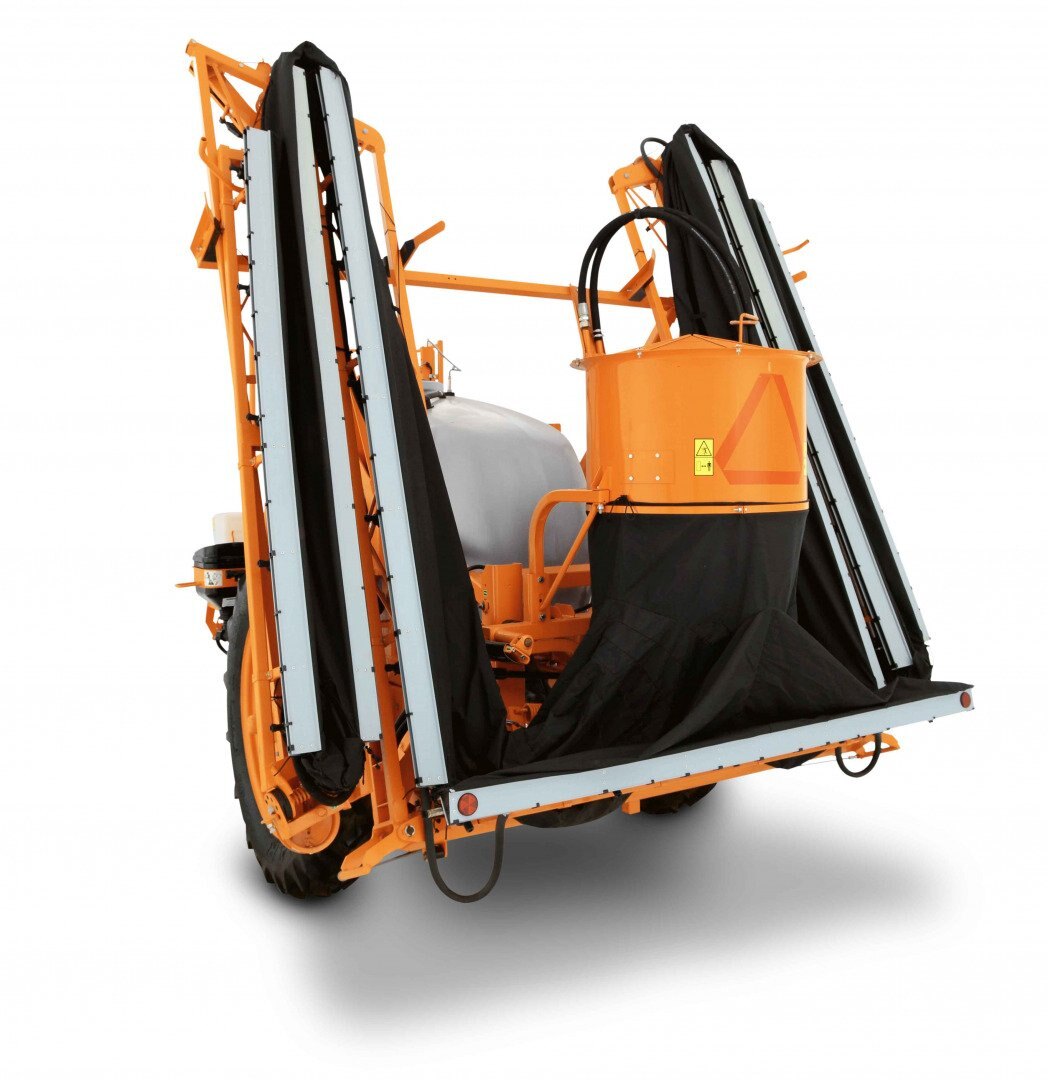

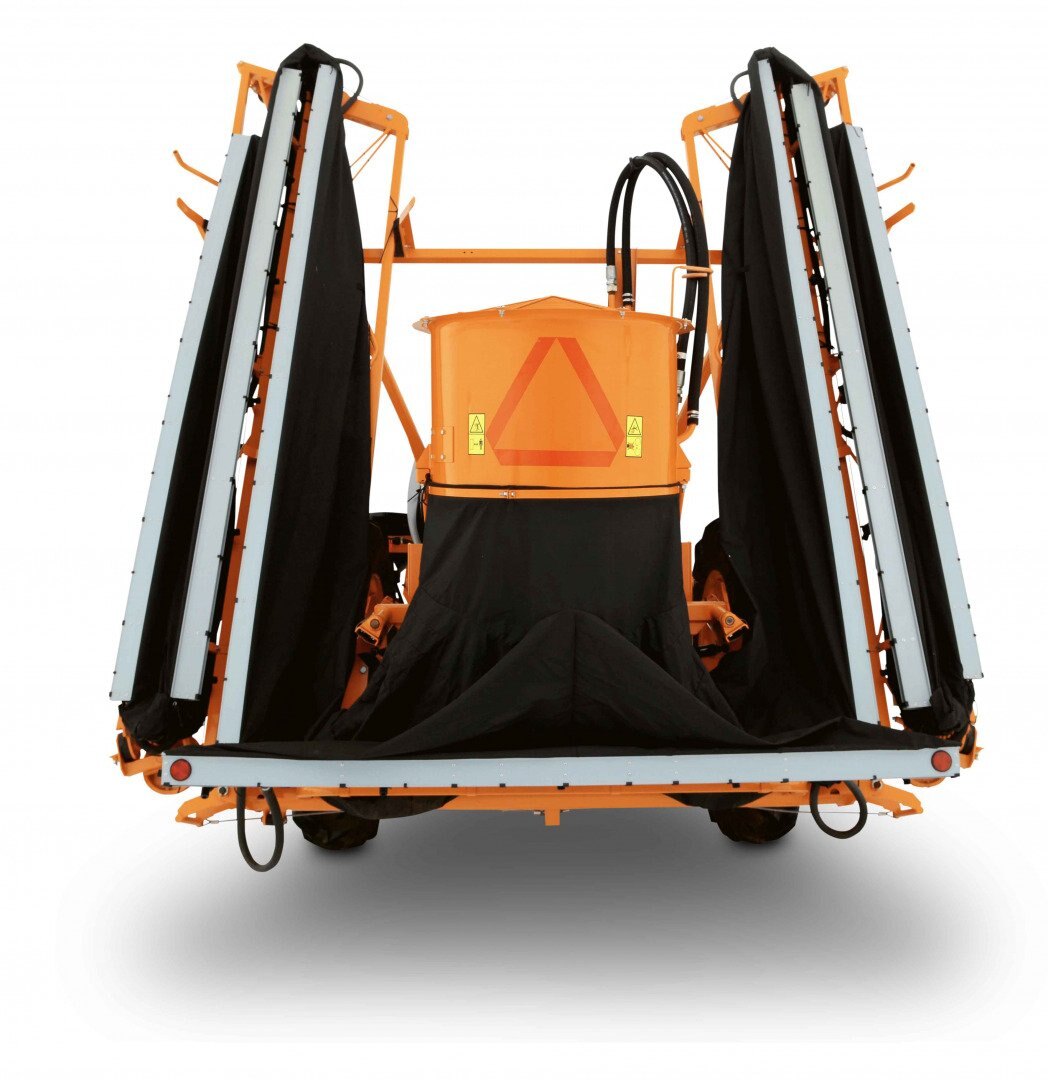

The air of boom in Advance vortex , in addition to improving the penetration of the pesticide inside the plantation, produces excellent coverage, even on the underside of the leaf.

Jacto Advance 3000 AM 18 Vortex High Resistance and Practicality

792 gal Polyethylene Tank

It allows long working hours. Made of corrosion resistant polyethylene, easy to clean and modern design.

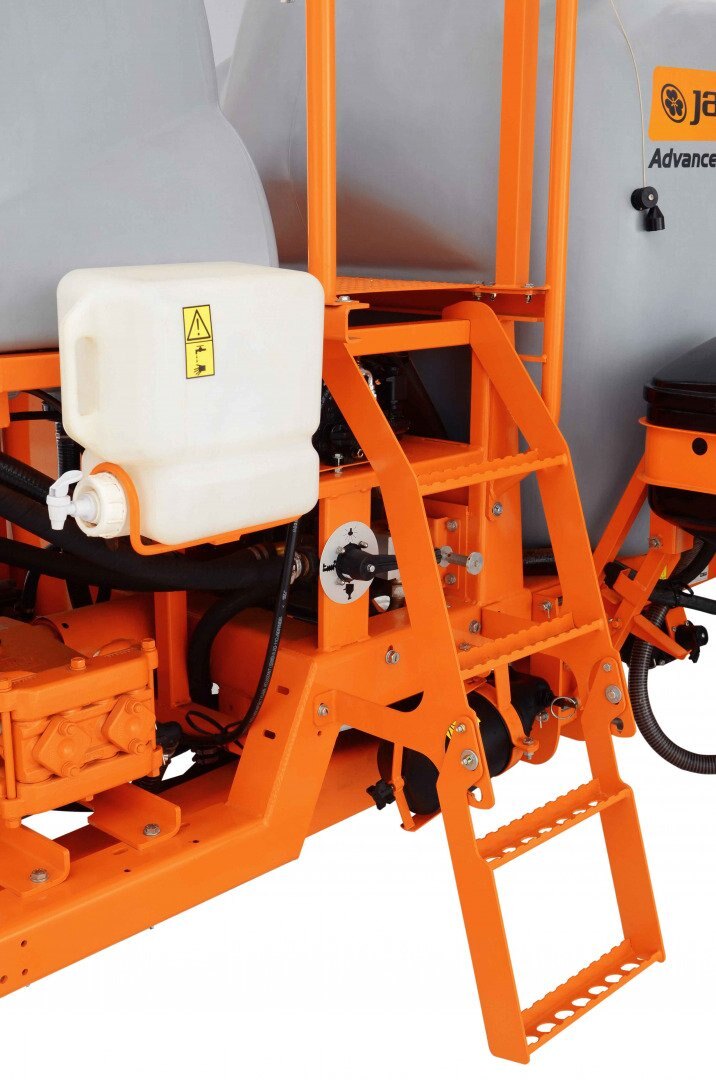

52 gal water tank for cleaning

To wash the spray circuit (filter, pump, spray control, hoses, pipes and nozzles) and chemical product packaging.

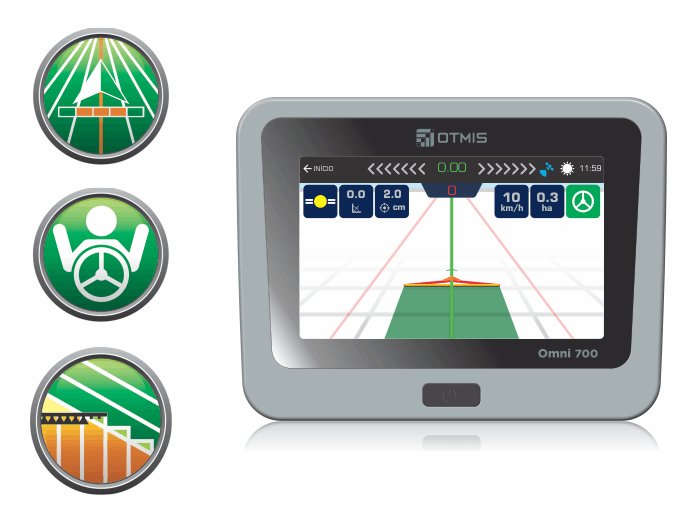

Jacto Advance 3000 AM 18 Vortex Precision Agriculture

Complete spraying guidance and control system by GPS, consisting of

lightbar, electric pilot and automatic section controller,


Lightbar

Indicates to the operator the direction to follow in the crop, records application maps, measures areas and it's conected

with the electric pilot and automatic section controller.

Electric Pilot

Automatically directs the equipment, assists in spraying, allows the operator to be more attentive to the others functions of the equipment.

Automatic section controller

Automatic opening and closing system for spray boom section. minimizes flaws and overlaps in the application, provides savings on agrochemicals and less environmental impact.

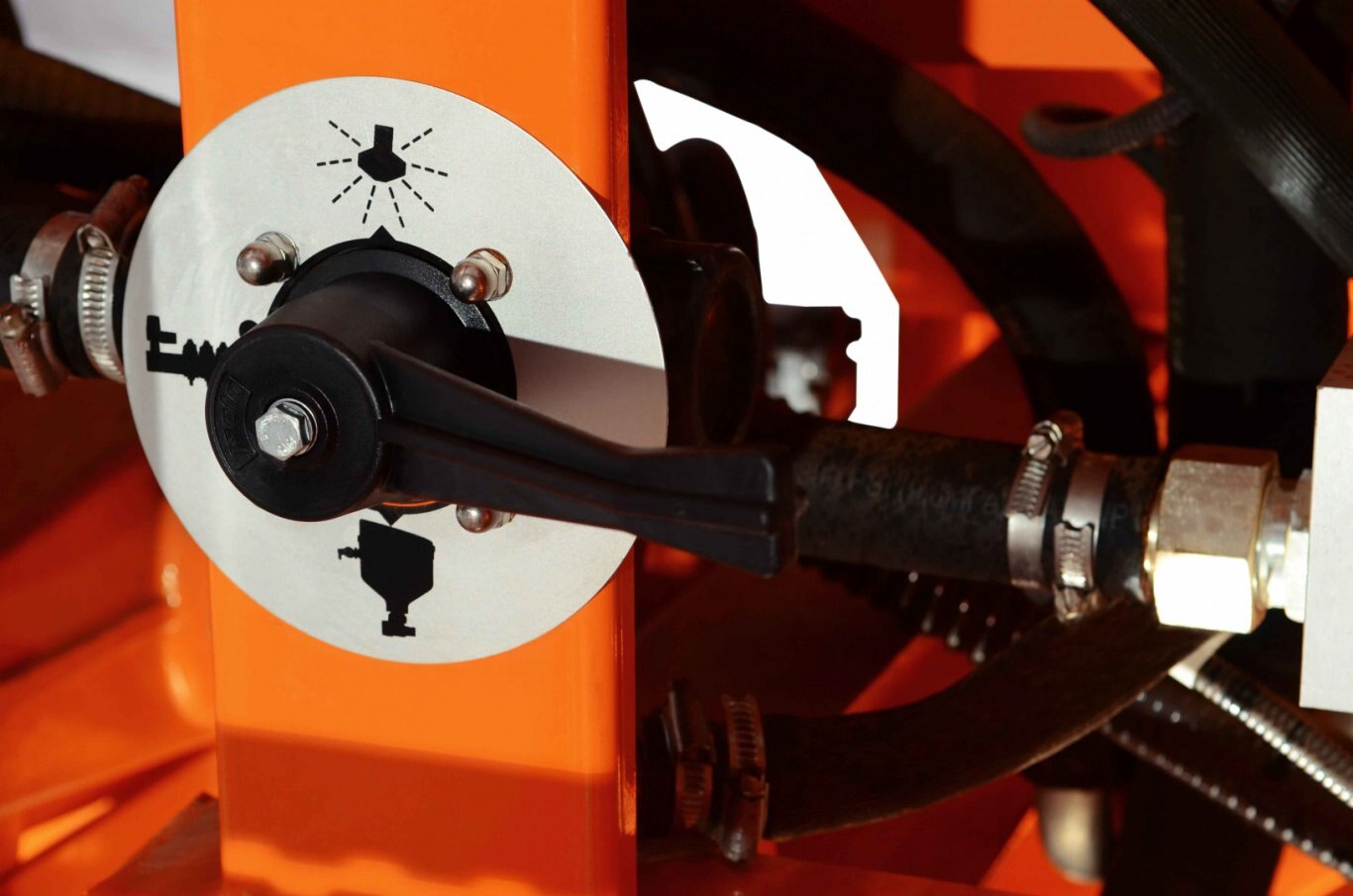

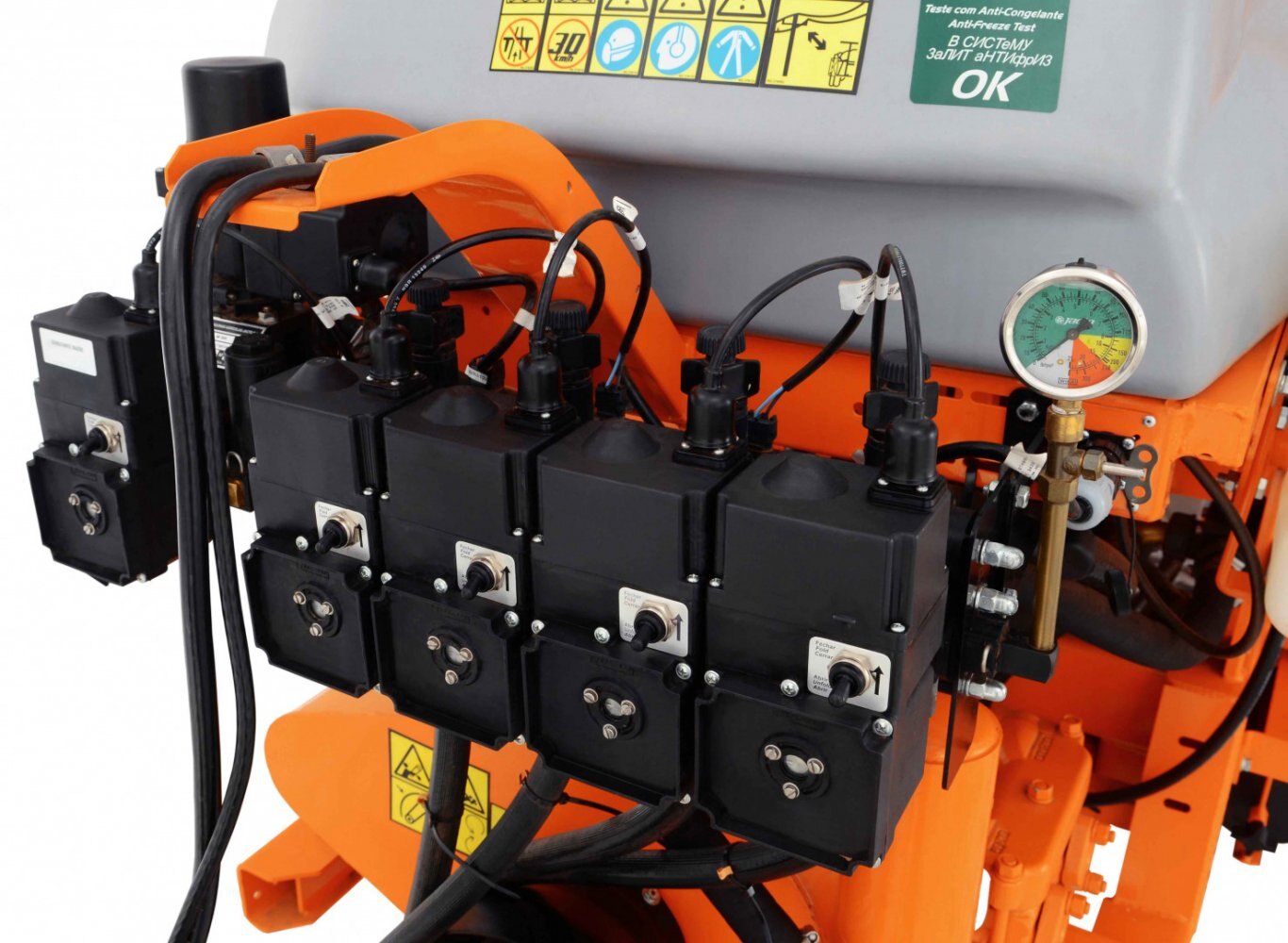

Jacto Advance 3000 AM 18 Vortex Pressure in the Right Measure

For better spray control, the Advance Line has several options for spray commands and boom activation. The farmer can choose between the masterflow manual, masterflow cable, masterflow eletric and masterflow eletronic commands.
Specifications
Model
Advance 3000 AM 18 Vortex
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                                   Download



spraying
Crop

Cereals

Fruits

Vegetables Sugar Cane Flowers
Tank

Capacity

792 gal

Material

Polyethylene

Chemical Solution Agitation

Mechanical

Spray pump

Model

JP-100 / JP-150

Type

Piston

Maximum flow rate

26 / 40 gpm

Power consumption

6 hp / 11 hp

Main Filter

Model

FVS-100 / FVS-200

Filtering capacity

53 gpm / 27 gpm

Filter Mesh

60 / 24 and 40 mesh

Area size Over 1235 ac
Spray control

MF 4 ways cable

MF 4 ways electric

MF 4 ways eletronic



Trailer

Axles

Cross

Track width

5.9 ft  to 7.2 ft

Ground clearance

22 in

Tires

12.4 x 36

Clean water tank Tank Capacity

53 gal
Material

Polyethylene
Precision Agriculture GPS - Lightbar Automatic section controller Electric autopilot GPS signal conrrections
Dimensions

Length

18.7 ft

Width

9.8 ft

Height

11.8 ft

Weight

Empty machine

4717 lb

Boom

Actuation

Hydraulic

Boom Working Height

1.9 ft to 5 ft

Length

59 ft

Nozzle Branch

Material

Stainless Steel

Nozzle Spacing

14 in / 20 in

Nozzle holders

Bijet / Quadrijet

Fan

Air speed

62 mph.

Air volume

388.4 cfs.

Working speed

Spraying

Until 7.4 mph.

Options available Wide-Angle to shaft Filler unit Quick coupler
