ID # 24548163

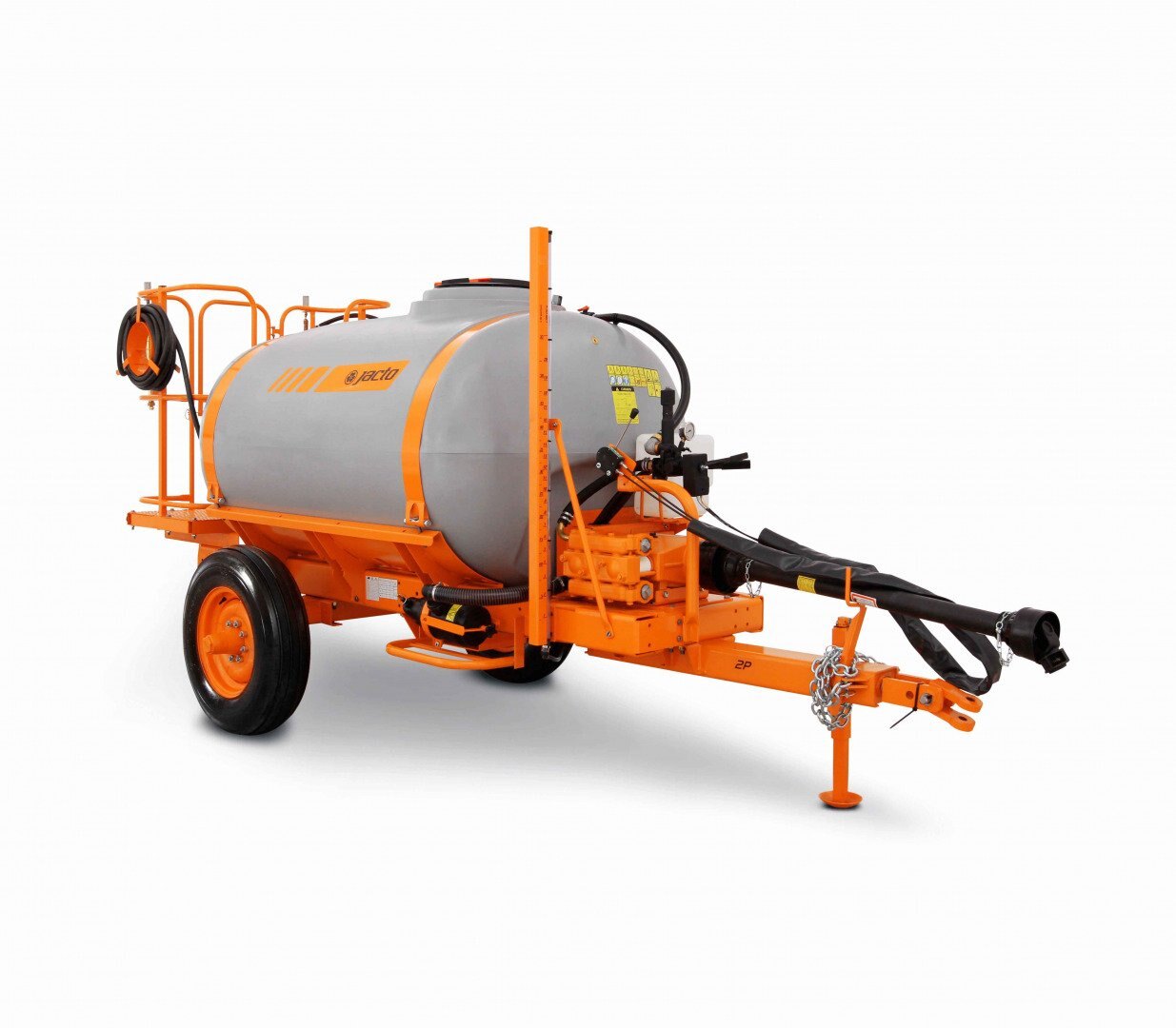

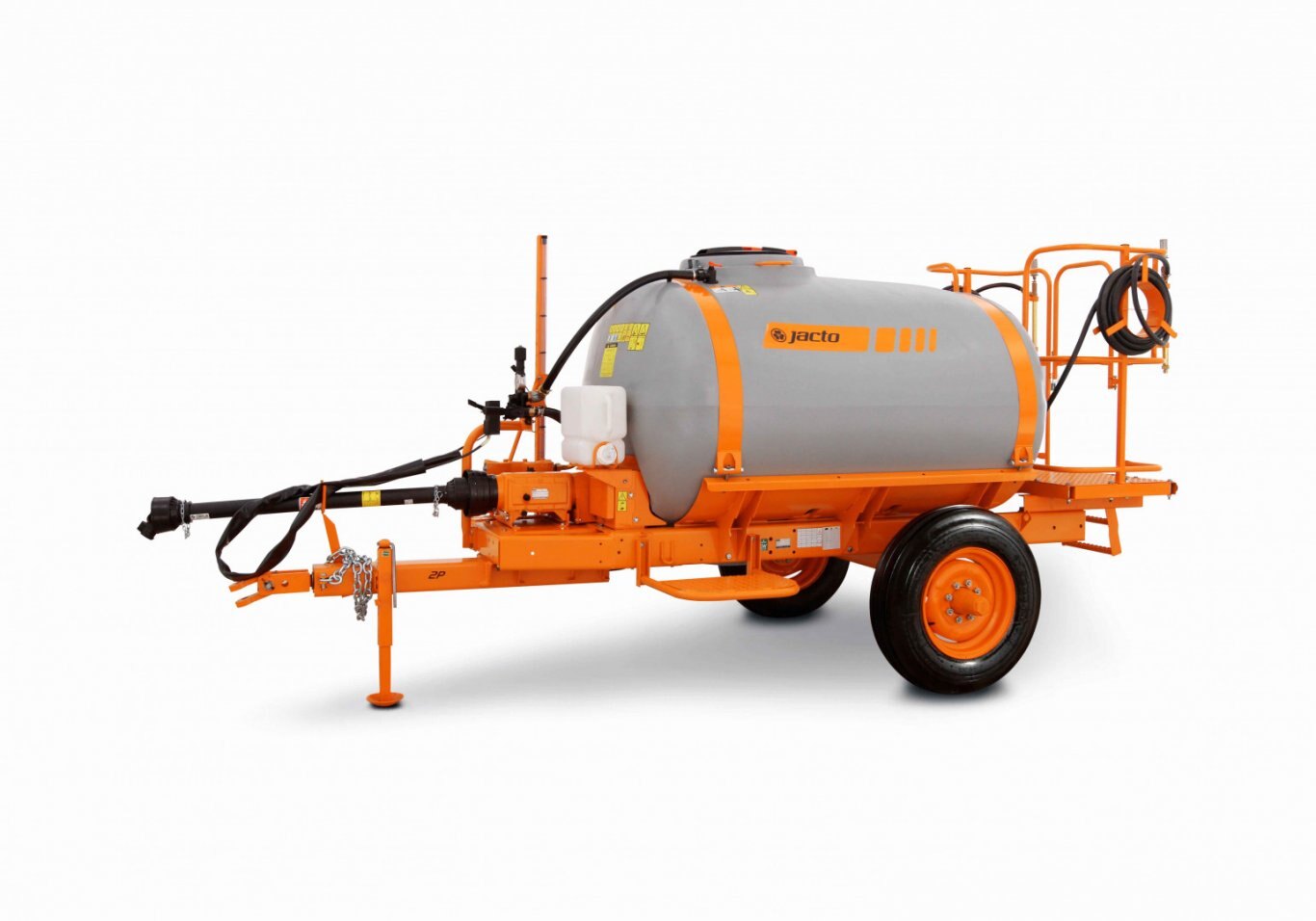

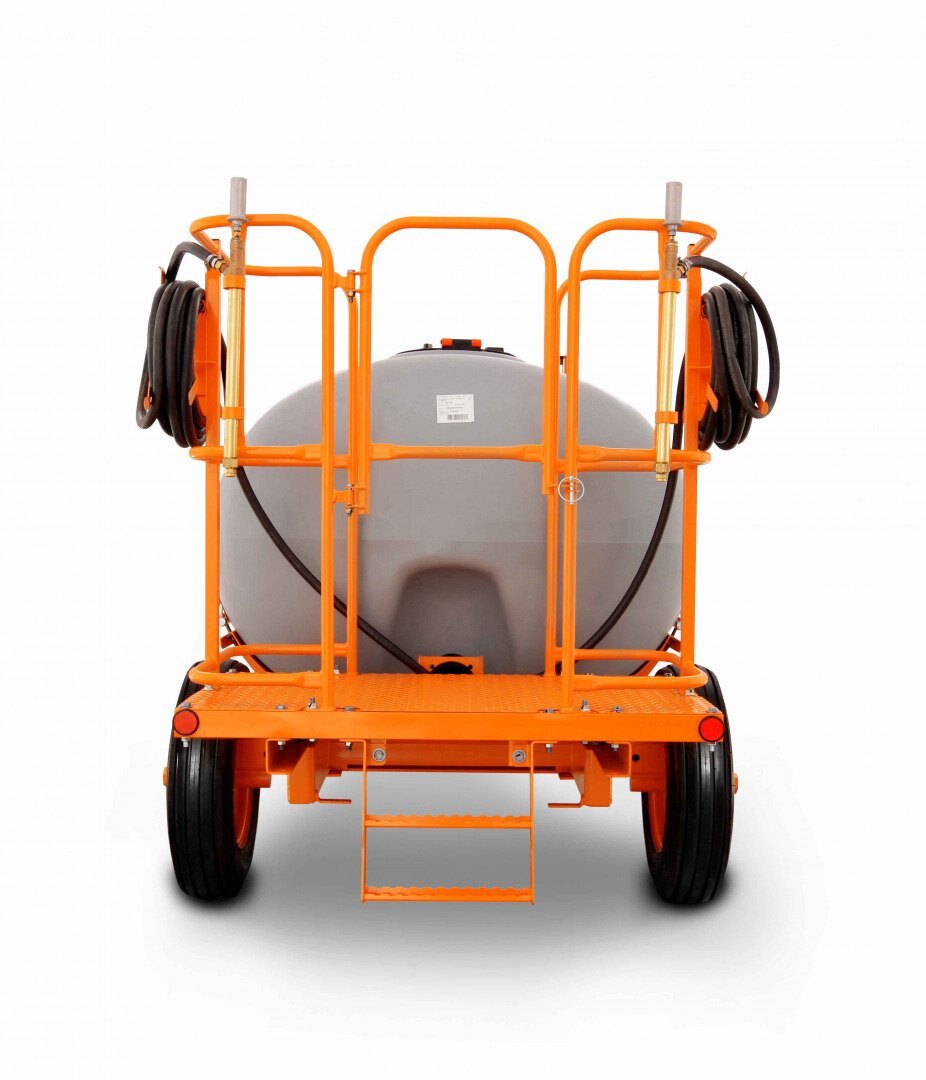

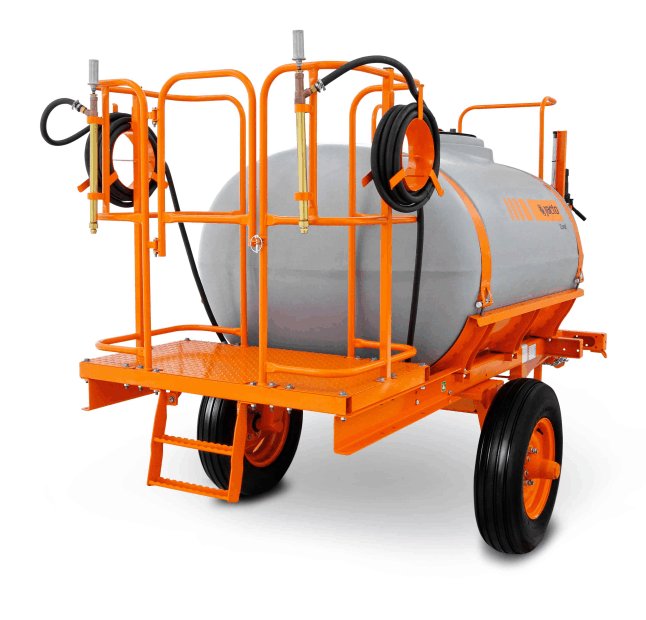

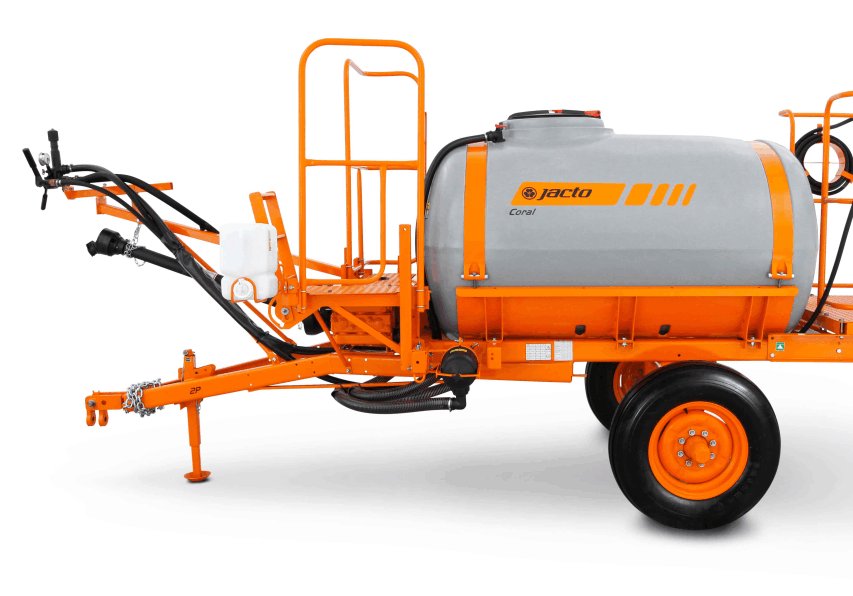

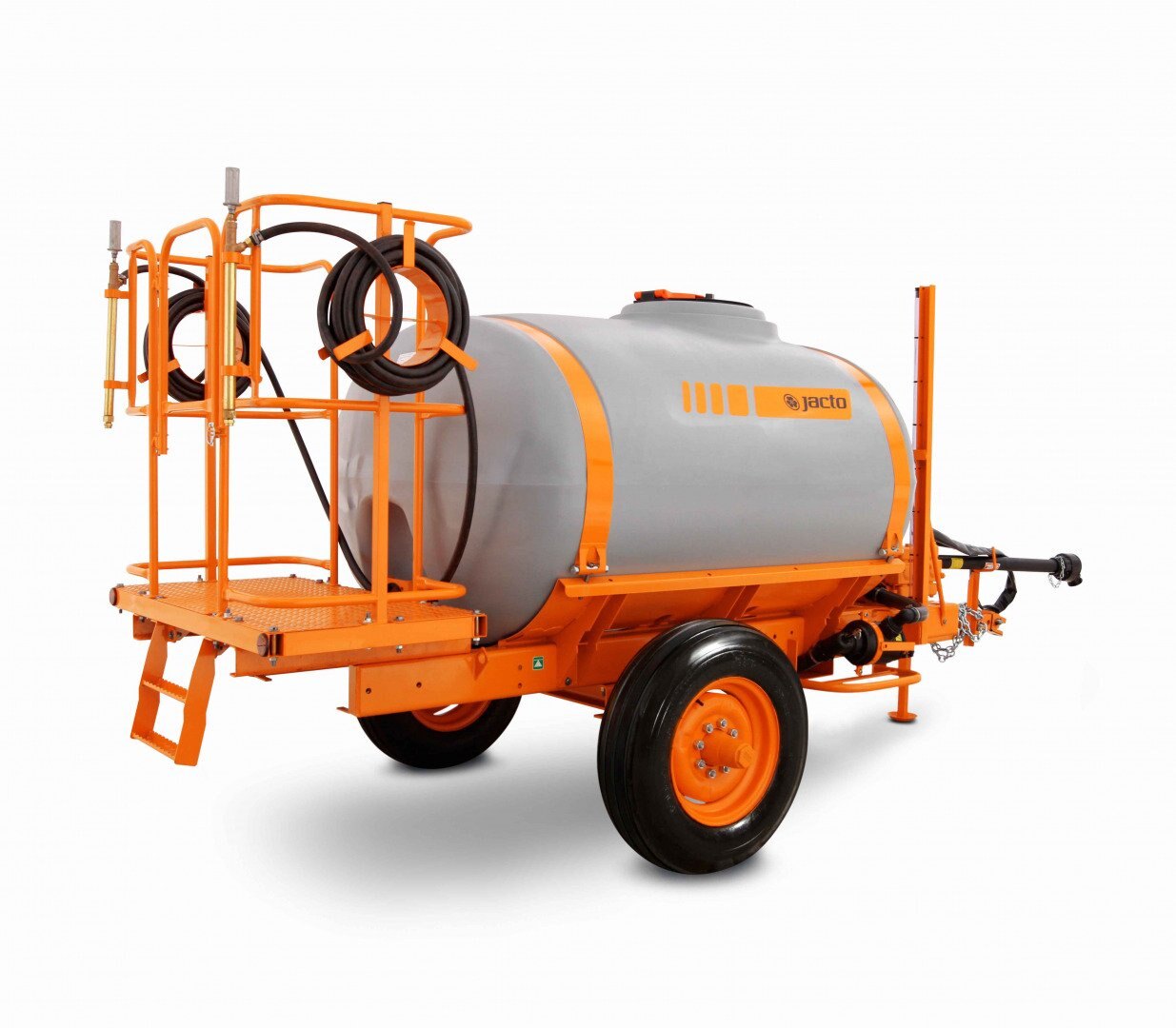

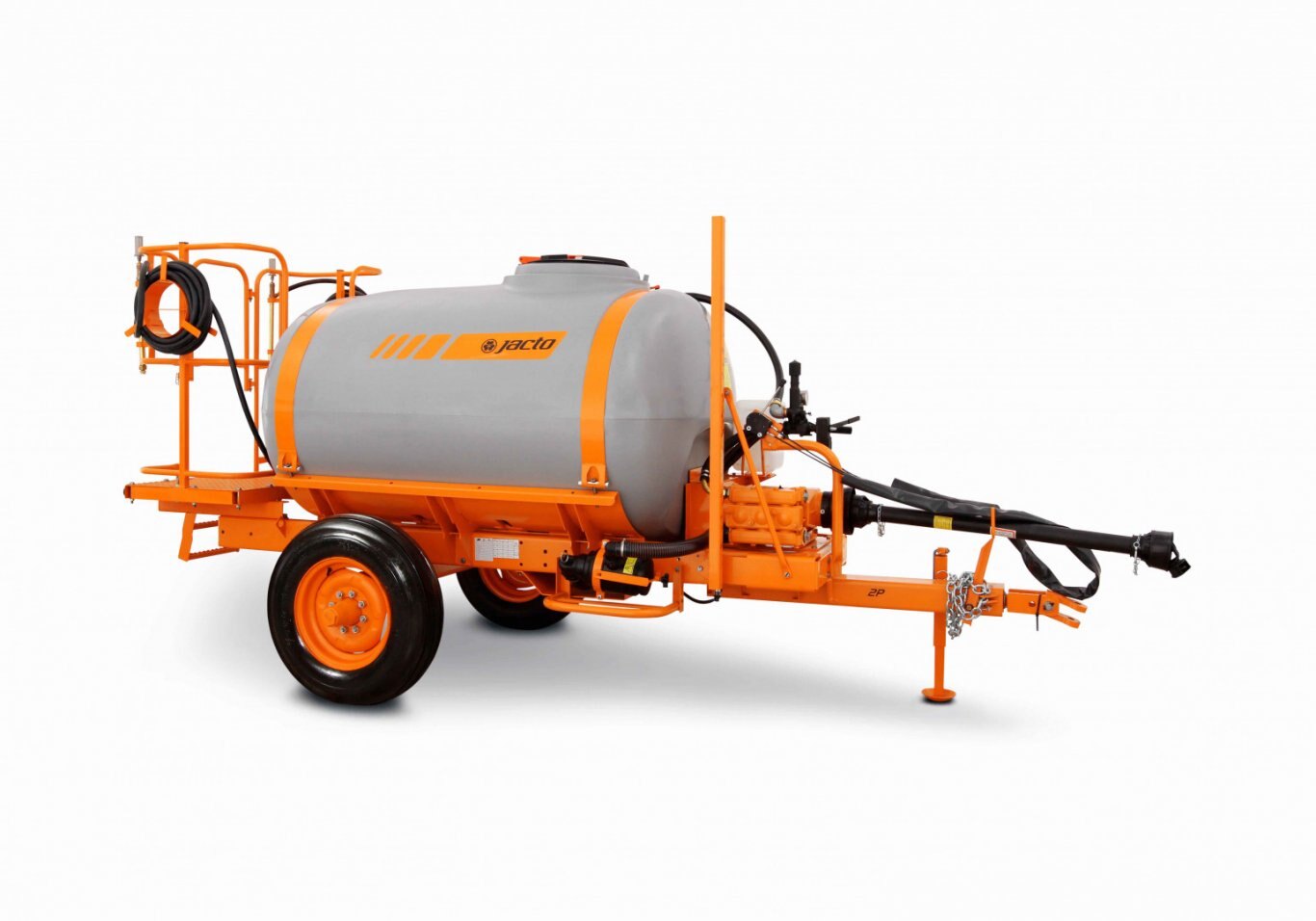

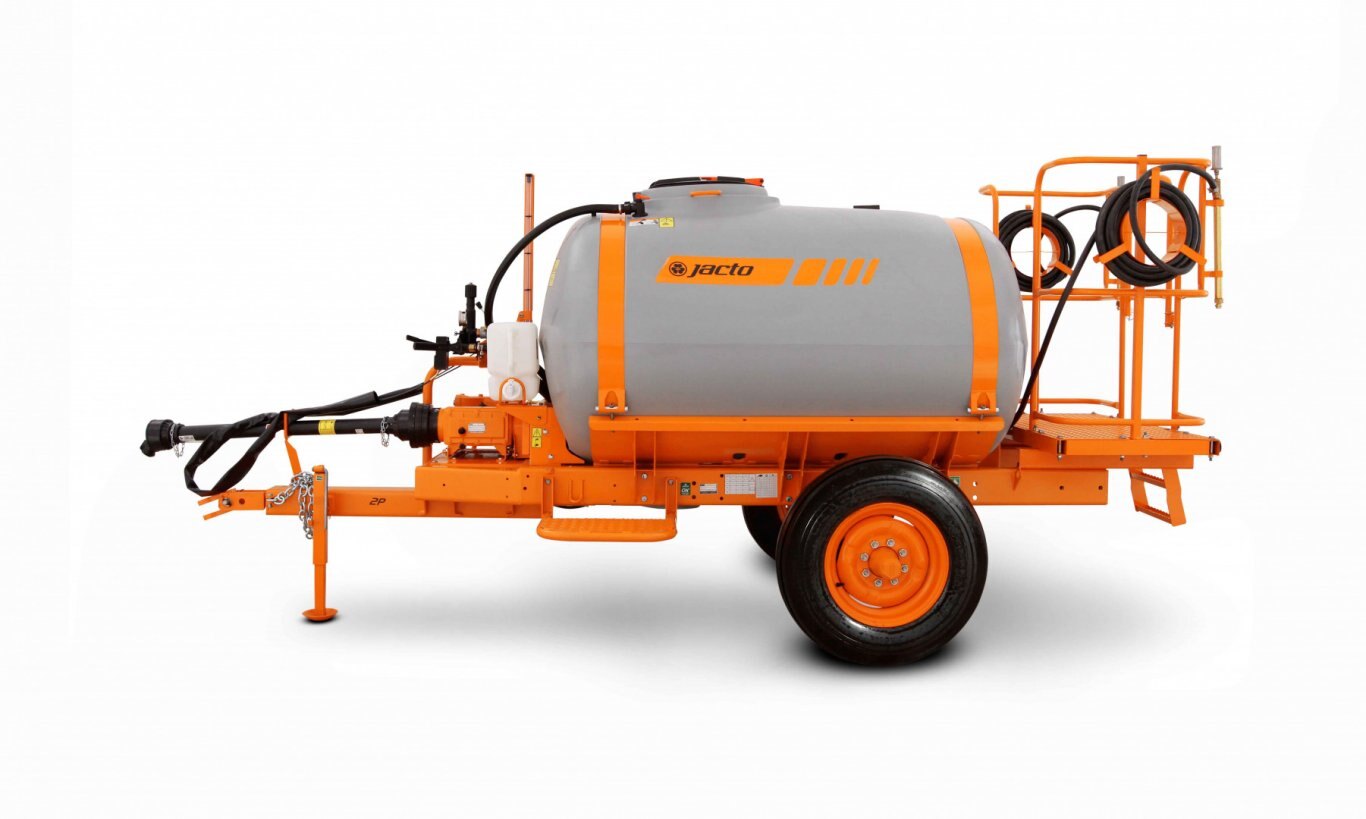

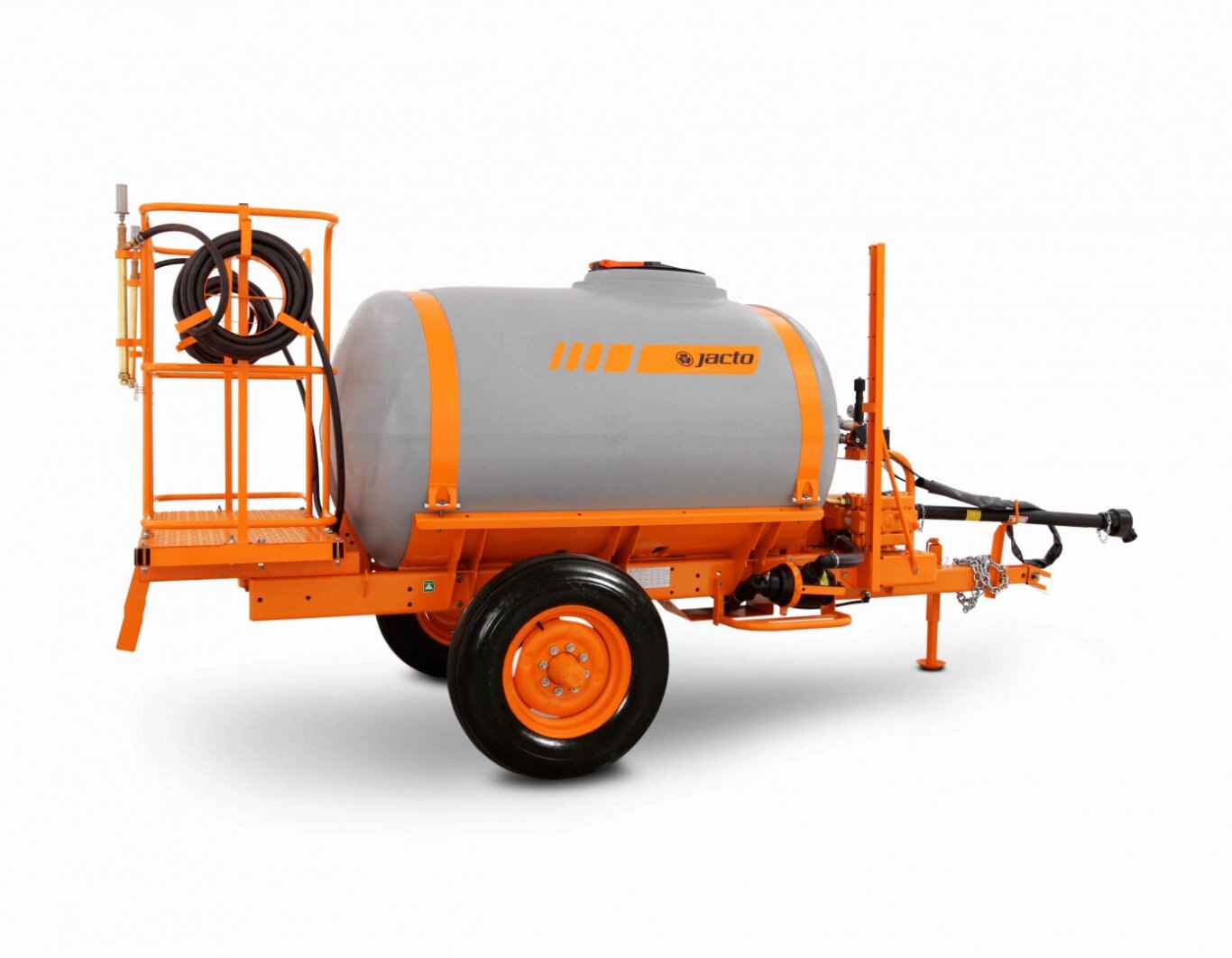

Jacto - Coral 2P / EM

  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
  • Jacto Coral 2P / EM
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Versatile equipment with low maintenance cost.

The Best Option

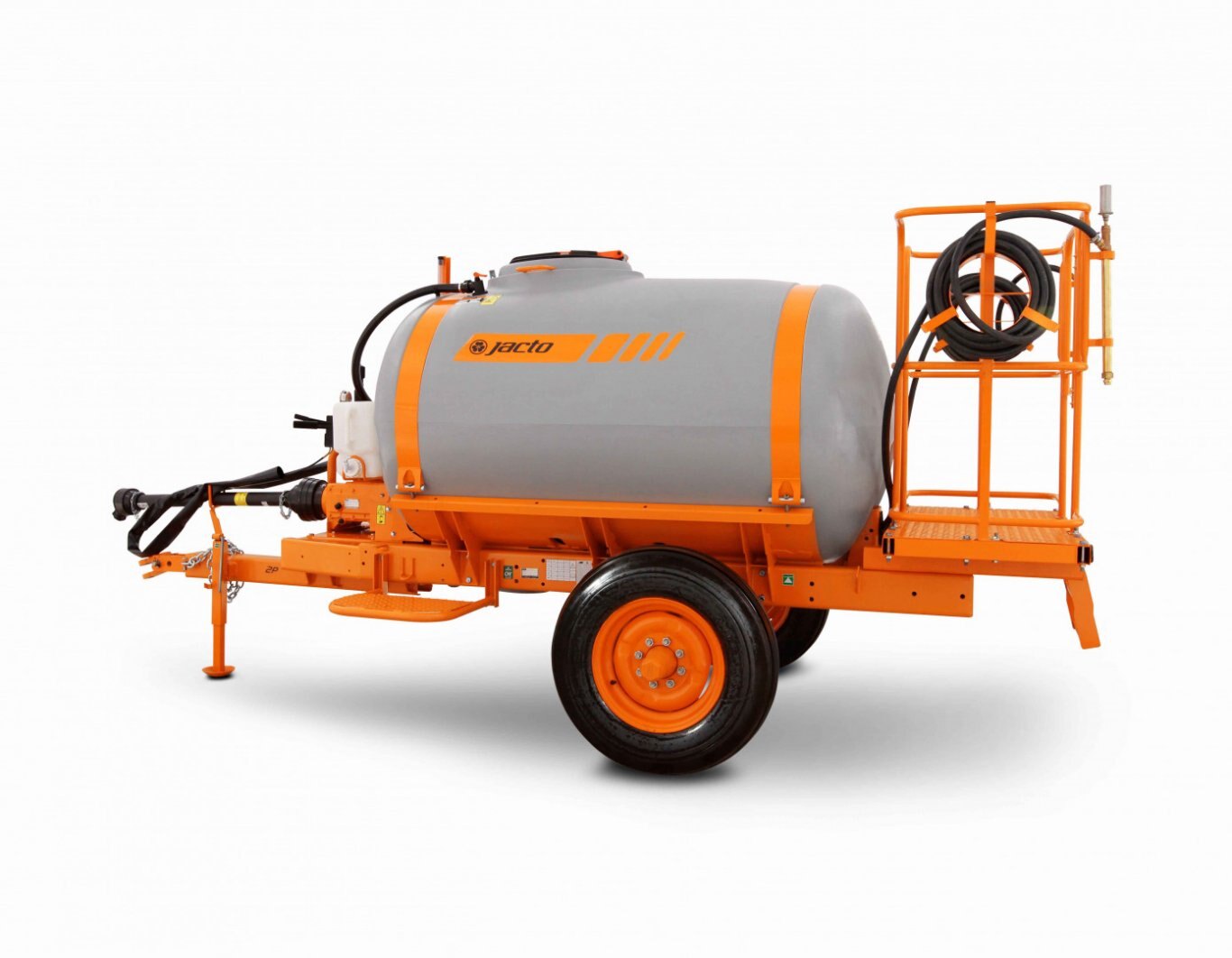

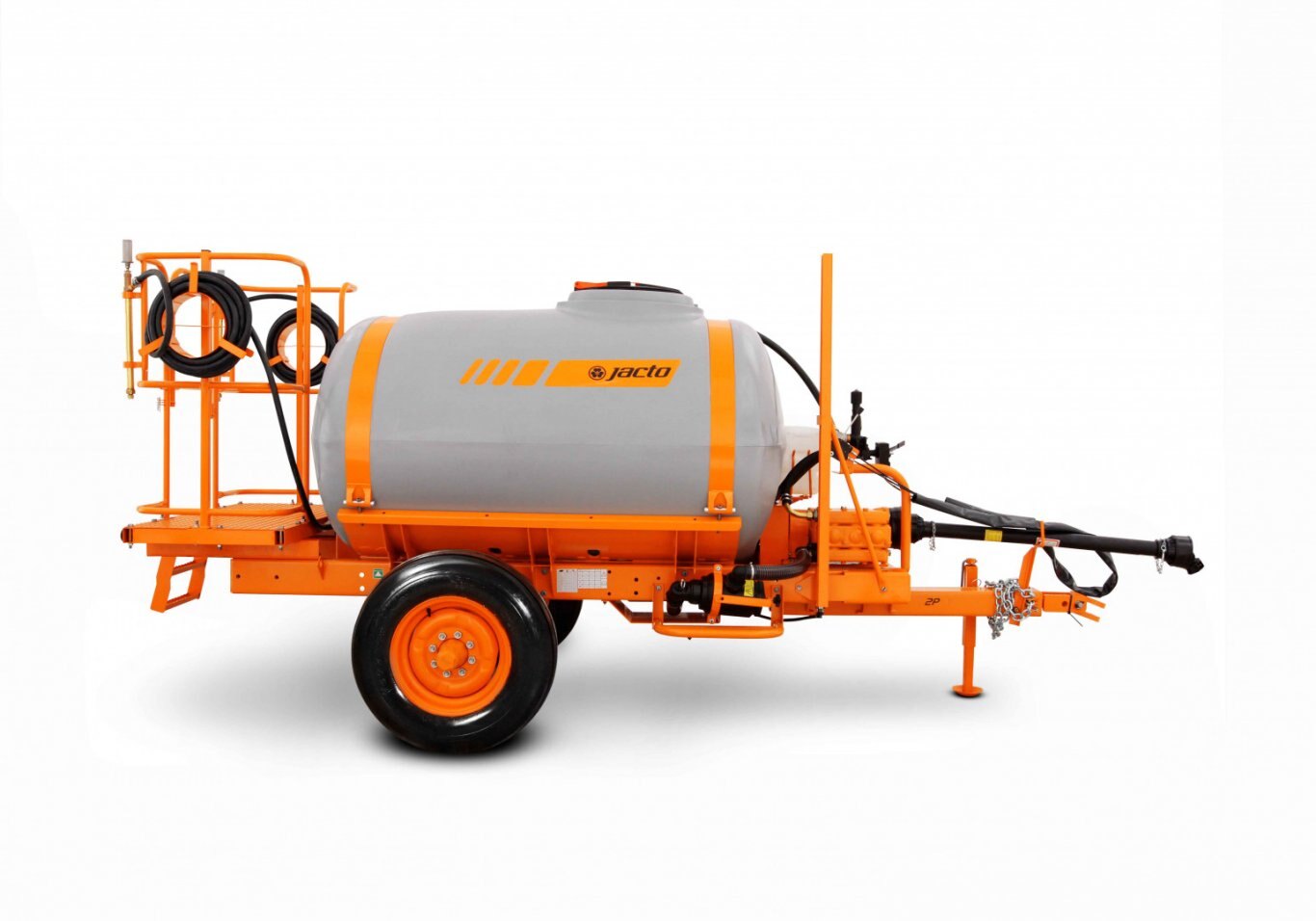

Coral 2P / EM was specially developed for localized spraying, with high daily operational performance and reduced maintenance cost.

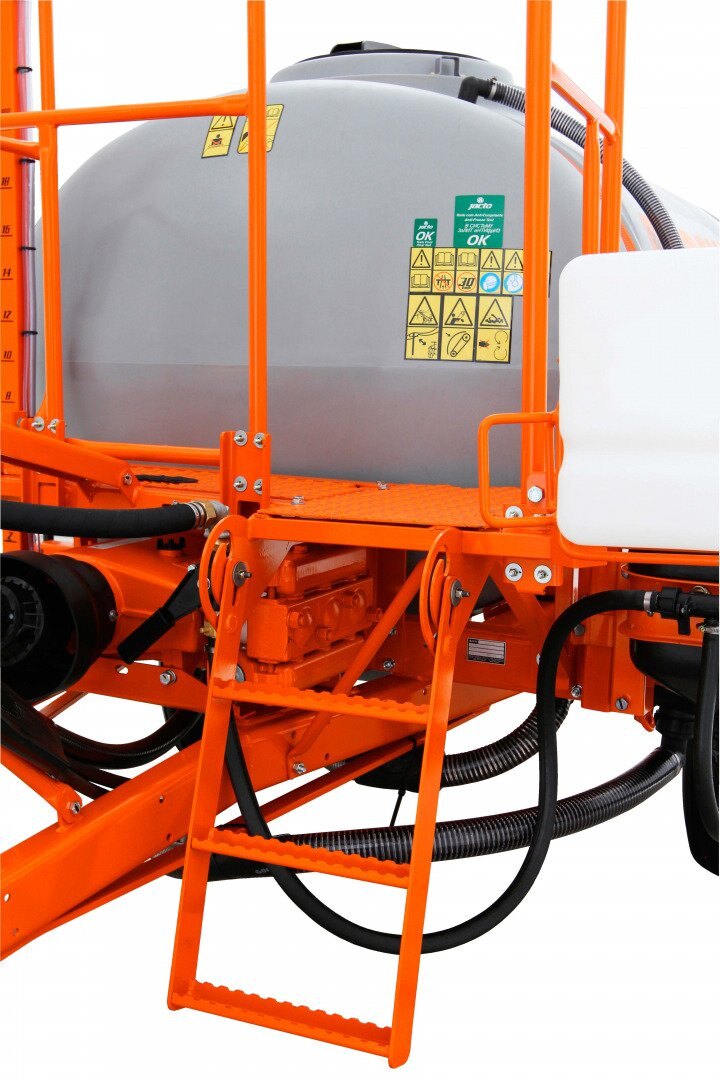

Jacto Coral 2P / EM Practicity for Application

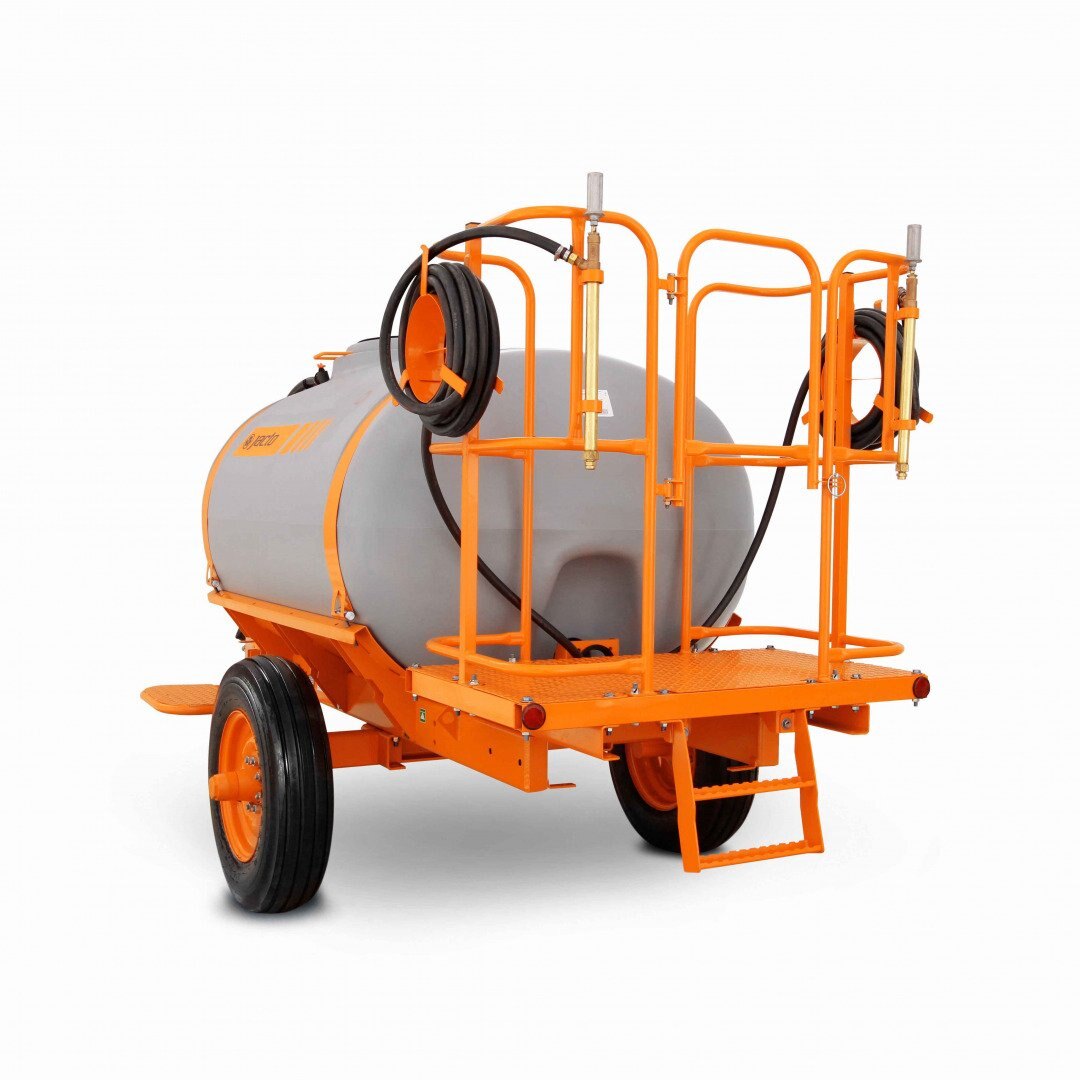

Modern and safe platform for the operator, making it easier for spraying and move around at work.

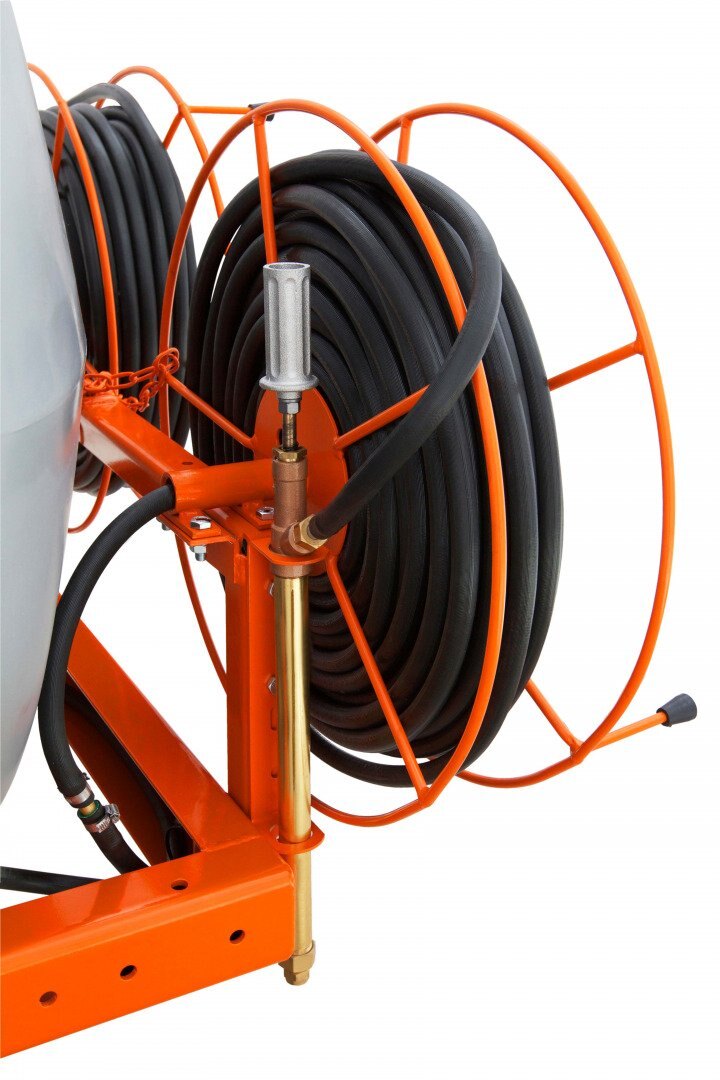

Application set

It can be equiped with two spray guns, or even two spray lances. Ideal for localized application.

Jacto Coral 2P / EM High Resistence

530 gallon tank, made of polyethylene, with a polished finish o the inner and outter surfaces to facilitate cleaning. Resists impacts and corrosions.

Jacto Coral 2P / EM Perfect Combination

Mechanical agitation

Guarantee of always homogeneous product, mixing the product through a polyethylene propeller.

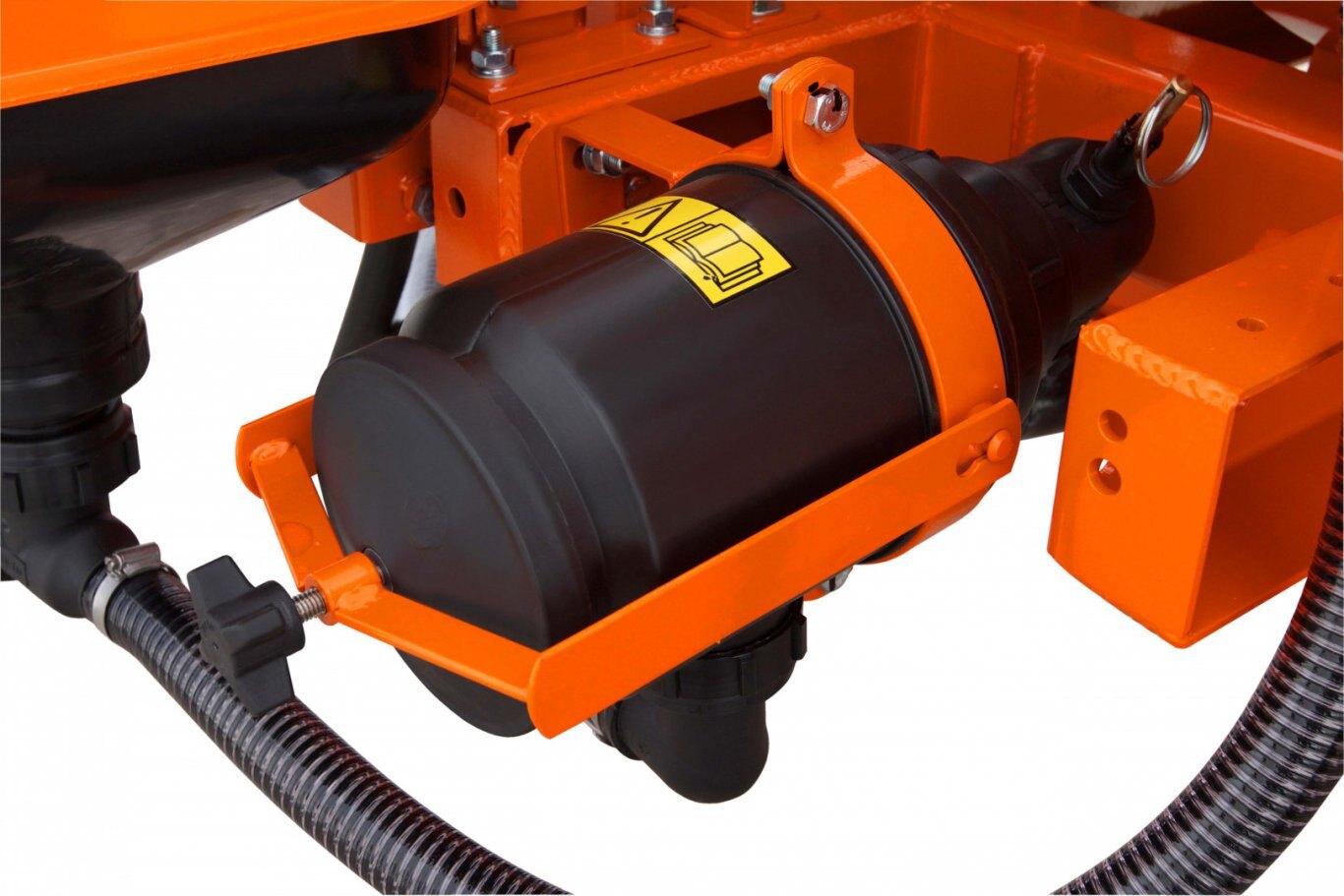

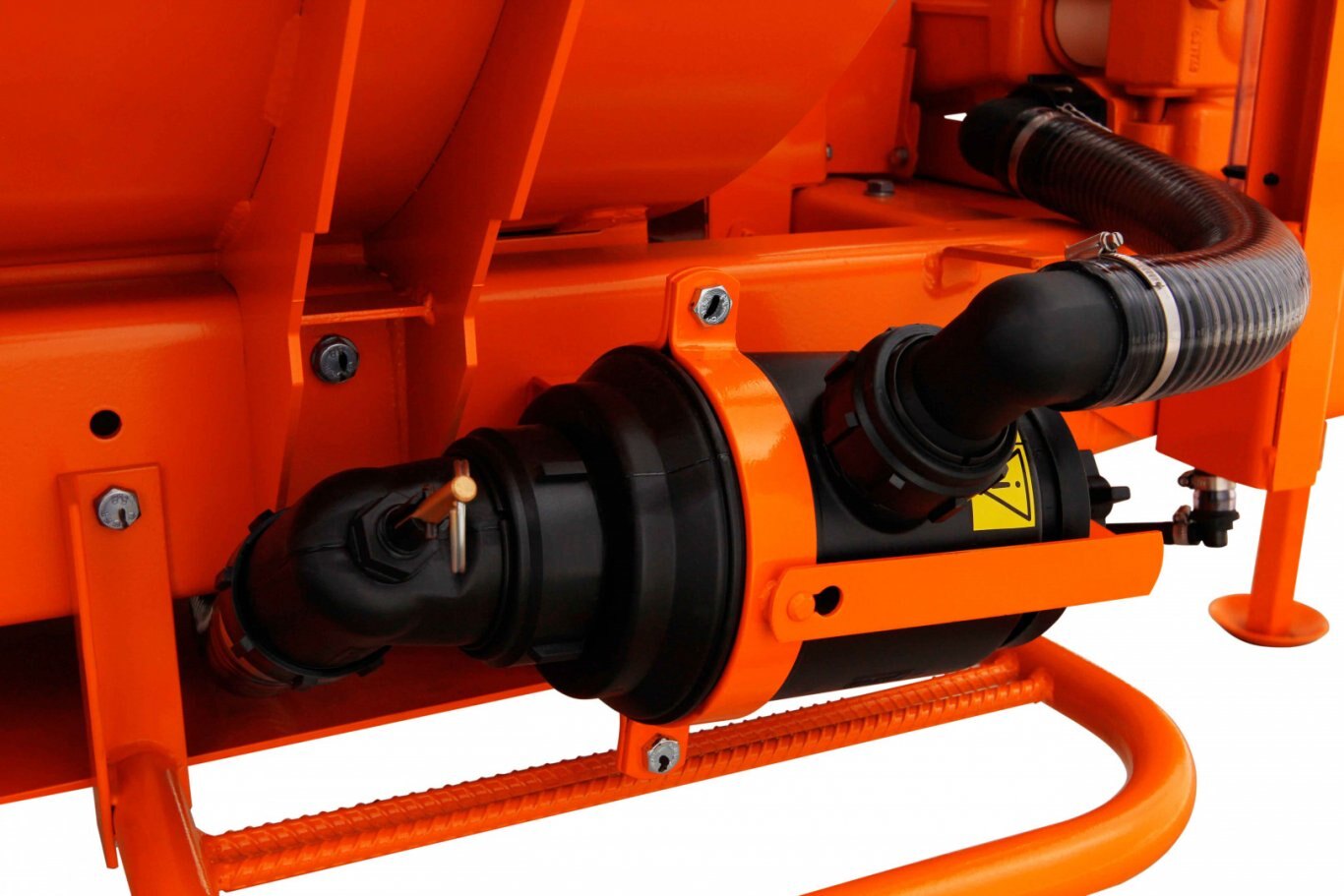

Main Filter

With quick lock for easy cleaning. Filtration system is made through stainless steel screens, using a mesh as a structure for filtration, helping with application quality and circuit protection.

Jacto Coral 2P / EM Models that Satisfy your Need

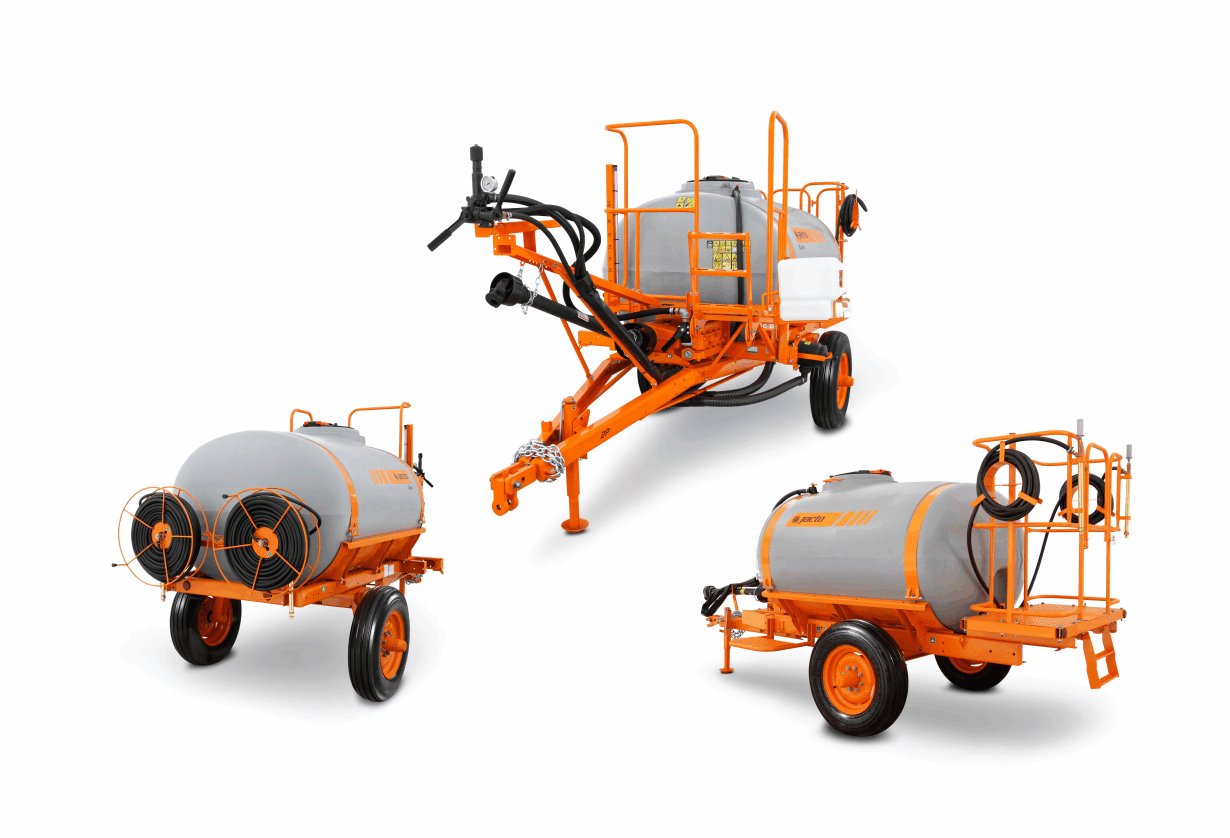

The Coral 2P / EM line is available in 3 versions:

  • Coral 2P Columbia
  • Coral 2P Arbus
  • Coral EM
Specifications
Model
Coral 2P / EM
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                                   Download



spraying
Tank Capacity (L)
528 gal		 Material
Polyethylene		 Chemical Solution Agitation
Mechanical
Spray pump Model
JP-75 / JP-100 / JP-150		 Type
Piston		 Maximum flow rate (L/min)
20 / 26 / 40 gpm		 Power consumption (cv)
4 hp / 6 hp / 11 hp
Main Filter Model
FVS-100 / FVS-200		 Filtering capacity (L)
26 gpm / 53 gpm		 Filter Mesh
60 / 24 and 40

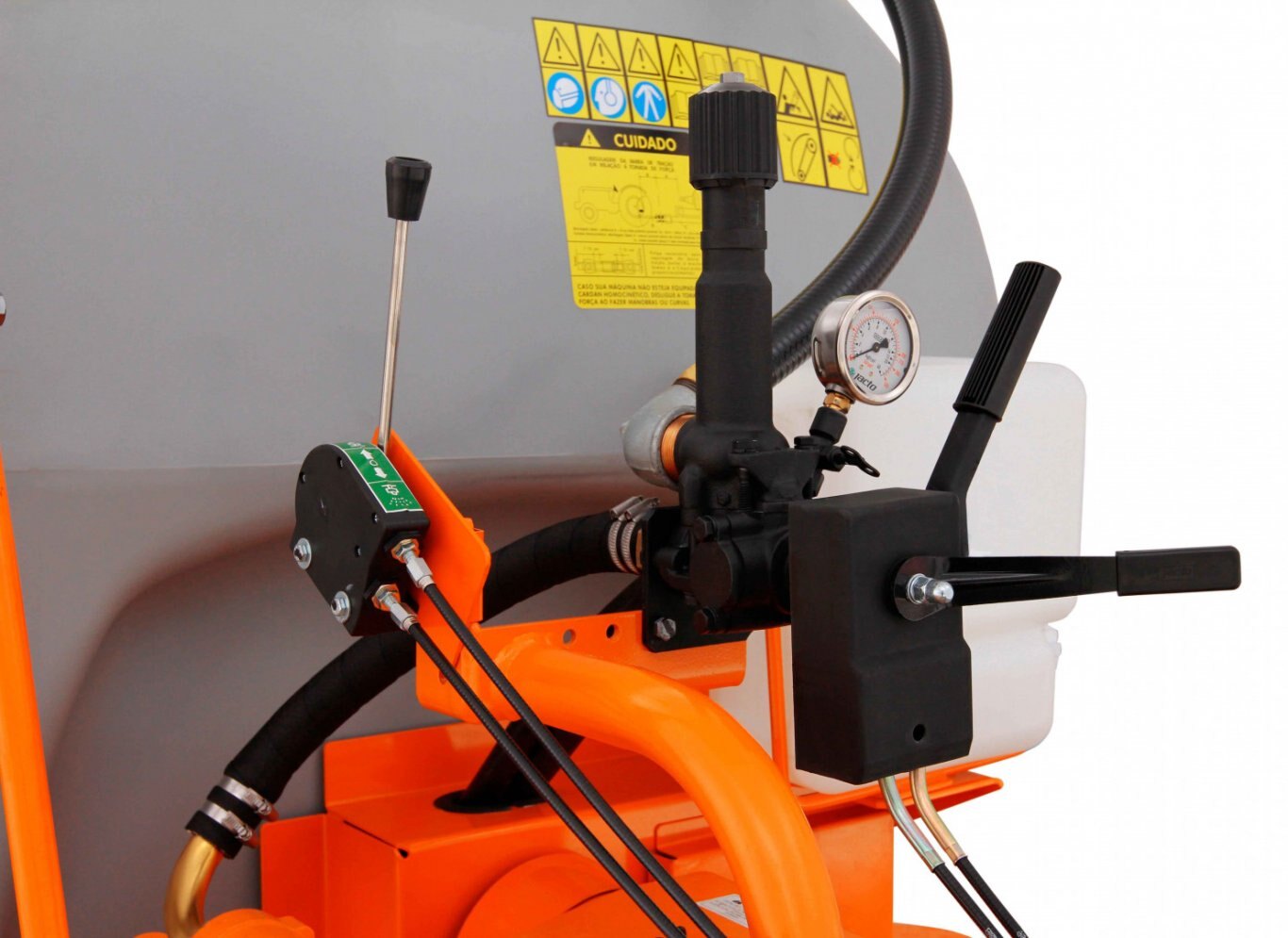

Spray control

Model

VAR

Number of ways

2

Actuation

Manual by lever

Maximum working pressure

300 PSI
Trailer

Axis

Cross

Track width

4,59 ft to 5,08 ft

Ground clearance

15,35 in / 10,24 in

Tires

7,5 x 16 / 11L-15
Clean water tank Capacity (L)
4 gal		 Material
Polyethylene
Application set Model
Spray pistol		 Hose
2 x 1/2" - 44,29 ft		 Maximum flow rate (l/min)
Until 12 gpm
Dimensions

Length (m)

14,60 ft

Maximum Width (m)

5,75 ft

Height

6,07 ft
Weight

Empty machine (kg)

1267 lb
Working speed

Spraying

1 to 4 mph
Available options

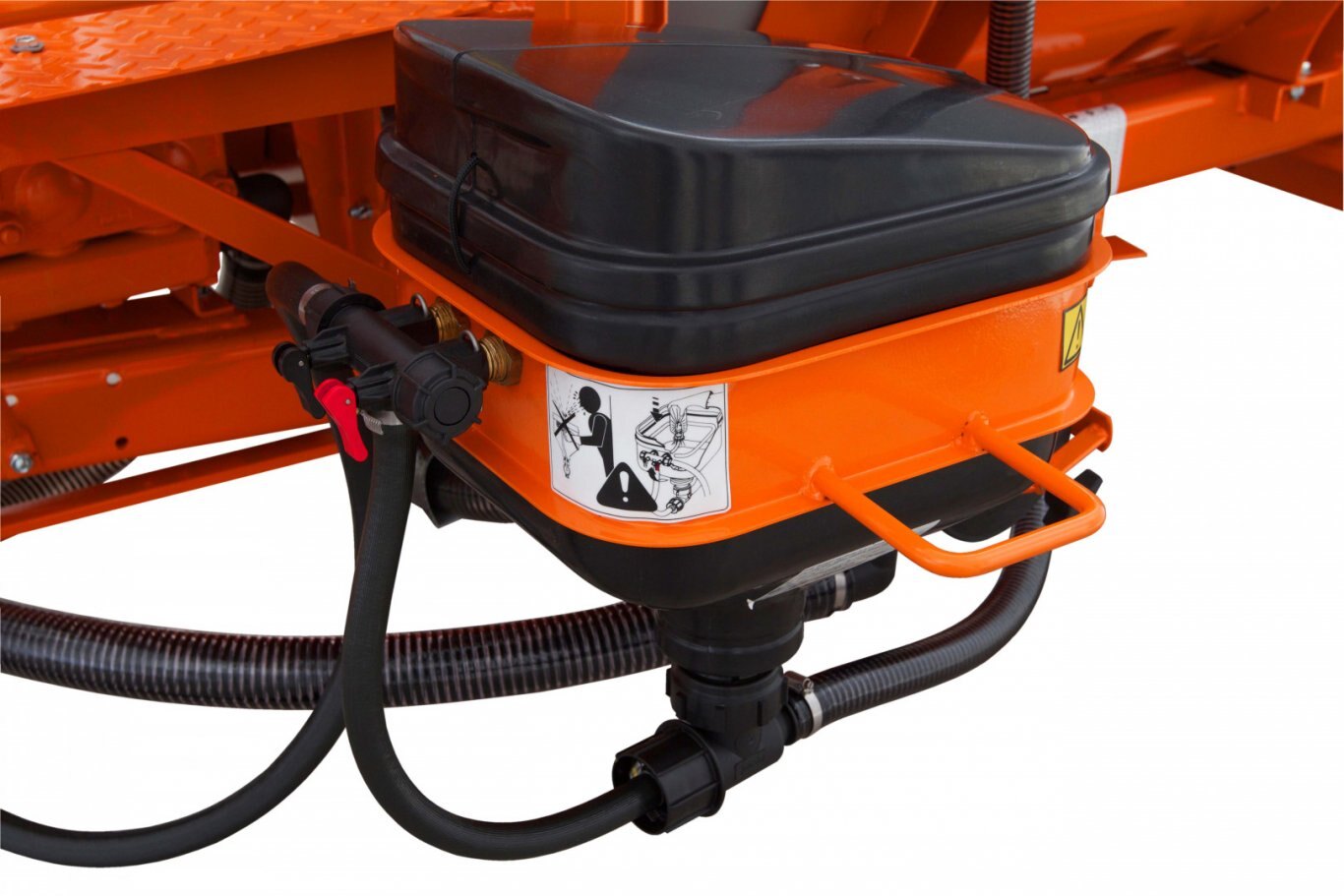

Filler unit
