Jacto - Coral PEC

Call for Price
Overview

Productivity for your pasture

The Best Option

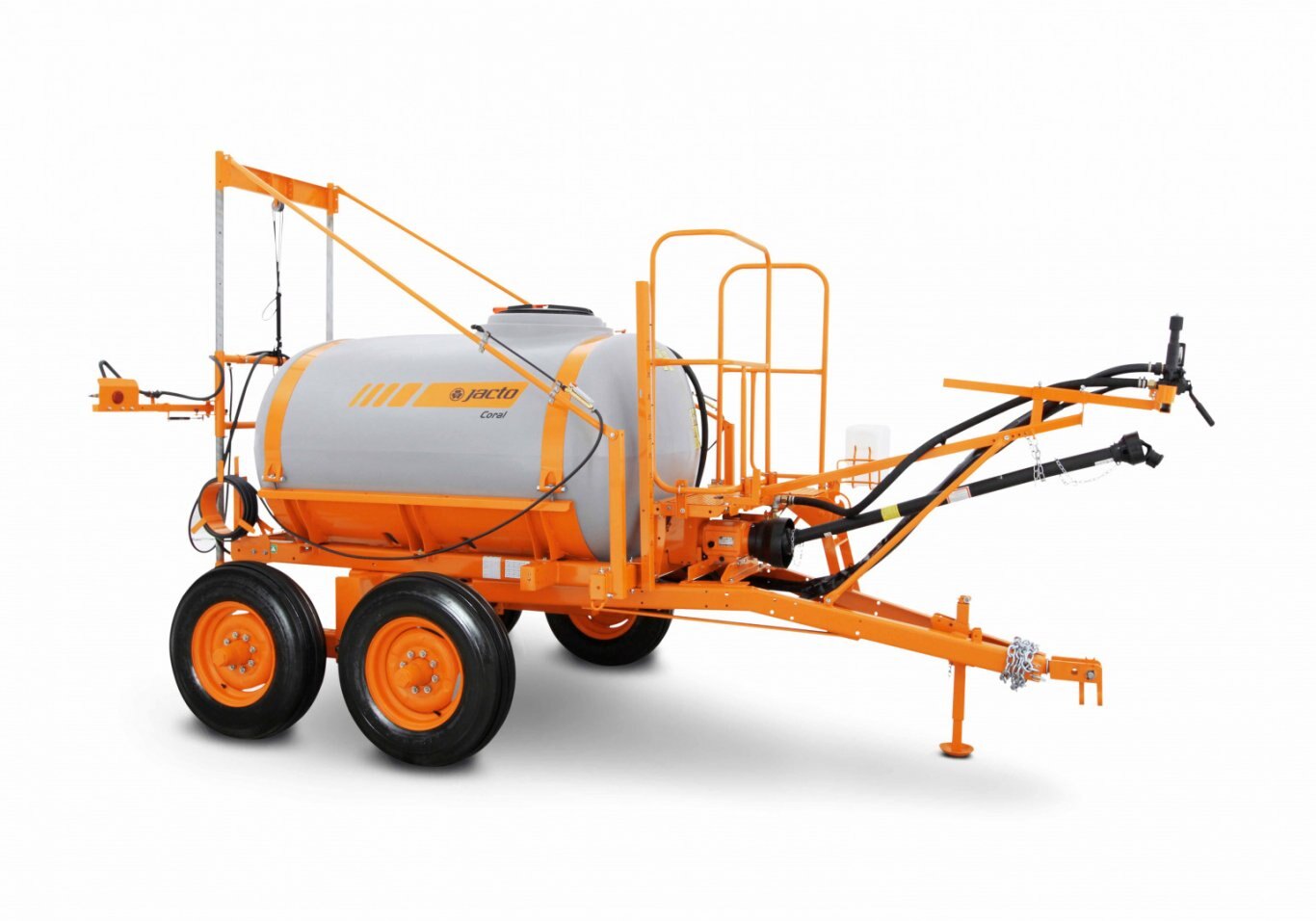

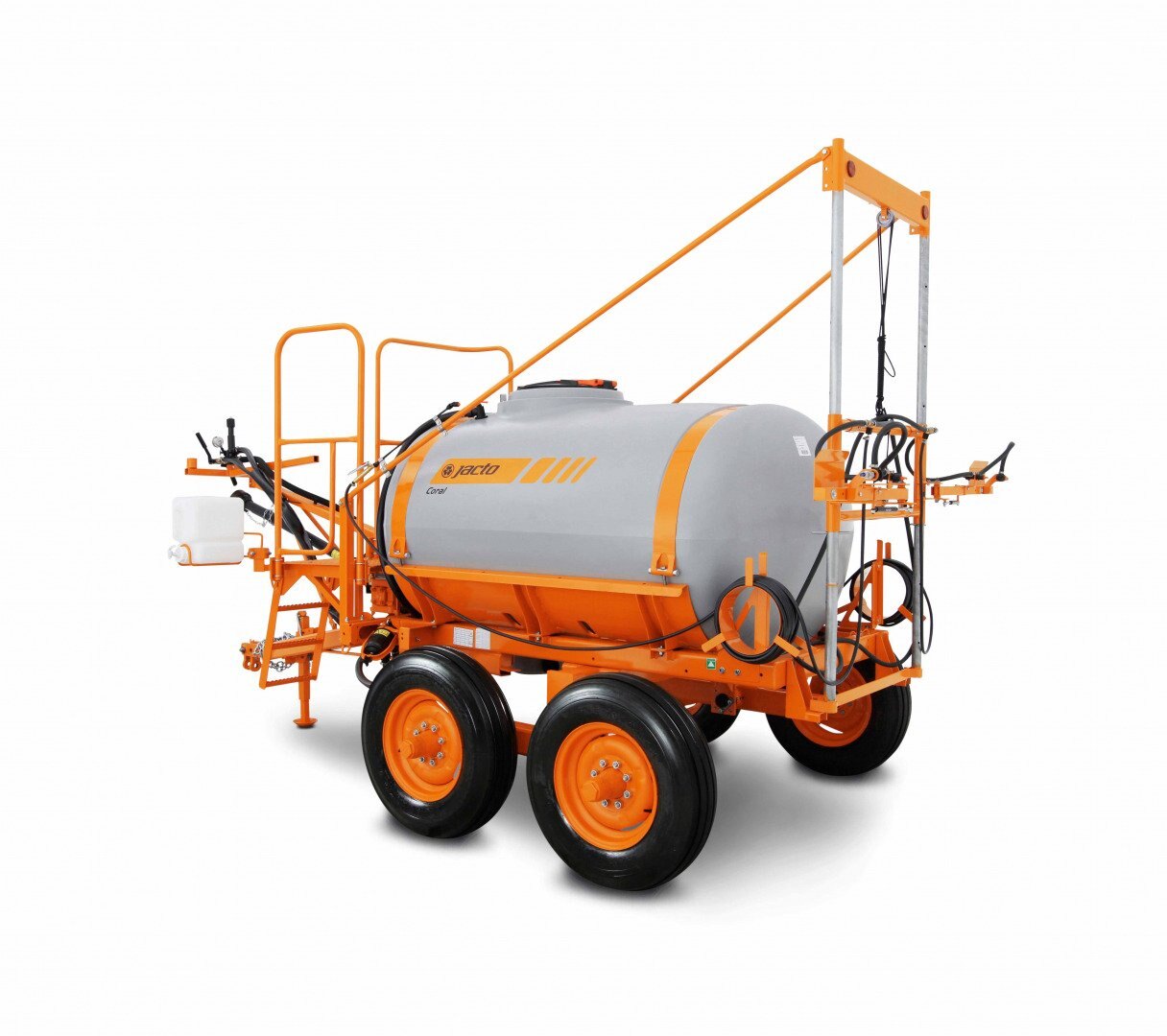

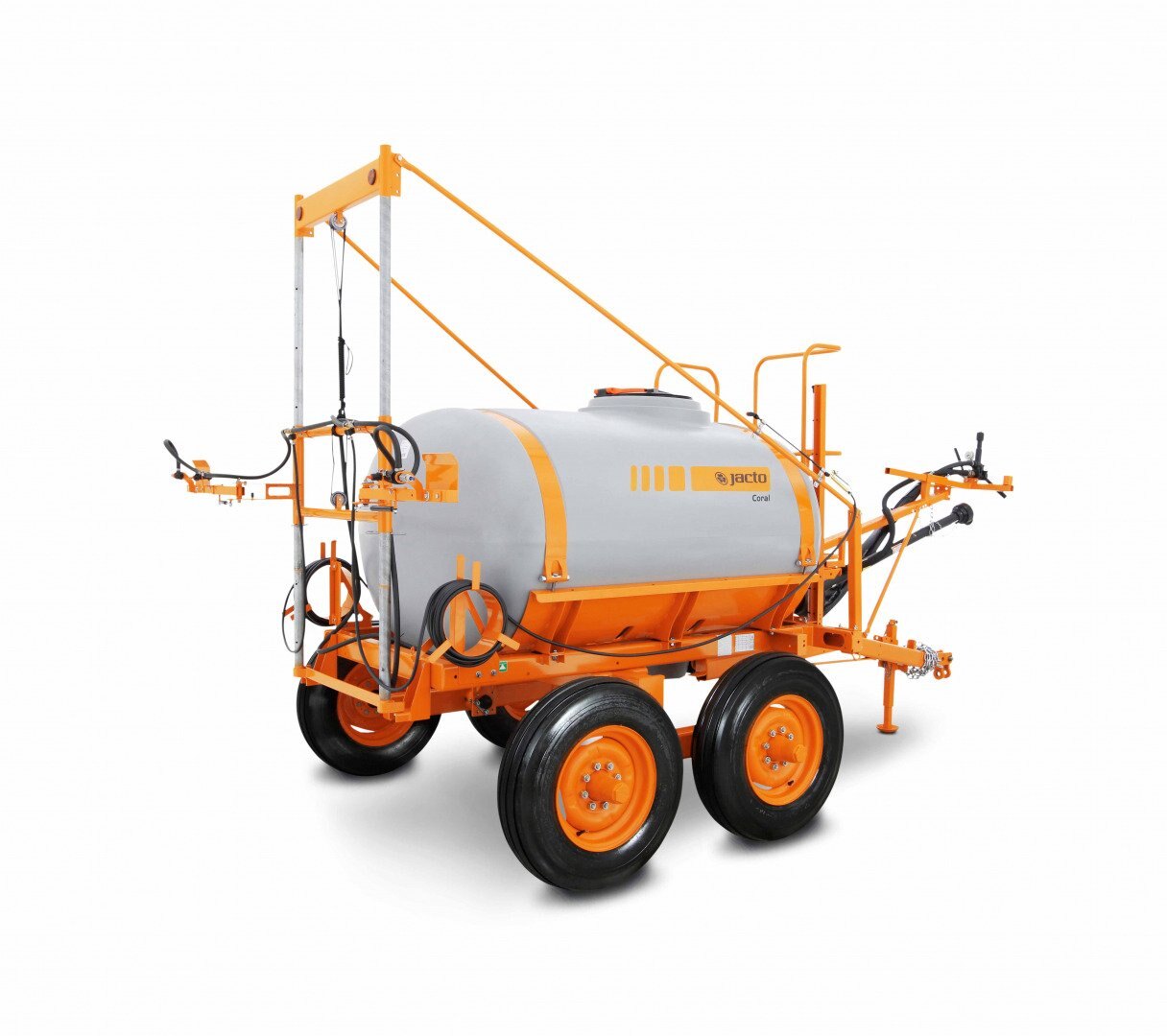

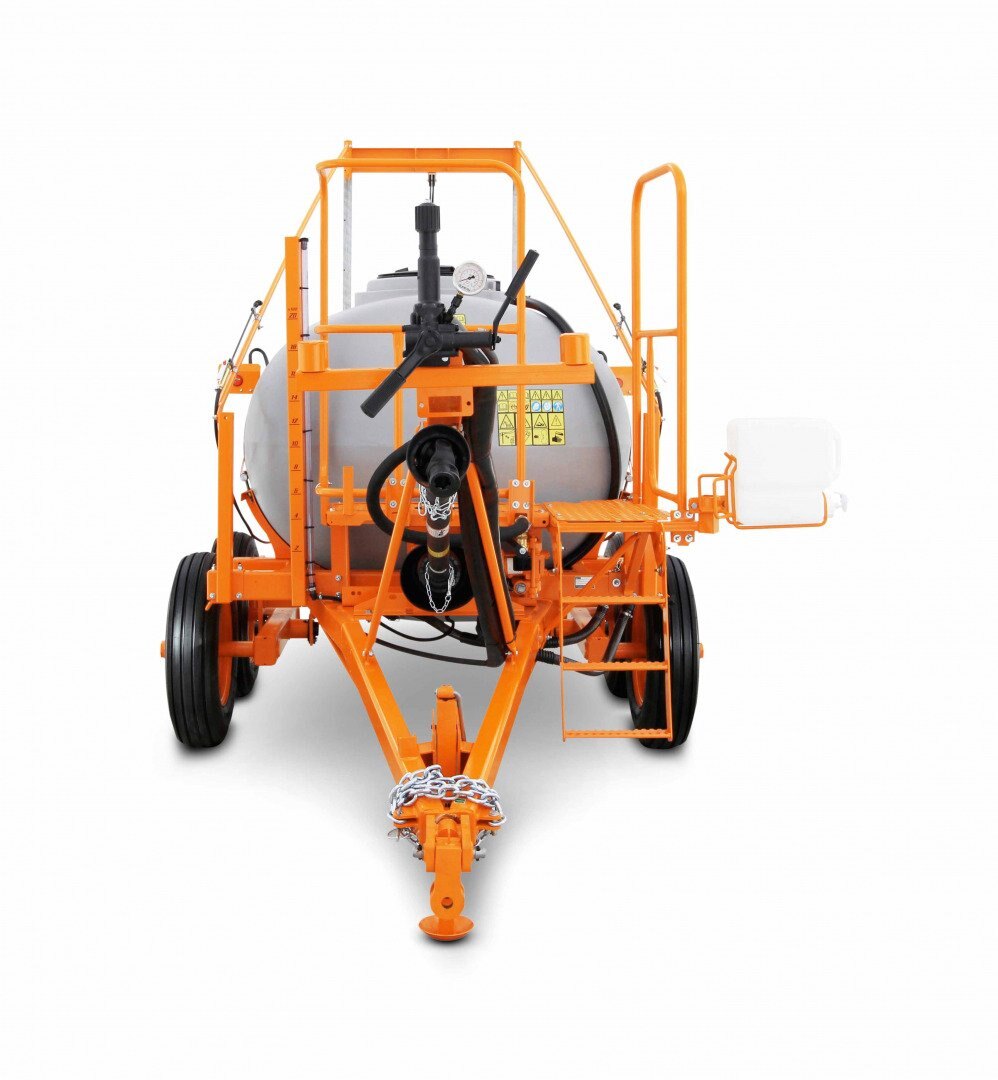

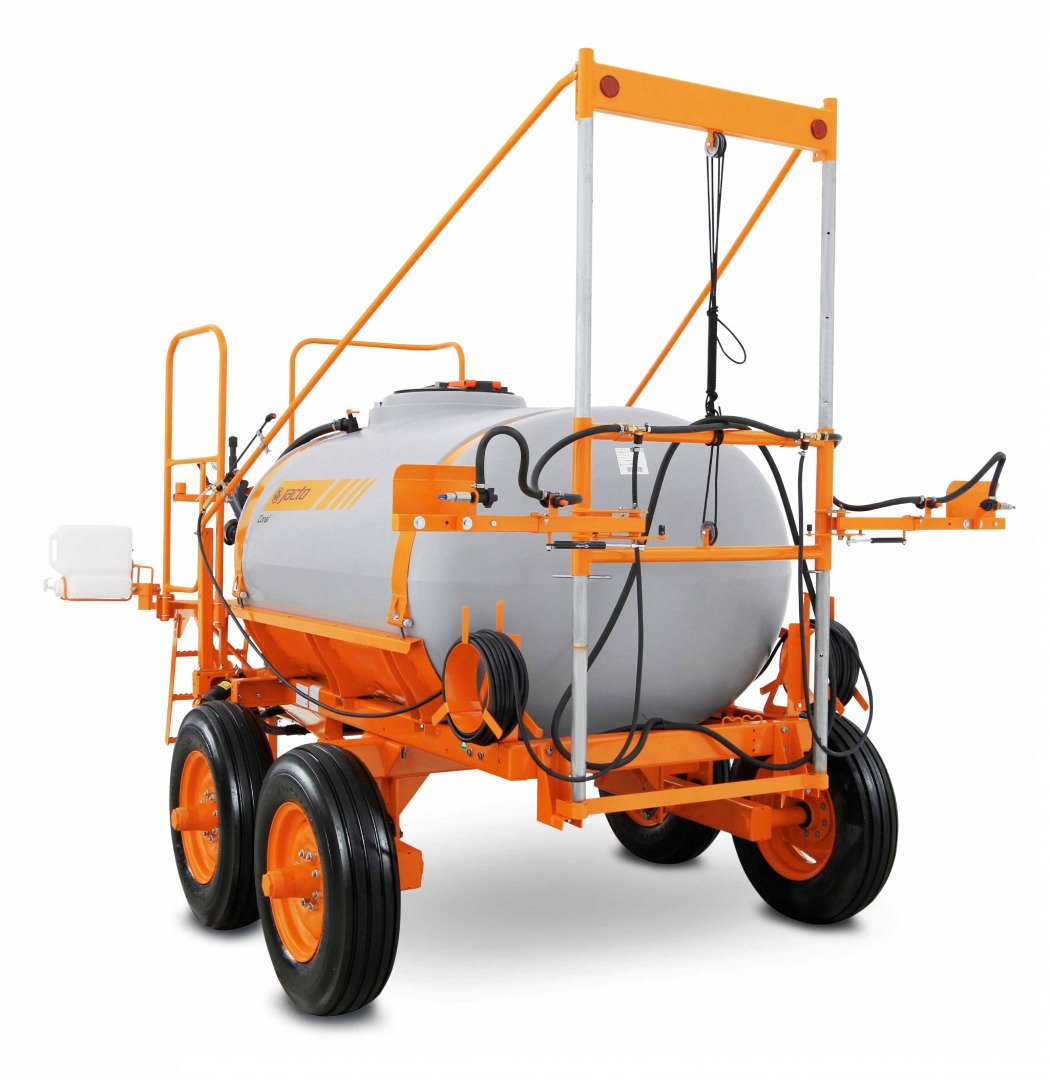

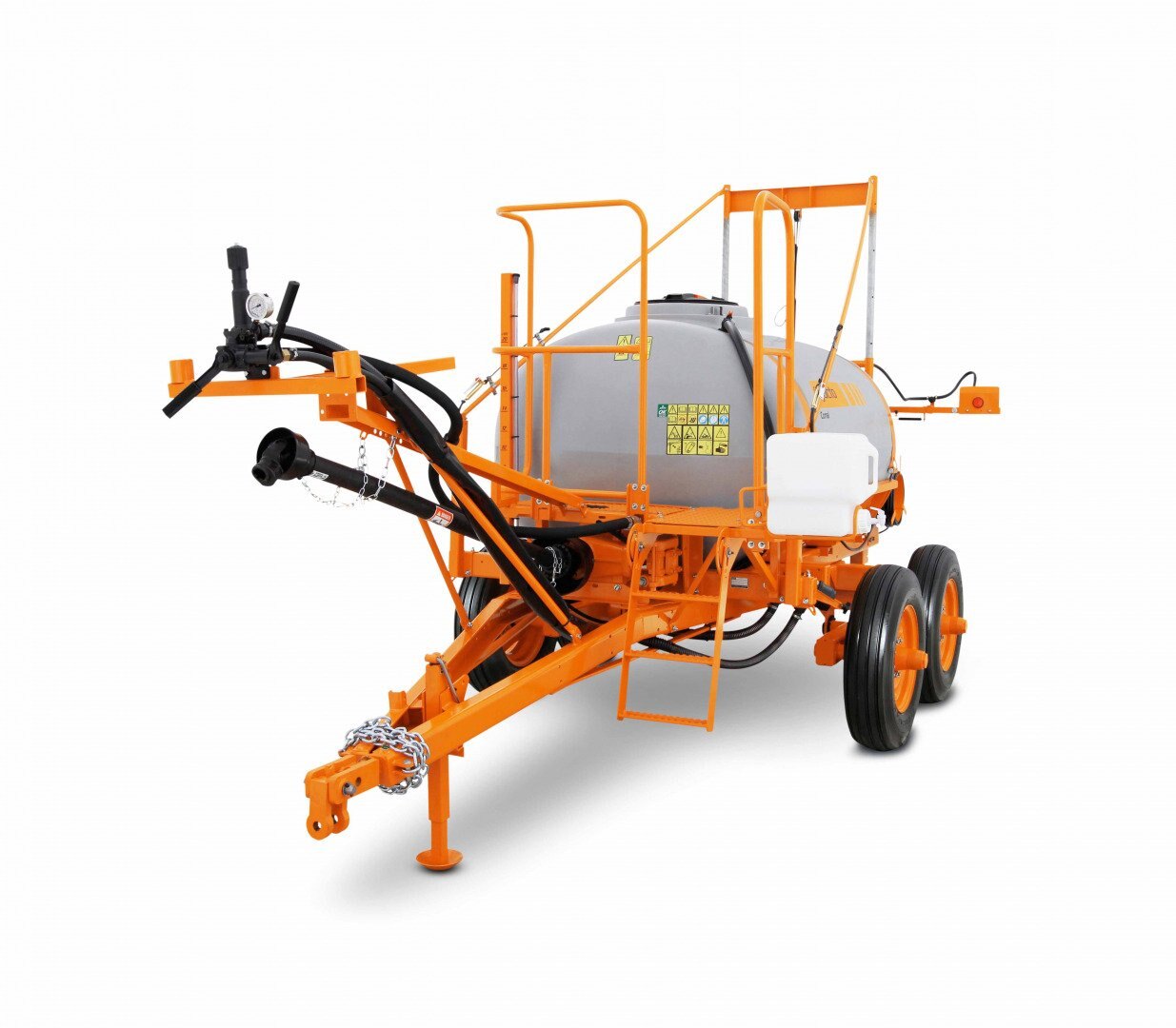

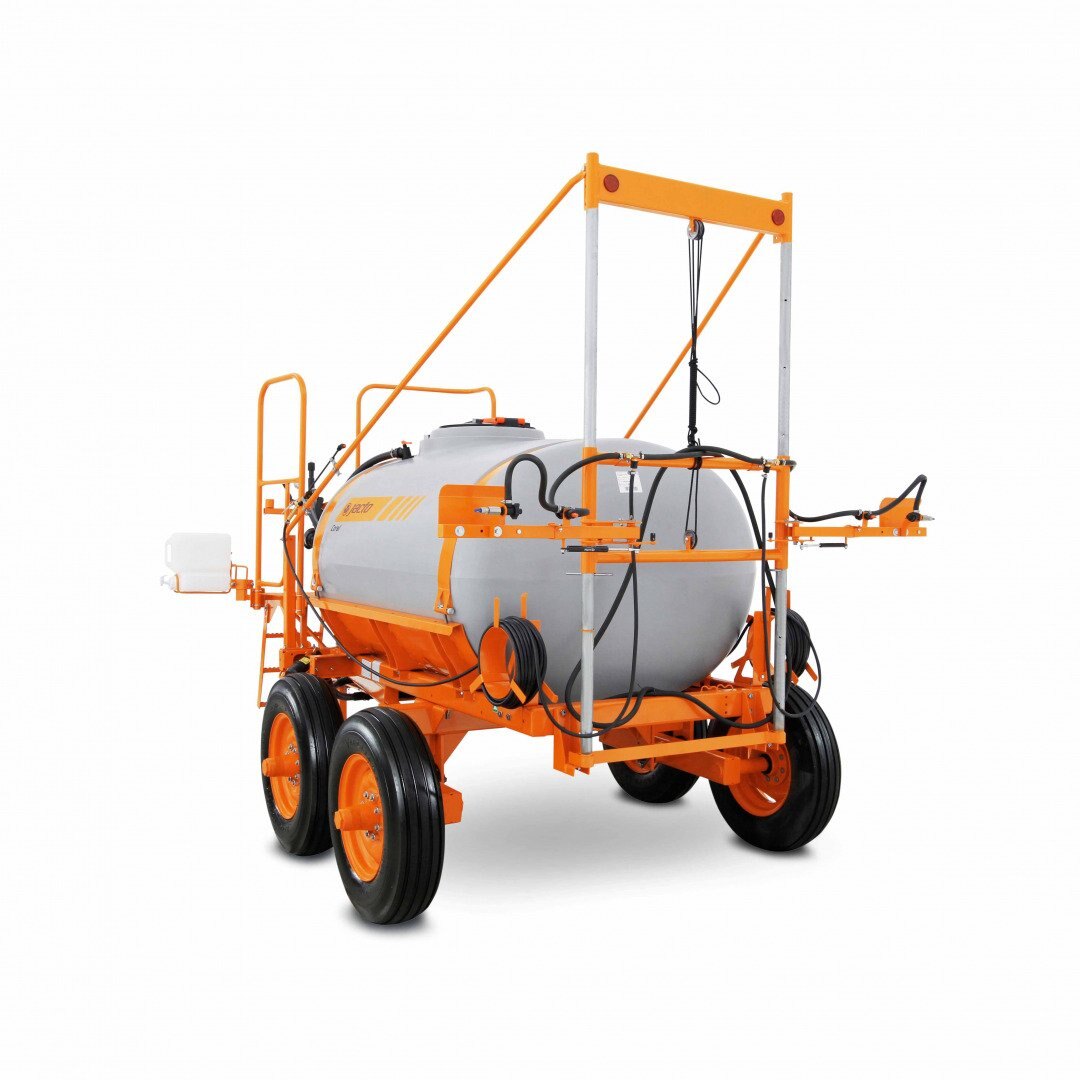

The Coral PEC was developed specially for spraying pastures with high daily operational performance and reduced maintenance cost.

Jacto Coral PEC Spray Application Agility

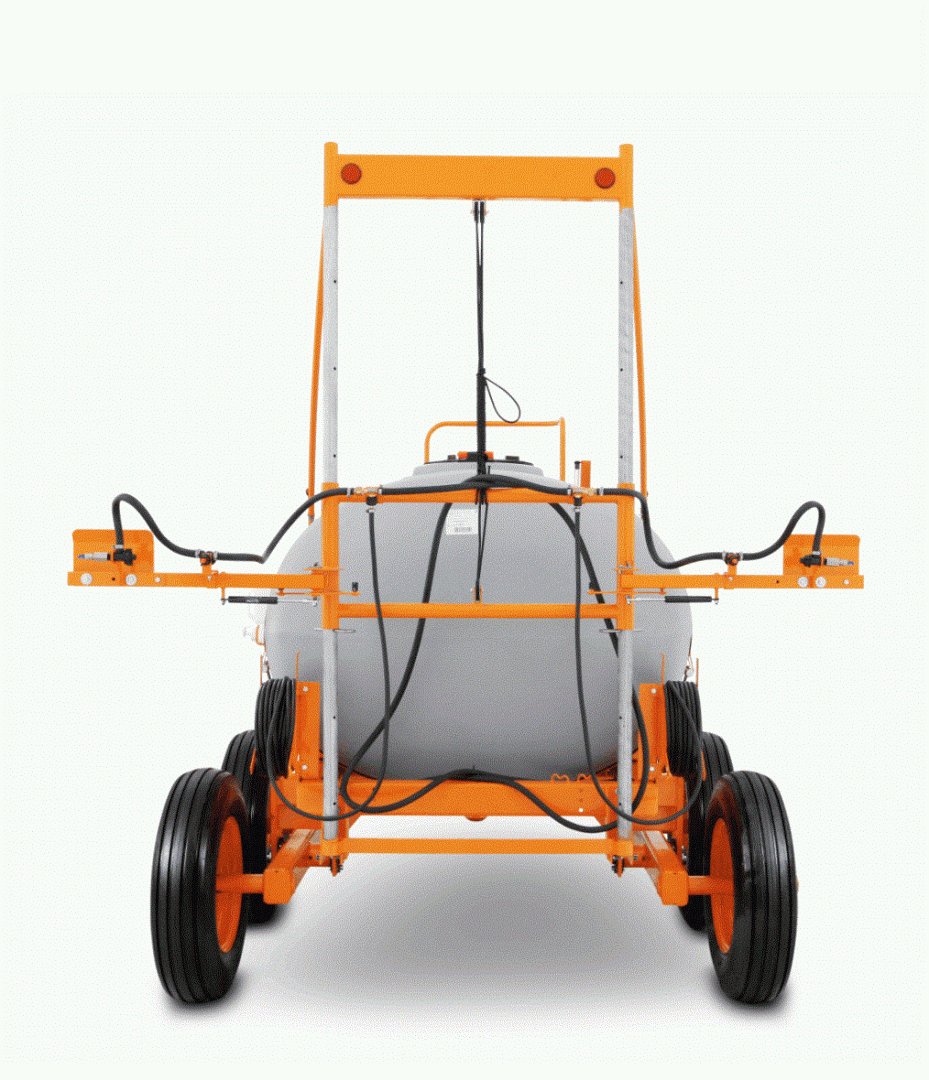

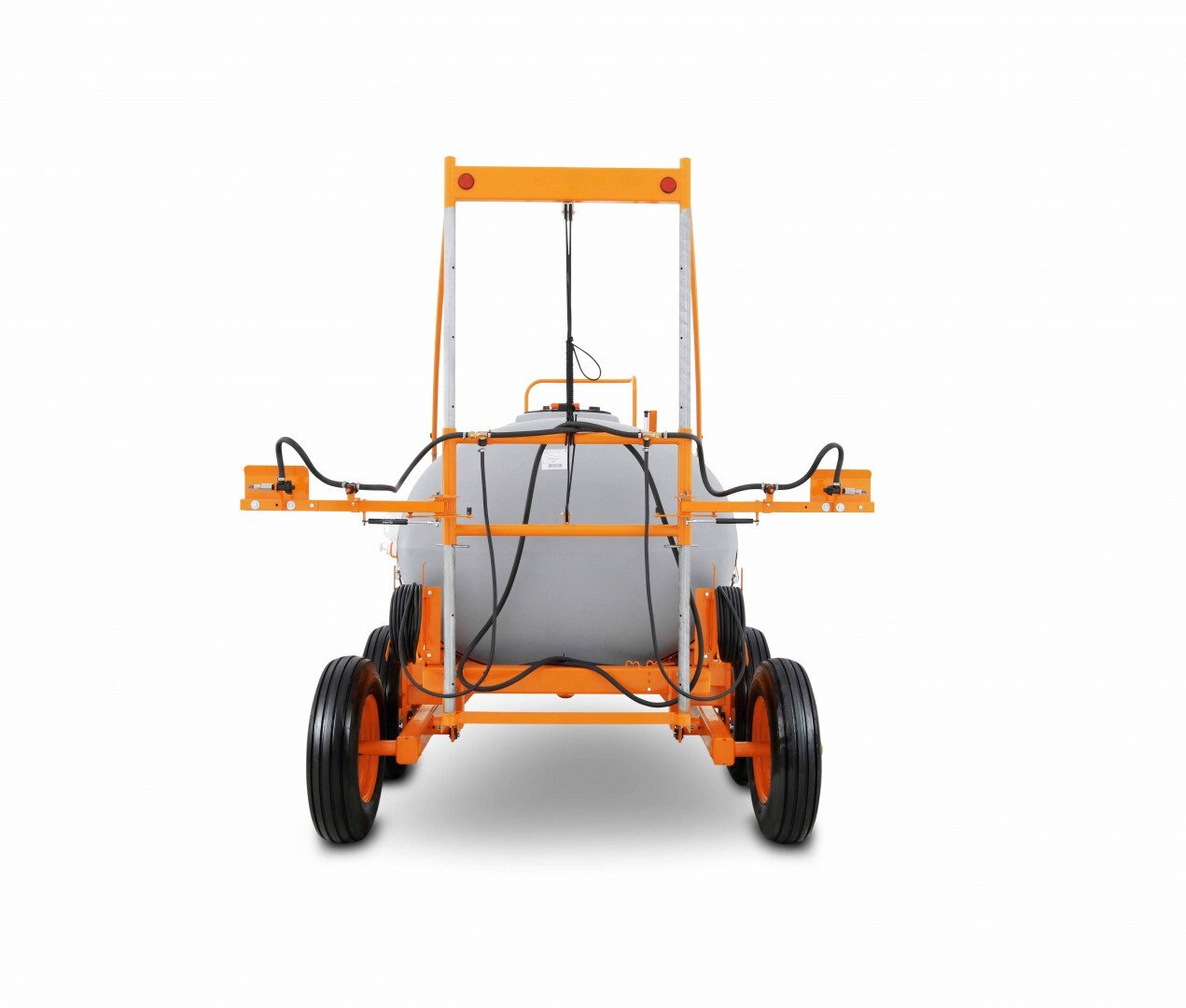

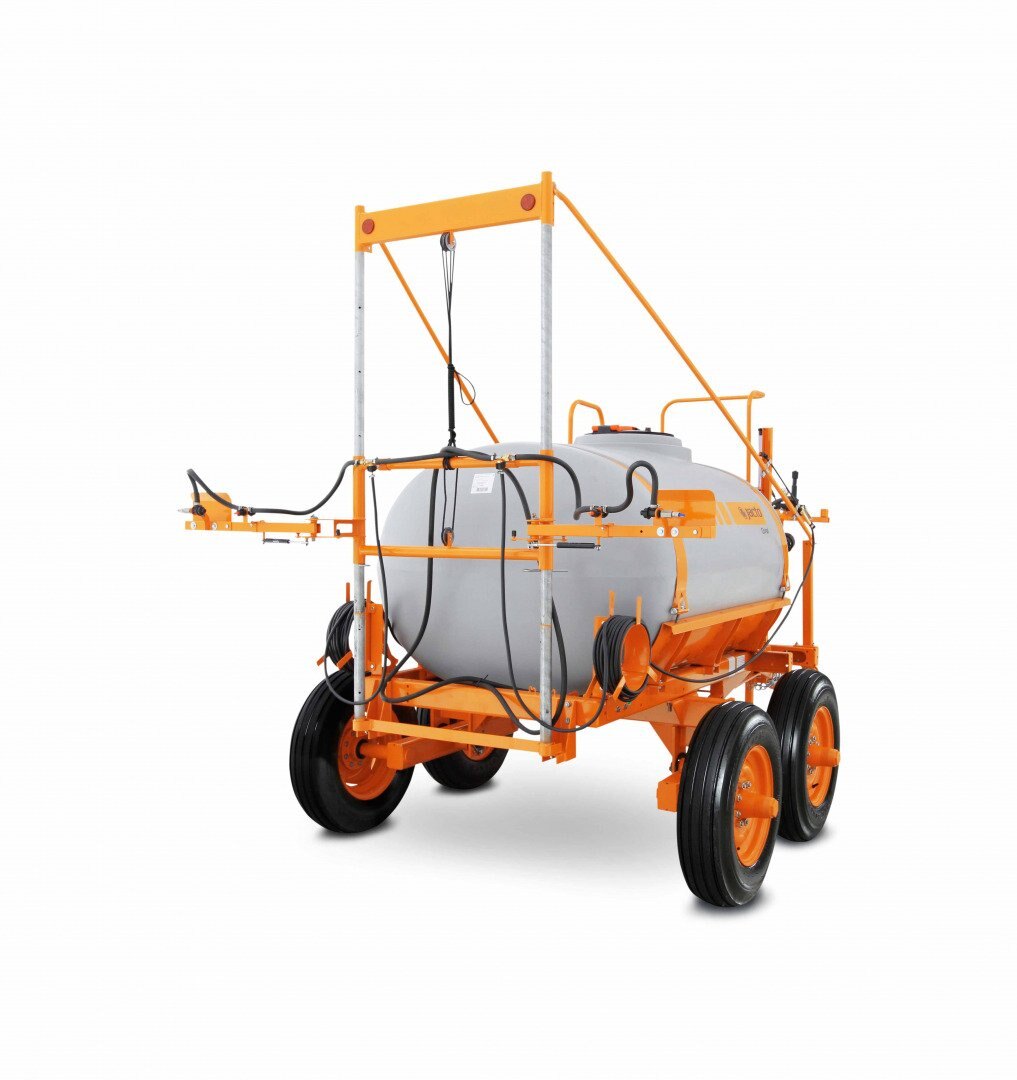

Application range of up to 33 ft, with physical booms of 7,2 ft, wich follows the width of the tractor, avoiding collision with pasture obstacles. Excellent for areas of difficult mobility.

Jacto Coral PEC Resistance and Practicality

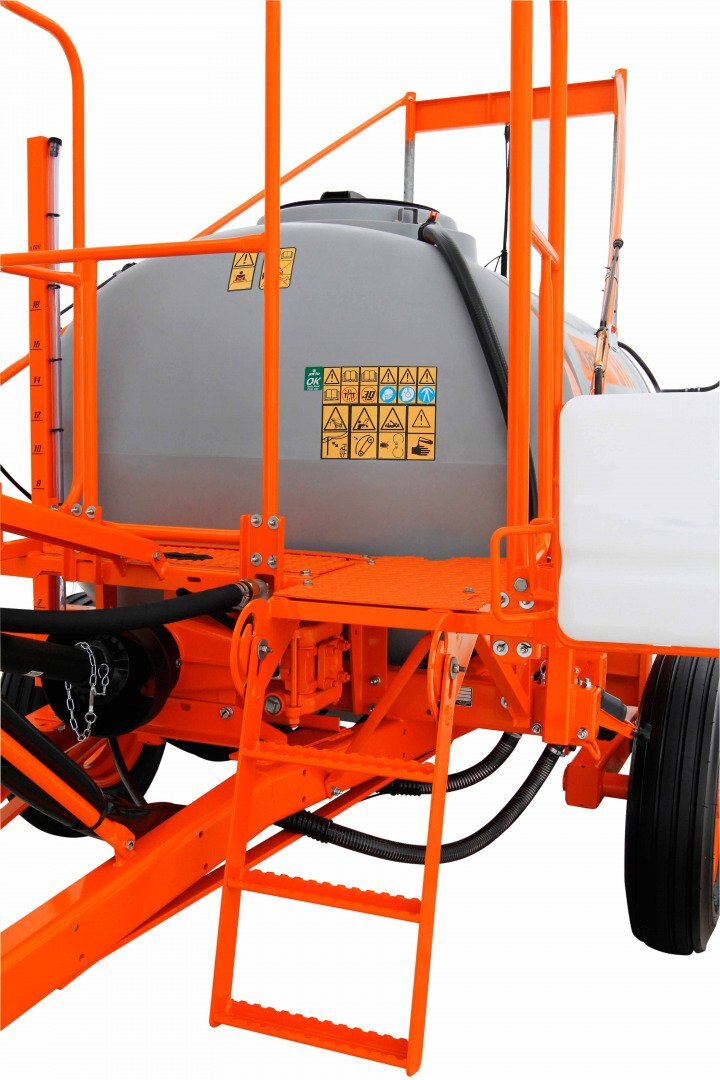

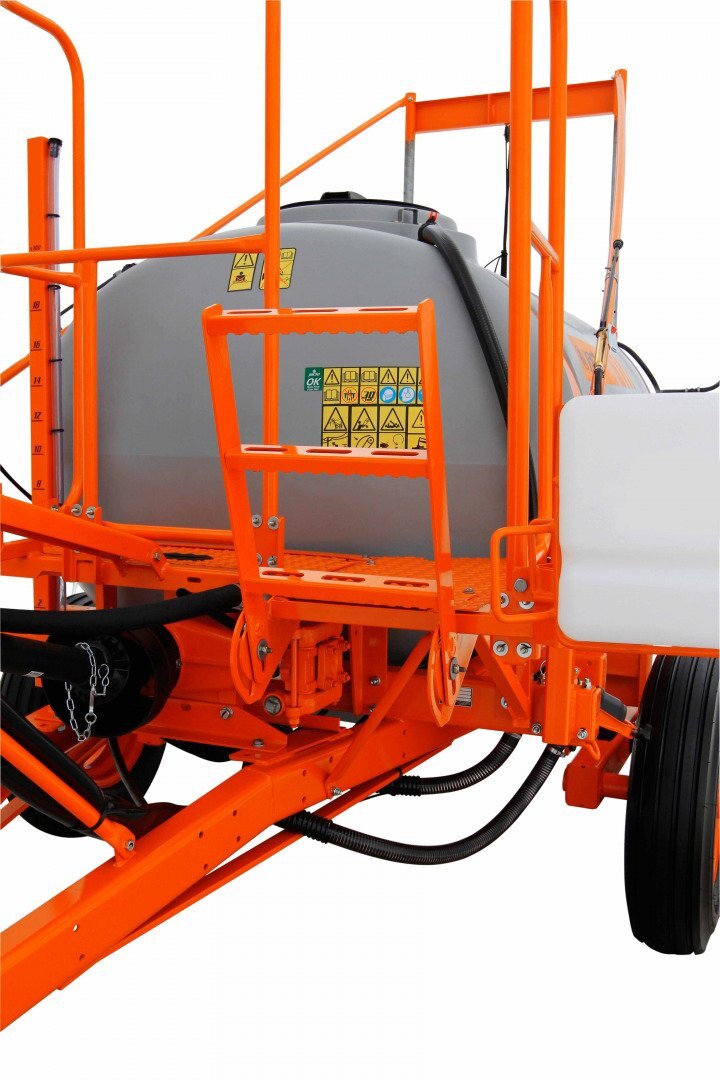

528 gal tank, made of polyethylene, with a polished finish on the inner and outer surfaces to facilitate cleaning. Resists impacts and corrosions.


Hose Reel

With 2 spray lances attached to the equipment, it facilitates the use in localized applications.



Jacto Coral PEC Perfect Combination

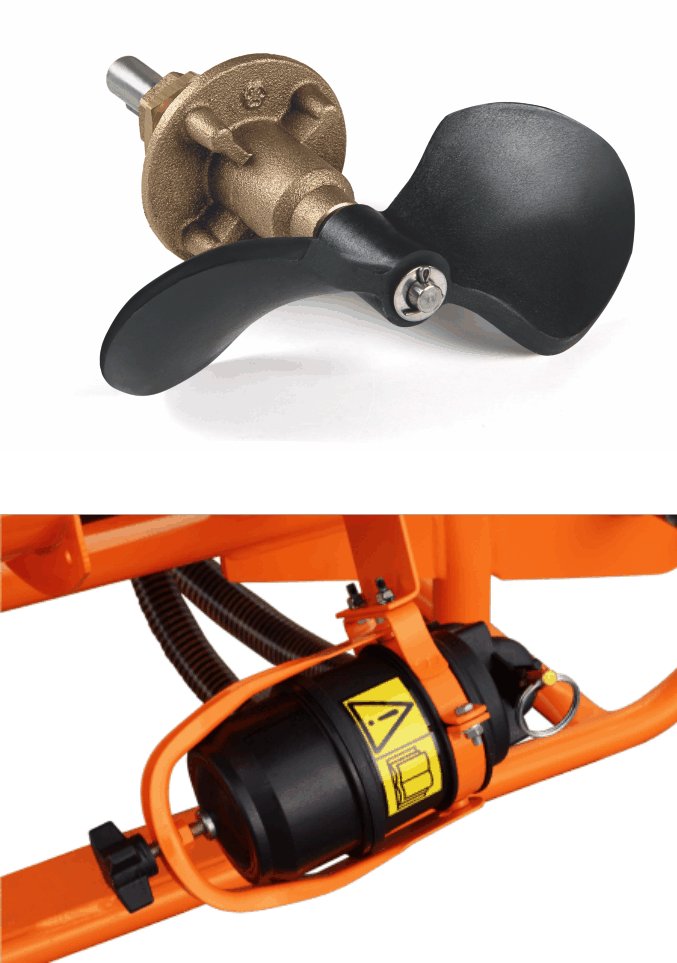

Mechanical agitation

Guarantee of always homogeneous product, mixing the product through a polyethylene propeller.


Main Filter

With quick lock for easy cleaning. Filtration system is made through stainless steel screens, using a mesh as a structure for filtration, helping with application quality and circuit protection.

Jacto Coral PEC Stability

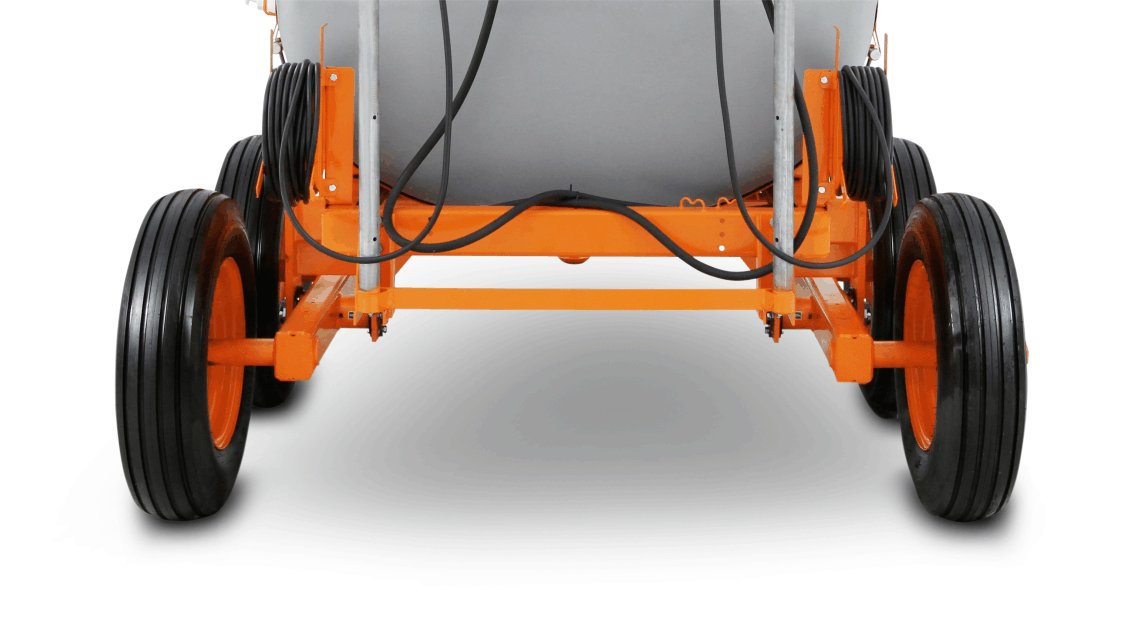

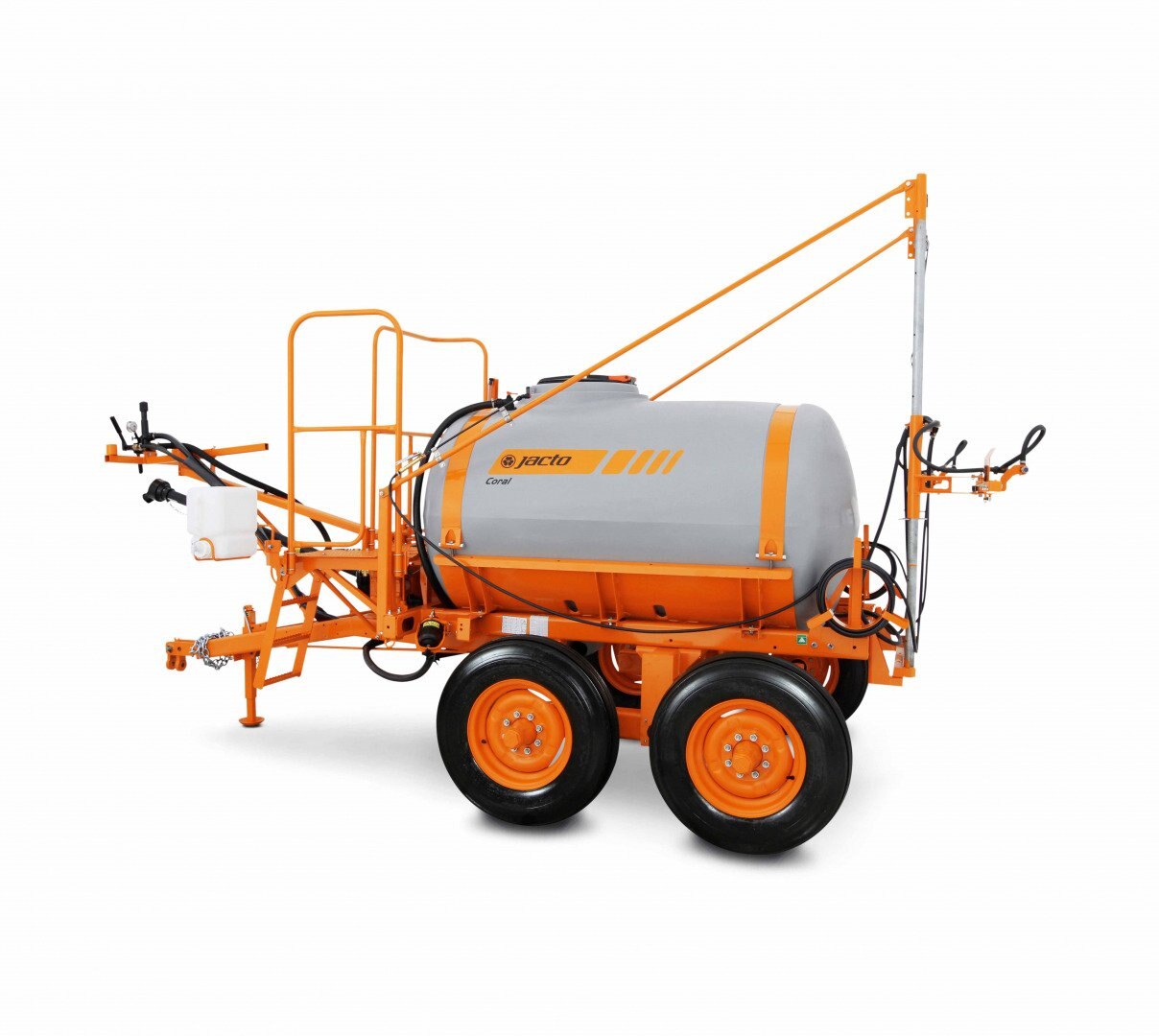

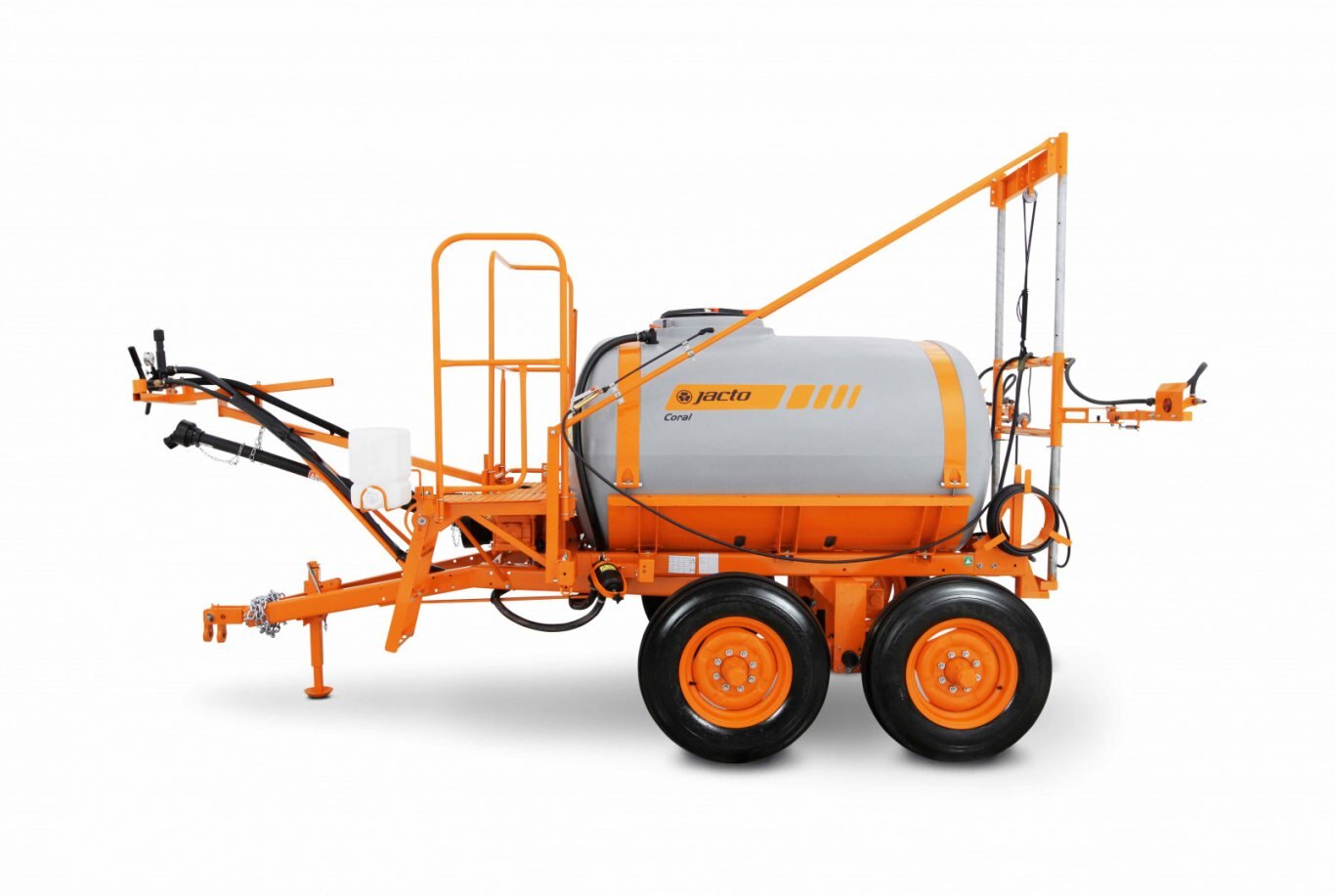

The Coral PEC sprayer is available with a Tandem wheel axle, whose axis compensates for terrain irregularities making the operation more stable.





Specifications
Model
Coral PEC
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                                   Download



spraying
Crop Livestock
Tank Capacity (L)
528 gal
Material
Polyethylene
Chemical Solution Agitation
Mechanical
Spray pump Model
JP-75
Type
Piston
Maximum flow rate (L/min)
20 gpm
Power consumption
4 hp
Main Filter Model
FVS-100
Filtering capacity (L/min)
26 gpm
Filter Mesh
60
Spray control

Model

V.A.R.

Number of ways

2

Actuation

Manual by lever

Maximum working pressure

300 PSI

Carreta

Eixos

Tandem Fixed axis

Track width (m)

Fixed 6,04 ft

Ground clearance (m)

23,62 in

Tires

7,5 x 16

Nozzle branch

Material

Hose

Nozzle spacing

Center boom 4,72 ft

Nozzle spacing

Side boom 6,56 ft

Nozzle holders

Monojet

Clean water tank Capacity (L)
4 gal
Material
Polyethylene
Nozzles Model Center boom
MVI-04 / MVI-02
Model side boom
XT 020 / XT 010
Boom Actuation
Manual
Working Height (ft)
Until 7,22 ft
Length (m)
6,56 ft (32,81ft application range)
Area size Up to 500 ha
Dimensions

Length (m)

14,76 ft

Maximum Width (m)

7,21 ft

Height (m)

8,53 ft

Weight Empty machine (kg)
1764 lb
Working speed Spraying
1 to 4 mph
Available options

Filler unit

EJ 20 gpm
