Jacto

ID # 24541340

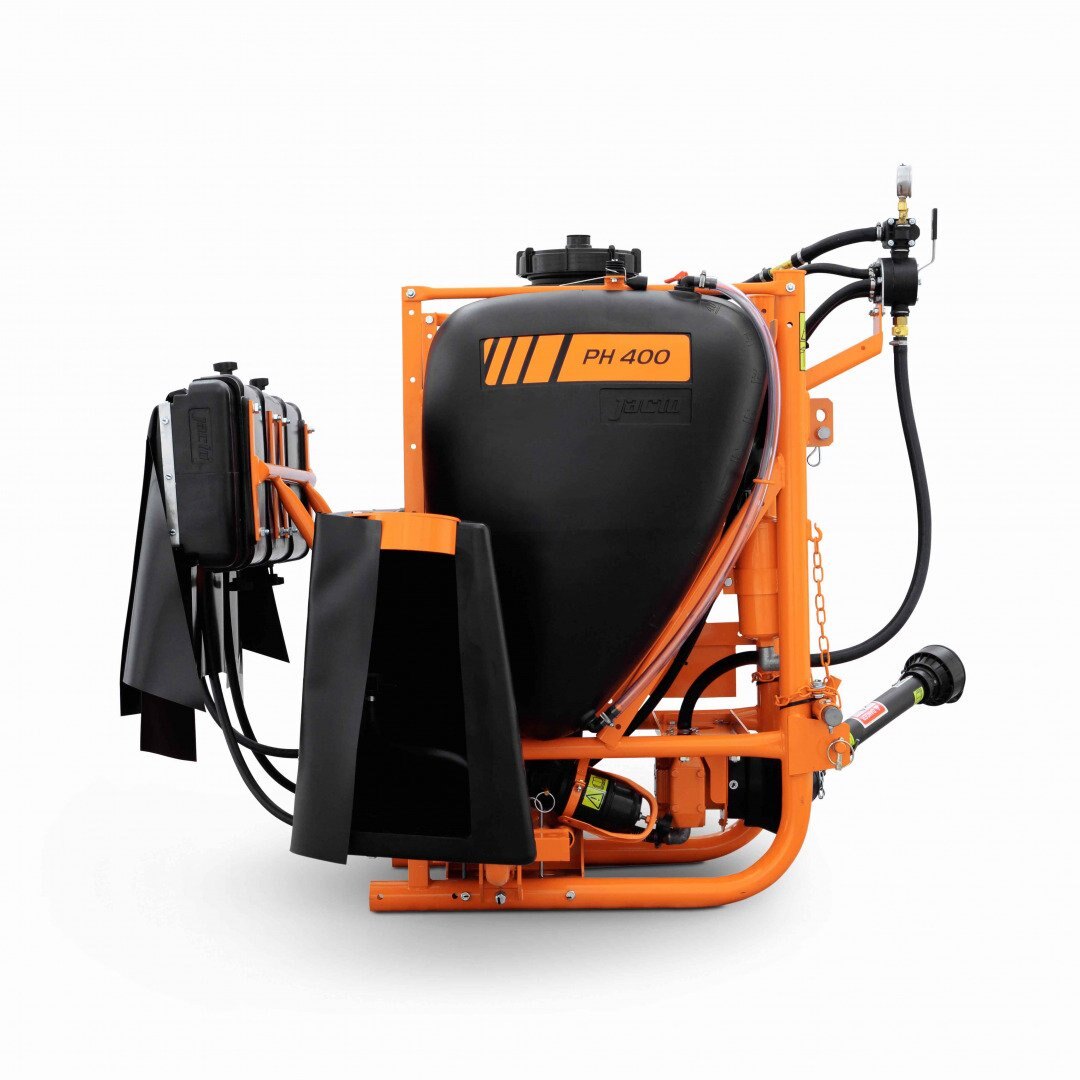

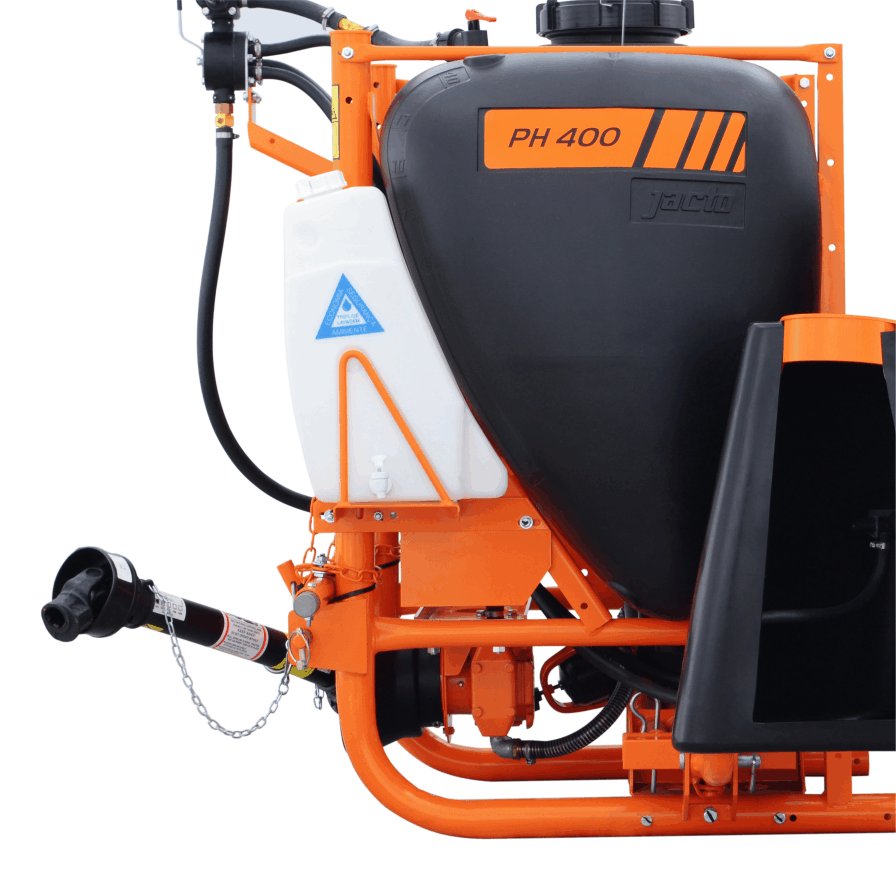

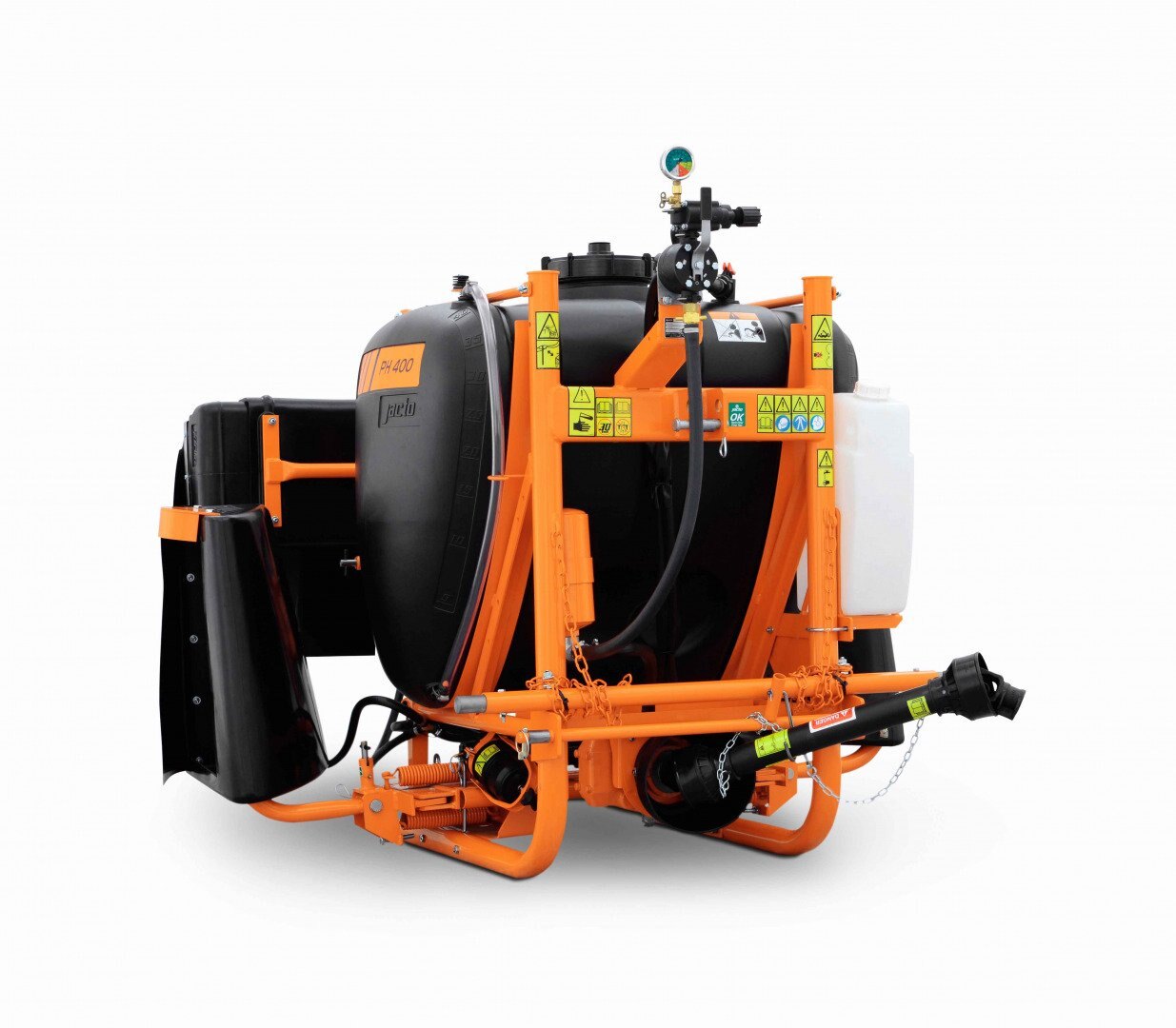

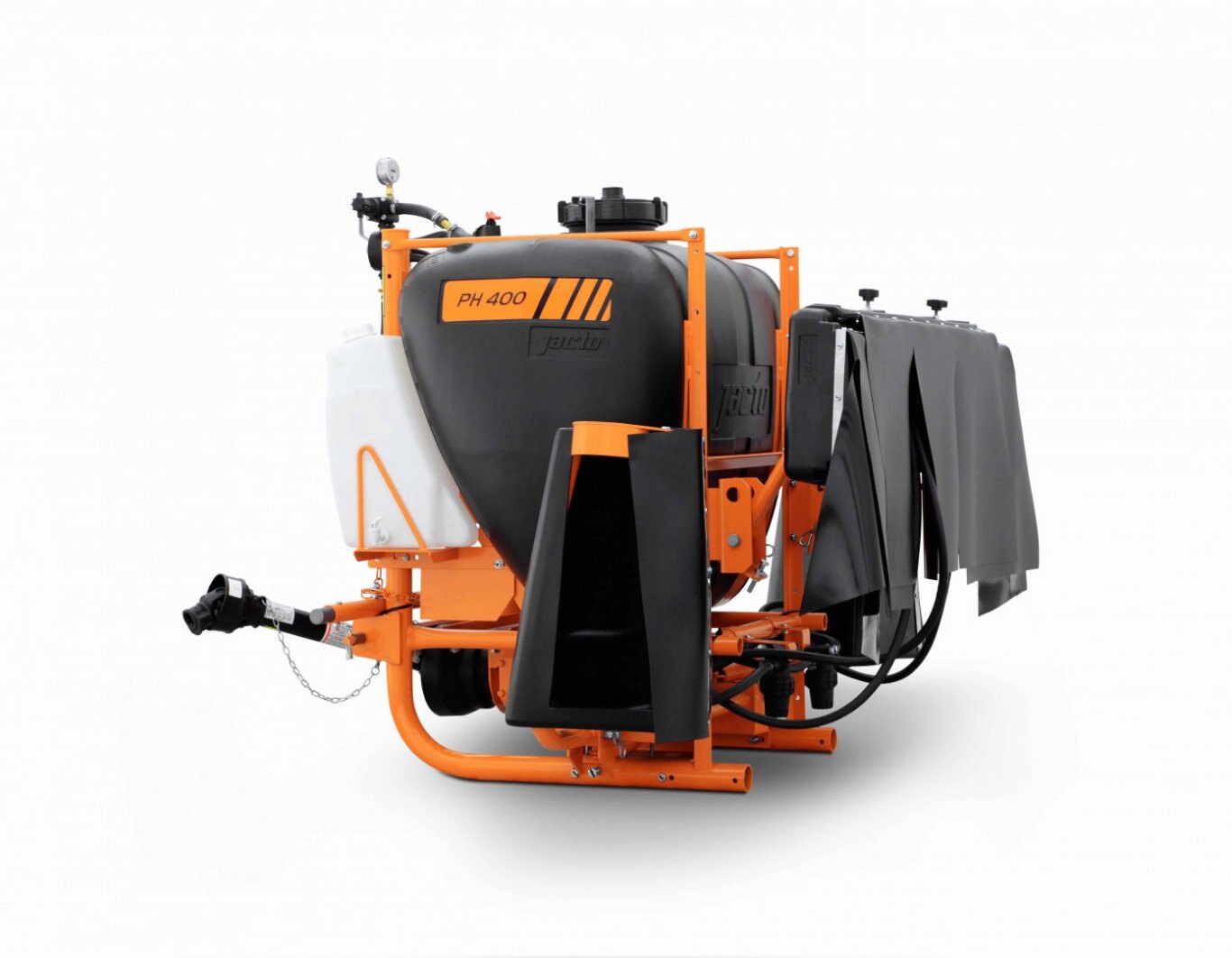

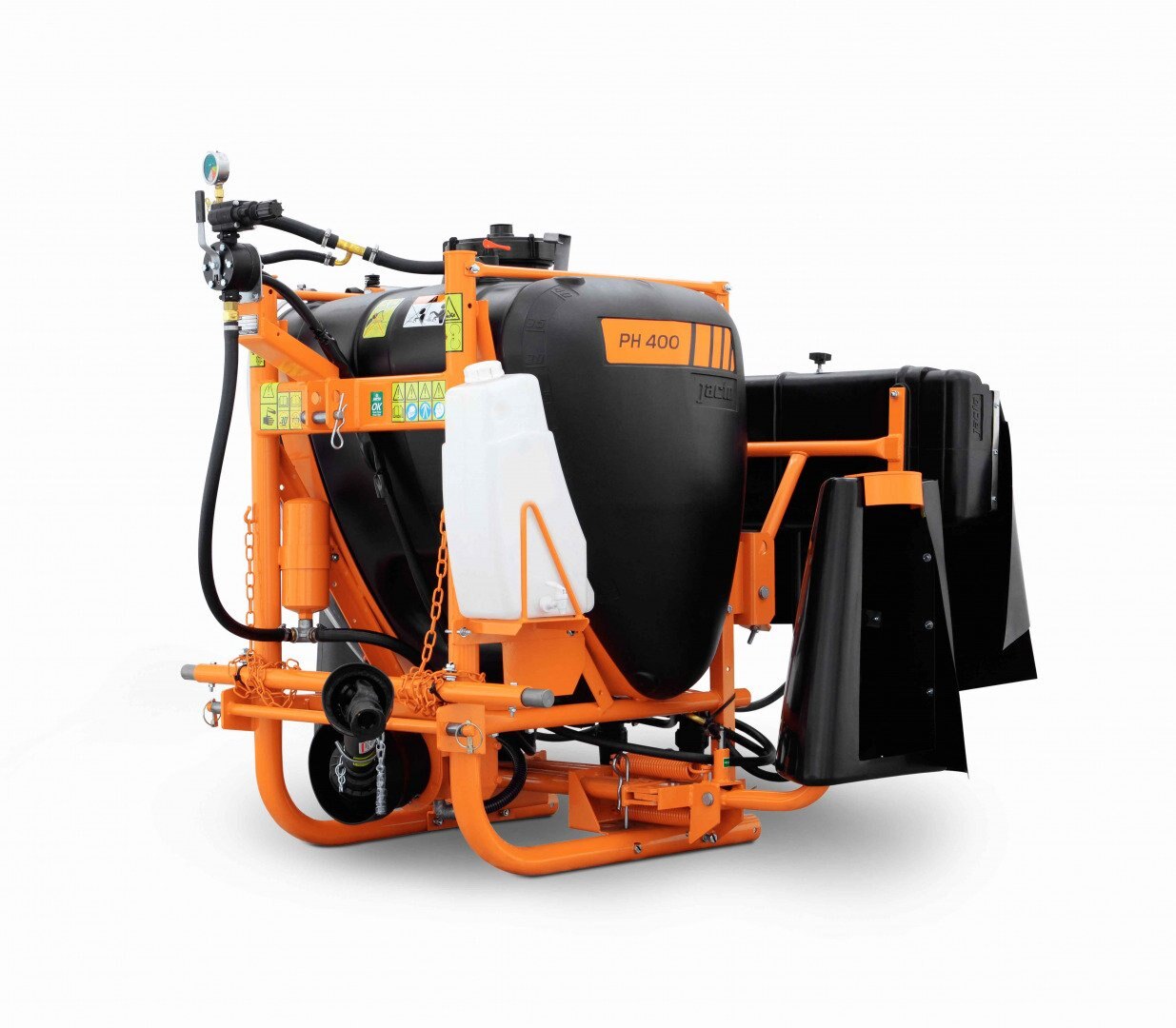

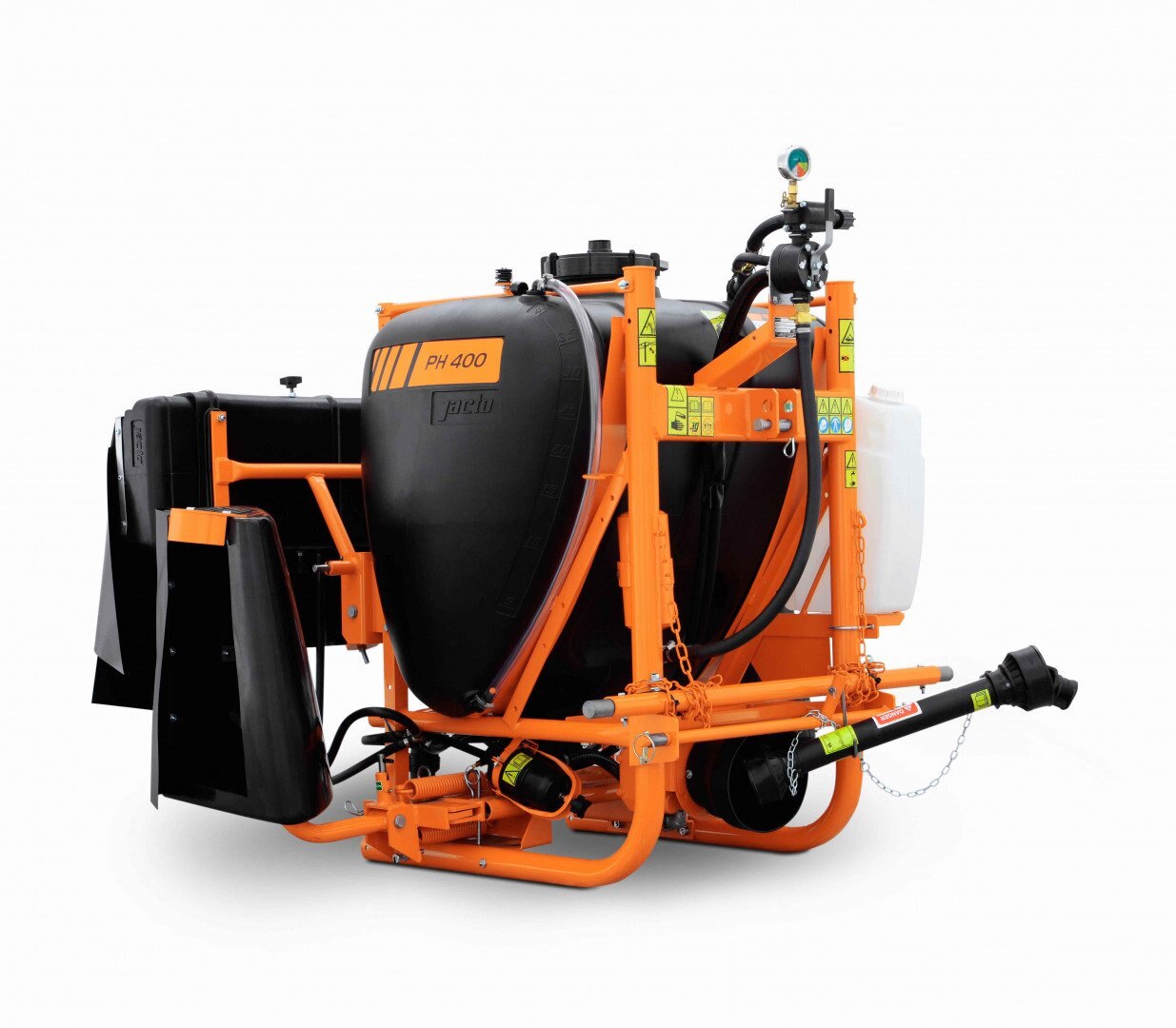

Jacto - PH 400

Call for Price
Overview

Small in size. Great in productivity.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_0_image_1588768329102_diferencial.gif The Best Option

The PH 400 apply herbicide efficiently and total protection the plant.

Jacto PH 400 Model That Meets Your Need

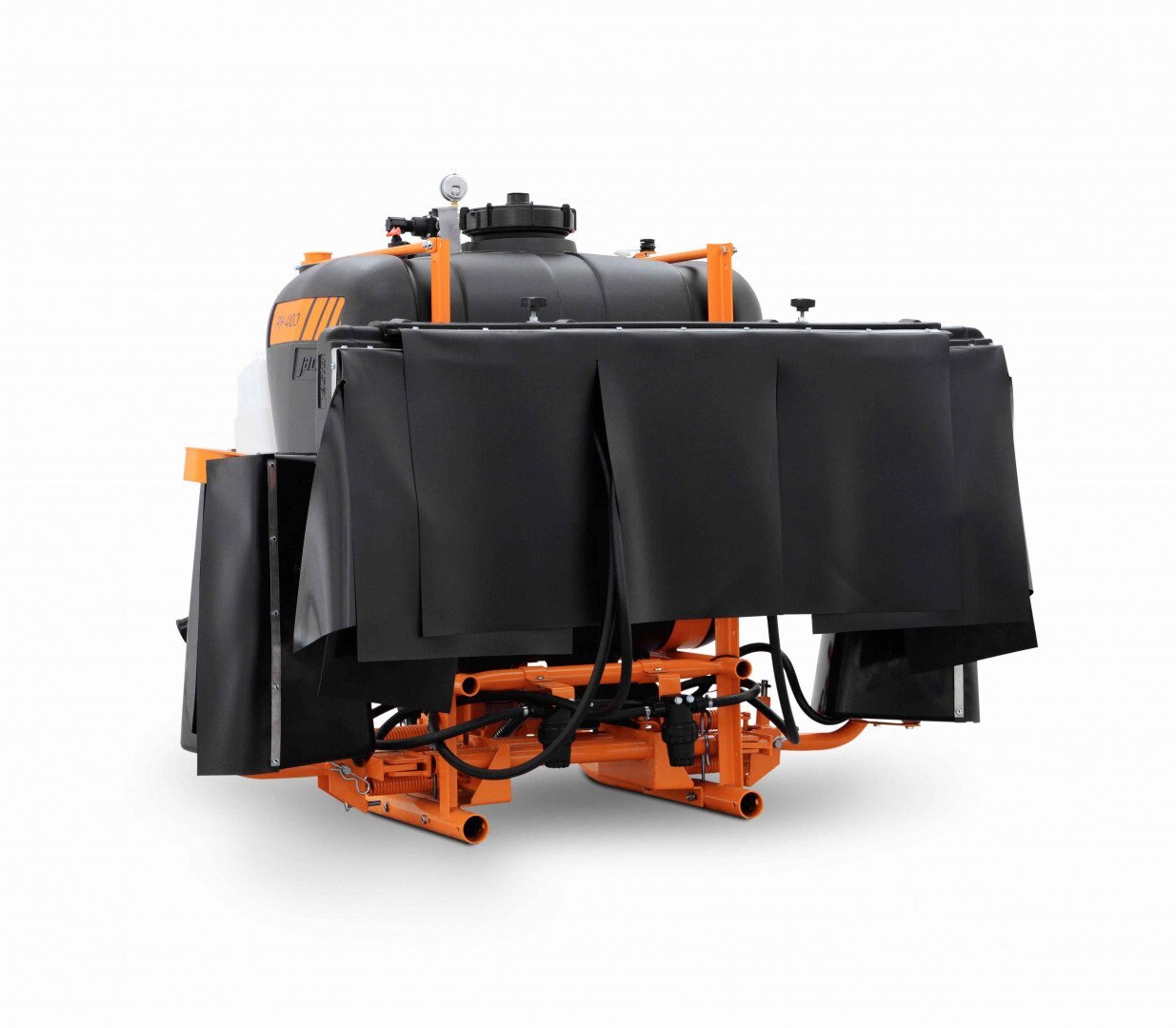

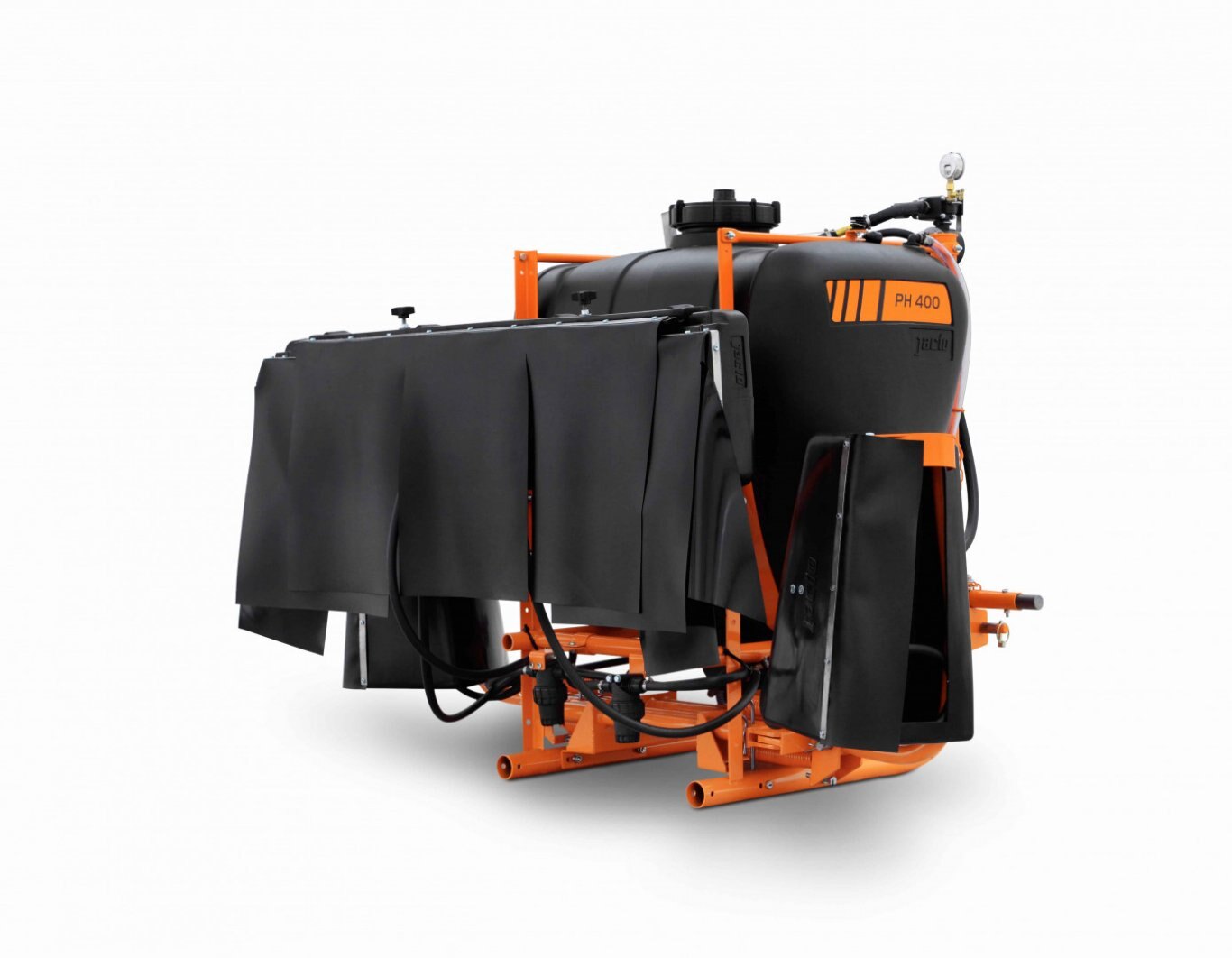

Protective polyethylene handles resistant to impacts and corrosion. Adjustable in height and articulated to follow the unevenness of the field.

Higlhy resistant to impacts.

The smooth of the walls and the shape of the cover, facilitate the flow of the product and internal cleaning.

Jacto PH 400 High Resistance and Practicality

106 gal tank, made of polyethylene, with a polished finish on the internal and external surfaces to facilitate cleaning. Resists impacts and corrosions.



Jacto PH 400 Perfect Combination

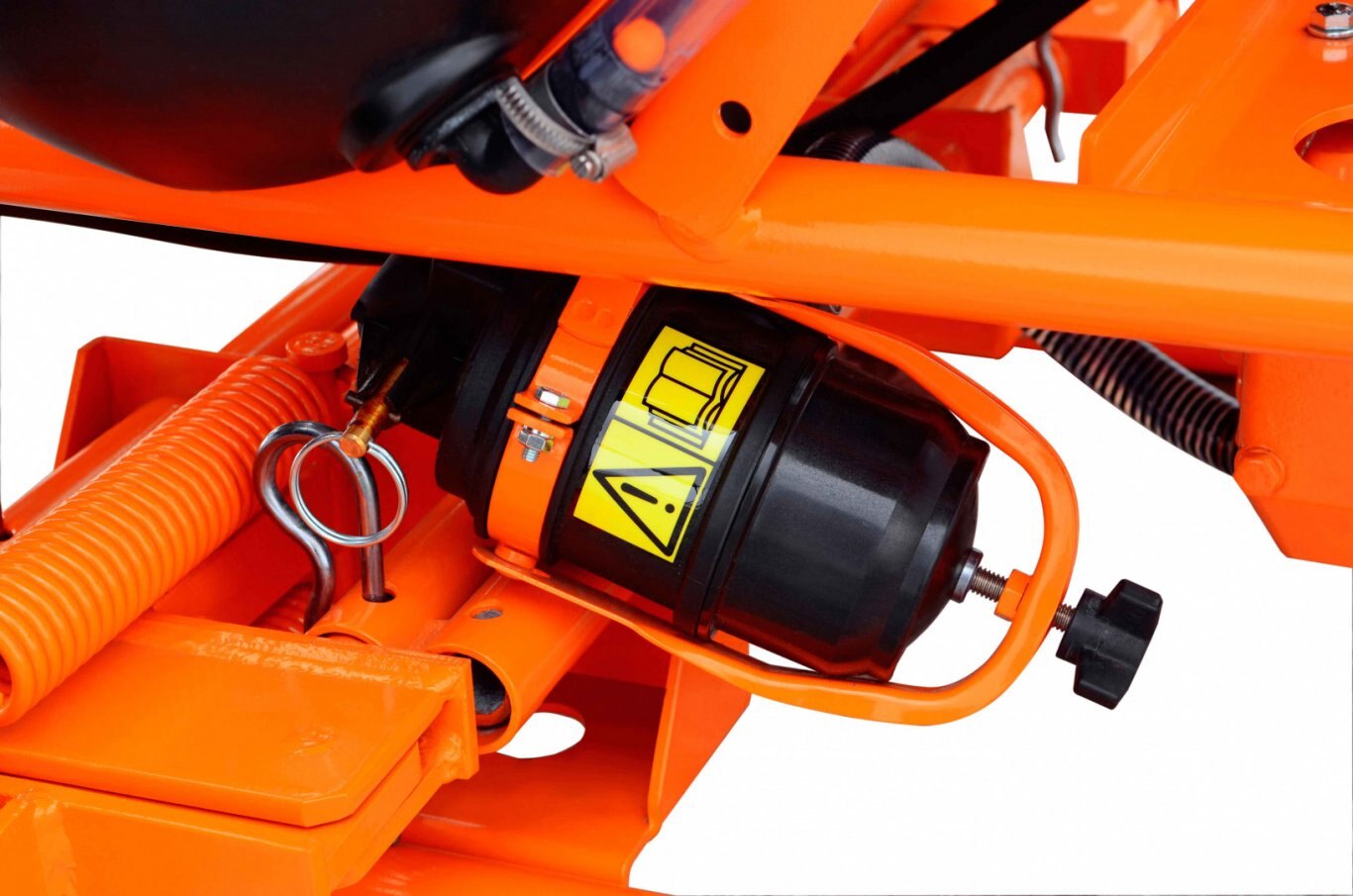

Pump driven by cardan shaft (optional item), JP-402 model with 38-liter/minute pumping capacity. The ceramic sleeves guarantee excellent resistance to abrasion and corrosion.

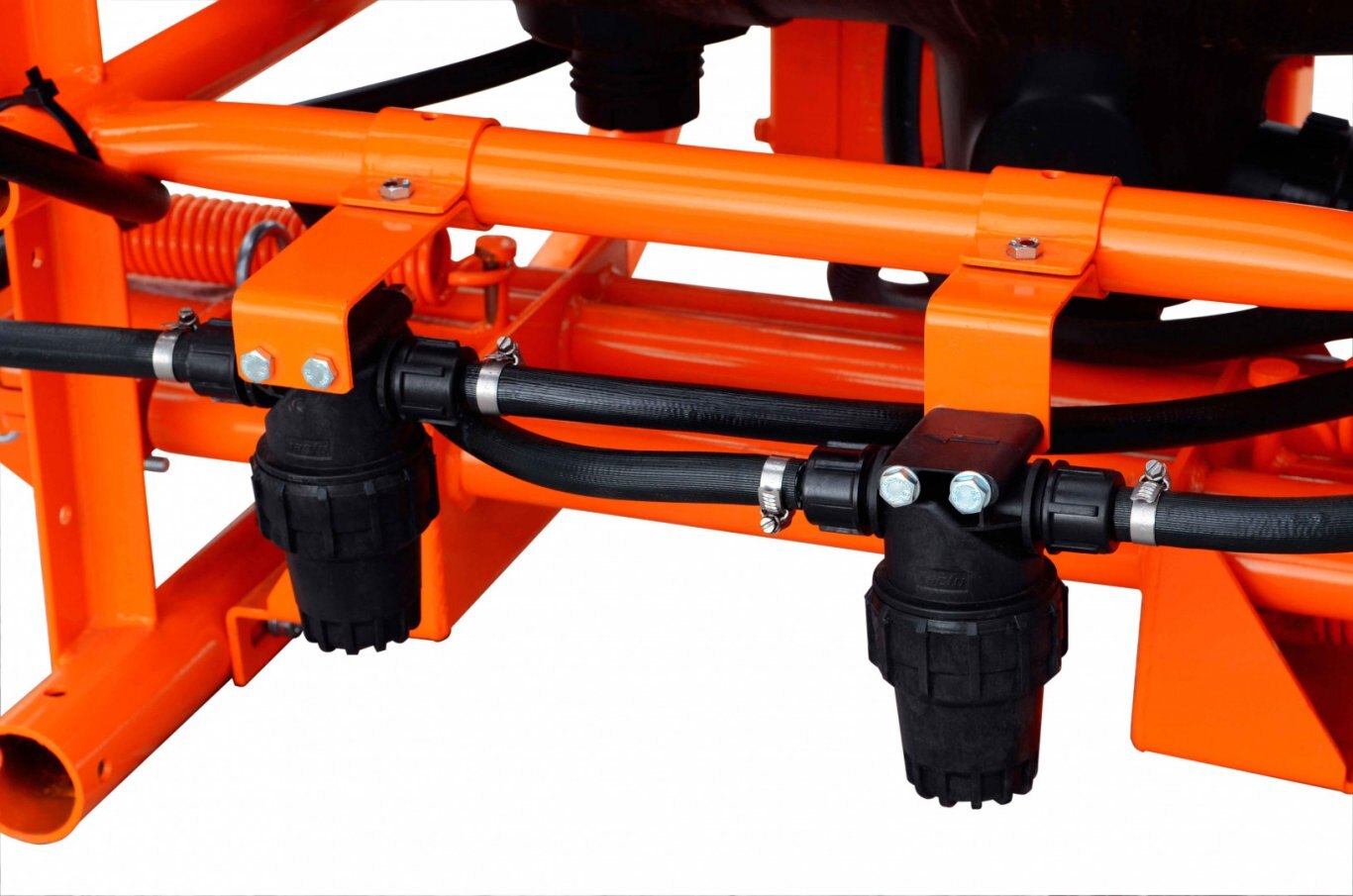

Filter, with quick closing for easy cleaning. Filtration system through stainless steel screens.



Jacto PH 400 Pressure in the Right Measure

Command CJ-42 with quick relief that avoids pressure overload in the defensive circuit. Manometer with extended scale and glycerin bath, providing better reading.





Specifications
Model
PH 400
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                                   Download



spraying
Crop Cereals Vegetables Coffee
Tank Tank Capacity
106 gal
Material
Polyethylene
Chemical Solution Agitation
Hydraulic
Spray pump Model
JP-401
Type
Piston
Maximum flow rate
10 gpm
Power consumption
2 hp
Main Filter Model
FVS-100
Filtering capacity
26 gpm
Filter Mesh
60
Spray control

Model

CJ-42

Number of ways

2

Actuation

Manual by lever

Maximum working pressure

150 PSI

Boom

Width

7,70 to 10,11 ft / 9,51 to 11,87 ft

Area size Up to 50 ha Up to 500 ha
Dimensions Length
4,92 ft
Width
5,51 ft
Height
4,69 ft
Weight Empty machine
453 lb
Working speed Spraying
1 to 4 mph
Options available Filler unit
