Jacto

ID # 24533271

Jacto - PJB-v2015

Call for Price
Overview

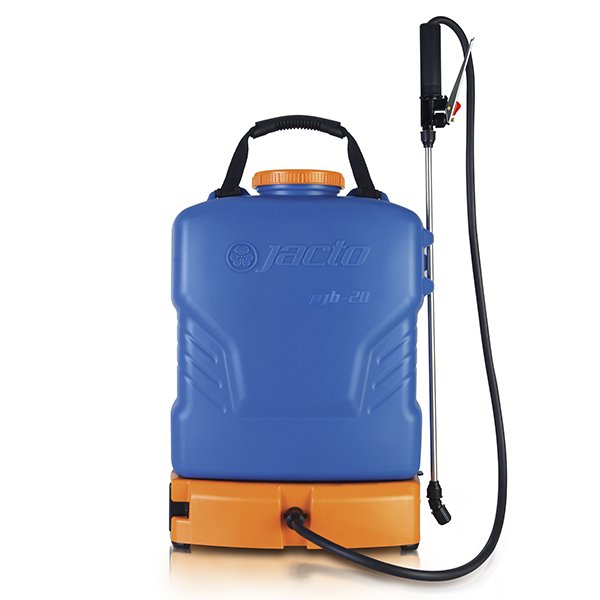

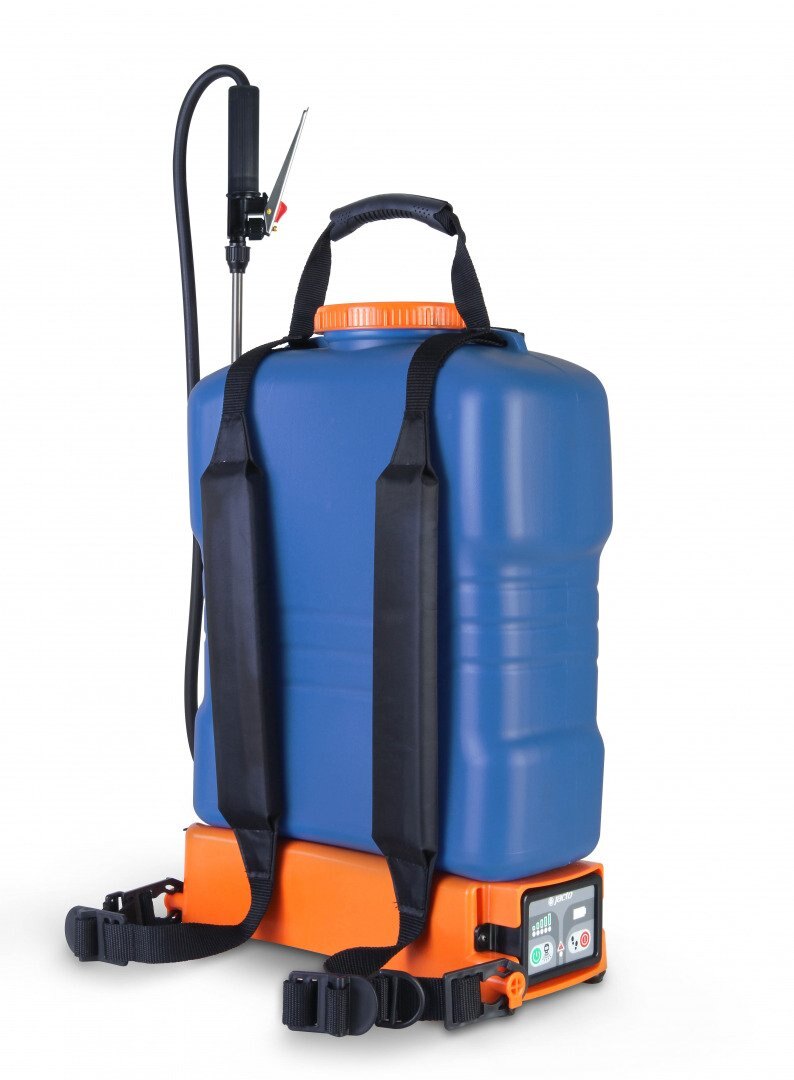

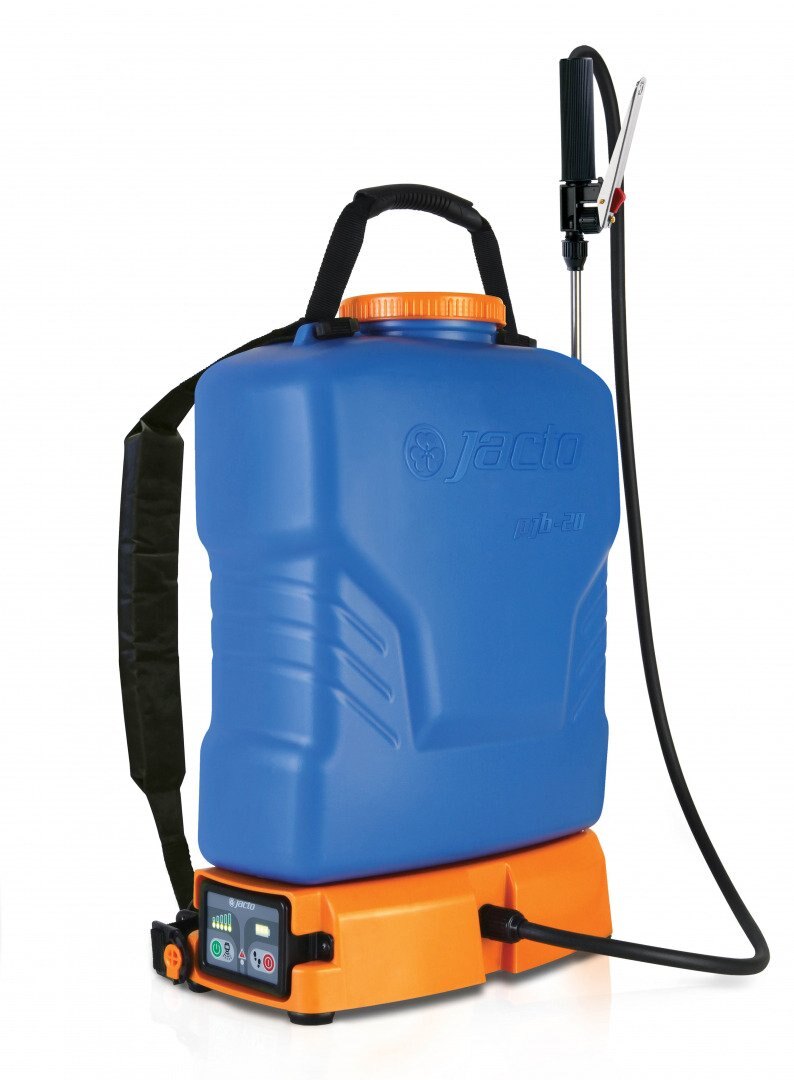

Jacto PJB v2015The PJB-16 and PJB-20 are the worlds most advanced battery powered backpack sprayers. With almost four years of development by Jacto, these ergonomically designed and lightweight sprayers are a marvel of engineering. The 4 gallon PJB-16 and the 5 gallon PJB-20 are the right sprayers for the end user who needs accuracy and efficiency for the on target delivery of their spray solution. With such features as, hydraulic agitation, multiple pressure settings, a walking pace (speed) indicator and built in self diagnostics, the PJB16 or PJB-20 is the right sprayer for everyone... from the Market Farmer, Commercial Greenhouse Grower to busy Landscape Professional. These models are equipted with an easy to change rechargeable lithium-ion battery. Depending on flow rates and pressures, typical battery run times per charge average about 8 hours and go as high as 12+ hours. The PJB-16 and PJB-20 are capable of spraying horizontally up to 30 feet and heights up to 25 feet with a stream pattern on the high pressure setting.



Specifications
Model
PJB-v2015
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Operator's Manual Download
Technical Information Download
Parts Catolog           Download



features

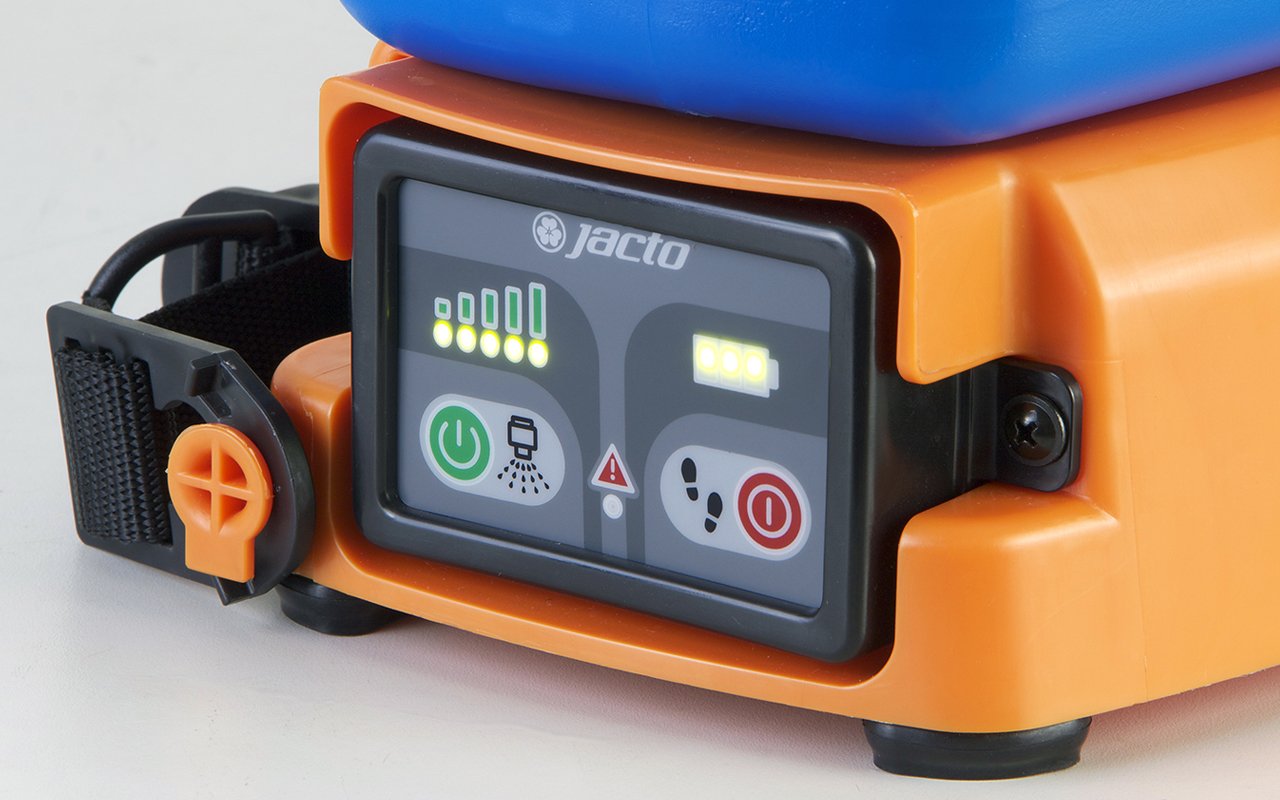

Jacto PJB v2015 PANEL

Controls and monitors your PJB

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_1_image_1541615293338_agitador_PJB_e_DJB.jpg Hydraulic agitator

Hydraulic agitator that keeps the liquids homogeneous, improving even more your application.

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_2_image_1541615293338_pressao_constatne.jpg CONSTANT PRESSURE

The PJB pressure is constant regardless of the battery charge level.
Keeping the same flow rate, drop size and opening angle of the nozzle, allowing a homogeneous spray from start to finish

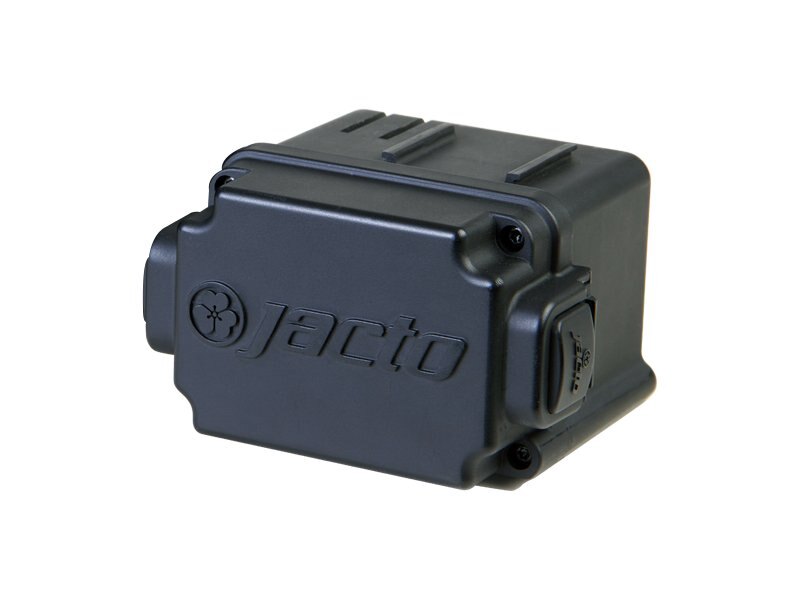

https://s3.amazonaws.com/1-jacto.com.br/files/product_features_3_image_1541615293338_bateria_removivel.jpg REMOVABLE BATTERY

Easy installation and removal. Full charge in only 4 hours.
More than 50 gallons of application with one battery.
Using the JSF 02 yellow nozzle)

dimensions / weight
Hose Length
23.6 in
Width (16 / 20)
7.4 in / 7.7 in
Height (16 / 20)
18.5 in / 21.2 in
Length (16 / 20)
15 in / 15.1 in
Spray Lance Length
53.1 in
Net Weight (16 / 20)
10.5 lbs / 10.8 lbs
spraying
Type
Diaphragm
Agitator
Hydraulic
Capacity
4 and 5 gallons
Material
Polyethylene
Open Flow
0.50 gpm (1.9 l/min)
Pressure Selection
5 levels
Filling Opening Diameter
4.5 in
Maximum Working Pressure
60 psi (4.1 bar)
battery
Type
Lithium Ion, rechargeable
Capacity
60 Wh (4200 mAh)
Rated Voltage
14.4 V d.c.
Recharge Time
4 h
Removable Battery
