Jacto

ID # 24532367

Jacto - DJB-20

Call for Price
Overview

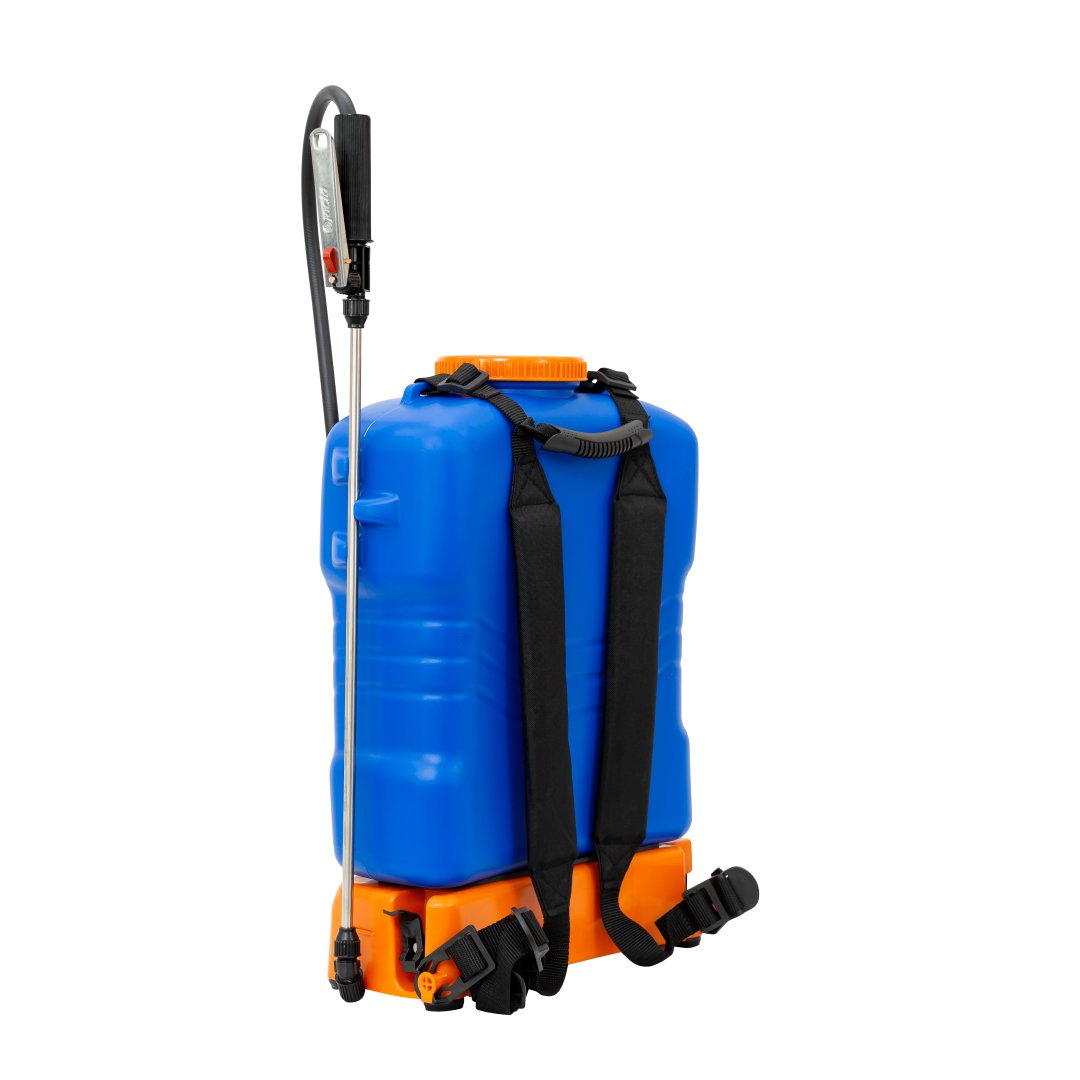

Battery-powered backpack doser and sprayer

Exclusive timer system that applies from 5- to 300-ml (0,17 to 10,14 oz) dosages with precision and speed. Easy, practical and precise. With a battery charge, it allows applying more than 10,000 doses of 50 ml (1,7 oz).

Jacto DJB 20 Much more savings with a 2-in-1 device





Jacto DJB has 2 modes of use: doser and sprayer. It's much more flexibility and cost benefit for you!








In the Doser mode, it has an exclusive timer system that delivers doses between 5 to 300 ml, accurately and with 5 dosing intervals. The liquid is dosed according to the selected time interval. Pull the trigger just once and let the Jacto DJB do the job for you.








In the Sprayer mode, the Jacto DJB has 5 levels of constant pressure regardless of battery level, allowing a uniform application from start to finish.





Jacto DJB 20 Details that only Jacto can provide

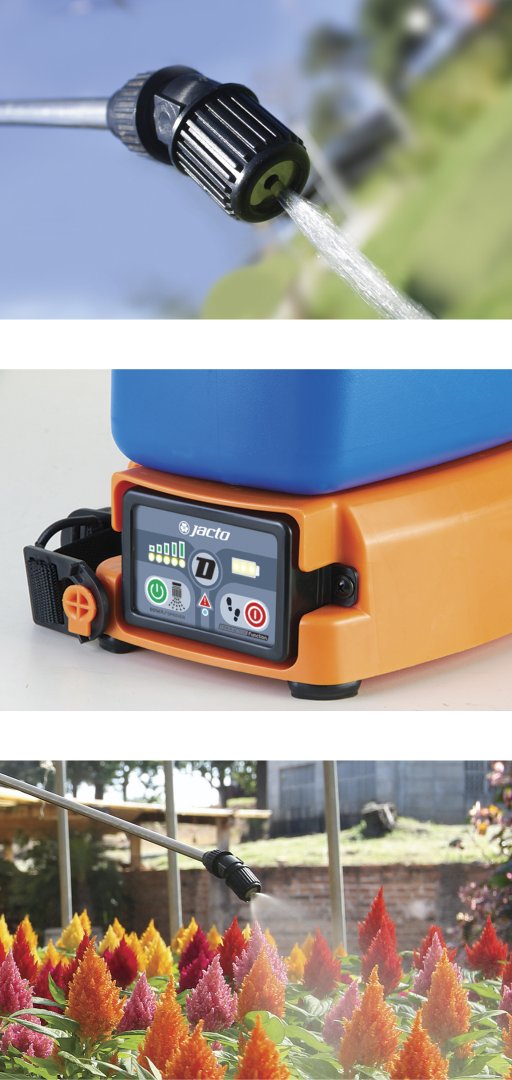

The Jacto DJB comes equipped with a fully intuitive panel. Here, the operator turns the equipment on/off quickly and easily, switches to dosing or spraying mode with just one button, checks the battery level and activates the timer.






The Jacto DJB has a side nozzle inlet. Combined with the quick-attach system, these details allow for greater agility for the operator before and after the operation!

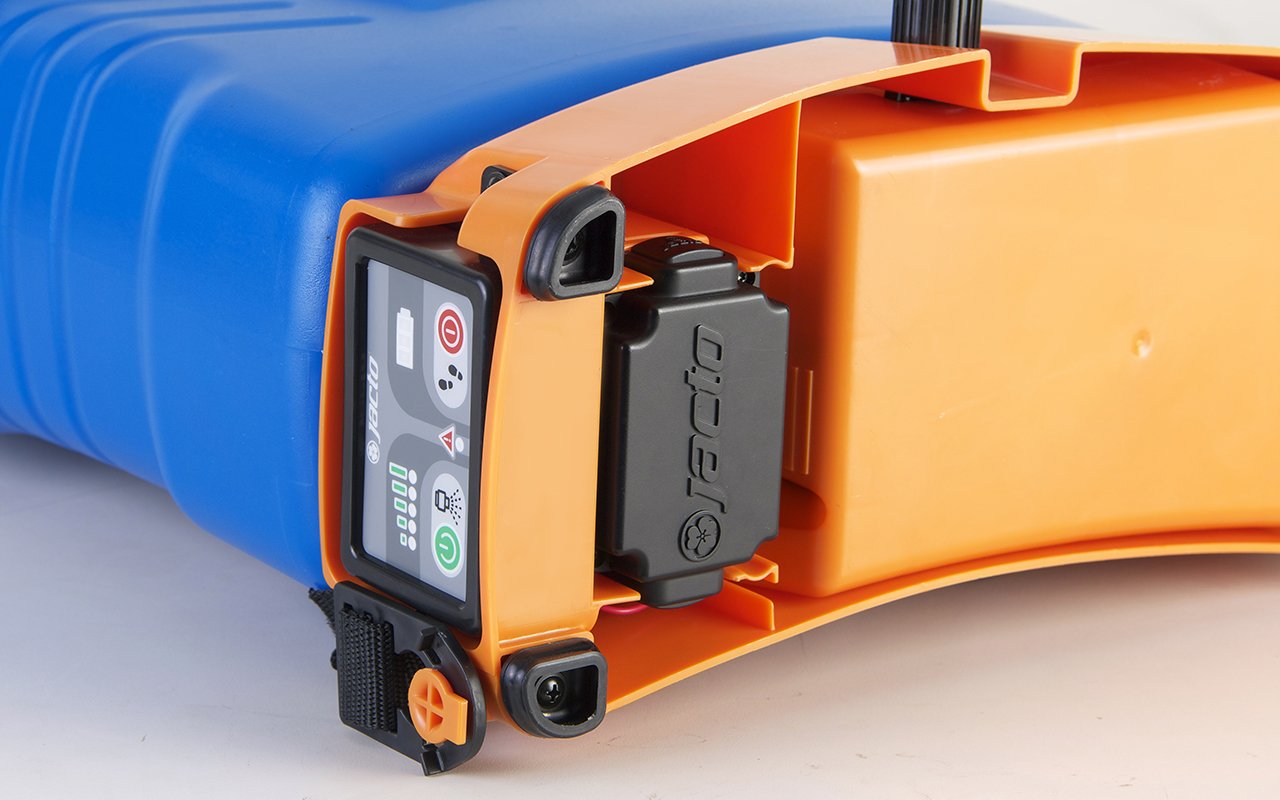

Jacto DJB 20 Rechargeable and interchangeable battery

Easy and quick to remove/install, the JB-1680 lithium-ion battery comes with a 3-year warranty. All these reasons are why our battery is above other lead-acid batteries on the market.


This high quality battery has a longer lifespan than the others, in addition to maintaining voltage for much longer, it is the lightest in the category weighing only 545 g.


It does not stop there! The JB-1680 battery is rechargeable and with a single charge, you will be able to use more than 200 liters per day at maximum pressure, with the yellow JSF 02 nozzle. It is also interchangeable between the Jacto PJB, Jacto SB, Jacto DJB-S e Jacto GB-18. models. Recharging takes just 5 hours.

Jacto DJB 20 Jacto's after-sales support



After purchasing the Jacto DJB, rest assured! Jacto always offers the best after-sales support, whether online or at partner resellers.


The JEP-80 pump, triggers, batteries and other replacement parts are readly-available at all our dealers, in addition to accessories such as the nozzle kit.



Specifications
Model
DJB-20
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
Pump Model
pump
Type
Diaphragm
Model
JEP-80
Open Flow
2.1 liters (71 oz.) / minute
Maximum Working Pressure
60 psi (4.1 bar)
resources
Operator's Manual Download
Technical Information Download
Lista de Peças          Download



spraying
Crops

Coffee

Fruits

Flowers

Tobacco

Seedlings



Vegetables



Covered area size

Up to 1 ha

Up to 50 ha

Up to 5 ha

Up to 500 ha

Up to 10 ha

Above 500 ha

Up to 25 ha
Recommendation Approved crop protection products
Type Battery Backpack Doser and Sprayer
Dimensions Tank 20 l:

Gross weight:5.7Kg|12.6lbs

Net weight: 4.9Kg | 10.8lbs
Tank 16 l:

Gross Weight: 5.5Kg|12.1lbs

Net Weight: 4.8Kg | 10.6lbs
Material:

Polyethylene

Lance Length: 600 mm (23.6 in)
Hose Length: 1.350 mm (53.1 in)
Warranty 03 years - as per the Manual




battery
Model
JB-1680 battery
Weight
545 g (1.2 lbs.)
Voltage
16.8 V
Capacity
5.8 A.h, 84.3 W.h
Material
Lithium-ion (Li-ion)
Warranty
03 years - According to instruction manual
Recharge Time
4 hours
