Jacto - HH-5

  • Jacto HH 5
  • Jacto HH 5
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

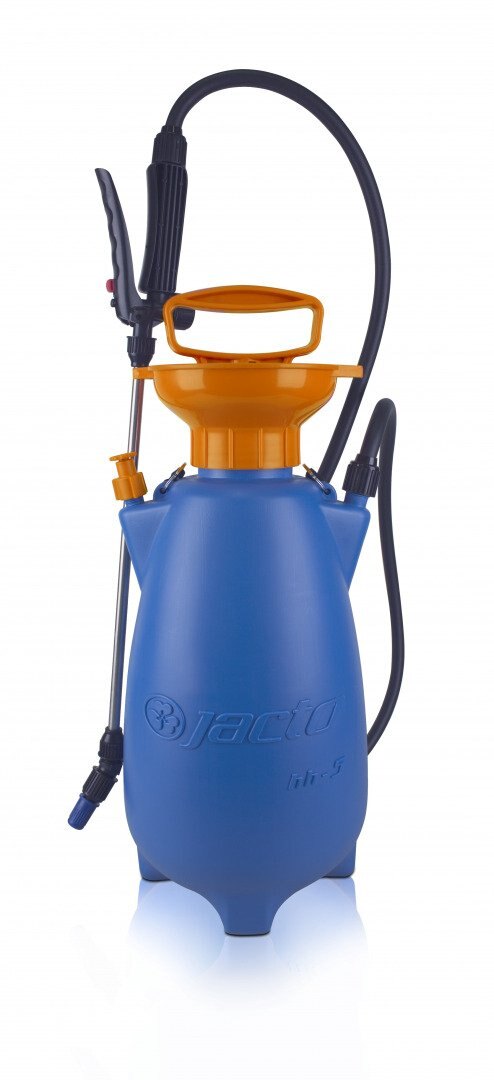

The Jacto HH-5 compression sprayer is portable and easy to use.

Equipped with a piston-type pump, high-durability tank, adjustable cone nozzle, decompression valve for easy opening, and a wide funnel-type top for easy filling, the Jacto HH-5 is ideal for spraying small areas or individual plants.



Specifications
Model
HH-5
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
Pump Model
features

Jacto HH 5 TRIGGER VALVE

Lightweight and tough.
Ideal for all-day work.

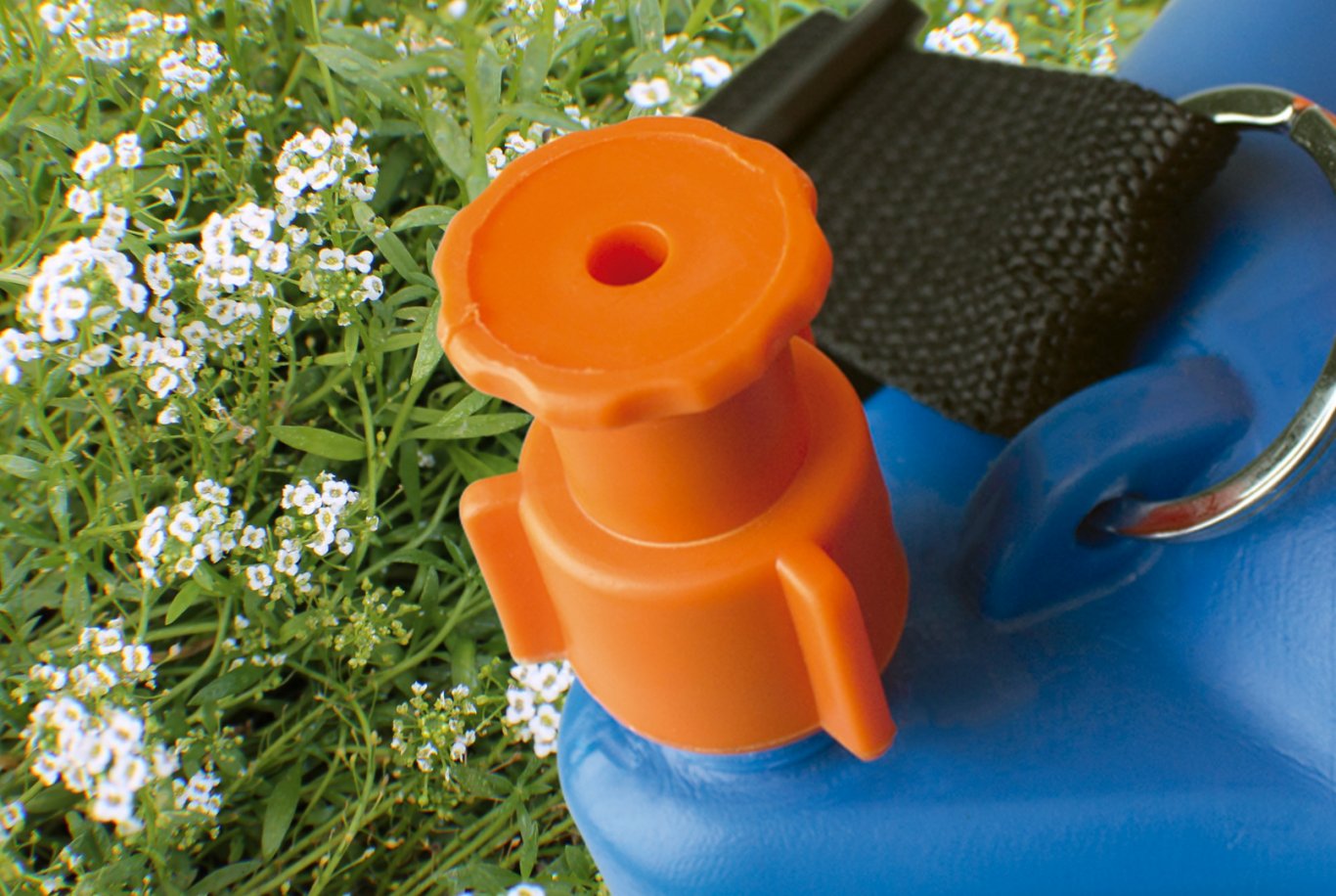

Jacto HH 5 DECOMPRESSION VALVE

Pressure control and
decompression valve to enable the spray tank lid to be safely removed.

Jacto HH 5 NOZZLE

HH-5 equipped with
adjustable cone nozzle.
A full range of nozzles is available from your Jacto dealer.

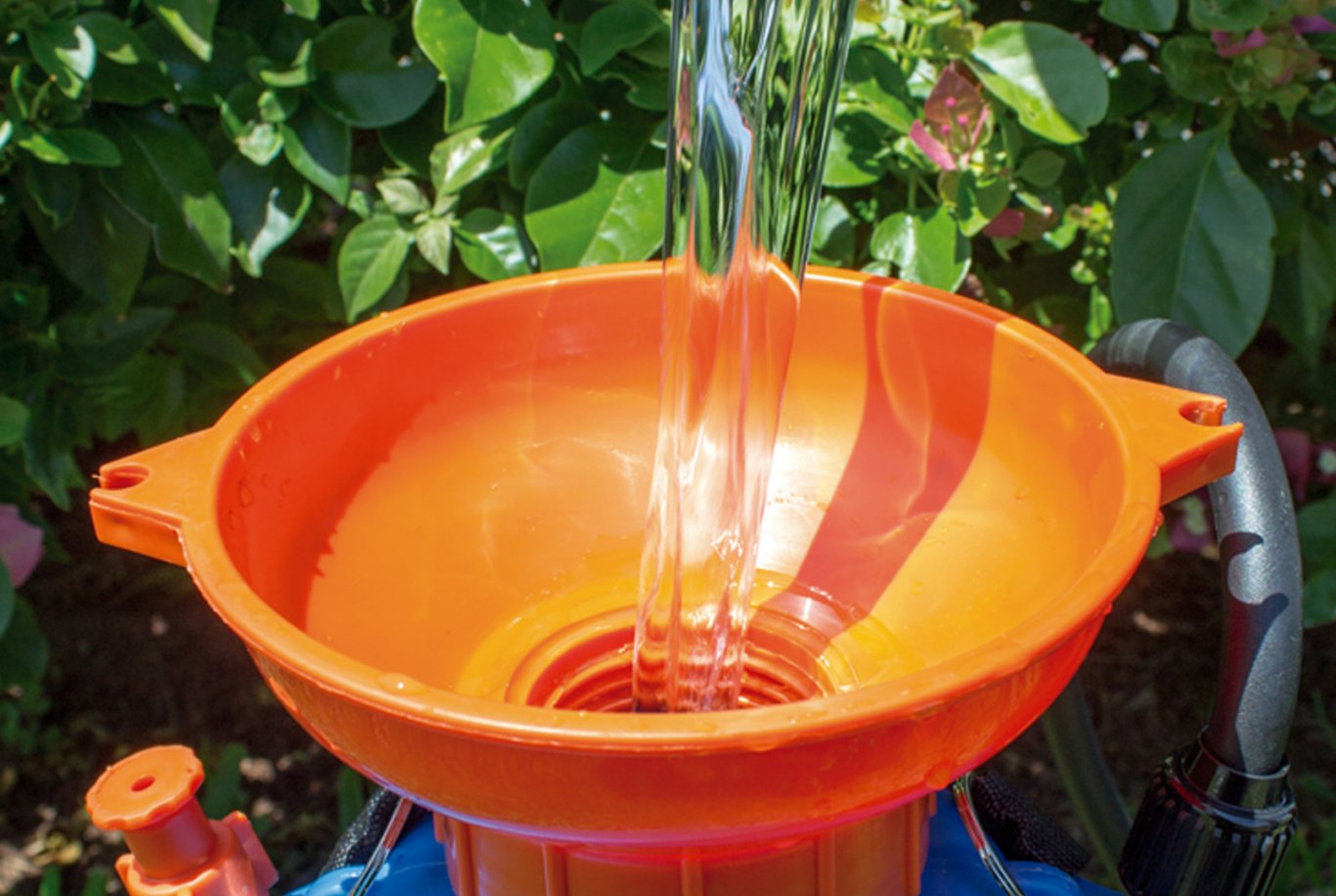

Jacto HH 5 WIDE FUNNEL-TYPE OPENING

For easy filling.
dimensions / weight
Width
7.7 in
Height
18.7 in
Length
7.7 in
Net Weight
3.3 lbs
Hose Length
64.9 in
Spray Lance Length
13.7 in
tank
Capacity
1.3 gal
Material
Plastic
pump
Type
Piston
Material
Plastic
Working Pressure (maximum)
35 psi (2.4 bar)
resources
Operator's Manual Download
Technical Information  Download
Parts List                  Download
