Jacto

ID # 13968595

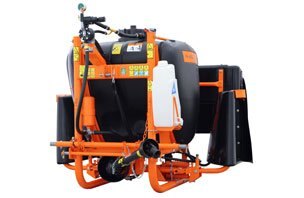

Jacto PH 400 SA Hooded Boom Herbicide Sprayer

Call for Price
Overview

The Jacto PH 400 SA Hooded Boom Sprayer provides excellent and efficient application of herbicides for the removal of grasses and weeds from rows to prevent the uptake of precious water and nutrients. This is a very popular sprayer in highbush blueberries, orchards, nut groves before harvest, vineyards, and other specialty applications to ensure that the chemicals are applied only where they are needed.

The PH400 has three separate fold down hooded booms with spray curtain/wipers attached to greatly reduce chemical drift. The side booms are spring loaded and double break away... backwards or forwards. By using a combination of these booms, along with their individual adjustments, the sprayer can accommodate spray widths from 5 to 10 feet.

  Features:
  • 105 gallon capacity
  • Adjustable spray width from 5 to 10 feet
  • JP401 ceramic cylinder piston pump, 10 gpm @ up to 300 psi
  • Four-way quick-relief control valve
  • Five anti-drip nozzle holders
  • Chemical container and fresh water rinse systems
  • Suction filter with shutoff and washable mesh element
  • Plumbed for optional hand guns
  • Empty weight – 463 lbs.
  • Recommended tractor – 30 HP and above
  • Optional electric valve in-cab controls available

Specifications
Model
PH 400 SA Hooded Boom Herbicide Sprayer
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Jacto
Net Weight (Empty)
463 lbs
Tank Capacity
105 Gallons
Tank Material
Polyethylene
Filter Model
FVS-100
Filter Mesh
60
Agitation
Hydraulic
Pump Capacity (maximum)
10 gpm
Dimensions - Length
59 inches
Dimensions - Height
56 inches
Pump Model
Nozzle Type
Deflector/Flat Fan
