Jacto

ID # 13964415

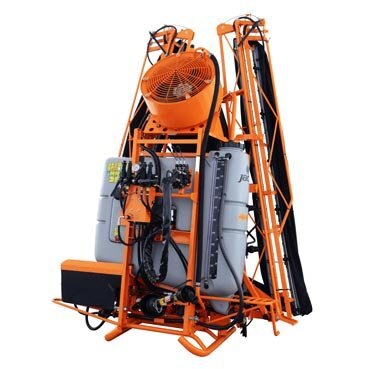

Jacto Falcon Vortex - Tractor Mounted

Call for Price
Overview

Jacto's Falcon Vortex air-assist boom sprayer is a 3-point hitch, 165 gallon capacity boom sprayer. It provides unsurpassed crop coverage and protection by utilizing Jacto's air-assist boom system that displaces the "dead" air around your crop with the spray solution suspended in high-speed "Vortex" air. Air-assist boom spraying can reduce drift up to 70%. It can also help reduce your operating cost by up to 60%.

Jacto's Falcon Vortex air-assist boom sprayer features a 46 foot hydraulically-controlled boom with electronic in-cab controls, hydraulically operated fan, ceramic cylinder high-pressure piston pump, and much more.

.

  Features:
  • 165-gallon poly tank
  • 46 foot hydraulically-controlled, self-leveling breakaway boom.
  • Self-contained hydraulic system, no tractor remotes needed
  • Masterflow control valve w/electronic in-cab controls
  • Hydraulically operated 24.5 inch fan
  • Adjustable air fan air speed from 0 up to 62 MPH
  • Fan air volume up to 18,800+ CFM
  • Ceramic cylinder JP75 pump, 20 gpm @ up to 300 psi
  • Venturi assist bypass agitation
  • 29 double flip-over nozzle holders with ceramic nozzles
  • Chemical container and fresh water rinse reservoir
  • Chemical mixing hopper at ground level
  • Air-assist boom spraying can reduce drift by up to 70%
  • Empty weight 1,609 lbs
  • Recommended tractor – 80 HP and above
Specifications
Model
Falcon Vortex - Tractor Mounted
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Jacto
Net Weight (Empty)
1,367 lbs
Tank Capacity
165 Gallons
Tank Material
Polyethylene
Filter Model
FVS-100
Pump Power Comsumption
2.3 hp at 150 psi
Pump Model
JP-75
Maximum PTO Speed
540 rpm
