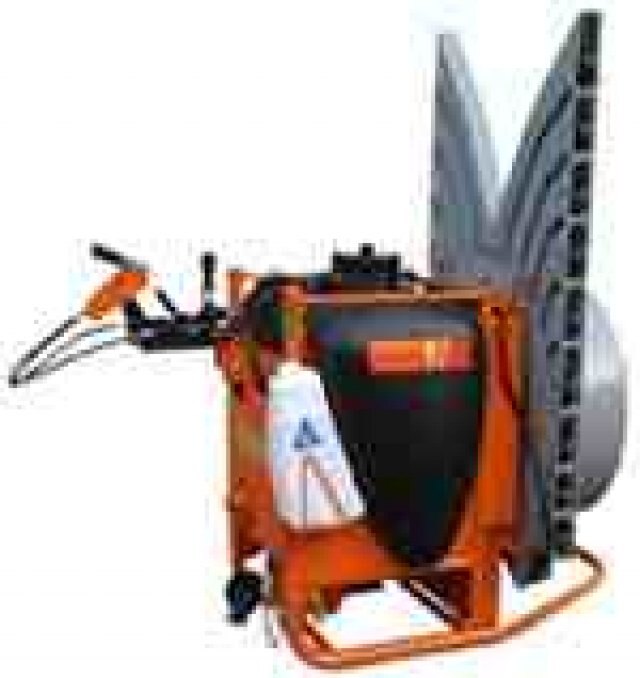

Jacto Arbus 400 Airblast Sprayer - Tractor Mount

  • Jacto Arbus 400 Airblast Sprayer Tractor Mount
  • Jacto Arbus 400 Airblast Sprayer Tractor Mount
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Jacto's Arbus 400 is an efficient and easily operated sprayer with low maintenance cost.It features a chemical resistant poly tank, stainless steel nozzle branches, ceramic nozzles, a three-way control valve, pressure regulator, and by-pass agitation with venturi. A 28 inch diameter fan provides optimum coverage for fruit and nut trees, berries, christmas trees, and grapes. It's the cost effective choice for small to medium size farms.
  Features:
  • 105 gallon poly tank
  • 28 inch diameter fan standard, 24 inch optional
  • Jacto JP75 – 20 gpm @ up to 300 psi, suction filter
  • Manual controls standard, electric controls optional
  • Chemical container and fresh water rinse systems
  • Fan disconnect. By-pass agitation
  • 22 flip over nozzles
  • Empty weight – 640 lbs
  • Recommended tractor – 40 HP and above
  • 4 available configurations
Specifications
Model
Arbus 400 Airblast Sprayer - Tractor Mount
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Jacto
Net Weight (Empty)
640 lbs
Tank Capacity
105 Gallons
Tank Material
Polyethylene
Filter Model
FVS-101
Filter Mesh
30
Pump Power Comsumption
5.3 at 400 psi
Fan Rotation
2000 RPM
Fan Air Speed
90 mph
Agitation
Bypass
Pump Capacity (maximum)
20 gpm
Dimensions - Length
69 inches
Dimensions - Height
62 inches
