Jacto

ID # 13309125

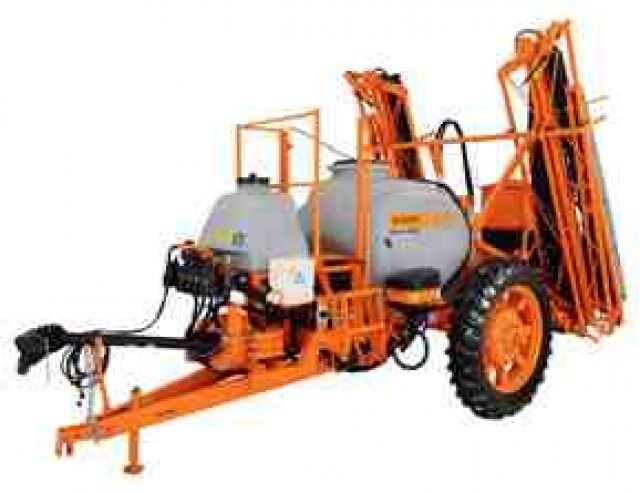

Jacto Advance Vortex Air-Assist Boom Sprayer - Trailer Mount

Call for Price
Overview

Jacto's Advance Vortex air-assist boom sprayer is trailer-mounted and has an 800-gallon capacity. It provides unsurpassed crop coverage and protection by utilizing Jacto's air-assist boom system that displaces the "dead" air around your crop iwth the spray solution suspended in high-speed "Vortex" air. Air-assist boom spraying can reduce drift between 57 and 71%. It can also help reduce your operating cost by up to 60%.

Jacto's Advance Vortex air-assist boom sprayer features a 60 foot hydraulically-controlled boom with electronic in-cab computerized controls, hydraulically operated fan, ceramic cylinder high-pressure piston pump, and much more.

  Features:
  • 500 or 800 gallon trailed Air-Assist boom sprayer
  • Poly main and chemical circuit rinse tank and fiberglass clean-water tank
  • 60 foot hydraulic controlled, self-leveling breakaway boom
  • 37 flip-over nozzles and Jacto’s famous Vortex Air-Assist spraying system
  • Each boom section can be individually controlled. Self-contained hydraulic system
  • Electronic controls for all functions as well as computer operated spraying utilizing Jacto’s JSC5000 computerized controller
  • Ceramic cylinder JP100 pump, 26 gpm @ up to 300 psi – Optional JP-150, 40 gpm pump
  • Mechanical and bypass agitation
  • 24.5 inch hydraulic fan for air assist
  • Air-assist boom spraying can reduce drift up to 70%
  • Empty weight 4,665 lbs
  • Recommended tractor – 90 HP and above
Specifications
Model
Advance Vortex Air-Assist Boom Sprayer - Trailer Mount
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Jacto
Net Weight (Empty)
4,674 lbs
Tank Capacity
500 or 800 Gallons
Tank Material
Polyethylene
Filter Model
FVS-200
Filter Mesh
24/40
Pump Power Comsumption
5.6 hp at 300 psi
Fan Rotation
2,800 to 3,000 rpm
Fan Air Speed
62 mph
Pump Capacity (maximum)
26 gpm
Dimensions - Length
225 inches
Dimensions - Width
124 inches
Dimensions - Height
139 inches
Boom Length
60 ft
