Jacto

ID # 13309124

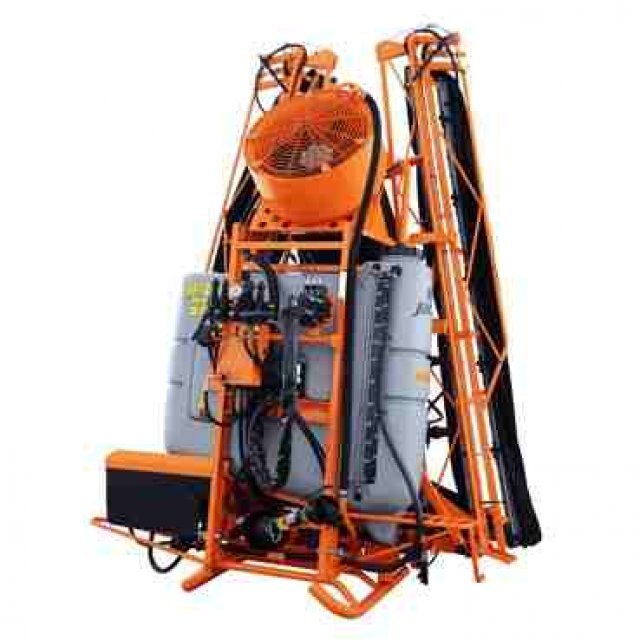

Jacto Falcon Vortex Air-Assist Boom Sprayer - Tractor Mount

Call for Price
Overview

Jacto's Falcon Vortex air-assist boom sprayer is a 3-point hitch, 160 gallon capacity boom sprayer. It provides unsurpassed crop coverage and protection by utilizing Jacto's air-assit boom system that displaces the "dead" air around your crop with the spray solution suspended in high-speed "Vortex" air. Air-assist boom spraying can reduce drift up to 70%. It can also help reduce your operating cost by up to 60%.

Jacto's Falcon Vortex air-assist boom sprayer features a 46 foot hydraulically-controlled boom with electronic in-cab controls, hydraulically operated fan, ceramic cylinder high-pressure piston pump, and much more.

  Features:
  • 165-gallon poly tank
  • 46 foot hydraulically-controlled, self-leveling breakaway boom. Self-contained hydraulic system
  • Masterflow control valve w/electronic in-cab controls
  • Hydraulically operated 24.5 inch fan
  • Self contained hydraulics
  • Ceramic cylinder JP75 pump, 20 gpm @ up to 300 psi
  • Venturi assist bypass agitation
  • 29 flip-over nozzle holders
  • Chemical container and fresh water rinse reservoir
  • Chemical mixing hopper at ground level
  • Provides unsurpassed crop coverage and protection by utilizing Jacto's air-assist boom system that displaces the "dead" air around crops with the spray solution suspended in high-speed "Vortex" air
  • Air-assist boom spraying can reduce drift up to 70%
  • Empty weight 1,609 lbs
  • Recommended tractor – 80 HP and above
Specifications
Model
Falcon Vortex Air-Assist Boom Sprayer - Tractor Mount
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Jacto
Net Weight (Empty)
1,609 lbs
Tank Capacity
160 Gallons
Tank Material
Polyethylene
Filter Model
FVS-100
Filter Mesh
60
Pump Power Comsumption
2.3 hp at 150 psi
Fan Rotation
2,800 rpm
Fan Air Speed
62 mph
Pump Capacity (maximum)
20 gpm
Dimensions - Length
66 inches
Dimensions - Width
97 inches
Boom Length
46 ft
