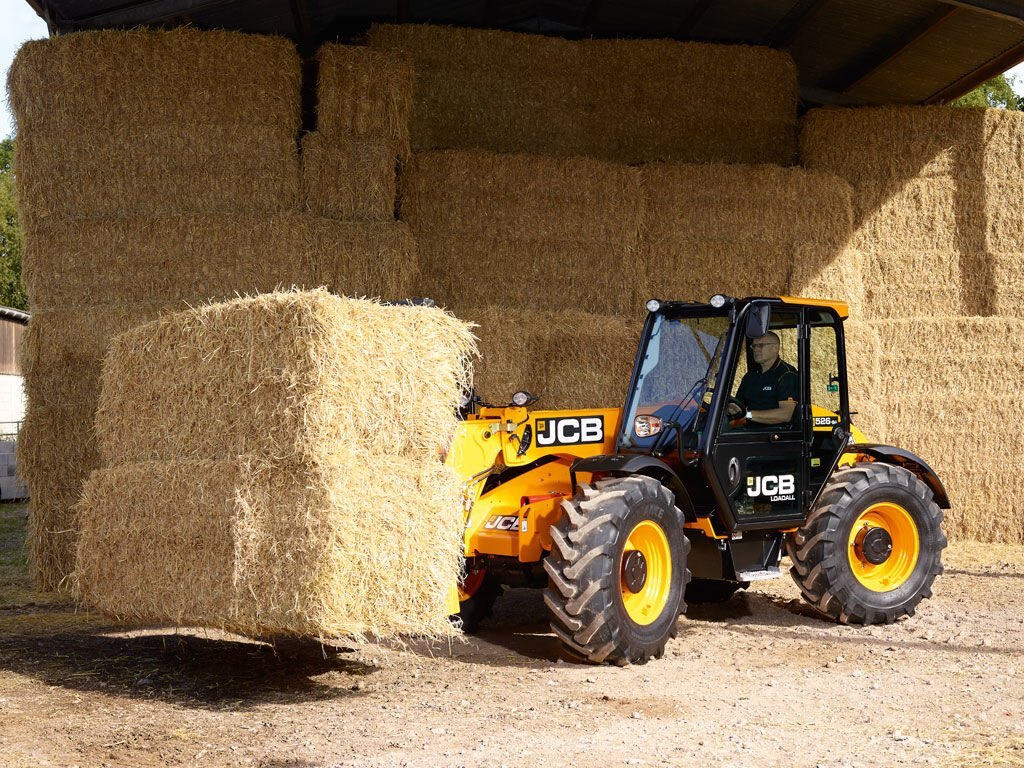

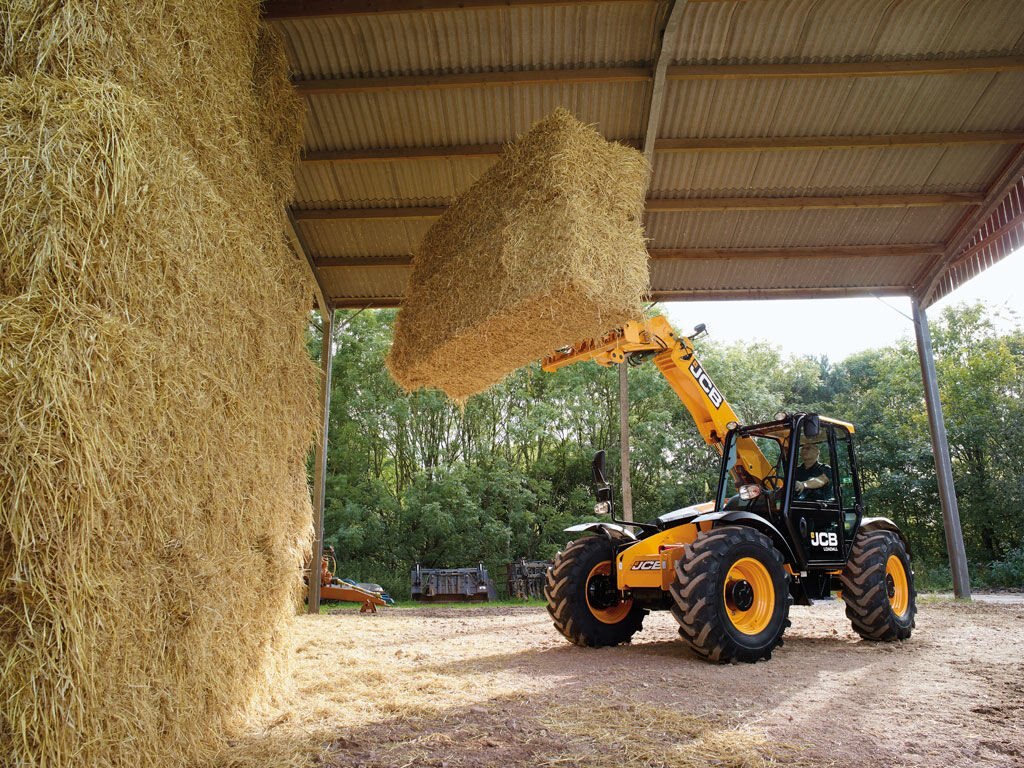

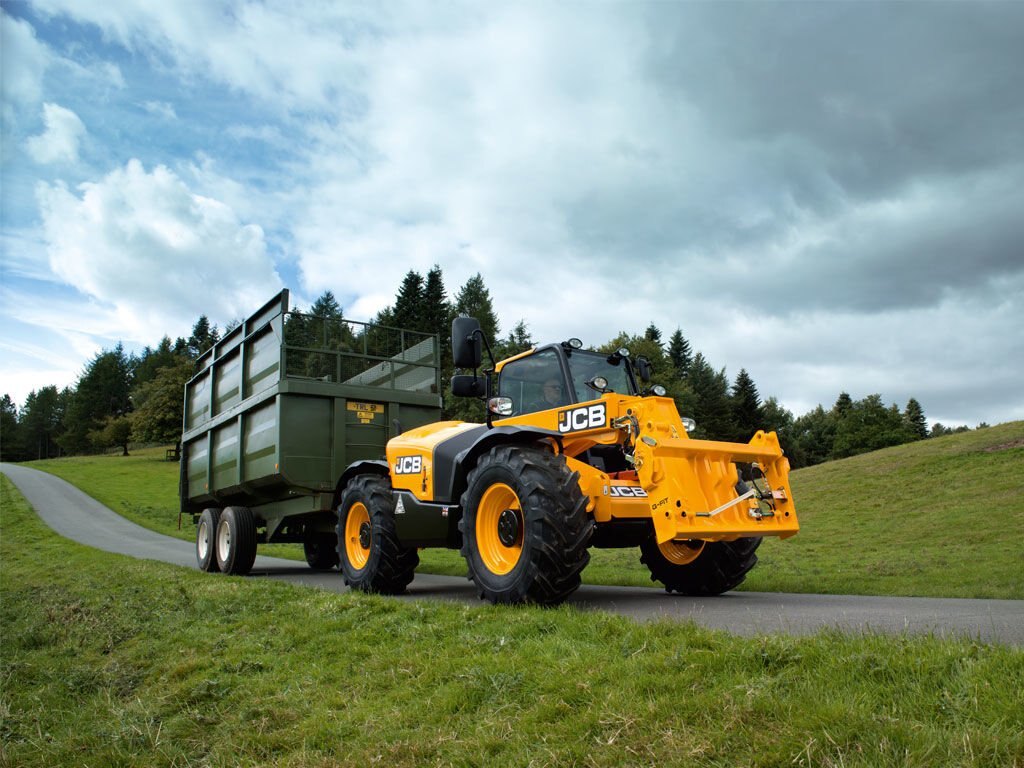

526-56 Agri Telehandler

High owner to weight ratio, the JCB 526-56 Agri features a turbocharged EcoMax four-cylinder engine. A torque converter and four-speed powershift transmission encourage rapid take-off power.

4 equal sized wheels improve tractive effort for excellent loader performance, while soft ground flotation and ground clearance are first class (even more so when large 24in wheels are fit).

Permanent 4-wheel steer and 4WD, together with a compact machine size, means an exceptionally tight turning radius for great maneuverability and handling in small yards.

Of course, being a JCB telescopic handler, residuals are strong – as the world's number 1 telescopic handler brand, our Agri telescopic handlers, are always in demand and therefore valuable.

-- 80 l/min max hydraulic flow Multi lever direct acting hydraulic control levers, joystick lift and crowd control 5732lb (2600kg) max payload, 18 ft 4 in (5.6m) max lift height 9ft 8in (2.95m) max reach with a 2205 (1000 kg) load 9ft 8in (2.95m) max forward reach 11ft 9in (3.58m) outer turn radius over tires 15ft 11in (4.87m) placing height

MANEUVERABILITY AND PERFORMANCE

The JCB 526-56 Agri Telescopic Handler has three steer modes - 2WS, 4WS and crab steer - for superb maneuverability.

It’s also got JCB’s EcoMax engine for improved power and productivity. The 109hp (81kW) unit produces its power and torque at low revs, meaning that the engine doesn't have to work as hard as those on competitive machines. That saves fuel and, of course, money.

Good ground clearance and four-wheel drive mean this compact telescopic handler can make excellent progress in any conditions or terrain.

Further productivity

Three steer modes (2-wheel, 4-wheel and crab)

Superb visibility

Transmission disconnect button diverts engine power for improved hydraulic cycle times

Parallel lift gives excellent load retention

Optional SRS provides increased load retention and comfort

Long chassis provides stability

SERVICE AND SERVICEABILITY

Every JCB telescopic handler is designed to maximize uptime and productivity. To do that, we make sure our components last a long time and, when routine replacements need to take place, we make sure everything important is easily accessible.

So all checks are quick, simple and safe to carry out from ground level on this telescopic handler. The one-piece hood is on a gas strut for ease and safety; the radiator chaff guard and reversing fan keeps out debris; the fold-out cooling package is easy to clean, as is the flat floor with drainage channels; and most service intervals, including boom lubrication, are a lengthy 500 hours.

Every JCB telescopic handler has a one-piece, fully welded chassis for maximum strength and minimum weight. Hoses are routed through the boom and lights fold away to protect against site damage. The U-shaped boom with integrated boom nose and one-piece closing plate has reduced joints and stress points.

Key components like telescopic handler transmissions are tested over thousands of cycles and all of our manufacturing processes are backed by ISO 9001:2008.
