ID # 33450392

Hyundai HL955A TM

  • Hyundai HL955A TM
  • Hyundai HL955A TM
  • Hyundai HL955A TM
  • Hyundai HL955A TM
  • Hyundai HL955A TM
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Hyundai HL900 series wheel loaders deliver maximum performance, productivity and efficiency, and have been proven to deliver as much as 5-percent greater productivity and 10-percent lower fuel consumption than previous models. Add a long list of Hyundai innovations – including an accurate onboard weighing system, unique bucket design for better load retention, and free use of Hyundai’s Hi-Mate cellular based remote management system for five years – and you’ll find the HL900 series offers unbeatable value.
Specifications
Model
HL955A TM
Category Name
Equipment
Year
2024
Sale Type
New
Manufacturer
Hyundai
NET POWER
197 HP (147 kW) / 2,200 rpm
ENGINE MODEL
CUMMINS / B6.7
MAXIMUM TORQUE
730 lb·ft (990 N·m) / 1,300 rpm
OPERATING WEIGHT
16,500 kg / 36,380 lb
TRAVEL SPEED FORWARD
Max- 39.2 km/h (24.2 mph)
TRAVEL SPEED REVERSE
Max- 24.9 km/h (15.5 mph)
BUCKET BREAKOUT FORCE
12,800 kg (28,265 lbs)
FULL TURN TIPPING LOAD
9,550 kg (21,055 lbs)
BUCKET CAPACITY (HEAPED)
2.3m³ (3.7 yd³)
DUMP CLEARANCE WITH BUCKET (STANDARD Z-BAR)
2,850 mm (9 ft 4 in)
CONFIGURATIONS: ZBAR, TOOL MASTER AND EXTENDED BOOM
Tool Master
key features

STANDARD FEATURES

Performance

Cummins Performance Series Engine (NEW)

Eco Gauge, Pedal & Report (NEW)

ICCO (Intelligent Clutch Cut Off) (NEW)

Smart Power Mode (NEW)

Improved Bucket Fill Factor

Hydraulic Differential Lock

Parallel Z-bar Linkage

Automatic Engine Shut Down

Optimized Power Matching

Convenience

Fully Adjustable Seat and Armrest (NEW)

Enhanced Weighing System (NEW)

Air Compressor (NEW)

Foldable Side Mirror (NEW)

Audio System

Heated Air-Ride Seat

Wide Touchscreen Monitor

Full Sound-Proofed Spacious Cabin

Centralized Cluster

Serviceability

Fully Openable Engine Hood (NEW)

ECD (Engine Connected Diagnostics) (NEW)

Fully Sealed Engine Room with Tilt-Back Hood

Engine Air Filter with Increased Service Life

Initial Maintenance Interval

Hi-MATE Remote Management System

Centralized and Easy Access to Service Points

Wide Core & Fin Radiator

Easy Filter Replacement

OPTIONAL FEATURES

Optional Performance Features

5-Speed Lock Up Clutch NEW)

Axle Oil Cooling System (NEW)

Thermostat for Transmission Cooling (NEW)

Limited Slip Differentials (Front / Rear)

LED Light Package

Joystick Steering

Dual Break Pedal

Optional Safety Features

AAVM (All Around View Monitoring)

IMOD (Intelligent Moving Object Detection)

Radar (NEW)

Optional Convenience Features

Remote Control Door (NEW)

Auto Greasing System (NEW)
reliability and durability

Hyundai HL955A TM RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s.  The HL955A TM is designed to be rugged and reliable for longer up time, reduced operating cost and  improved productivity.

Hyundai HL955A TM DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and ship building industries.  Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
industries

Hyundai HL955A TM

what customers say
“They really have no maintenance issues, neither mechanical nor electrical”
performance

Hyundai HL955A TM

CUMMINS PERFORMANCE SERIES ENGINE

Combined with the engineering and product design expertise of Hyundai, the Stage 5 Cummins Performance Series engines in the new A-Series machines will deliver substantial performance gains from a smaller, lighter power package. While Stage 5 guidelines do not apply in the USA, the Cummins Performance Series engines featured in A-Series also satisfy Tier 4 Final emissions control requirements. The Stage 5-compliant Cummins Performance Series engines integrate the newest after treatment system – the Single Module™ – with leading combustion and air-handling technology to be Exhaust Gas Recirculation (EGR)-free for a simpler installation with lower installed costs.

Hyundai HL955A TM

ON-BOARD AUTO WEIGHING SYSTEM

All Hyundai loaders come standard-equipped with an integrated onboard auto weighing system, accurate to within plus or minus 1%. The system can be operated in auto mode, whereby weight is displayed when the bucket is lifted to a specific height range (-5 deg to 15 deg), and weight is logged when the boom is lowered below -5 deg. Operators can also manually weigh loads with the press of a button. The system can display current weight, store up to three total daily weights (A, B, and C), and previous total daily weight.

Hyundai HL955A TM

HI-MATE REMOTE MANAGEMENT SYSTEM

Hi-Mate telematics system is provided free of charge for 3 years with all new Hyundai wheel loaders. Customers can remotely monitor performance, service and geo location data for their equipment at any time of the day. Hi-Mate saves time and money for the owner by promoting greater preventative.

Hyundai HL955A TM

FUEL EFFICIENCY PACKAGE

Using the Eco Gauge function, operators can monitor fuel consumption in real time or review historical data. Displayed values include engine torque, fuel efficiency, average and total fuel consumed. Hourly and daily fuel consumption also are viewable through the menu. A-Series models now include a new Eco Report feature, Smart Power mode that can adjust engine RPM in heavy load work, and ICCO (Intelligent Clutch Cut Off) to save fuel without compromising on performance.
convenience

Hyundai HL955A TM

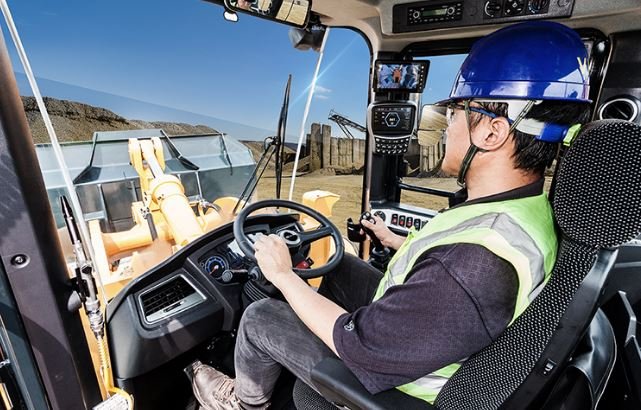

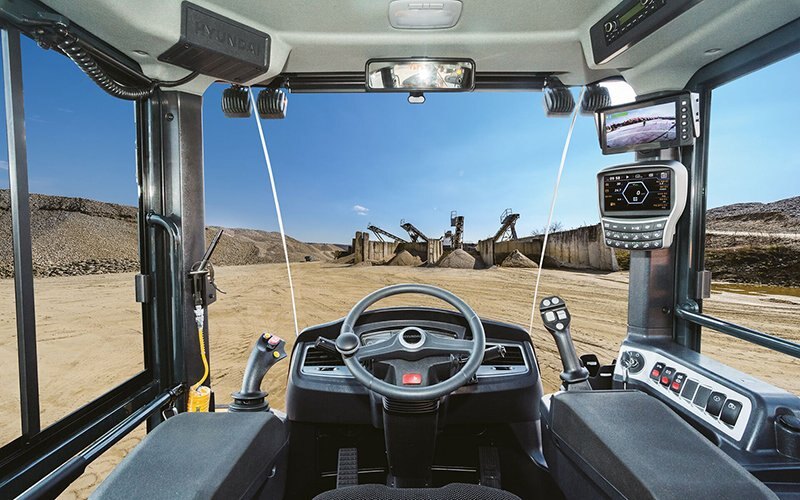

CAB COMFORT

Cabs on the Hyundai HL900 series wheel loaders are all about operator comfort and control. They’re up to 10-percent larger than previous models, and offer additional floor space and improved visibility. In-cab sound levels are more than 2 dB lower, making this one of the quietest cabs in the industry. New cab comfort convenience features in the A-Series include: foldable side mirror, fully adjustable seat and armrest, air compressor, enhance ride control and weighing system, remote control door (option,) and auto greasing system (option.)

Hyundai HL955A TM

AUDIO SYSTEM

The radio with MP3 functions, the integrated Bluetooth hands-free feature, and the built-in microphone allow for phone calls and for listening to music while in the field.

Hyundai HL955A TM

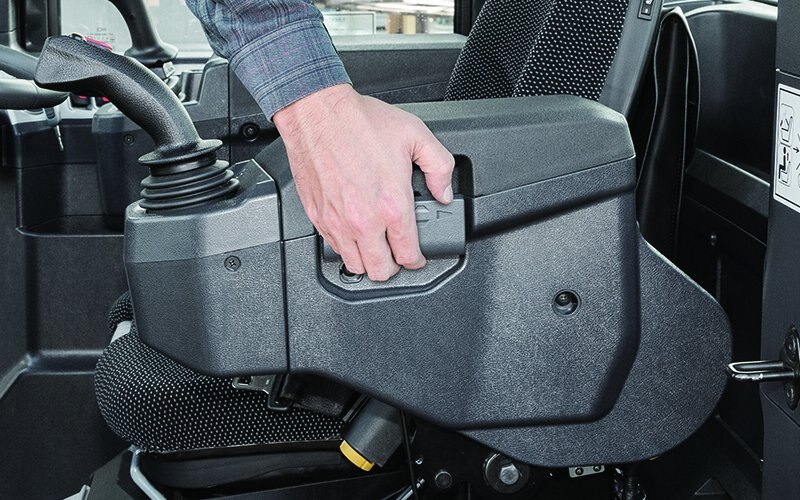

HEATED AIR-RIDE SEAT

For enhanced operator productivity, the cab features a heated air-ride seat that is fully customizable to each operator's preference.

Hyundai HL955A TM

7" TOUCHSCREEN MONITOR

The 7 inch (177 mm) interactive touch-screen monitor on the HL900 series is large, easy to understand and visible during the day or night.
serviceability

Hyundai HL955A TM

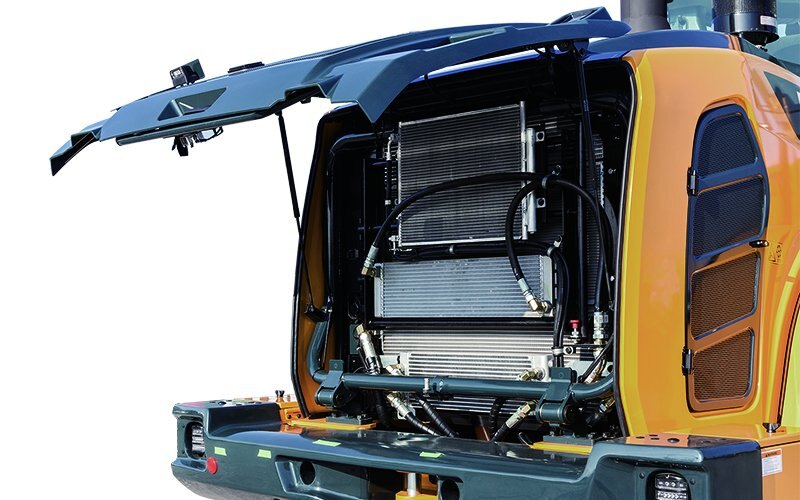

FULLY SEALED ENGINE ROOM WITH TILT-BACK HOOD

The HL900 series has improved accessibility to the sealed engine room with a tilt-back hood to allow for easy cleaning and maintenance. The engine compartment was designed to prevent any possibility of fire due to contamination. The wide open access when the hood is open also enhances serviceability of the engine and cooling room. New serviceability features in the new A-Series include a fully openable engine hood.

Hyundai HL955A TM

SERVICE ACCESS

All of the service points for the electric and hydraulic systems are located in easy-to-reach areas for optimum accessibility and maintenance. New serviceability features in the new A-Series include a Fully Openable Engine Hood. New serviceability features in the new A-Series include ECD (Engine Connected Diagnostics.)

Hyundai HL955A TM

ENGINE AIR FILTER

The HL900 series has a large-volume air cleaner, automatic dust ejector, and a three-stage turbo pre-cleaner (optional) to improve the replacement cycle and durability of replacement parts.

Hyundai HL955A TM

INITIAL MAINTENANCE INTERVAL

The initial replacement interval for engine oil and filter is extended to 250 hours to further reduce maintenance costs.
safety

Hyundai HL955A TM

INTEGRATED REAR VIEW CAMERA

Hyundai's HL930 is standard equipped with a full color, integrated rearview camera, viewable through the monitor. This feature keeps the operator aware of objects and personnel behind the machine and significantly reduces the opportunity for accidents.

Hyundai HL955A TM

STEPS & HANDRAILS

Convenient hand rails coupled with access steps and ladders with anti-slip tread improve accessibility and reduce potential falls.

Hyundai HL955A TM

CAB VISIBILITY

With emphasis on operator satisfaction in terms of noise, safety, and maintainability, Hyundai’s wheel loaders offer a comfortable cab space with low-vibration, reduced noise, and a superior safety design.

Hyundai HL955A TM

SPEED & SAFETY CONTROLS

For operator safety, HL900 wheel loaders have a travel speed limit setting. New A-Series models now include an Emergency Stop Button and Seat Belt Warning Alarm.
