ID # 33445592

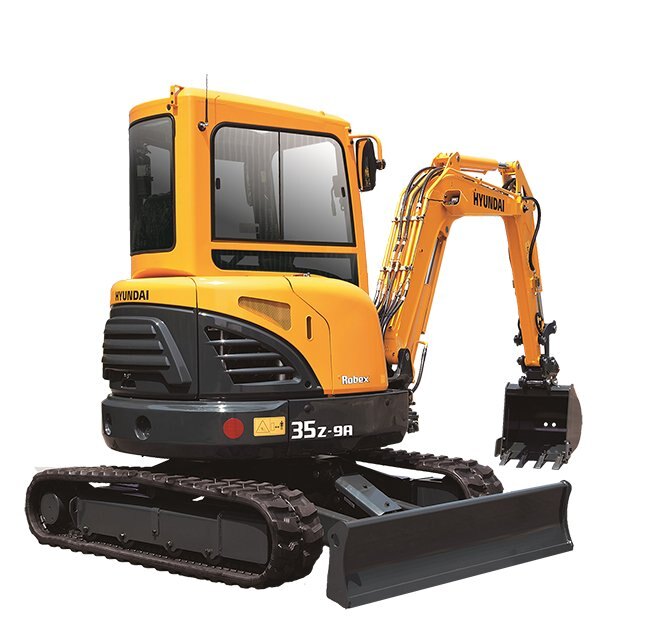

Hyundai R35Z-9A

  • Hyundai R35Z 9A
  • Hyundai R35Z 9A
  • Hyundai R35Z 9A
  • Hyundai R35Z 9A
  • Hyundai R35Z 9A
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Hyundai 9A series compact excavators bring big power to small spaces. Each model features a Tier 4 Final engine that provides impressive performance and reduced fuel consumption. You’ll appreciate the hefty power, durability and reliability of these compact machines, along with their ability to work productively in confined spaces.
Specifications
Model
R35Z-9A
Category Name
Equipment
Year
2024
Sale Type
New
Manufacturer
Hyundai
NET POWER
23.7 hp (17.7 kW) at 2,200 rpm
SWING SPEED
9.5 rpm
BUCKET RANGE
0.11 m3 (0.14 yd3)
ENGINE MODEL
Yanmar 3TNV88F
ARM CROWD FORCE
1,990 kgf (4,390 lbf)
OPERATING WEIGHT
3,840 kg (8,470 Ibs)
MAX. DIGGING REACH
5,315 mm (17 ft 5 in)
TRAVEL SPEED (MPH)
4.2 km/hr (2.6 mph)
BUCKET BREAKOUT FORCE
(SAE) 27.4 kN (6,170 lbf)
TAIL SWING RADIUS (FT/IN)
870 mm (2 ft 10 in)
MAX. DIGGING DEPTH (FT/IN)
3,135 mm (10 ft 3 in)
key features

STANDARD FEATURES

Performance

Yanmar 3TNV88F Engine

Boom Swing

Dozer Blade

Zero-Tail Swing

Convenience

Monitor

Suspension Seat

Ergonomic Controls & Switches

Cab Entry

Serviceability

Centralized Lubrication

Long-life Components

Easy Access

Durable Cooler

OPTIONAL FEATURES

Accumulator

Canopy

Steel track shoes (300 mm/ 12")

Long Arm (1.6 m, 5' 2")

Rotating attachment piping

Safety lock valve
reliability and durability

Hyundai R35Z 9A RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s.  The R35Z-9A is designed to be rugged and reliable for longer up time, reduced operating cost and  improved productivity.

Hyundai R35Z 9A DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries.  Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.
industries

Hyundai R35Z 9A

what customers say
“The HX330L excavator is plenty large enough to move material and not fatigue the operator or the machine. The hydraulics are extremely responsive and fast. With the very comfortable ergonomics, it makes for a short day in that machine as well.”
performance

Hyundai R35Z 9A

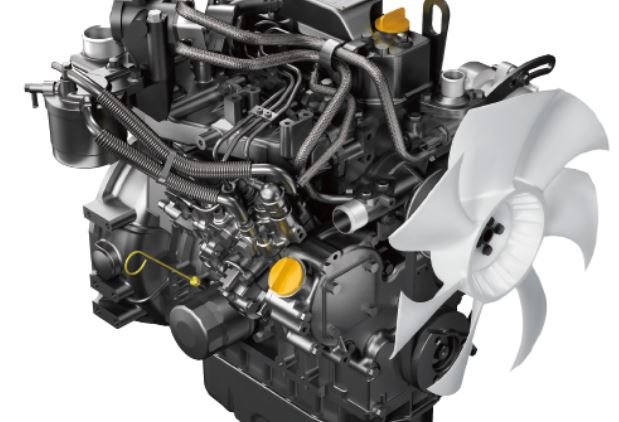

YANMAR TIER 4 FINAL ENGINE

R35Z-9A features a Tier 4 Final Yanmar 3TNV88F water-cooled, 4-cycle diesel, 3 cylinders in line, direct injection, low emission engine with 23.7 HP (17.7 kW) at 2,200 rpm

Hyundai R35Z 9A

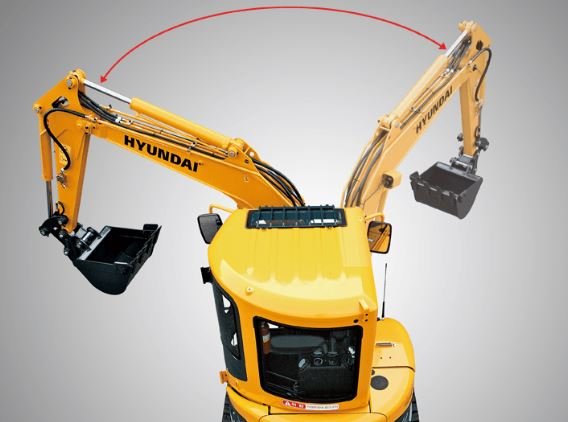

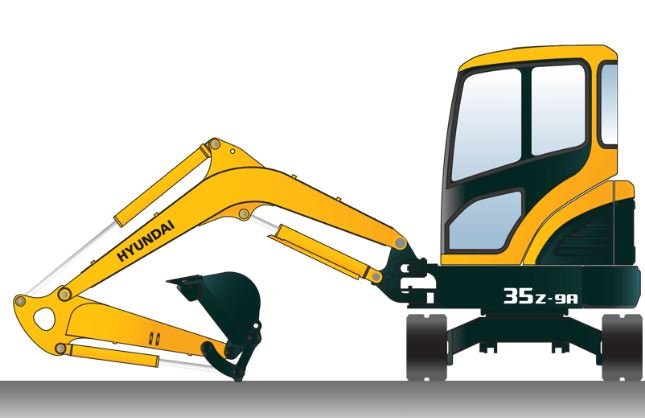

BOOM SWING

The 9A series machines all feature a boom swing function to improve productivity in confined work spaces.

Hyundai R35Z 9A

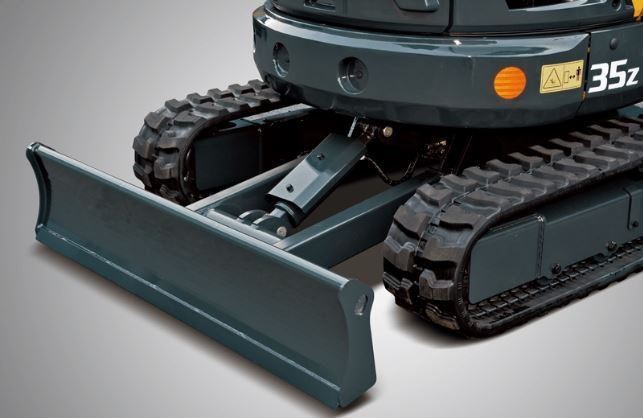

DOZER BLADE

All 9A series excavators feature as standard equipment a large dozer blade that provides added versatility, efficiency and stability.

Hyundai R35Z 9A

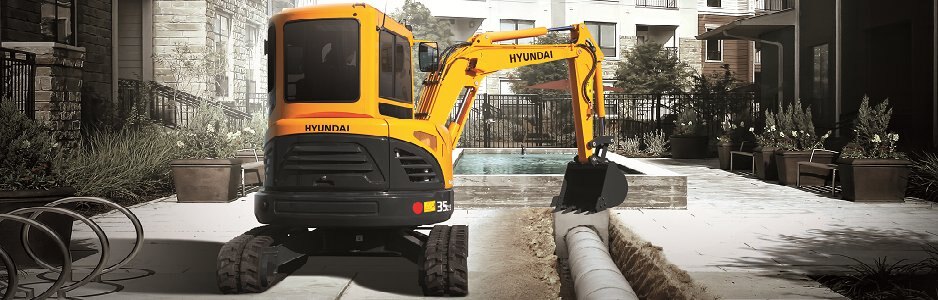

ZERO-TAIL SWING

Zero-tail swing excavator allows you greater flexibility when working in narrow urban areas from an alley and indoor to residential and small gardens.
convenience

Hyundai R35Z 9A

MONITOR

The monitor system in the R17Z-9A gives the operator continuous status information on a variety of functions and levels. OLED display is placed to depict the following: hour meter, oil pressure, battery change, engine coolant temperature and a fuel gauge. Theft Prevention Function is added.

Hyundai R35Z 9A

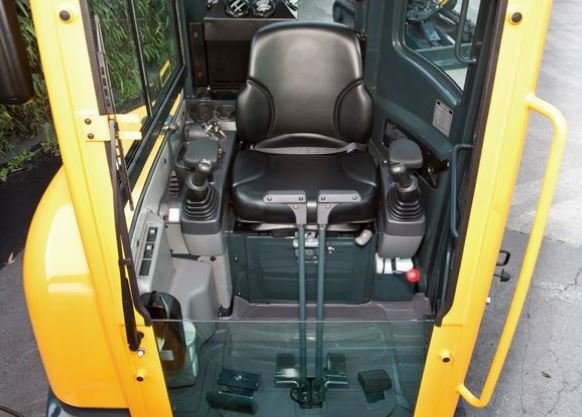

SUSPENSION SEAT

Hyundai R17Z-9A's adjustable suspension seat, wrist rests, ergonomically designed joysticks and plenty of space help to reduce stress on the operator.

Hyundai R35Z 9A

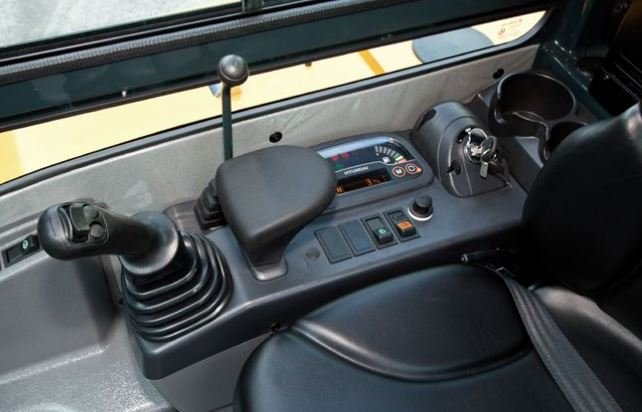

ERGONOMIC CONTROLS & SWITCHES

The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade and track extension. Easy-to-access control switches on the left side console improve operating comfort and productivity.

Hyundai R35Z 9A

CAB ENTRY

A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.
serviceability

Hyundai R35Z 9A

CENTRALIZED LUBRICATION

Centralized lubrication bank for faster, easier service and maintenance.

Hyundai R35Z 9A

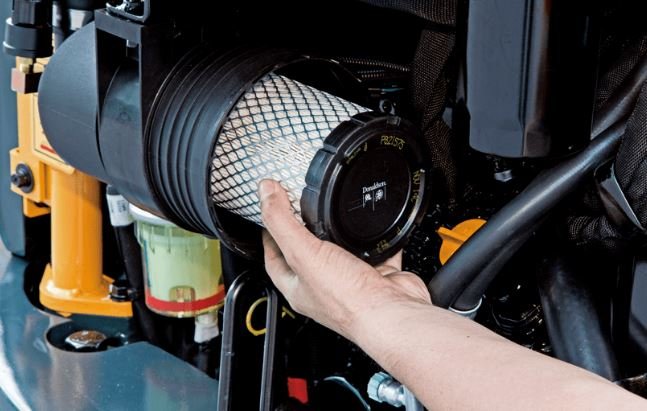

LONG-LIFE COMPONENTS

9A series excavators were designed with bushings designed for extended lube intervals (250 hrs) & polymer shims (wear resistant, noise reducing), extended-life hydraulic filters (1,000hrs), long-life hydraulic oil (5,000hrs), more efficient cooling systems and integrated preheating systems which extend service intervals, minimize operating costs and reduce machine down time.

Hyundai R35Z 9A

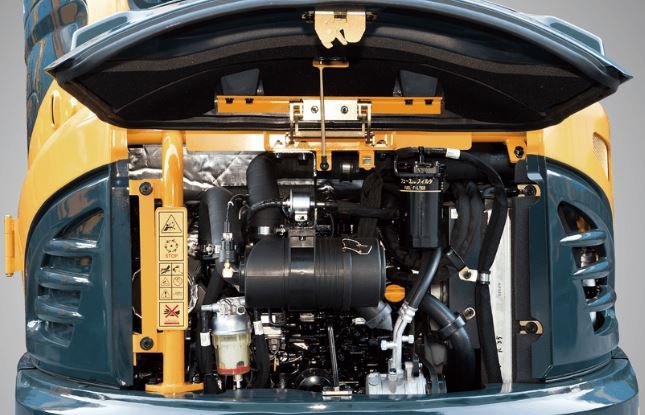

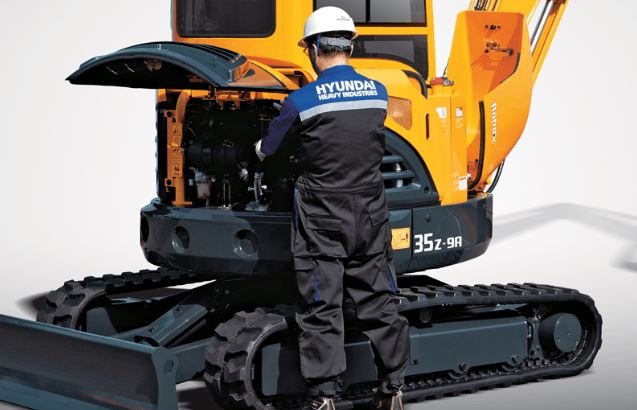

EASY ACCESS

The R35Z-9A was built with accessibility in mind. All doors, covers and hoods were built for complete open access. Regular service and maintenance is easy and convenient with the R35Z-9A.

Hyundai R35Z 9A

DURABLE COOLER

Radiator and oil cooler with square wave and corrugated wave fin design reduce clogging and improve clean out and durability.
safety

Hyundai R35Z 9A

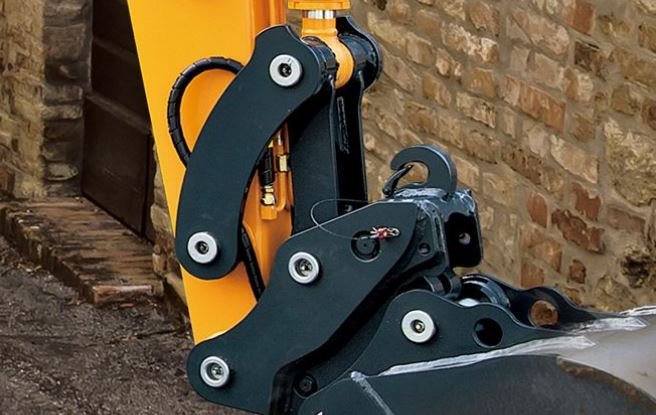

DUAL-LOCK COUPLER

The R25Z-9AK comes equipped with dual locking quick coupler that complies with the latest safety standards and improves the safety when using a coupler with various attachments.

Hyundai R35Z 9A

ZERO-TURNING RADIUS

The R35Z-9A has a compact design and swings within the width of the tracks which allows for safe swing and maneuverability in tight spaces.

Hyundai R35Z 9A

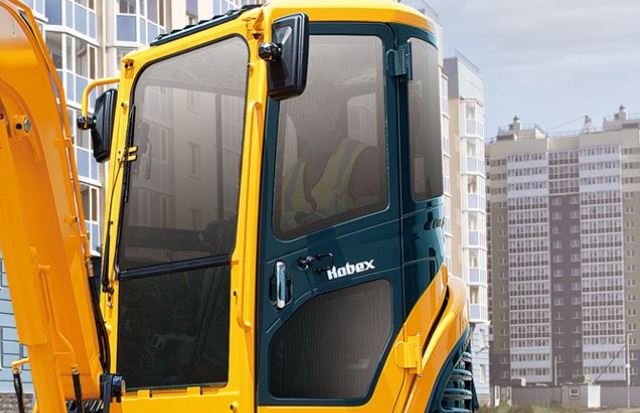

REINFORCED OPERATOR'S CAB

Hyundai's R35z-9A is tested in accordance with stringent ISO standards. The cab features a reinforced steel pillar design that complies with TOPS (turn over protection system) and FOG (falling object guard) level 1 ISO standards.

Hyundai R35Z 9A

EXCELLENT VISIBILITY

Hyundai engineers updated the cab designs to provide more space, a wider field of vision and more operator comfort.
literature
Name Link
FAMILY BROCHURE Download
PRODUCT SPECS Download
