Name: Hyundai R30Z-9AK
Brand: Hyundai
Availability: OutOfStock

Back

ID # 33443463

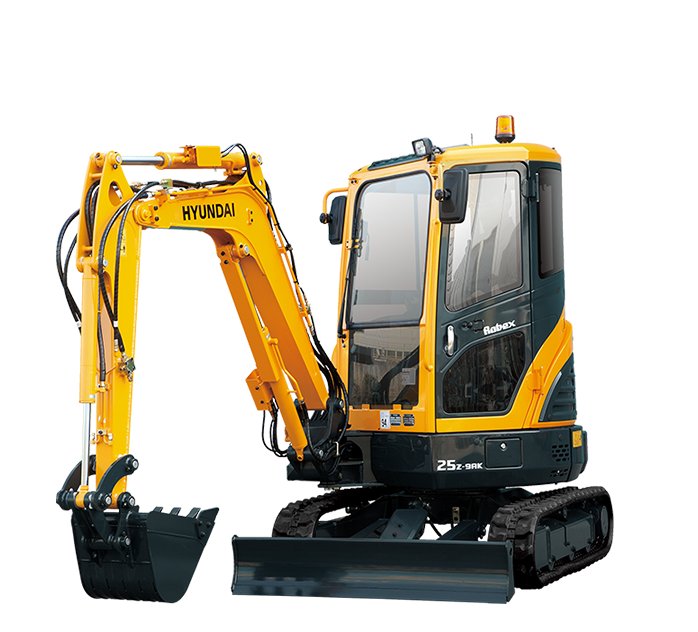

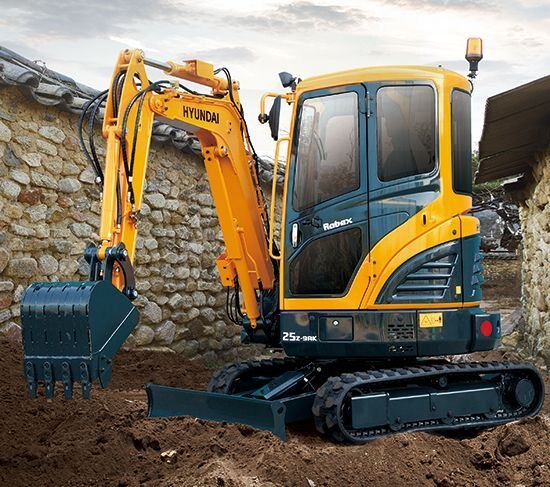

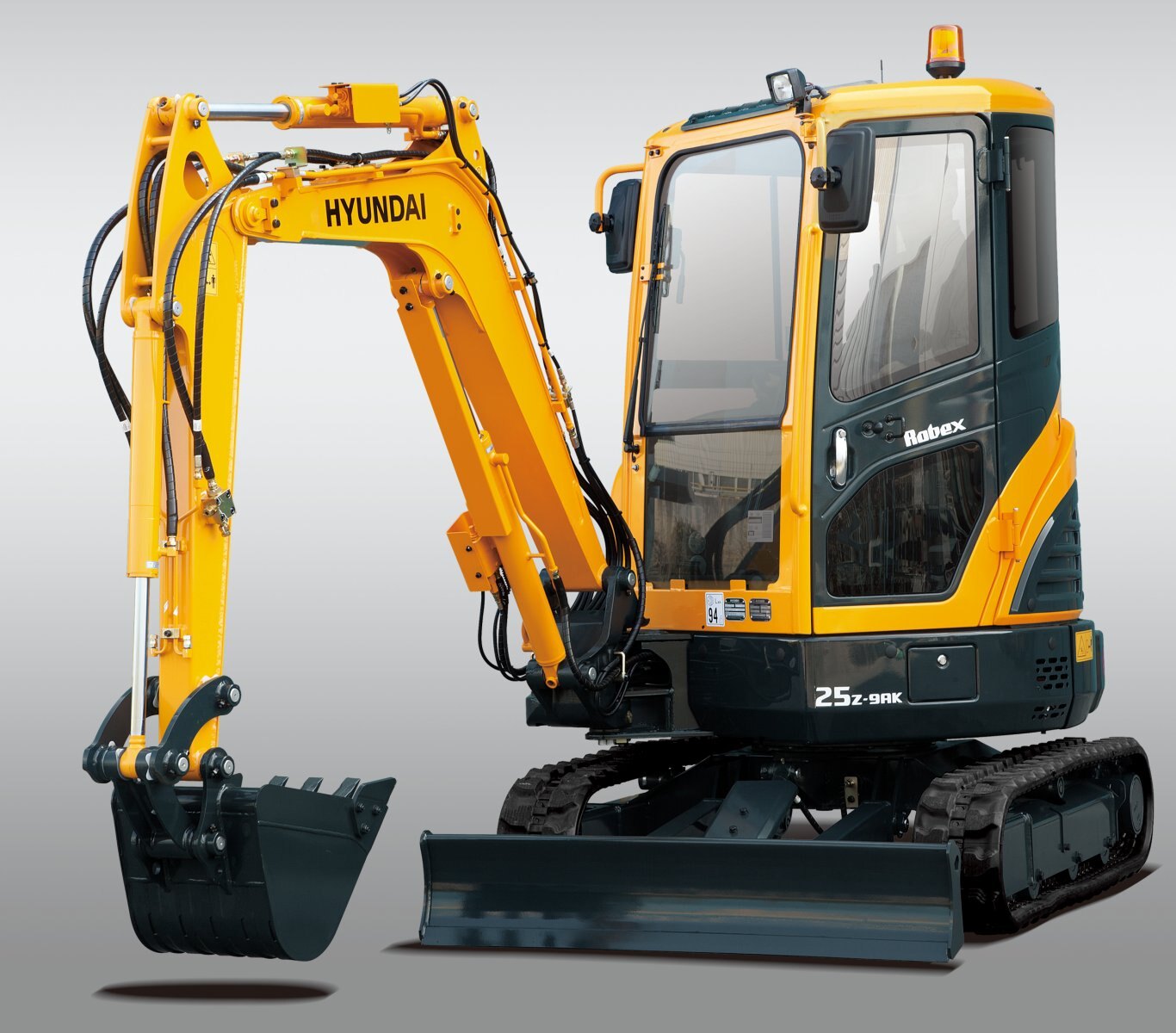

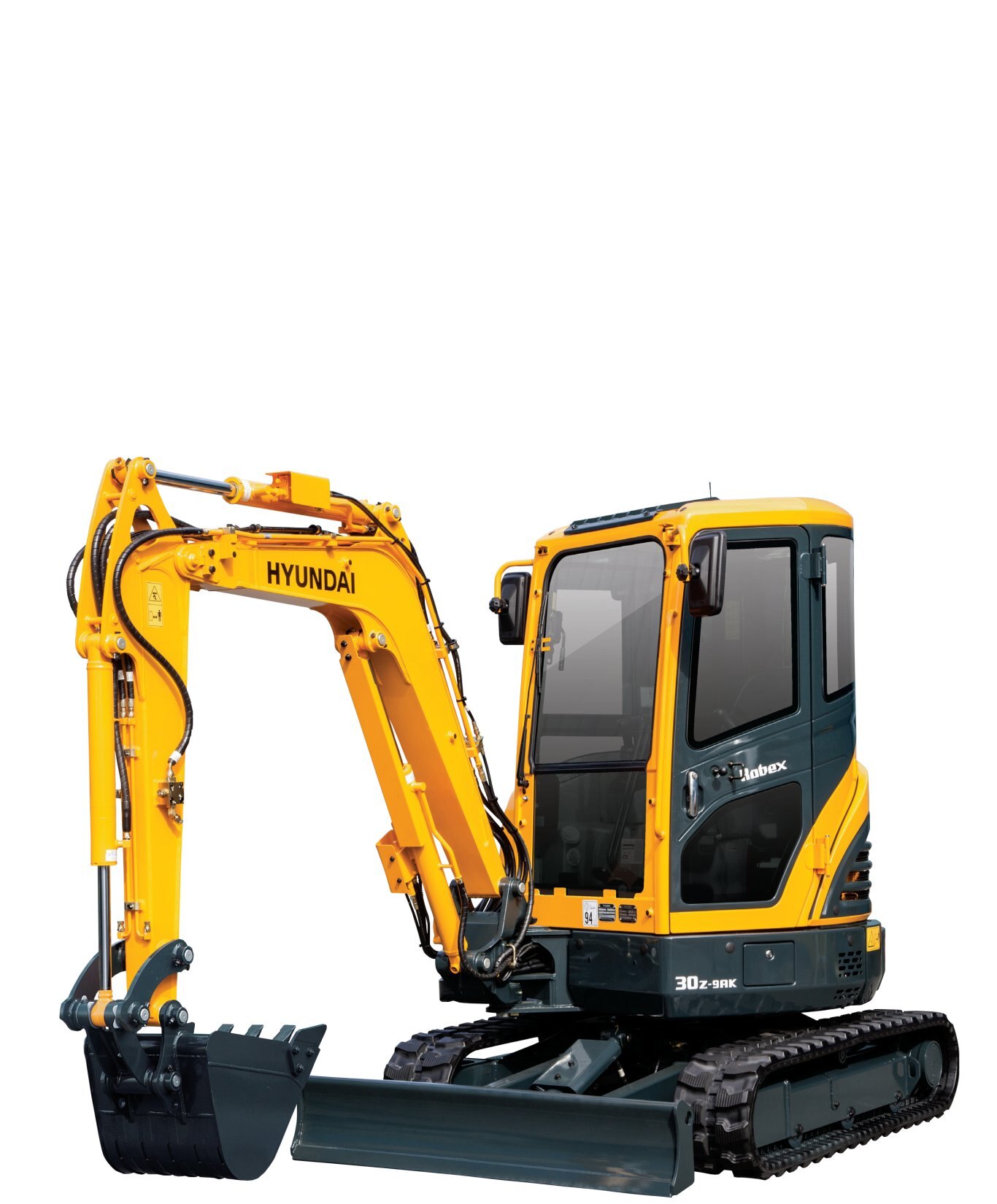

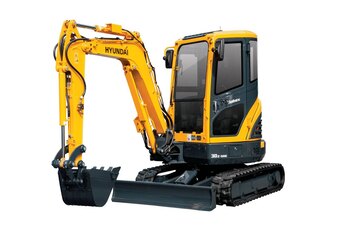

Hyundai R30Z-9AK

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

Innovative hydraulic system technologies make the 9AK series excavator fast, smooth and easy to control. 9AK series is designed for maximum performance to keep the operator working productively. Operating a 9AK series is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs.

Specifications

Model

R30Z-9AK

Category Name

Equipment

Year

2024

Sale Type

New

Manufacturer

Hyundai

NET POWER

23.2 HP (17.3 kW) at 2,350 rpm

SWING SPEED

9.1 rpm

BUCKET RANGE

0.08 m3 (0.09 yd3)

ENGINE MODEL

Kubota D1305

ARM CROWD FORCE

OPERATING WEIGHT

3,005 kg (6,625 Ibs)

MAX. DIGGING REACH

4,650 mm (15 ft 3 in)

TRAVEL SPEED (MPH)

4.4 km / 2.4 km (2.8 mph) / (1.5 mph)

BUCKET BREAKOUT FORCE

(ISO) 2,050 / 4,520 lbf

TAIL SWING RADIUS (FT/IN)

875 mm (2 ft 10 in)

MAX. DIGGING DEPTH (FT/IN)

2,500 mm (8 ft 2 in)

key features

STANDARD FEATURES

Performance

Kubota Tier 4 Final Engine

Boom Swing

Dozer Blade

Zero-Tail Swing

Convenience

Monitor

Suspension Seat

Ergonomic Controls & Switches

Cab Entry

Serviceability

Centralized Lubrication

Long-life Components

Easy Access

Durable Cooler

OPTIONAL FEATURES

ISO standard cabin

Accumulator

Beacon Lamp

Long Arm (1.35 m, 4' 5")

Radio/USB player with remote (cab only)

reliability and durability

RELIABILITY

Hyundai construction equipment is precision designed with trusted and proven components and systems from leading OEM’s. The R25Z-9AK is designed to be rugged and reliable for longer up time, reduced operating cost and improved productivity.

DURABILITY

Hyundai construction equipment is manufactured with the highest grade of steel due to Hyundai’s dominance in the steel and shipbuilding industries. Rigid cycle testing, heat testing, vibration testing and shock load testing is conducted in the design and manufacturing process of all new models insuring optimum durability and reliability.

industries

what customers say

“Hyundai listens to us… always responsive. Unwavering customer service.”

performance

KUBOTA TIER 4 FINAL ENGINE

R25Z-9AK features a Tier 4 Final Kubota D1305 4 Cycle, In line, water cooled Diesel with 23.2 HP ( 17.3kW) at 2,350rpm

BOOM SWING

The 9A series machines all feature a boom swing function to improve productivity in confined work spaces.

DOZER BLADE

All 9A series excavators feature as standard equipment a large dozer blade that provides added versatility, efficiency and stability.

ZERO-TAIL SWING

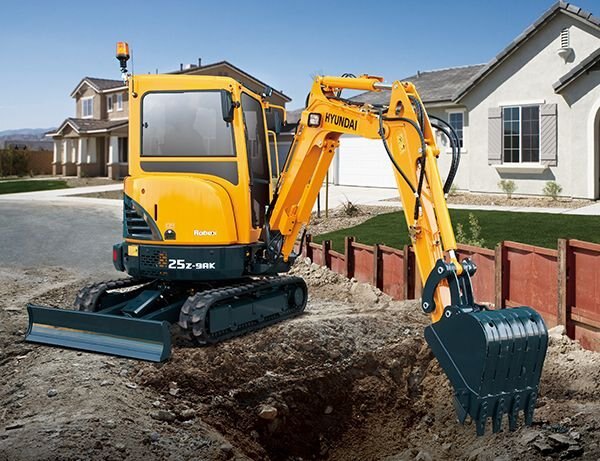

Zero-tail swing excavator allows you greater flexibility when working in narrow urban areas from an alley and indoor to residential and small gardens.

convenience

MONITOR

The monitor system in the R17Z-9A gives the operator continuous status information on a variety of functions and levels. OLED display is placed to depict the following: hour meter, oil pressure, battery change, engine coolant temperature and a fuel gauge. Theft Prevention Function is added.

SUSPENSION SEAT

Hyundai R17Z-9A's adjustable suspension seat, wrist rests, ergonomically designed joysticks and plenty of space help to reduce stress on the operator.

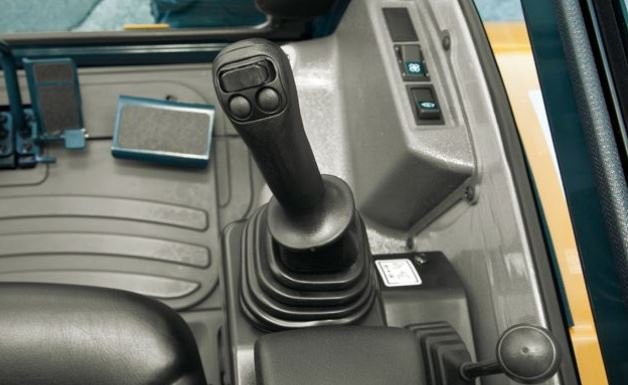

ERGONOMIC CONTROLS & SWITCHES

The left and right control levers are ergonomically located for convenient access. Pilot operated hand levers are easily accessible for controlling the dozer blade and track extension. Easy-to-access control switches on the left side console improve operating comfort and productivity.

CAB ENTRY

A tiltable left-side console allows the operator easier access to the cab. A safety lock system is designed to prevent exiting the cab while hydraulic controls are live. When the safety lever and left side console are positioned upright, hydraulic functions are disengaged.

serviceability

CENTRALIZED LUBRICATION

Centralized lubrication bank for faster, easier service and maintenance.

LONG-LIFE COMPONENTS

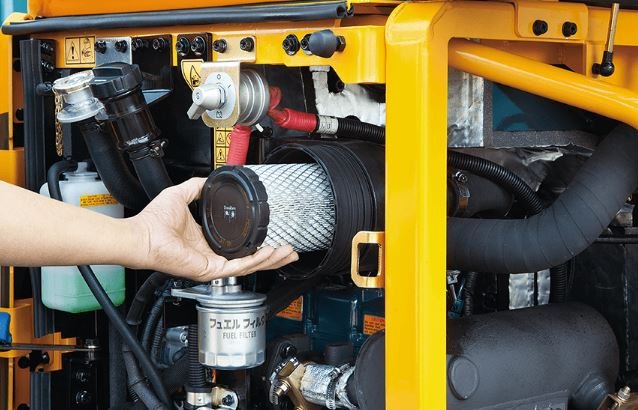

9A series excavators were designed with bushings designed for extended lube intervals (250 hrs) & polymer shims (wear resistant, noise reducing), extended-life hydraulic filters (1,000hrs), long-life hydraulic oil (5,000hrs), more efficient cooling systems and integrated preheating systems which extend service intervals, minimize operating costs and reduce machine down time.

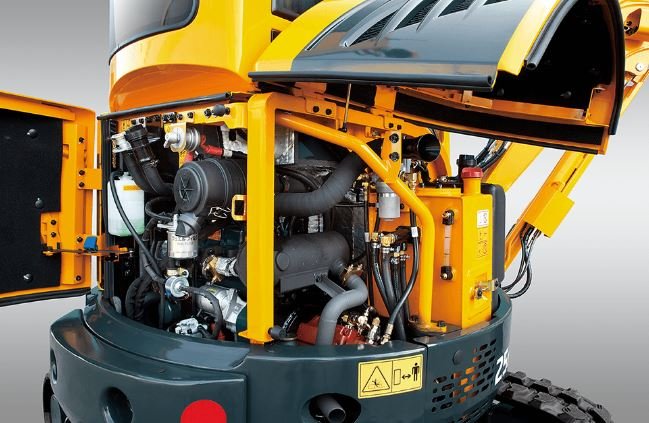

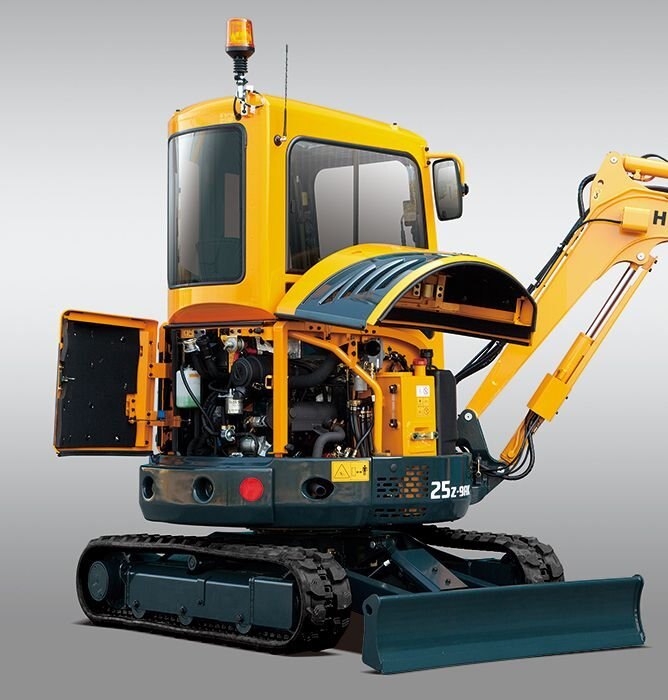

EASY ACCESS

The R25Z-9AK was built with accessibility in mind. All doors, covers and hoods were built for complete open access. Regular service and maintenance is easy and convenient with the R25Z-9AK.

DURABLE COOLER

Radiator and oil cooler with square wave and corrugated wave fin design reduce clogging and improve clean out and durability.

safety

DUAL-LOCK COUPLER

The R25Z-9AK comes equipped with dual locking quick coupler that complies with the latest safety standards and improves the safety when using a coupler with various attachments.

REINFORCED CANOPY

Hyundai's R25z-9AK is tested in accordance with stringent ISO standards. The canopy features a reinforced steel pillar design that complies with TOPS (turn over protection system) and FOG (falling object guard) level 1 ISO standards.

ZERO TURNING RADIUS

The R25Z-9AK has a compact design and swings within the width of the tracks which allows for safe swing and maneuverability in tight spaces.

EXCELLENT VISIBILITY

Hyundai engineers updated the cab designs to provide more space, a wider field of vision and more operator comfort.

literature

Name	Link
FAMILY BROCHURE	Download
PRODUCT SPECS	Download

Documents

Call for Price

Pricing excludes licensing and tax
