ID # 17391199

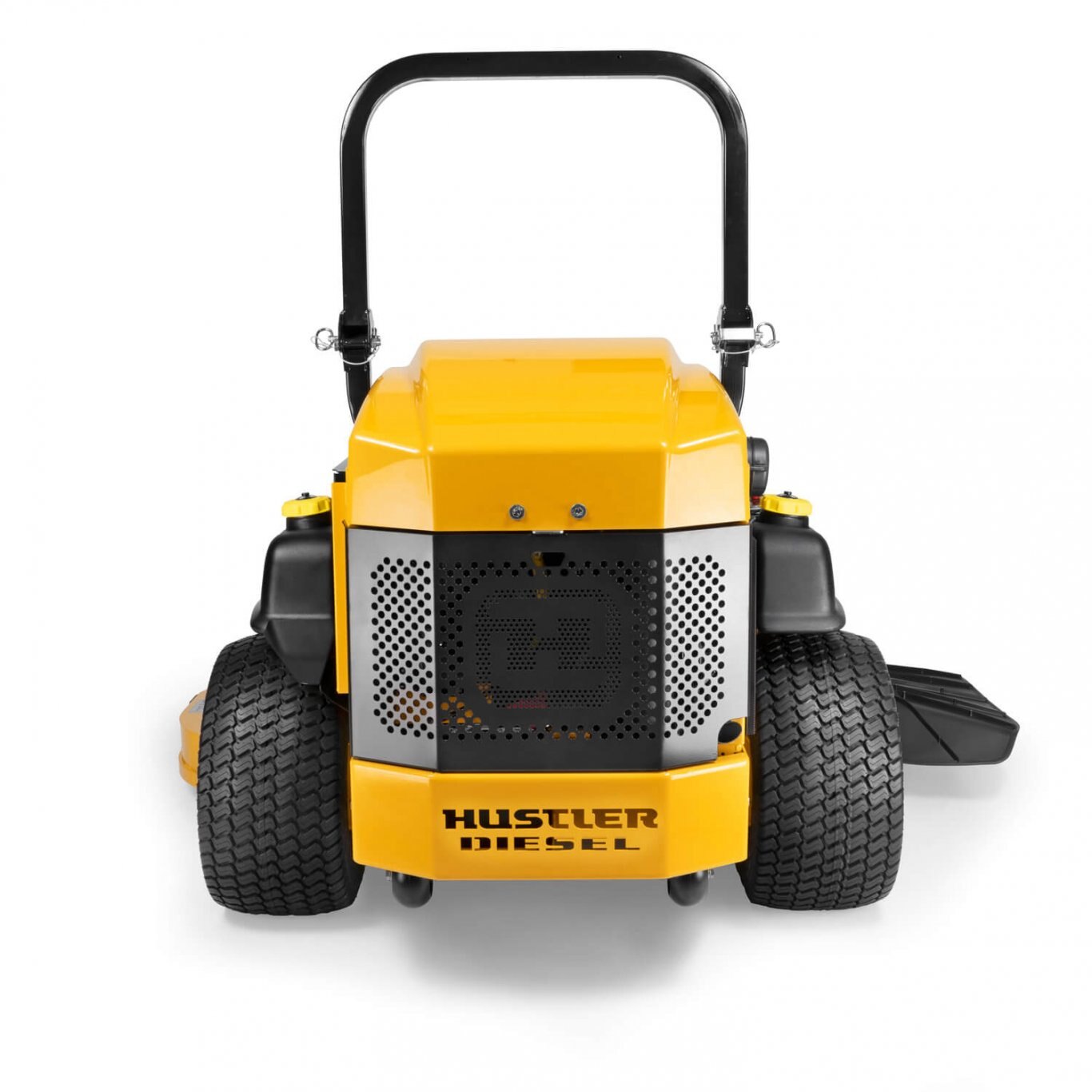

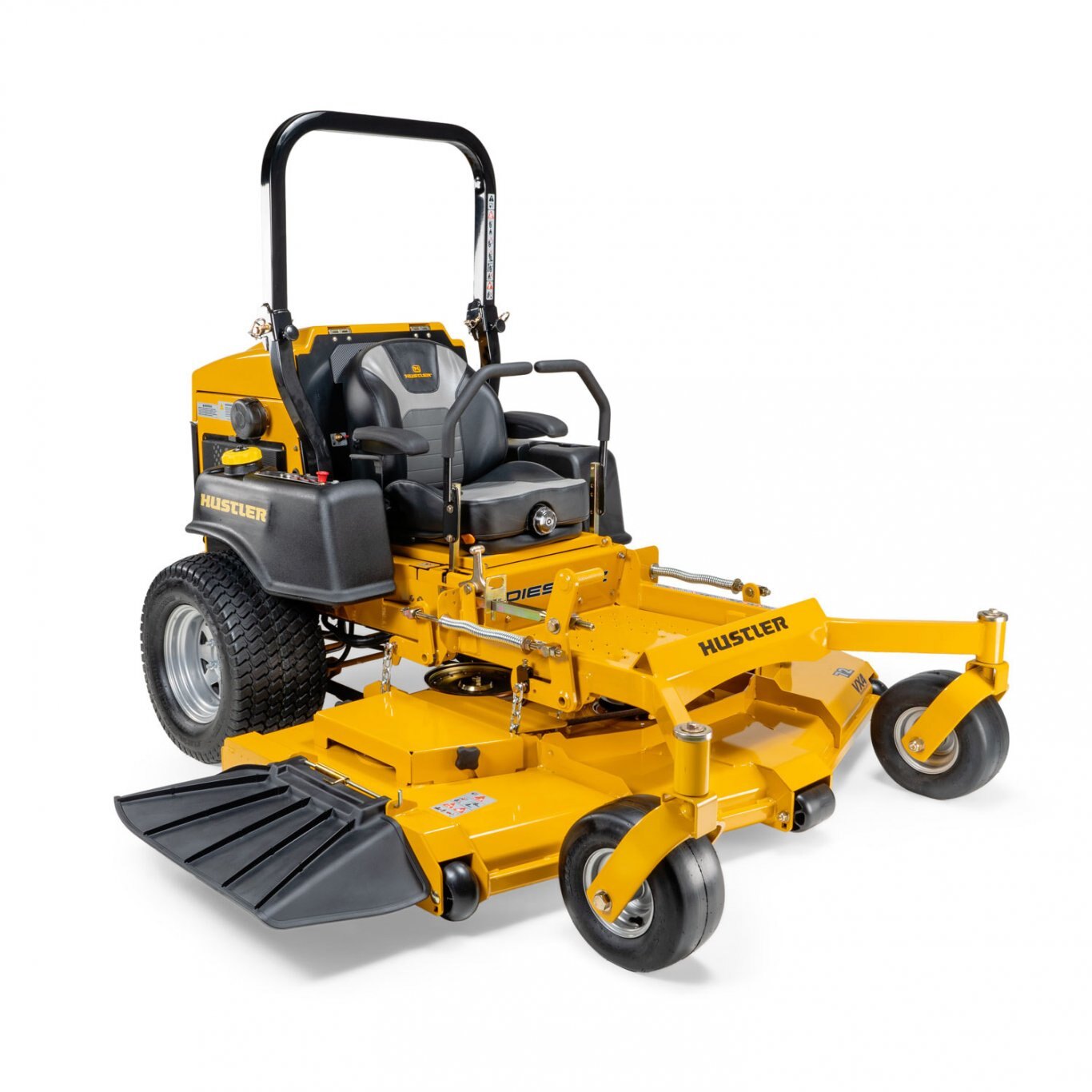

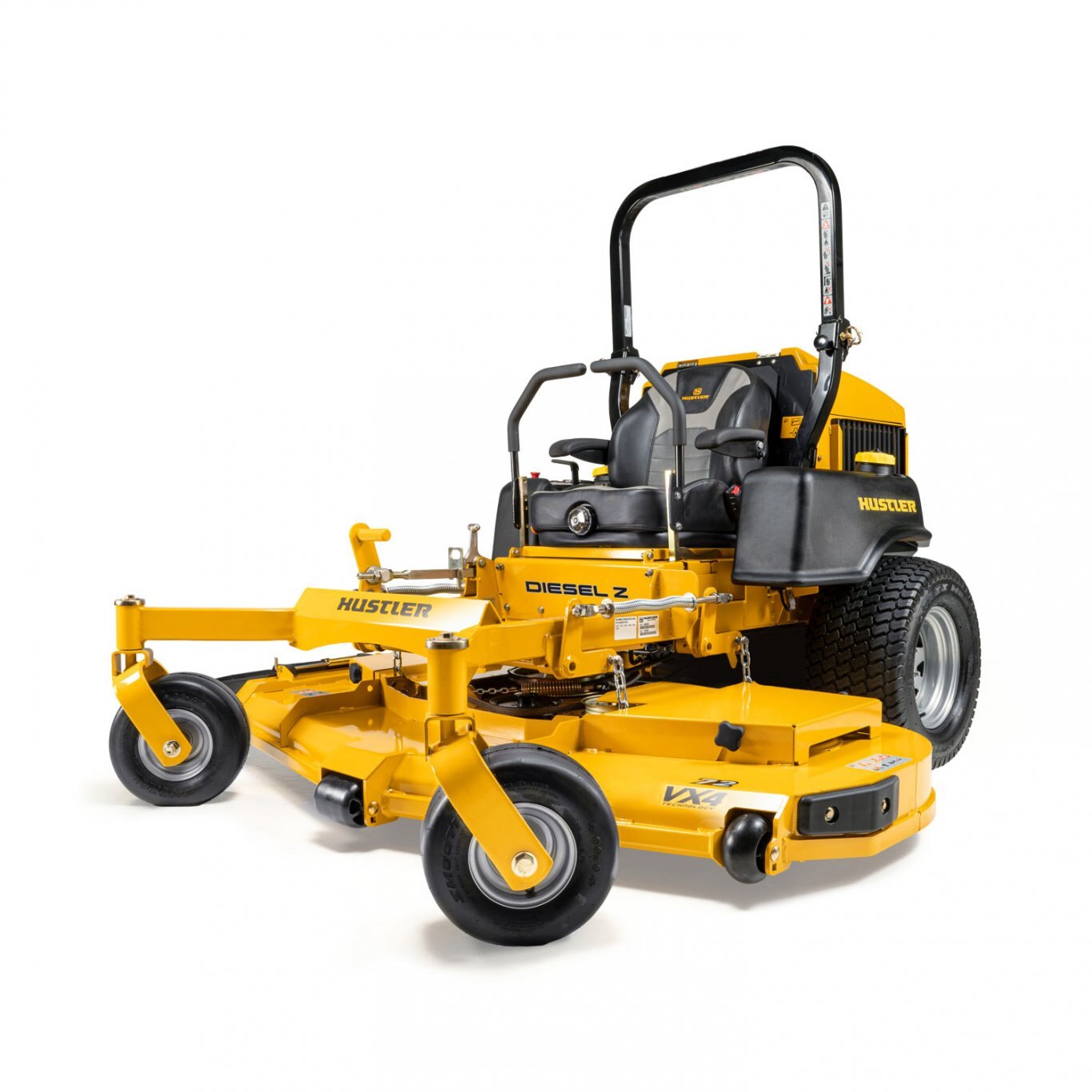

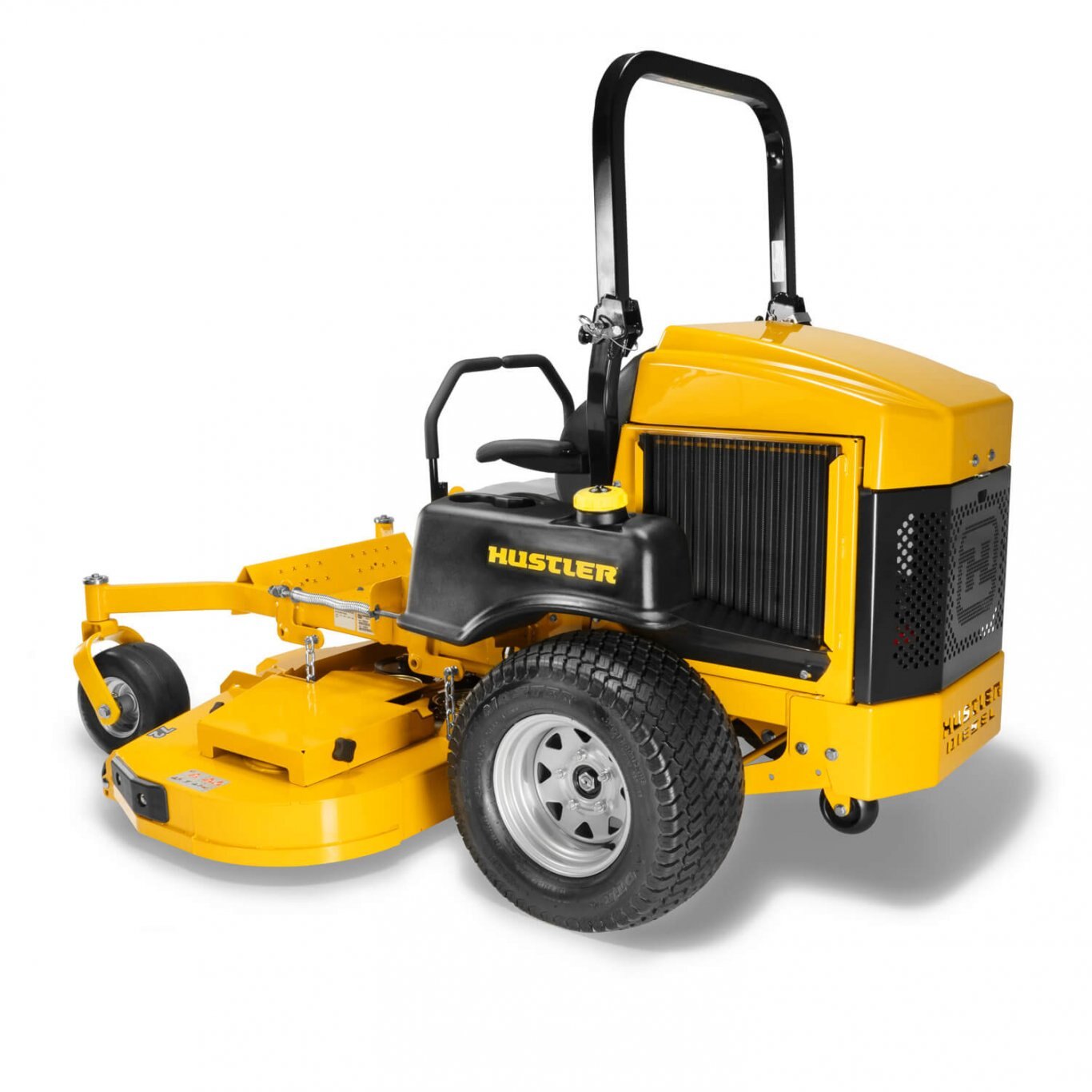

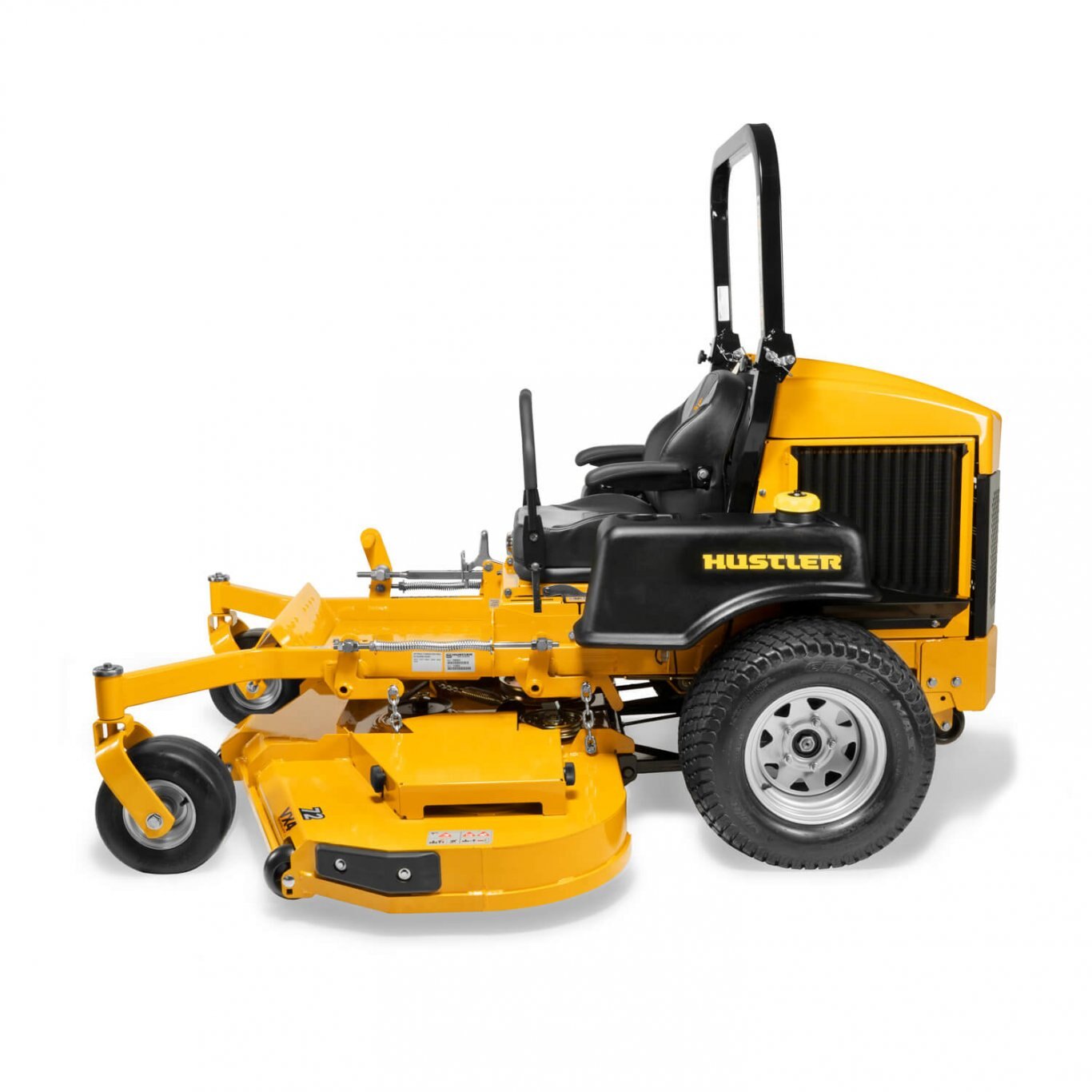

Hustler Super Z

  • Hustler Super Z
  • Hustler Super Z
  • Hustler Super Z
  • Hustler Super Z
  • Hustler Super Z
  • Hustler Super Z
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • 25hp Perkins Engine
  • 60” & 72” decks
  • 11.5mph mowing speed
  • 5-year / 500 hour limited warranty

Diesel Power To Do Any Job.

The Hustler® Diesel Z gives you all the great features of a Hustler product paired with fuel-economy of a diesel.
Specifications
Model
Super Z
Category Name
Lawnmowers
Year
2021
Sale Type
New
Manufacturer
Hustler Turf
deck

Model Deck size:60" Deck size:72"
Cutting Width
60", 60" Rear Discharge
72", 72" Rear Discharge
Cutting Height
1" to 5.5"
 1" to 5.5"
Deck Depth
5.5"
 5.5"
Deck Lift Foot Operated
Foot Operated
Number of Blades 3 3
Blade Length
20.50"
24.50"
Spindles
Ductile cast iron with steel shaft and sealed ball bearings
Ductile cast iron with steel shaft and sealed ball bearings
Deck Engagement Electric PTO Clutch Electric PTO Clutch
Deck Material
7 gauge
7 gauge
Spindle Mounts
Reinforced 7 gauge stamped disc
Reinforced 7 gauge stamped disc
Impanct Trim Area Front of deck: 11 ga. Formed Bump Bar / Side of deck: 1.5" x .375" steel bar Front of deck: 11 ga. Formed Bump Bar / Side of deck: 1.5" x .375" steel bar



engine

Model Deck size:60" Deck size:72"
Engine Manufacturer Perkins Perkins
Engine Horsepower
25
 25
Displacement 1131cc 1131cc
Cooling
Liquid w/ direct drive fan
Liquid w/ direct drive fan
Air Cleaner
Heavy Duty Canister
Heavy Duty Canister
Engine Warranty 3 Year Warranty
3 Year Warranty



general

Model Deck size:60" Deck size:72"
Seat I3M Suspension Seat
I3M Suspension Seat
Cup Holder Yes Yes



features



https://assets-global.website-files.com/5e515b1859cc1c94ddfa1efc/5faac191405f8dc08bf745e4_DashXD_bigbite-p-800.jpeg Service Friendly Design

Designed to make maintenance and service simple and easy.

https://assets-global.website-files.com/5e515b1859cc1c94ddfa1efc/5faac141879843024aad4480_DashXD_seat.jpg Patented Belt Drive System

Provides up to three times longer belt life.

https://assets-global.website-files.com/5e515b1859cc1c94ddfa1efc/5faac0d7ce605f201ec56105_DashXD_engine-guard.jpg VX4® Deck

Fabricated steel deck engineered to move more grass at high speeds while maintaining cut-quality.
dimensions

Model Deck size:60" Deck size:72"
Front Tire (Inches)
13 x 6.5-6
13 x 6.5-6
Drive Tire (inches)
24 x 12-12
24 x 12-12
Wing Tire (inches)
-
 -
Weight (lbs)
1656, 1766 Rear Discharge
 1711, 1816 Rear Discharge
Height (inches) 69 69
Length (inches)
86.8
90.4
Width w/ chute up (inches) 66 78
Tire-to-tire Width (inches)
56
 56
Productivity (acres per hour)
5.57
6.68



construction

Model Deck size:60" Deck size:72"
Frame
1.50" X 3" steel tubing
1.50" X 3" steel tubing
Engine Plate - -
Operator Platform - -
Front Axel   Fabricated with sealed ball bearings
Fabricated with sealed ball bearings
Front Caster Wheel Mounted with tapered wheel bearings and debris cap Mounted with tapered wheel bearings and debris cap
Front Caster Fork Fabricated 1/2" steel Fabricated 1/2" steel



drive system

Model Deck size:60" Deck size:72"
Type Dual Hydrostatic Dual Hydrostatic
Transmission Tandem Hydro-Gear 21cc pumps with Parker TG0335 wheel motors Tandem Hydro-Gear 21cc pumps with Parker TG0335 wheel motors
Fuel Capacity 14.4 gal. 14.4 gal.
Ground Speed (FWD)
Up to 11.5 mph
 Up to 11.5 mph
Parking Brake
Patented Automatic
Patented Automatic



dimensions with catcher

Model Deck size:60"

Deck size:72"
Catcher Style
N/A
 N/A
Powered / Non-Powered
N/A
 N/A
Catcher Capacity
N/A
 N/A
Mower Length w/ Catcher
N/A
 N/A
Mower Width w/ Catcher
N/A
 N/A
