Overview
  • 22hp - 27hp Kawasaki & Kohler Engines
  • 48", 54" & 60” decks
  • 8mph mowing speed
  • 4-year / 750 hour limited warranty

Entry-Level Commercial Mower

With an upgraded engine and transmissions, the 2021 FasTrak is now a commercial-grade zero-turn mower. An ideal addition for any professional fleet, and a great option for farmers, ranchers and businesses with 5+ acres of property to maintain. The heavy-duty frame and deck construction of the FasTrak set it apart from any mower in this price range, and is backed by 4yr/750hr industry best warranty.
Specifications
Model
FasTrak
Category Name
Lawnmowers
Year
2021
Sale Type
New
Manufacturer
Hustler Turf
deck

Model Deck size:48" Deck size:54" Deck size:60"
Cutting Width 48", 48" Rear Discharge 54", 54" Rear Discharge 60''
Cutting Height 1.5" to 4.5" 1.5" to 4.5"
1.5" to 4.5"
Deck Depth 5" 5" 5''
Deck Lift Foot Operated Foot Operated
Foot Operated
Number of Blades 3 3 3
Blade Length 16.50"      18.50"
20.50"
Spindles Aluminum with 1" shaft and sealed ball bearings Aluminum w/1" shaft and sealed ball bearings Aluminum w/1" shaft and sealed ball bearings
Deck Engagement Electric PTO Clutch Electric PTO Clutch Electric PTO Clutch
Deck Material 10 gauge 10 gauge
10 gauge
Spindle Mounts Reinforced 11 gauge Reinforced 11 gauge Reinforced 11 gauge
Impanct Trim Area 11 gauge formed channel with rolled edge 11 gauge formed channel with rolled edge 11 gauge formed channel with rolled edge



engine

Model Deck size:48" Deck size:54" Deck size:60"
Engine Manufacturer Kawasaki FT691 Kohler 7500 EFI, Kawasaki FT691 Kawasaki FT730, Kohler 7500 EFI
Engine Horsepower
 22 27, 22 24, 27
Displacement
726cc
 747cc, 726cc 747cc, 726cc
Cooling Air Cooled Air Cooled Air Cooled
Engine Warranty 3 Year Warranty 3 Year Warranty 3 Year Warranty



general

Model Deck size:48" Deck size:54" Deck size:60"
Seat High-Back Suspension Seat High-Back Suspension Seat High-Back Suspension Seat
Cup Holder Yes Yes Yes



features

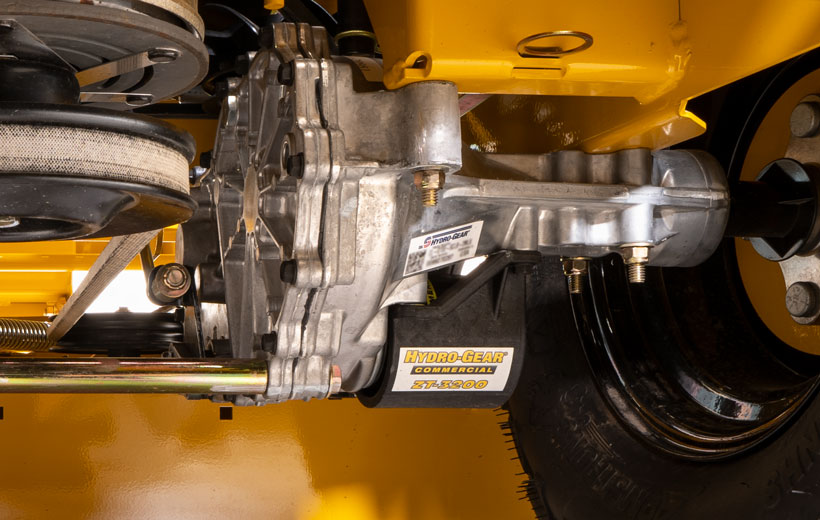

https://assets-global.website-files.com/5e515b1859cc1c94ddfa1efc/5faac191405f8dc08bf745e4_DashXD_bigbite-p-800.jpeg Commercial-Grade Transmission

Serviceable commercial grade transmission, Hydro-Gear® ZT-3200™.

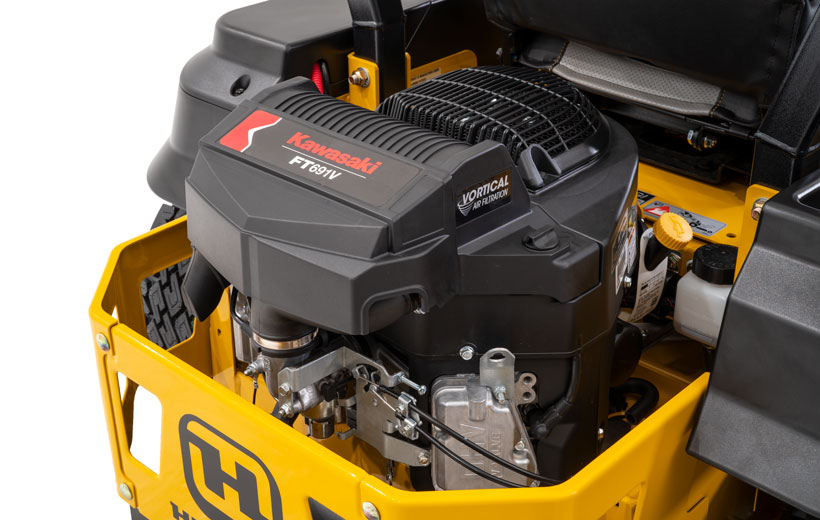

https://assets-global.website-files.com/5e515b1859cc1c94ddfa1efc/5faac141879843024aad4480_DashXD_seat.jpg Commercial-Grade Engine

Kawasaki® FT Engine With Vortical Air Filtration assists with cleaning debris that extends engine life.

https://assets-global.website-files.com/5e515b1859cc1c94ddfa1efc/5faac0d7ce605f201ec56105_DashXD_engine-guard.jpg Premium Seat

High-back seat with suspension to shield the operator from bumps and EVC cushion to take pressure off tail bone and lower back.

Flip-Up Seat Pan https://assets-global.website-files.com/5e515b1859cc1c94ddfa1efc/5faac0d7ce605f201ec56105_DashXD_engine-guard.jpg

The seat pan flips up to provide access under the seat without the use of tools.

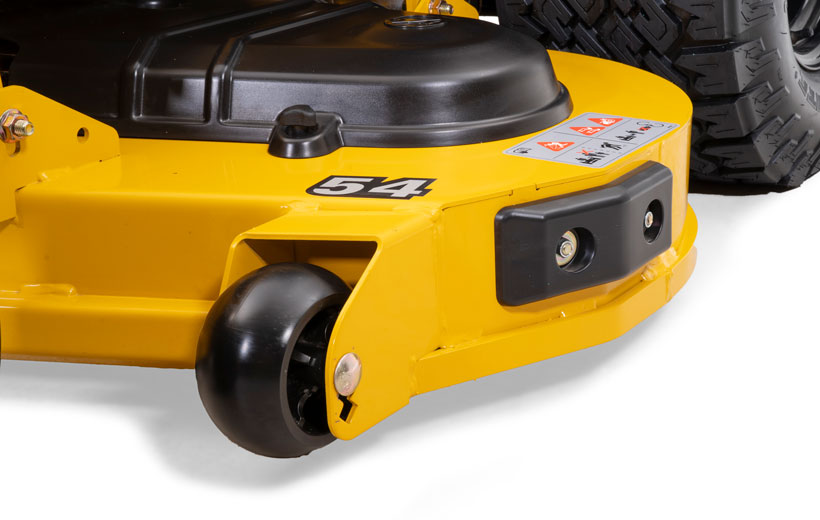

Heavy-Duty Decks and Frame https://assets-global.website-files.com/5e515b1859cc1c94ddfa1efc/5faac0d7ce605f201ec56105_DashXD_engine-guard.jpg

Commercial-style decks and commercial-grade fully welded, tubular frame. Up to 60" deck size available.

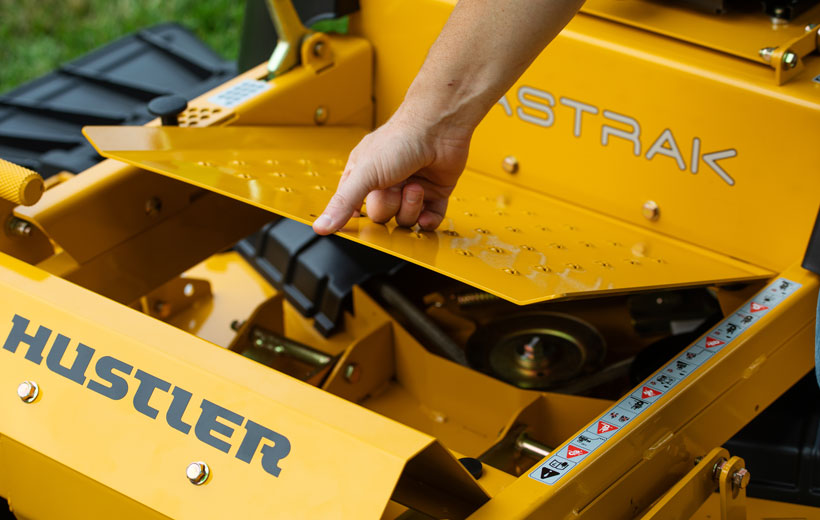

Removable Floor Pan https://assets-global.website-files.com/5e515b1859cc1c94ddfa1efc/5faac0d7ce605f201ec56105_DashXD_engine-guard.jpg

Features a removable floor pan for ease of maintenance.
dimensions

Model Deck size:48" Deck size:54" Deck size:60"
Front Tire (Inches) 13 x 5-6
13 x 6.5-6
13 x 6.5-6
Drive Tire (inches)
23 x 9.5-10 BigBite™
23 x 11-10 BigBite™
23 x 11-10 BigBite™
Weight (lbs) 835, RD 840 845, 860 Rear Discharge 865
Height (inches) 45.5 45.5 45.5
Length (inches) 76 76 75.92
Width w/ chute up (inches) 49.1, RD 48.85 55.1, 54.85 Rear Discharge 61.1
Tire-to-tire Width (inches) 47 52 52
Productivity (acres per hour) 3.1 3.48 3.88



construction

Model Deck size:48" Deck size:54" Deck size:60"
Frame 1.5" X 3.0" steel tubing 1.5" X 3.0" steel tubing 1.5" X 3.0" steel tubing
Front Axel Fabricated with sealed ball bearings Fabricated with sealed ball bearings Fabricated with sealed ball bearings
Front Caster Wheel Sealed ball bearings Sealed ball bearings Sealed ball bearings
Front Caster Fork Fabricated 3/8" steel Fabricated 3/8" steel Fabricated 3/8" steel



drive system

Model Deck size:48" Deck size:54" Deck size:60"
Type Dual Hydrostatic Dual Hydrostatic Dual Hydrostatic
Transmission Hydro-Gear ZT-3200™ Hydro-Gear ZT-3200™ Hydro-Gear ZT-3200™
Fuel Capacity 5 gal. 5 gal. 5 gal.
Ground Speed (FWD) Up to 8 mph Up to 8 mph Up to 8 mph
Parking Brake Patented Automatic Patented Automatic
Patented Automatic



dimensions with catcher

Model Deck size:48" Deck size:54" Deck size:60"
Catcher Style 2-bag 2-bag 2-bag
Powered / Non-Powered Powered Powered Powered
Catcher Capacity 7.2 bushel 7.2 bushel
7.2 bushel
Mower Length w/ Catcher 103.4" 103.4" 103.4"
Mower Width w/ Catcher 58" 64'' 70''
