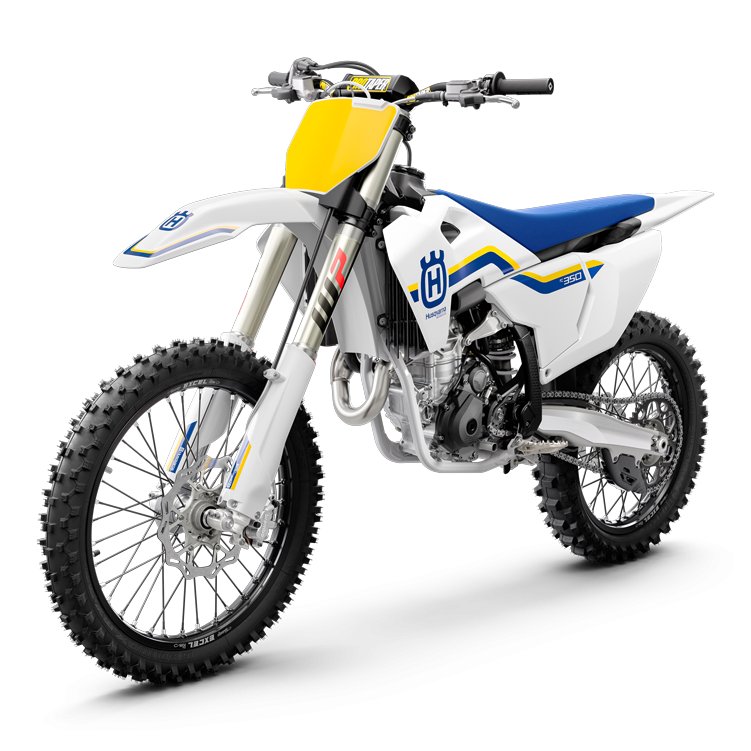

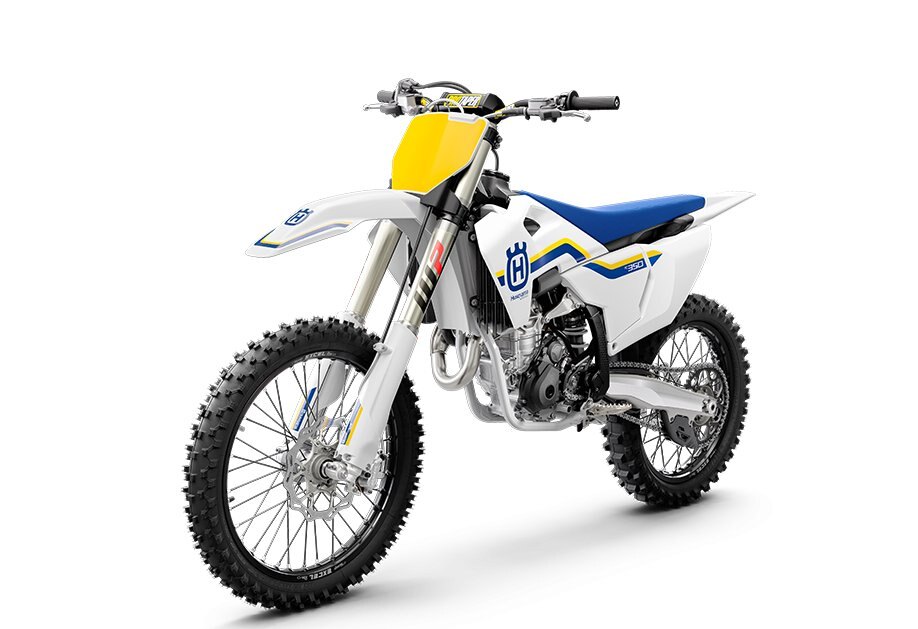

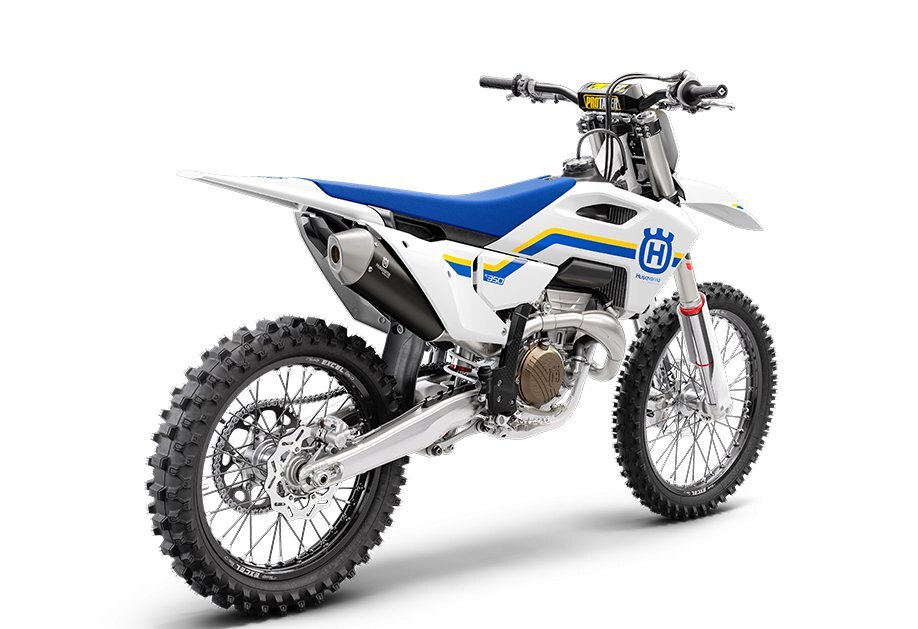

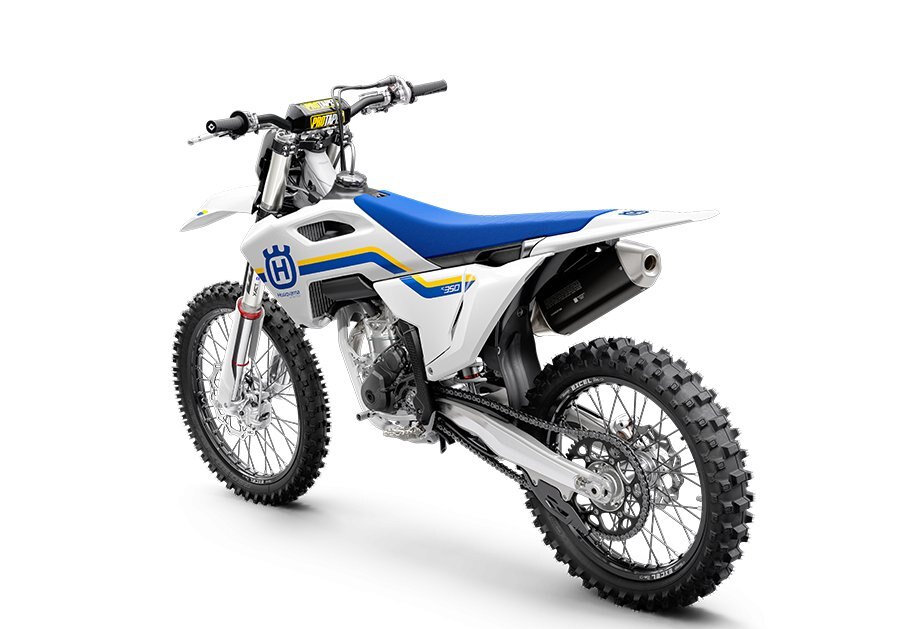

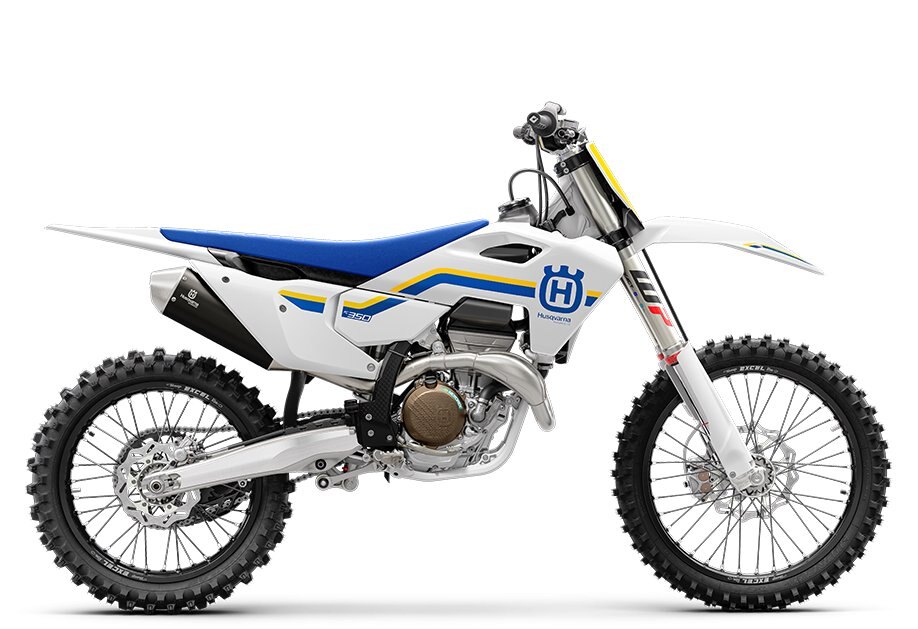

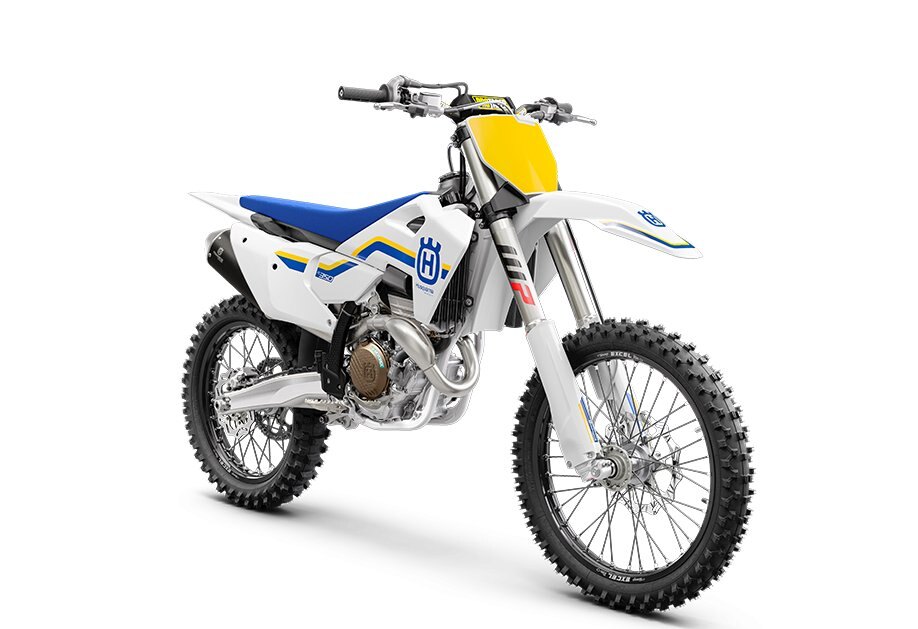

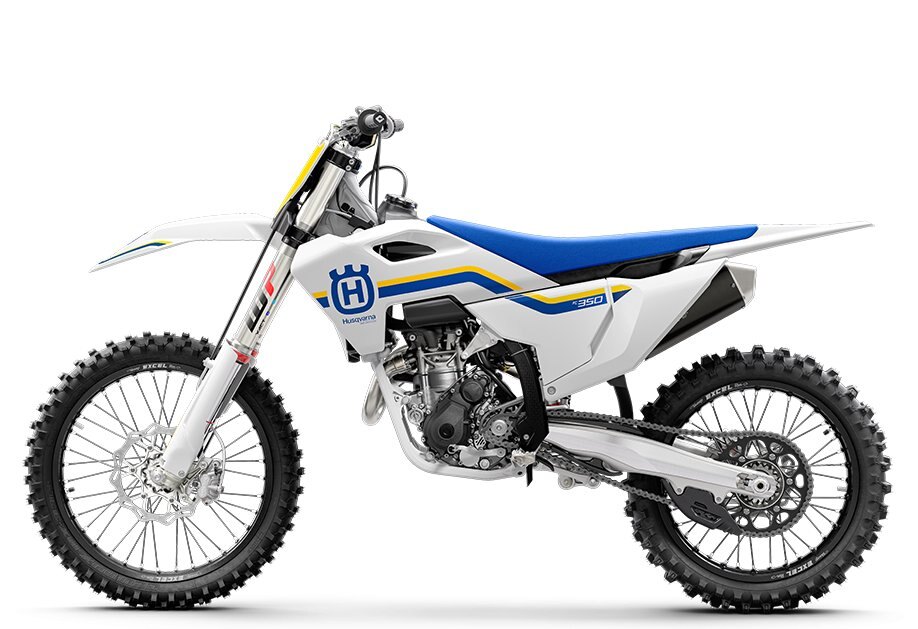

2025 Husqvarna FC 350 Heritage
Call for Price
Overview
Specifications
faster and wiser
ride easier
effortless ergonomics
master your art
technologically advanced
engine technical details
chassis technical details
|
*The Total Selling Price of the motorcycle includes prices and specifications based on Manufacturer's Suggested Retail Prices plus Freight & Value-Added Margin (VAM), options, retailer preparation, applicable levies, industry fees, and administrative fees. Applicable taxes are extra. Retailers are free to set individual prices and may sell for less. EXCLUDES added and optional parts from configurator – see dealer for final optional part prices and labor costs. |
Model
Fc
Category Name
Motorcycles
Year
2025
Sale Type
New
Manufacturer
Husqvarna
Faster And Wiser

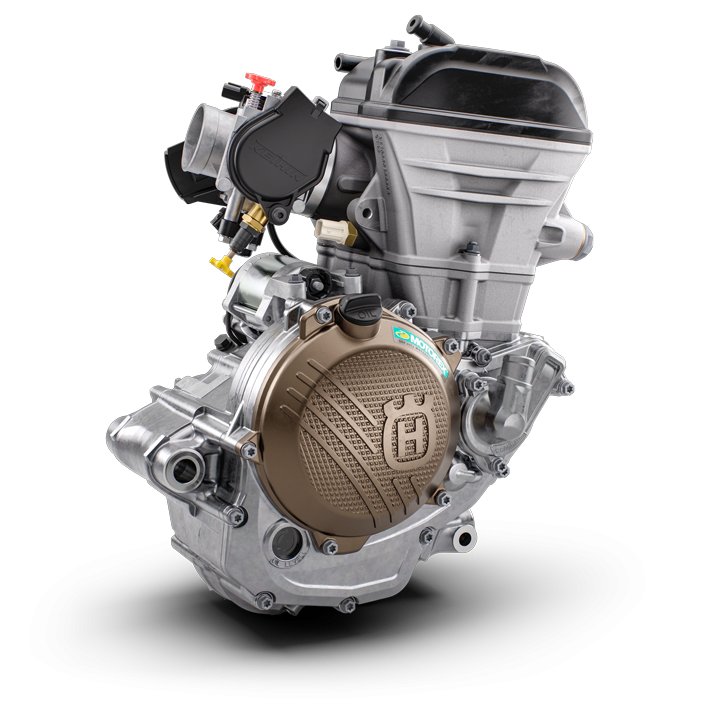

Engine
The new FC 350 engine is designed to deliver maximum performance. For 2023, the repositioning of all major engine components and shaft arrangements enhances overall handling with the design improving anti-squat behaviour from the whole chassis. Weighing just 59.9 lb (27.2 kg), the 350 cc 4-stroke engine is tilted two degrees backwards and is 8 mm shorter in height to further centralise mass.
|

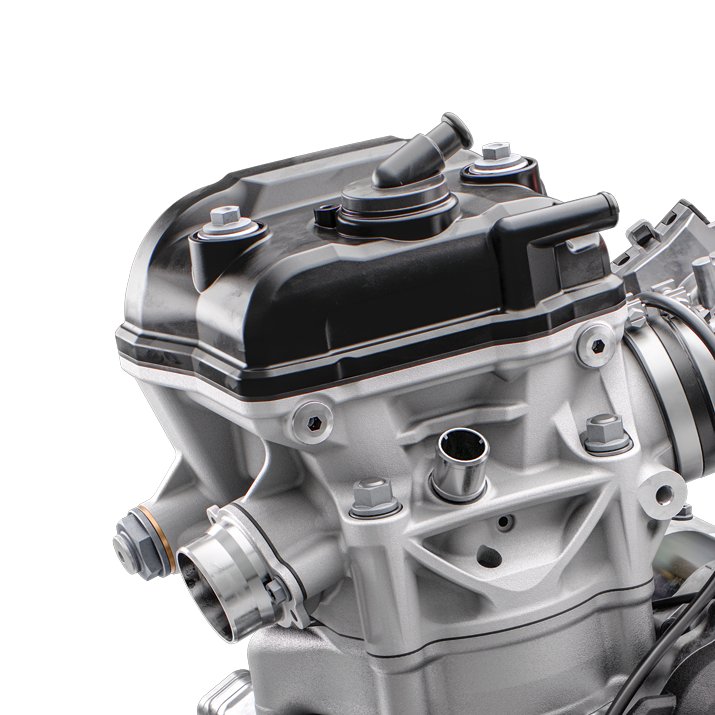

Cylinder head
Fully redesigned for 2023, the DOHC cylinder head offers improved durability and serviceability, with Diamond Like Carbon (DLC) coated finger followers to guarantee minimal friction and optimal performance. These actuate large titanium valves, 36.3 mm for the intake and 29.1 mm for the exhaust, which optimise gas flow for strong, usable power access the rev-range, all the way up to the 13,400 rpm limit. Revised valve timings work in perfect harmony with the redesigned camshaft which now features a new bearing bridge designed to increase stiffness and improve serviceability.
|

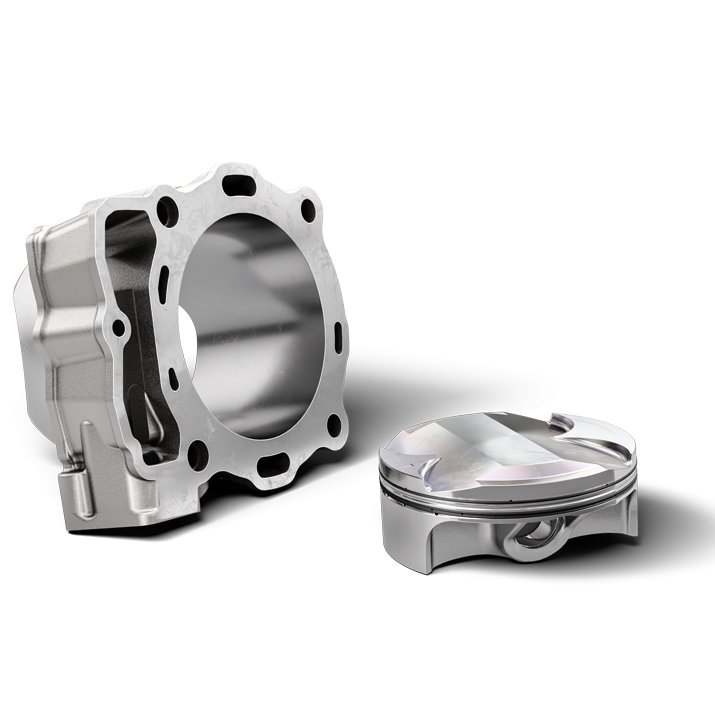

Cylinder and piston
A large 88 mm bore and 57.5 mm stroke cylinder is professionally engineered from high-strength aluminium for maximum reliability, and houses the high performance forged bridged-box-type piston from CP. For 2023, the compression ratio is increased to 14.6:1 for improved torque and peak power. Engine responsiveness is further improved thanks to optimised valve guides and valve shaft diameters precisely engineered using computational fluid dynamics (CFD).
|

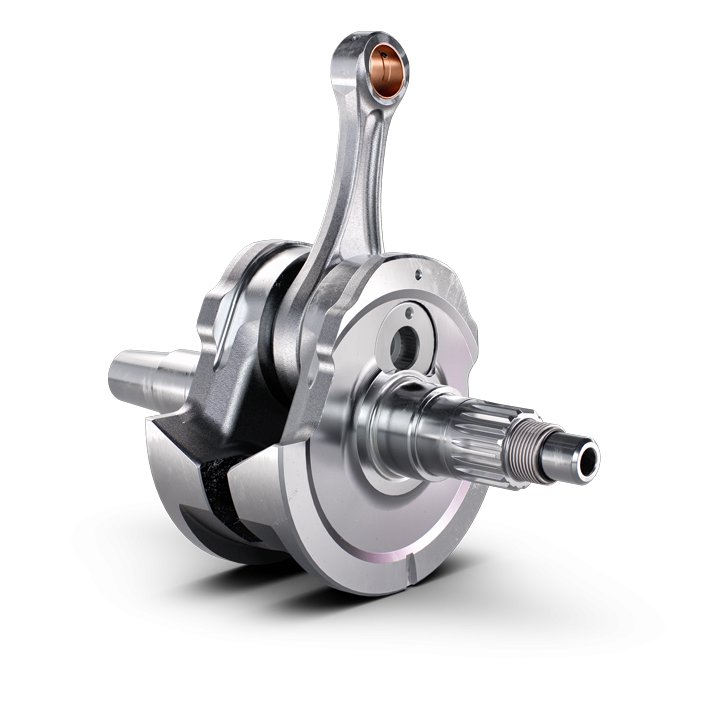

Crankshaft
At the centre of the high-output, high-revving engine is a crankshaft featuring a plain big end bearing rotating on two force-fitted bearing shells. Ensuring maximum reliability and durability, the crankshaft offers long service intervals of 90 hours. |

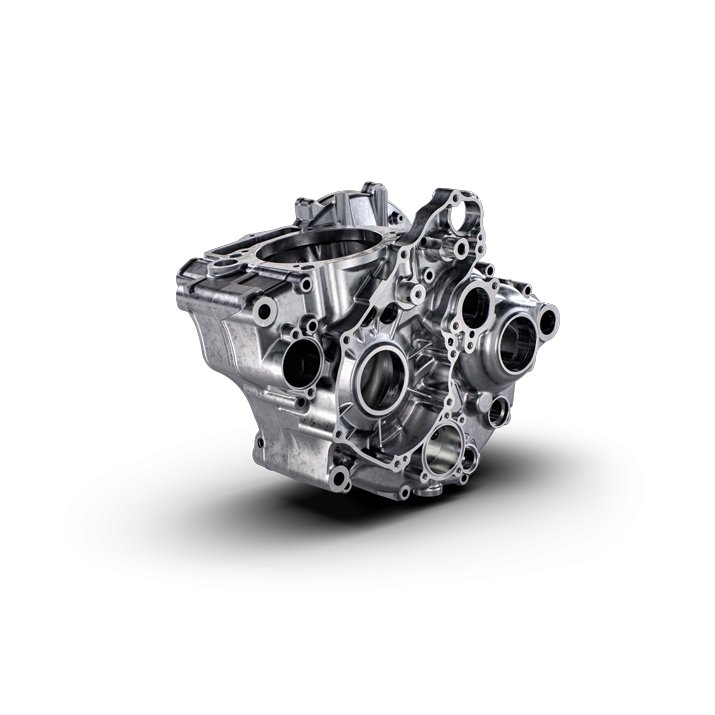

Crankcases
Designed for optimised mass centralisation, the FC 350 crankcases house all internal components in the perfect position to achieve the ideal centre of gravity. Manufactured using a high-pressure die cast production process, the result is a thin, exceptionally strong wall thickness at the lowest possible weight.
|

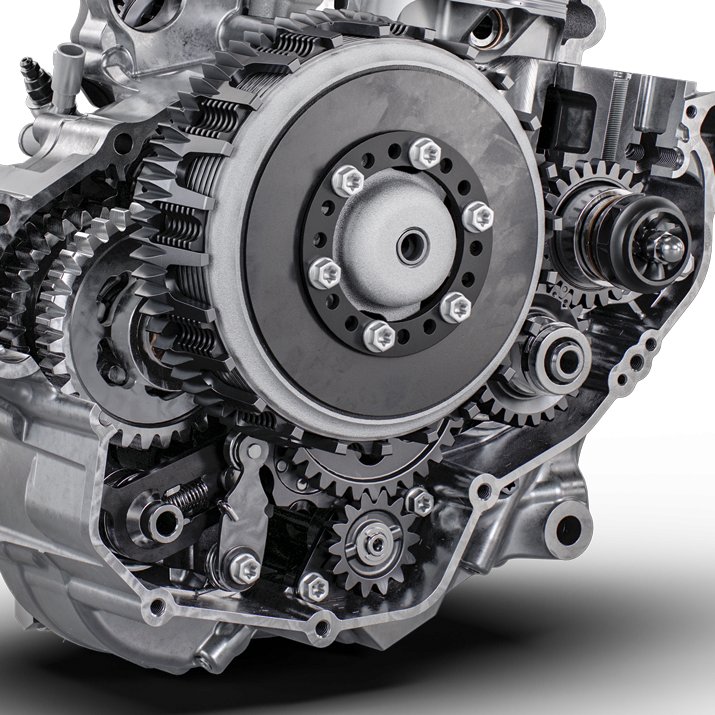

DDS clutch
The FC 350 features a revised (DS) Diaphragm Steel clutch. Engineered from a single piece of CNC-machined steel, the redesigned clutch basket accommodates the new gearbox and allows the use of thin steel liners, which contribute to the compact design of the engine. |

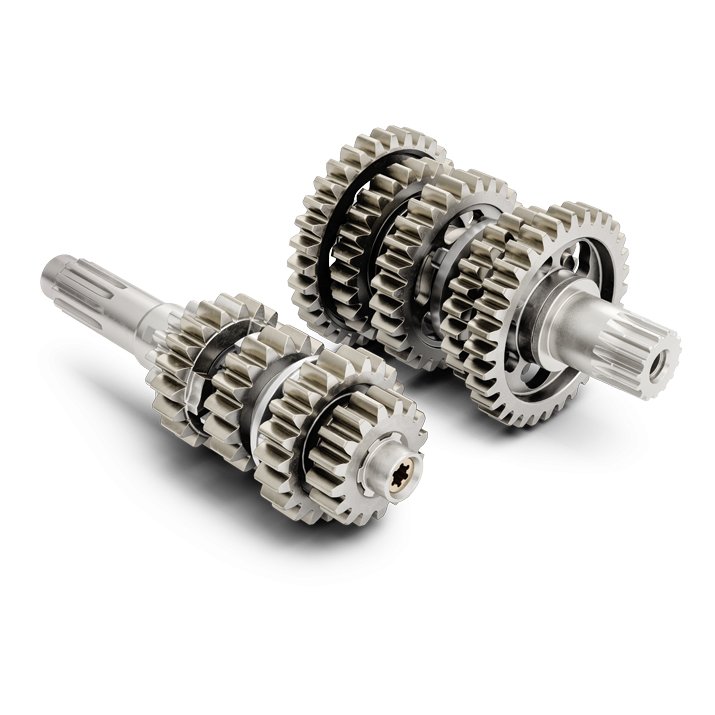

Gearbox
Produced by Pankl Racing Systems, the 5-speed gearbox is designed to be extremely light and durable while featuring optimised and proven motocross-specific gear ratios (24:72). A redesign of the shift shaft reduces the operating forces required for gear changes. Integrated into the shift drum, a new Quickshift sensor can be activated by pressing the QS marked button on the map select switch to further aid seamless upshifting.
|
Ride Easier

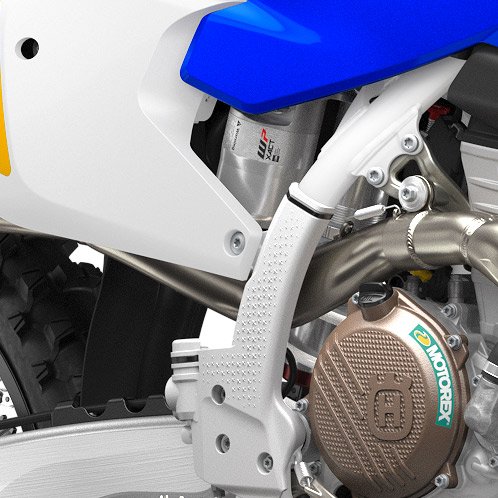

Lightweight frameThe proven chromium molybdenum steel frame is refined for 2023. A new shock mounting, which is no longer connected to the main tube, significantly improves the anti-squat behaviour of the chassis. With optimised wall thickness in high stress areas improving reliability, the frame continues to offer advanced geometries and flex characteristics aimed at providing unparalleled rider feedback, energy absorption, and exceptional straight-line stability. The frame is finished off in a premium white powder coating with redesigned standard frame protectors offering superior protection, durability, and grip in any condition. Additionally, the inclusion of forged brackets on the lower frame rails allows for easy installation of the skid plate, which is available as a technical
|
|
|
|
CNC machined triple clampsWorking in unison with the frame design and suspension set-up, the CNC-machined triple clamps ensure precisely calculated geometry for assured stability. Handlebar flex can be customised with the handlebar clamp, which offers two mounting options - rubber-damped for less vibration, or fixed for enhanced front-end feedback. The upper triple clamp is stiffer to ensure a smoother fork action and plays a vital role in the perfect alignment of the front wheel for superior handling. |
|

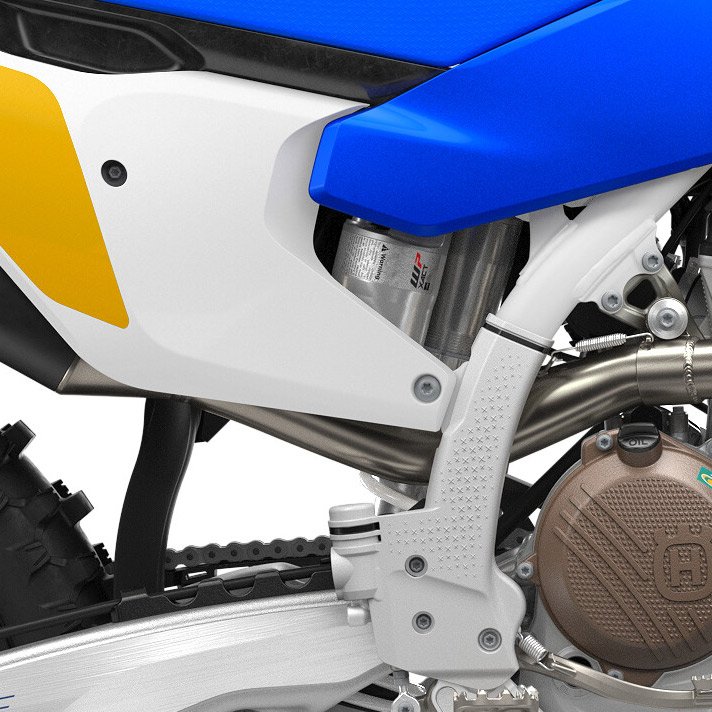

WP XACT shock absorberThe all-new WP XACT rear shock is 100 g lighter and 15 mm shorter than its predecessor yet the travel remains unchanged. Inside the shock is a Computational Fluid Dynamics (CFD) optimised main piston for improved initial comfort which provides strong hold-up in all conditions. Different sized holes in the shims allow them to open more easily which reduces the overall stress of the oil flow. Complete with low friction SKF seals and a revised linkage system, consistent damping, comfort, and traction are guaranteed with rebound and both high and low speed compression now adjustable by hand. |
|
SwingarmThe swingarm is manufactured using a die-cast production process for optimal rigidity. To optimise and match the flex characteristics of the chassis, a 22 mm rear axle is utilised. Additionally, the chain slider is exceptionally durable while the chain guide is manufactured with a rounded profile to ensure it is less prone to catching on external objects. |
Effortless Ergonomics

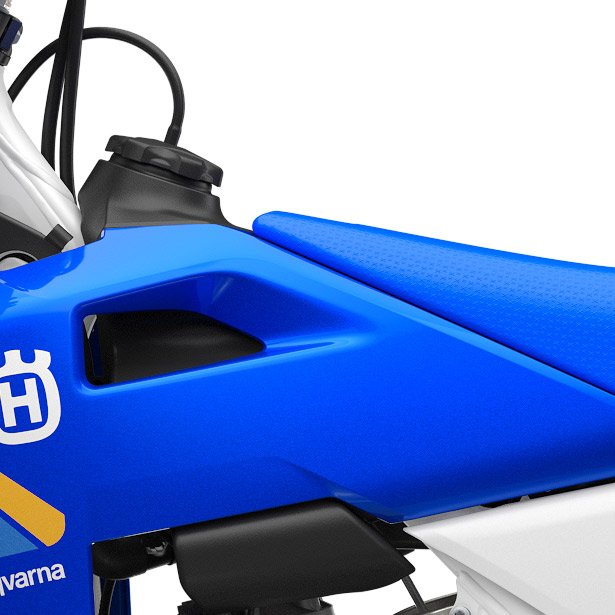

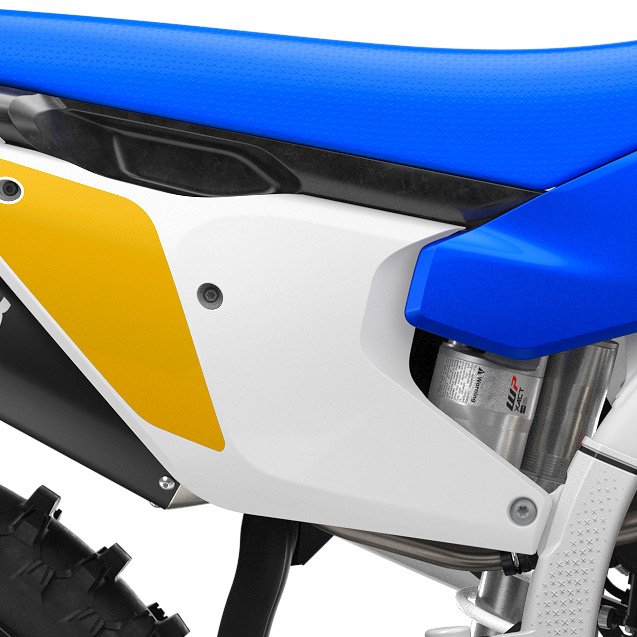

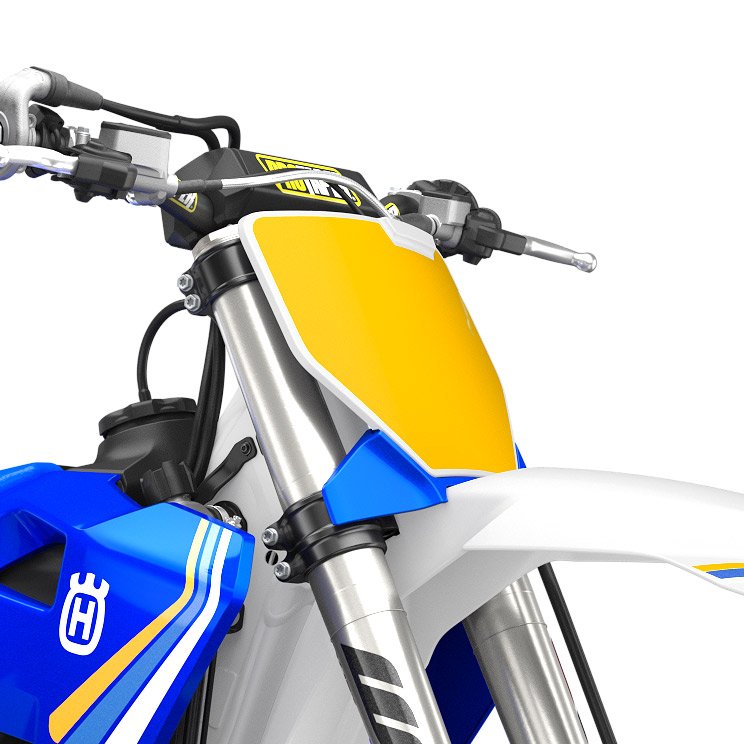

Functional bodywork
Clean, Swedish-inspired design and ergonomics are tailored to allow riders to perform at their best for extended periods of time. Adapted after countless hours of testing, the contact points and surfaces in the rider triangle have been repositioned for 2023 to improve comfort on the motorcycle. A new, flatter seat offers unrestricted movement with a high grip cover ensuring riders stay firmly in place under hard acceleration. |
Airbox
|

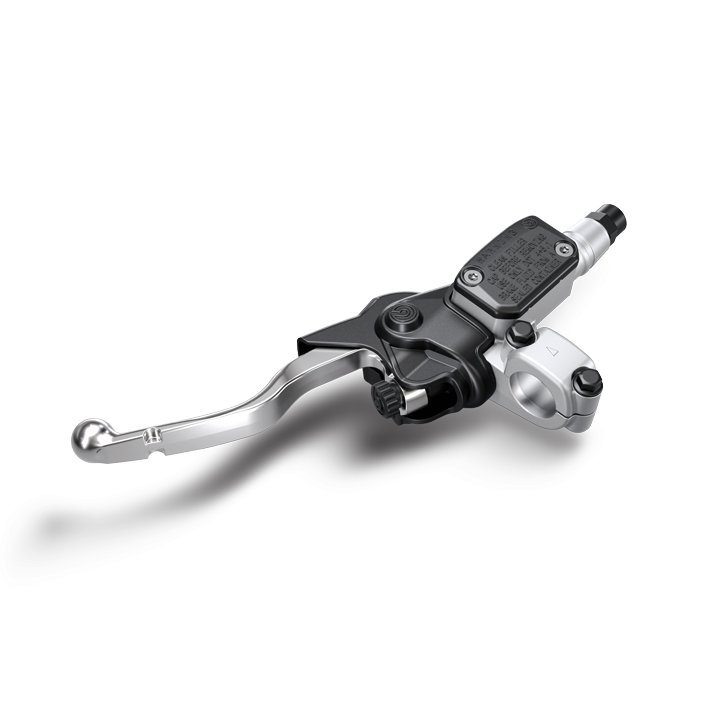

Hydraulic clutch
The high-performance Brembo hydraulic clutch system guarantees even wear, near maintenance-free operation, and perfect action in every condition. With this hydraulic system, free play is constantly compensated so that the pressure point and function of the clutch remain identical in cold or hot conditions, as well as over time. Countless hours of race-focused testing have proven the exceptional reliability of the high-quality, Italian-made Brembo hydraulic systems.
|
Hydraulic brakes
The highest levels of quality and performance are guaranteed as the class leading Brembo brake calipers are made from single pieces of aluminium for exceptional strength at the lowest possible weight. Together with a 260 mm front and a 220 mm rear disc, which are designed to prevent mud build-up, superior stopping power and braking confidence is guaranteed in all conditions.
|

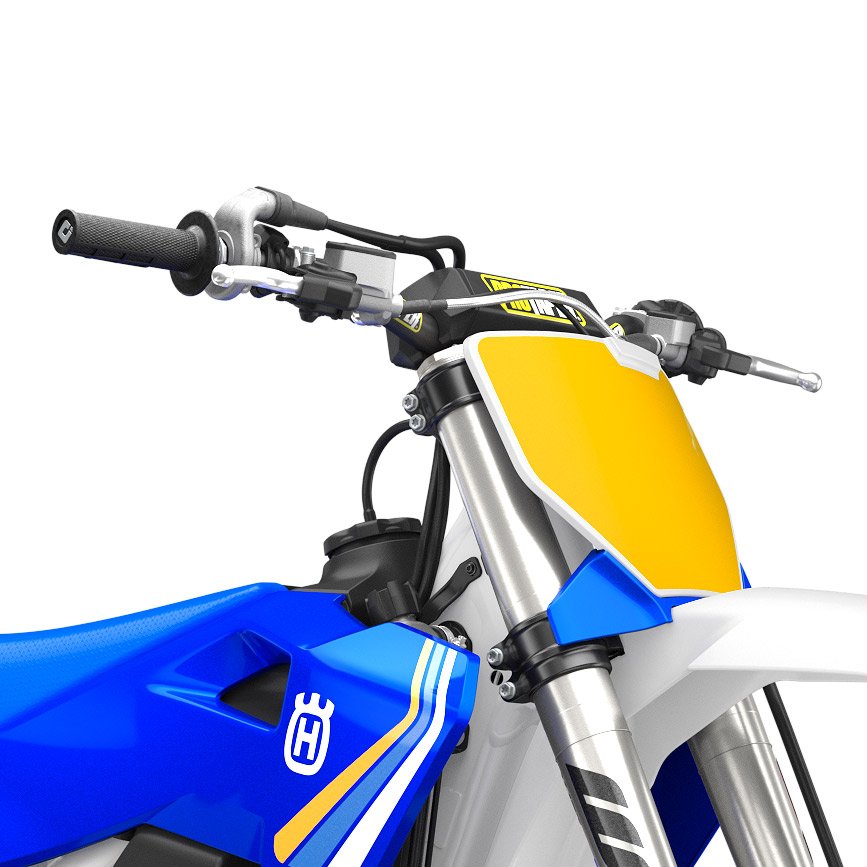

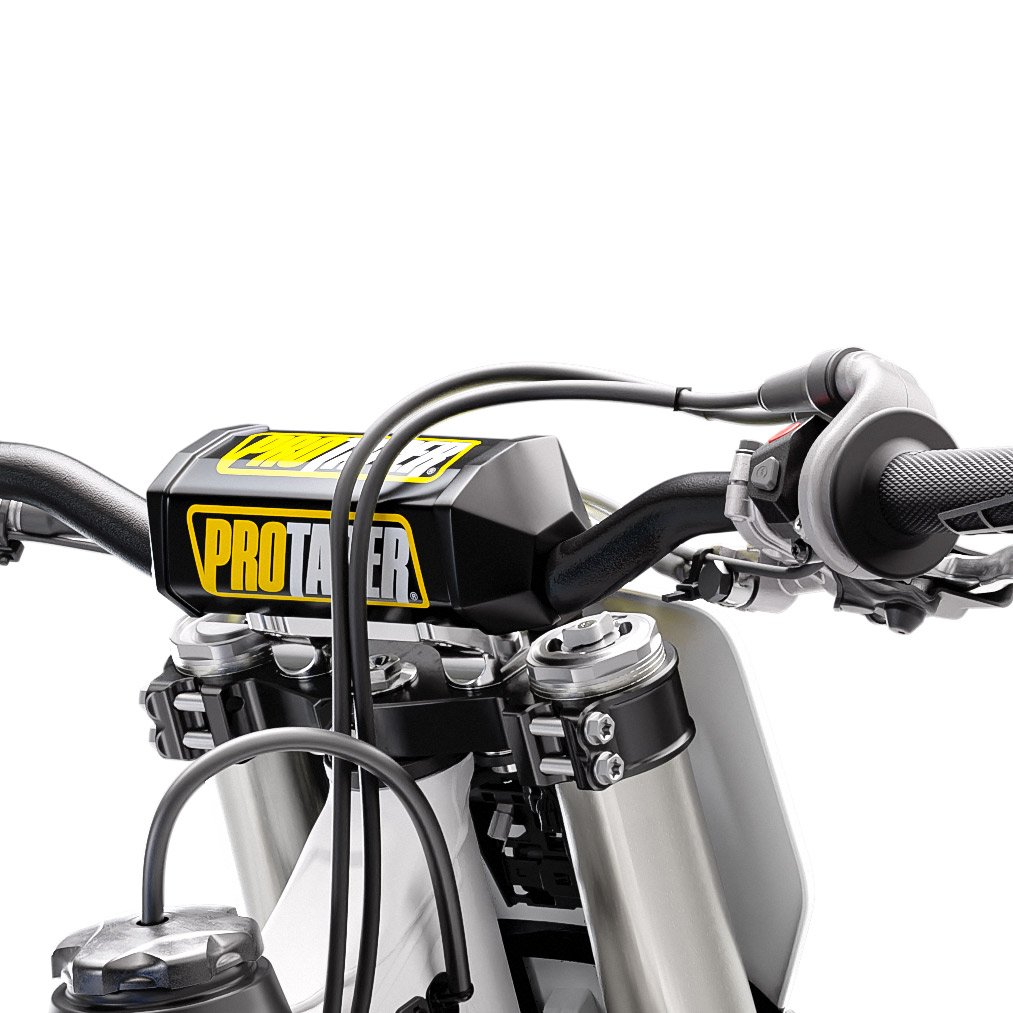

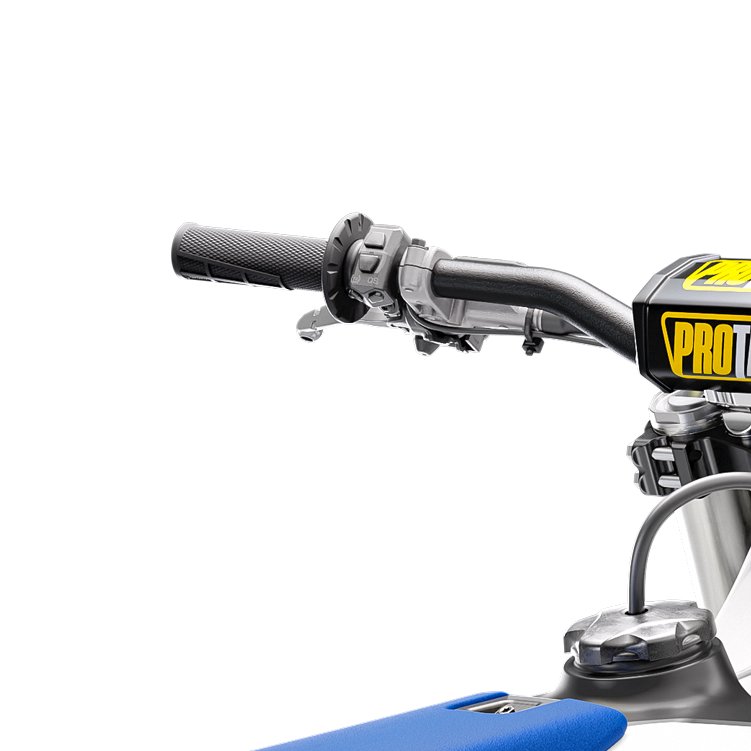

ProTaper handlebar
Developed between Husqvarna Motorcycles and leading handlebar manufacturer, ProTaper, the exclusive bend offers superior comfort, class-leading strength, and fatigue resistance at the lowest possible weight. On top sits the black ProTaper handlebar pad adding style and safety.
|
ODI grips
ProTaper handlebarODI lock-on grips feature an innovative, integrated throttle mechanism and are installed without using glue. The throttle assembly offers easy free-play adjustment with the option to fit alternative cams for a personalised throttle action.
|

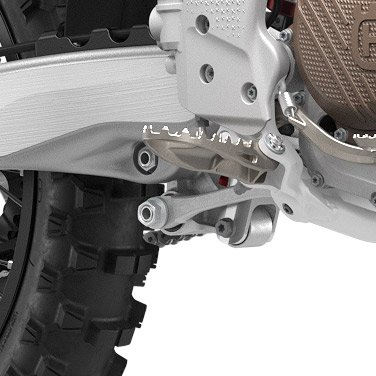

Footrests
The CFD-designed footrests are extra wide to ensure better control of the machine while at the same time they are less susceptible to catching on deep ruts, take-offs when scrubbing, and trackside barriers. This was achieved by the narrow mounting design in the frame layout.
|
A strong, one-piece airbox with optimised air intake tracts ensure an unrestricted flow of air for maximum power. The Twin Air filter is easily accessed without tools, by simply removing the left side panel for easy maintenance.
Master Your Art

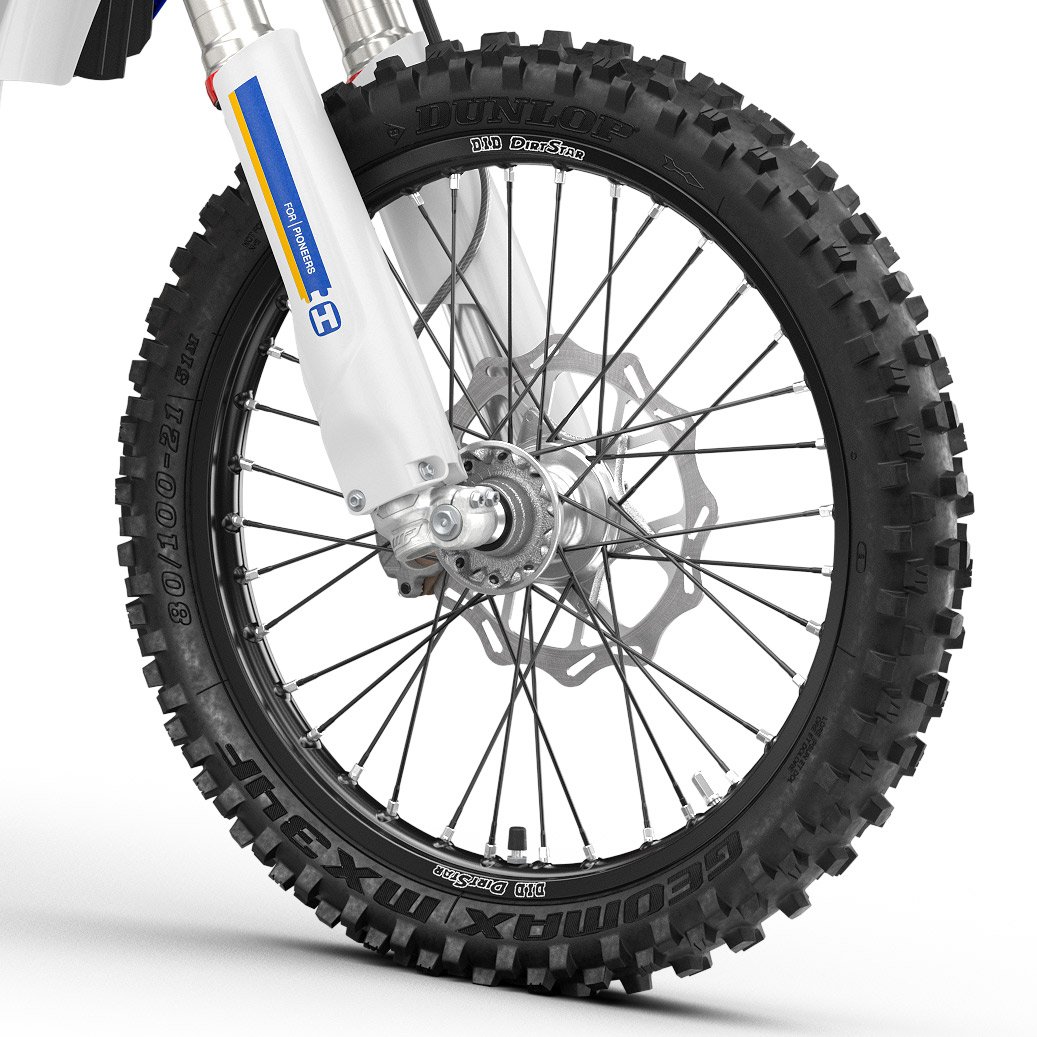

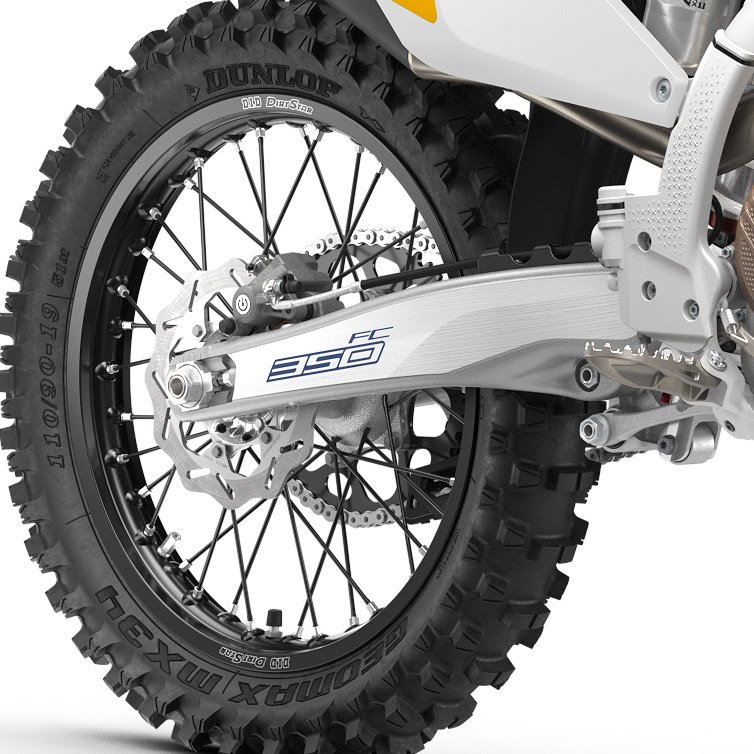

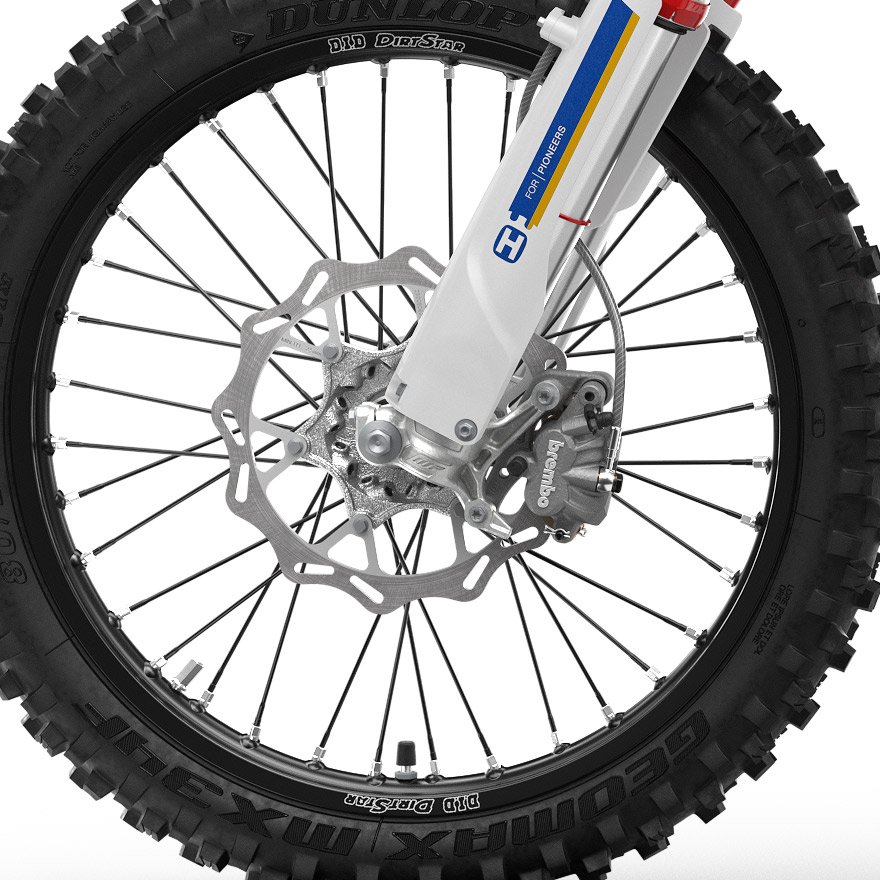

Wheels and tyres
Assembled with CNC-machined hubs, strong spokes, and black-anodised alloy rims by D.I.D, the wheels of the FC 450 are fitted with DUNLOP GEOMAX MX33 Motocross tyres which feature a proven block-within-a-block design for more progressive cornering and superior grip. For increased traction and stability through ruts, the FC 450 is fitted with a 120/90-19 rear tyre while a 80/100-21 front tyre ensures optimal grip on a variety of riding surfaces. |

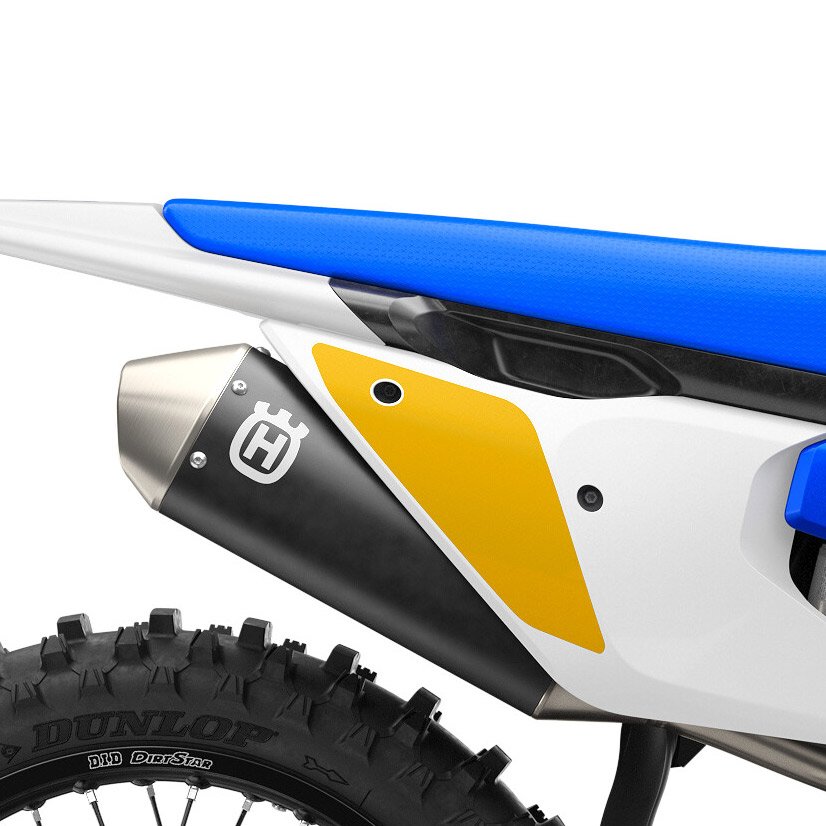

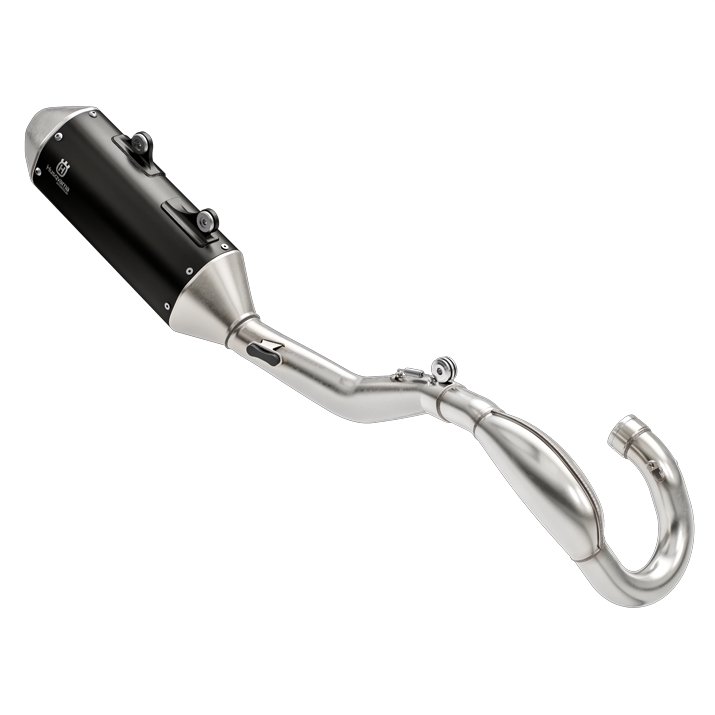

Exhaust system
The exhaust system on the FC 350 Heritage model features a flow-designed resonance chamber, which plays a vital role in delivering class-leading performance. Manufactured in two pieces and designed to be as compact as possible, the header pipe allows for the system to be removed without removing the rear shock. The silencer has a short and efficient design, moving weight closer to the centre of gravity and ensuring impressive power while keeping noise as low as possible. A black coating highlights the premium quality of the silencer. |

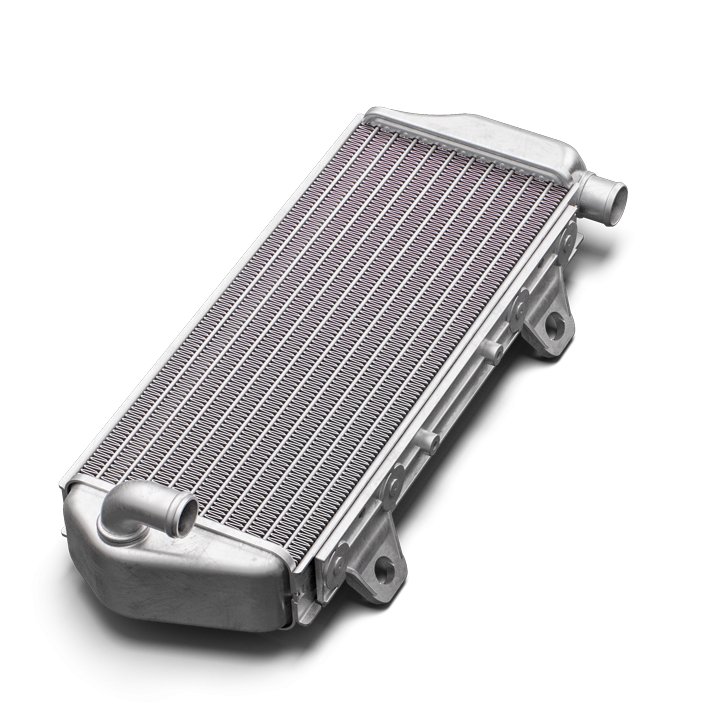

Cooling system
Manufactured from high-strength aluminium, the radiators are designed using computational fluid dynamics (CFD) to channel air through them in the most effective way. A large centre tube through the frame reduces pressure at this point in the system for a consistent coolant flow while an internal thermostat further enhances reliability.
|
Fuel tank
A new 1.9 gal (7.2 litre) fuel tank integrates neatly into the revised bodywork. Due to the new fuel pump design and position, the tank is emptied further for increased running times. For improved safety, the external fuel line is specifically routed to make it less exposed and susceptible to damage. |
Technologically Advanced

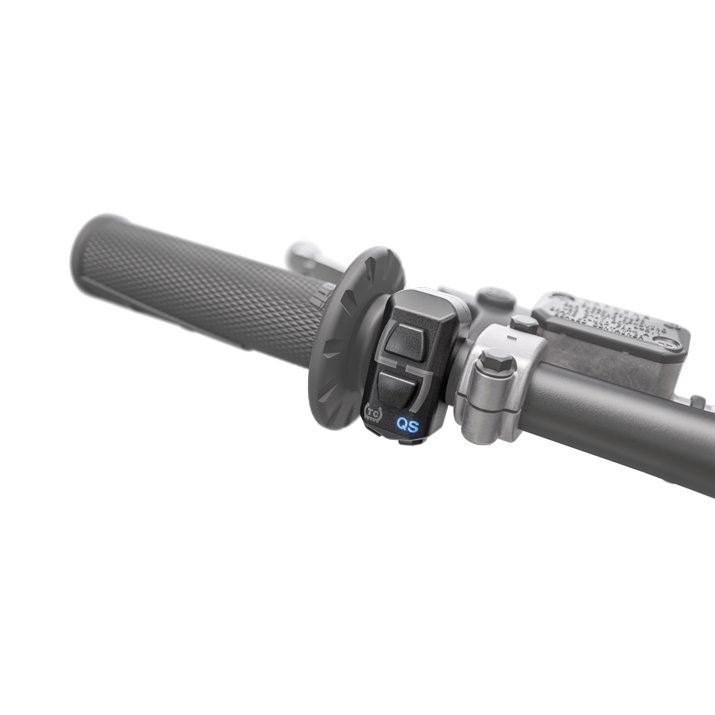

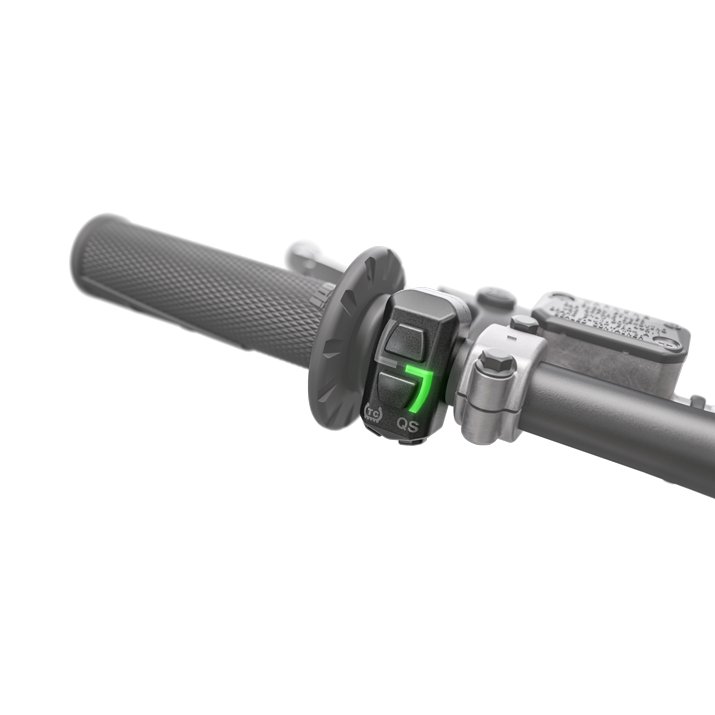

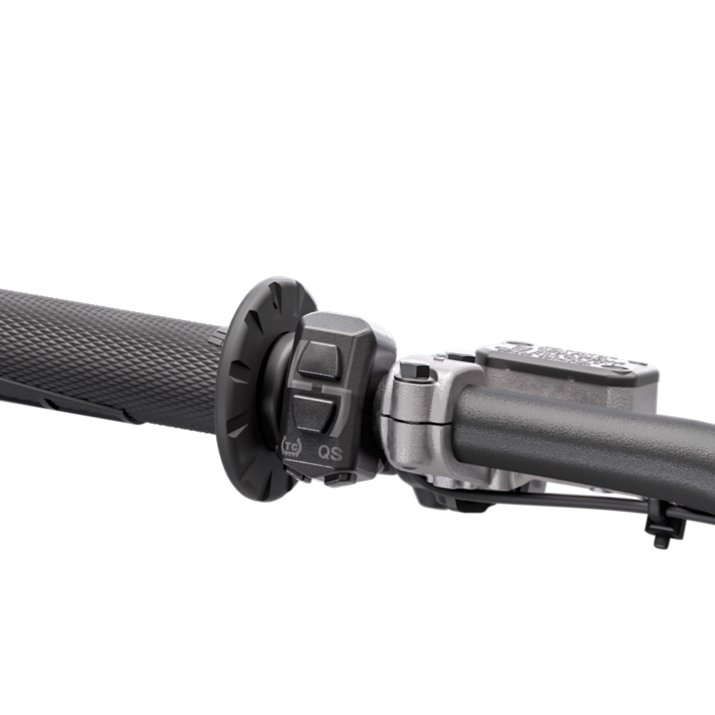

Map select switchThe intuitive handlebar-mounted Map Select Switch allows riders to activate Launch and Traction Control, enable the Quickshifter, and allows riders to toggle between two engine maps. The easy-to-operate Map Select Switch allows riders to quickly alter and set up the engine characteristics on a race by race basis dependent on track conditions and rider preference.
|
|
|
|
Traction Control
Traction control on the FC 450 is engaged by a button marked ‘TC’ on the map select switch and functions by analysing throttle input from the rider and the rate at which engine RPM increases. If the RPM increases too quickly, the Engine Management System (EMS) registers a loss of grip and reduces the amount of power to the rear wheel to ensure maximum traction. This is a distinct advantage in wet or muddy conditions. |
|
Launch ControlWith the engine at idle, launch control is engaged by pressing the traction control and Quickshift buttons simultaneously. Both symbols will start flashing to indicate the launch control is active. This function limits the amount of power to the rear wheel, improving traction, and preventing loss of control under hard acceleration. Once a gear change is made, the launch control will deactivate automatically. Additionally, the Quickshift function is deactivated while launch control mode is engaged. |
|
Mapping
For personalised power delivery, the FC 450 has two built-in engine maps as standard. Map 1 offers linear, predictable power, while Map 2 is more aggressive for a sharper throttle response and more explosive power output. |
|

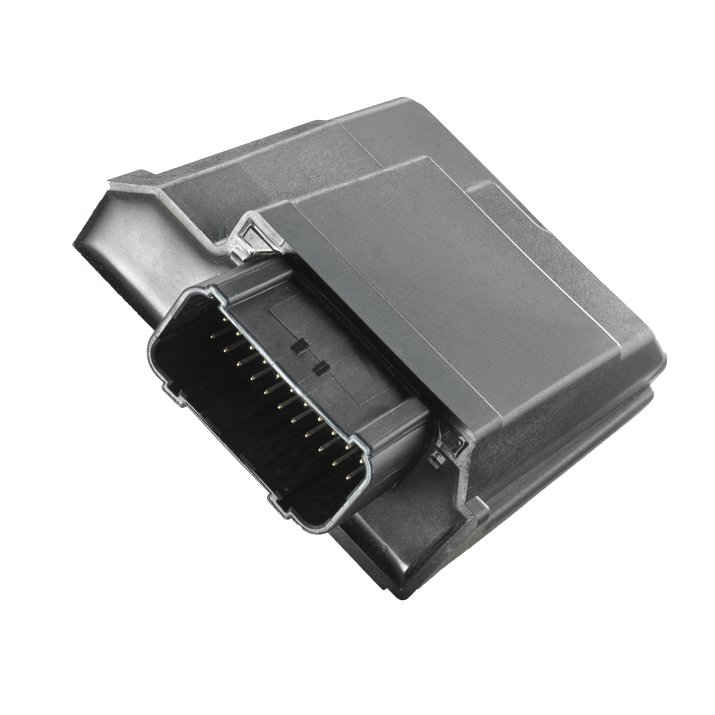

EMSThe new Engine Management System (EMS) is designed to be smaller and lighter while being faster at processing data. It incorporates a new rollover sensor (ROS) which cuts the ignition and shuts off the engine for safety in the event of a severe crash, adding another level of security to the Husqvarna Motorcycles' new generation motocross line-up. |
|
Hour meterA new hour meter comes with an integrated fuel level indicator, which is visible on the FI status LED, indicating to the rider when the fuel level is becoming low. |
|

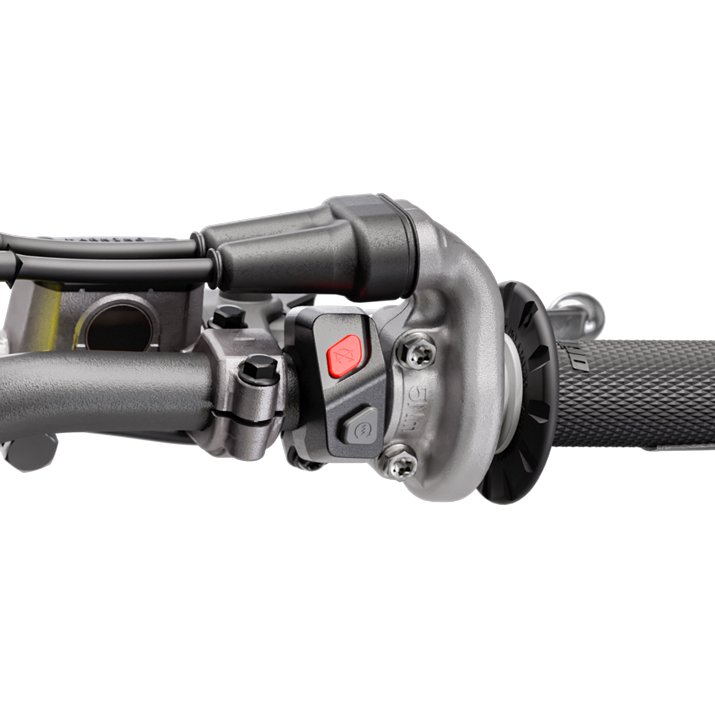

Start/stop switchThe new combined start/stop switch is located on the right side of the handlebar for easy, thumb-operated use. Not only simplifying the starting and stopping of the engine, the removal of a designated stop only button from the handlebar reduces the risk of potential damage or activation in the event of a fall. |
|

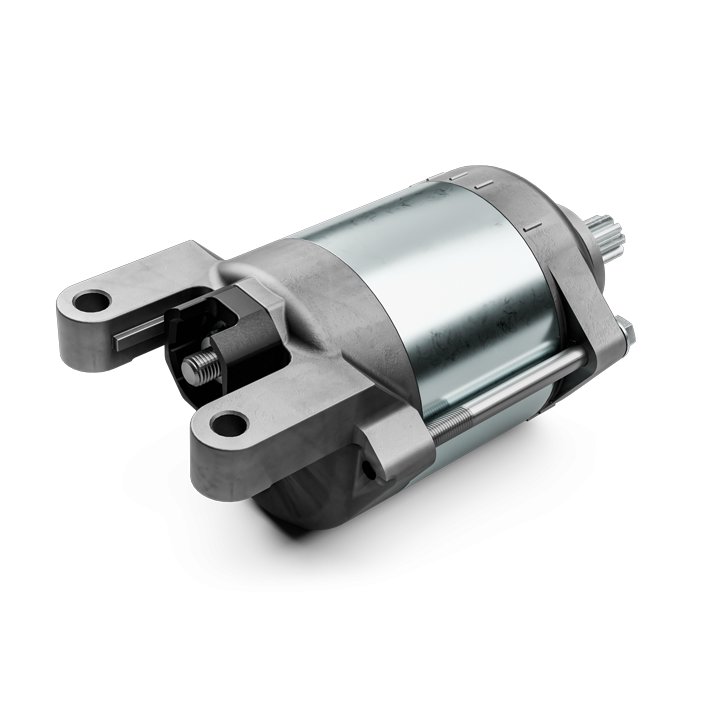

Electric startAs with all 4-strokes in the Husqvarna motocross range, the FC 350 starts with the ease of pressing a button thanks to electric start. A lightweight Li-Ion 2.0 Ah battery is fitted, giving the convenience of electric starting while keeping overall weight to a minimum. |
EMS
Keihin EMS
BORE
88 mm
CLUTCH
Wet multi-disc DS clutch, Brembo hydraulics
DESIGN
1-cylinder, 4-stroke engine
STROKE
57.5 mm
STARTER
Electric starter
DISPLACEMENT
349.7 cm³
TRANSMISSION
5-speed
CHAIN
X-Ring 5/8 x 1/4"
REAR BRAKE
Disc brake
FRONT BRAKE
Disc brake
SEAT HEIGHT
939 mm
FRAME DESIGN
Central double-cradle-type 25CrMo4 steel
REAR SUSPENSION
WP XACT Monoshock with linkage
FRONT SUSPENSION
WP XACT-USD, Ø 48 mm
GROUND CLEARANCE
336 mm
STEERING HEAD ANGLE
63.9 °
WEIGHT (WITHOUT FUEL)
102 kg
TANK CAPACITY (APPROX.)
7.2 l
REAR BRAKE DISC DIAMETER
220 mm
SUSPENSION TRAVEL (REAR)
293 mm
FRONT BRAKE DISC DIAMETER
260 mm
SUSPENSION TRAVEL (FRONT)
305 mm
