Frame

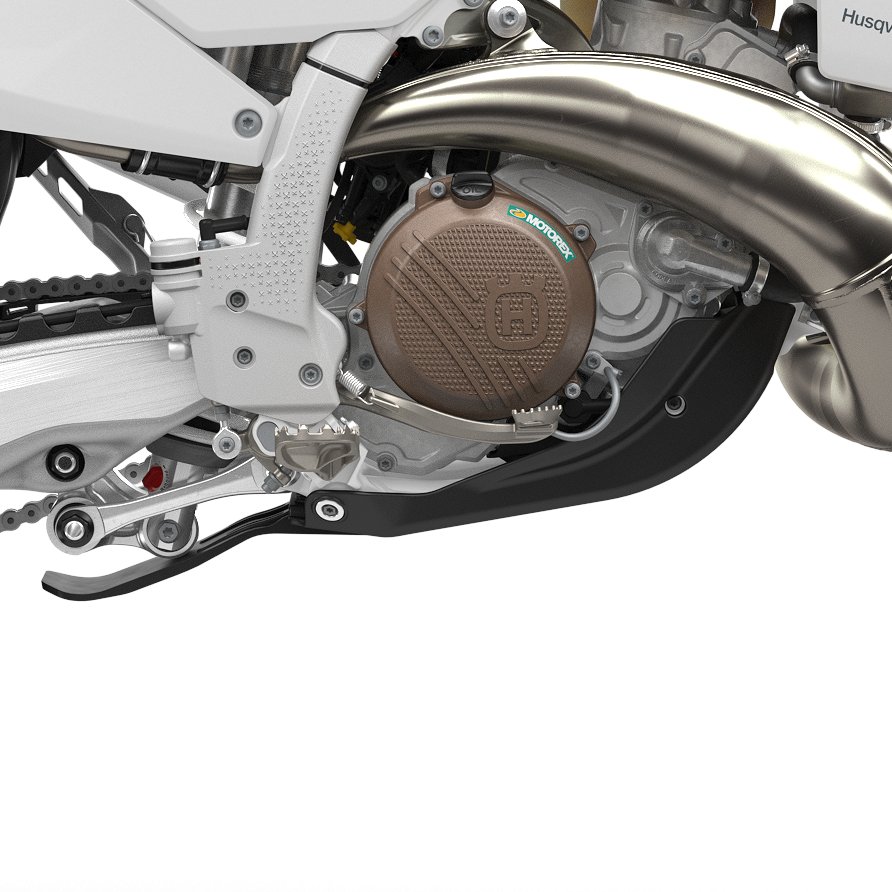

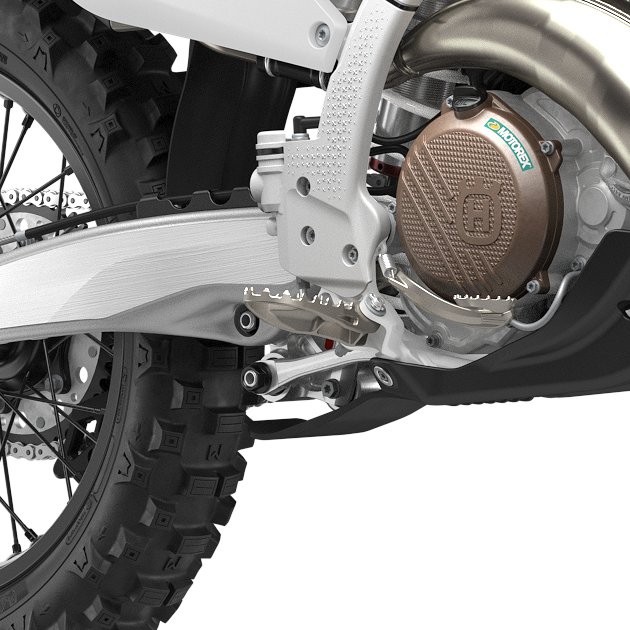

The proven chromium molybdenum steel frame is refined for 2024. A new shock mounting, which is no longer connected to the main tube, significantly improves the anti-squat behavior of the chassis. With optimized wall thickness in high stress areas improving reliability, the frame continues to offer advanced geometries and flex characteristics aimed at providing unparalleled rider feedback, energy absorption, and straight-line stability. The frame is completed with a premium black powder coating with redesigned standard frame protectors offering improved grip in all conditions. Additionally, the redesigned and robust skid plate offers exceptional frame and engine protection. |

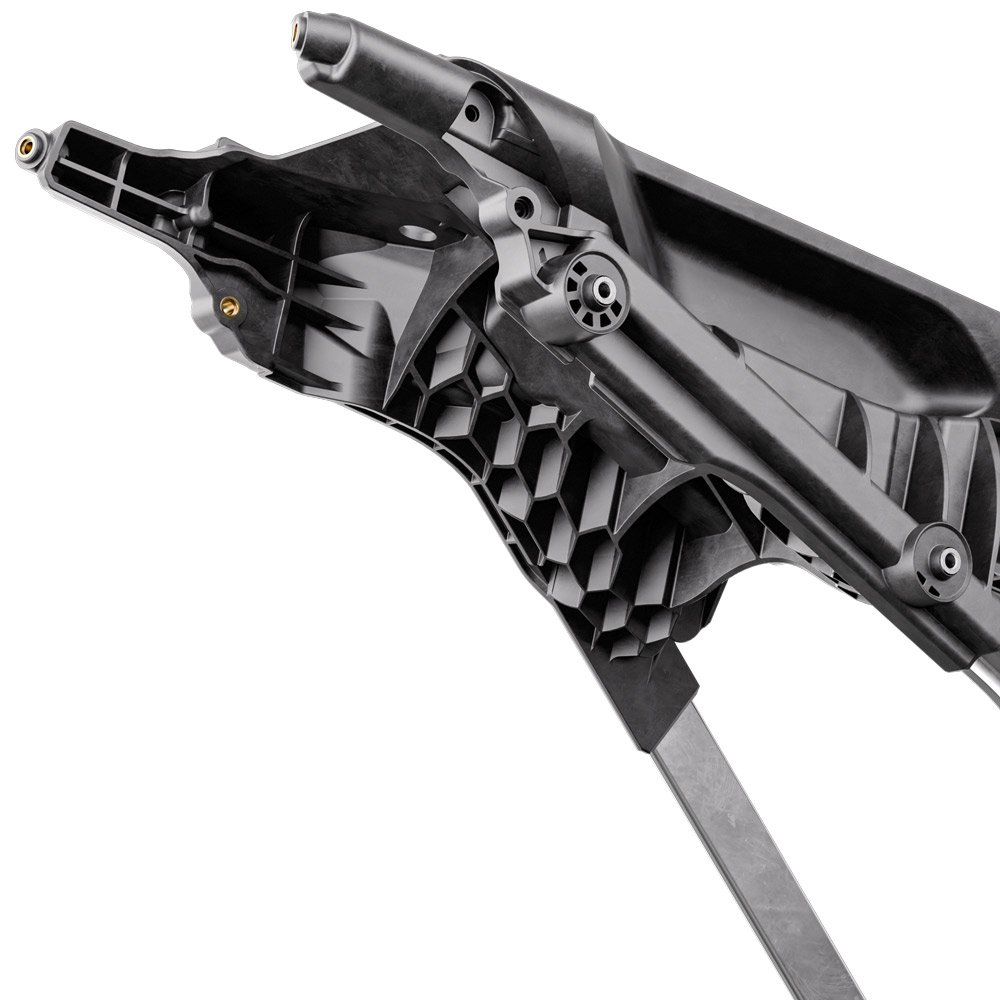

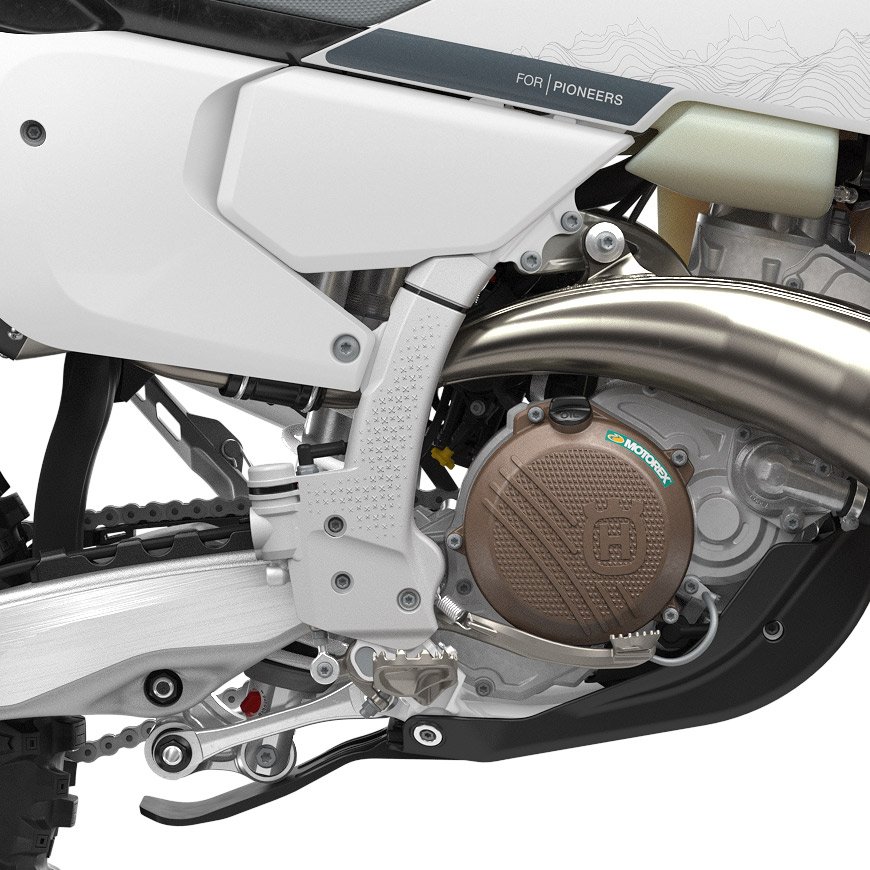

Hybrid Subframe
Made from 60% polyamide and 40% aluminum, the new subframe offers exceptional strength and durability at a low overall weight of just 3.9 lb (1.8 kg). The lower subframe spars and frame mounts are manufactured from cast aluminum for significantly improved reliability, with the upper section made from injection-molded polyamide to enable specific flex characteristics. |

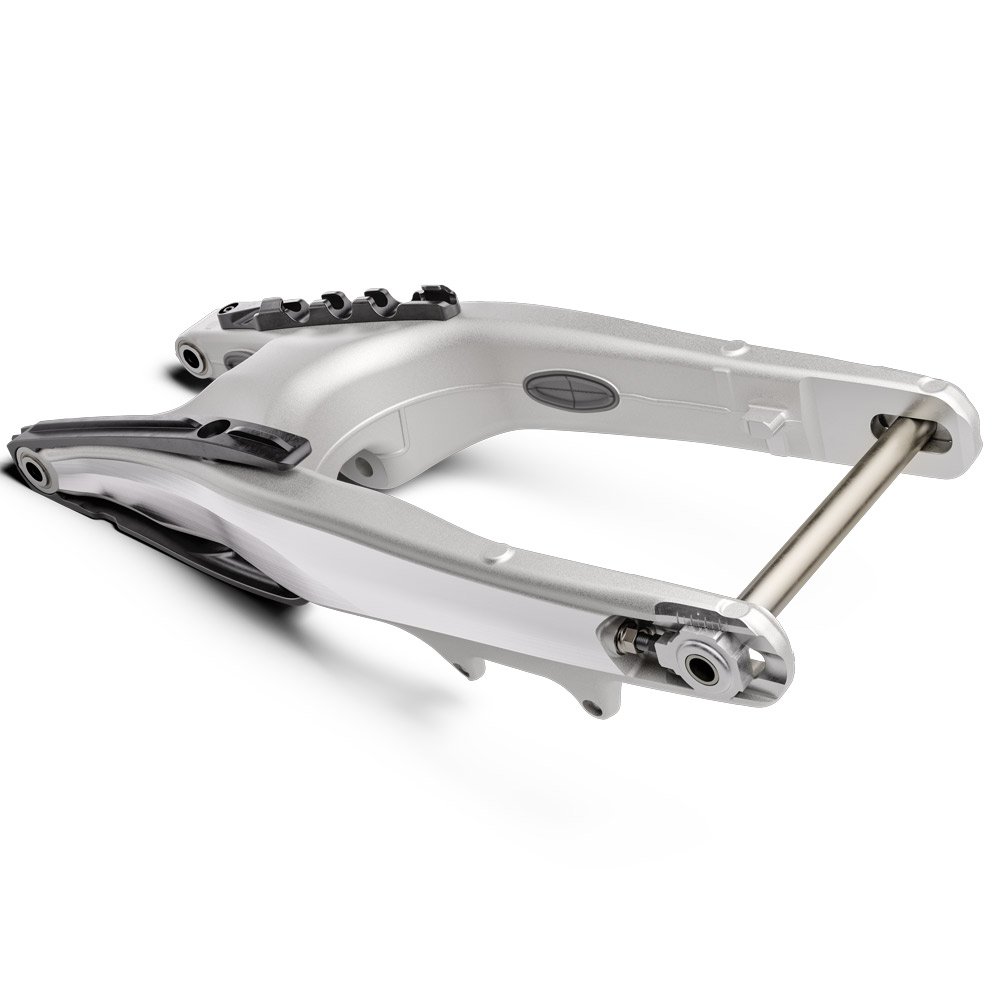

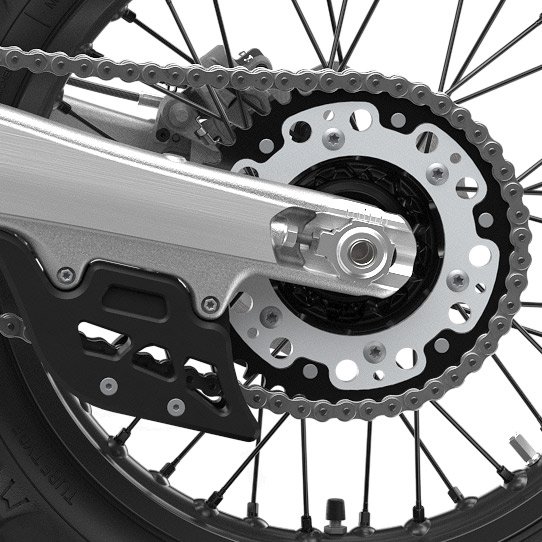

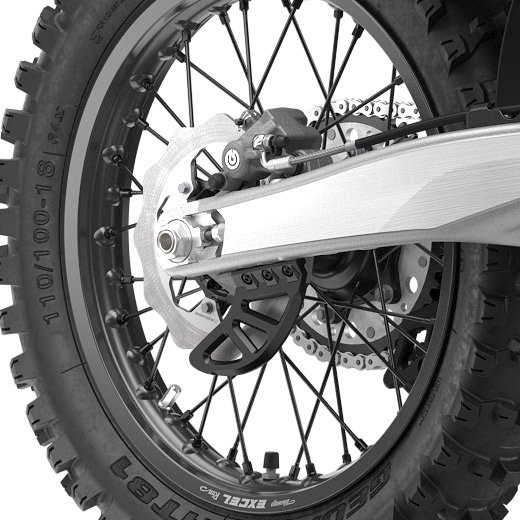

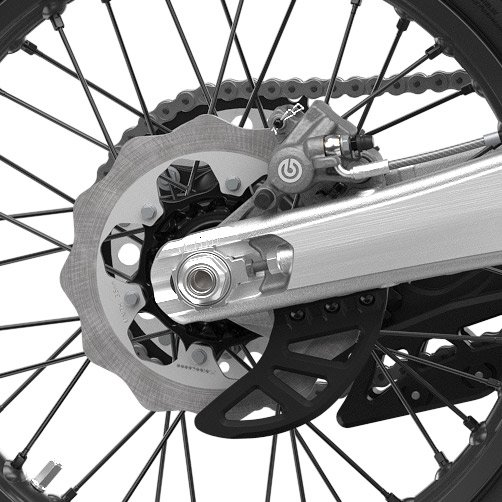

Swingarm
The new hollow die-cast aluminum swingarm is manufactured from a single piece of aluminum using an improved casting process for optimal stiffness and a 190 g weight reduction. In order to optimize and match the flex characteristics of the new frame, a new 22 mm rear axle is fitted. Additionally, the chain guard and chain slider have been completely redesigned for improved durability with the chain guard made with a rounder profile to prevent catching on external objects. |

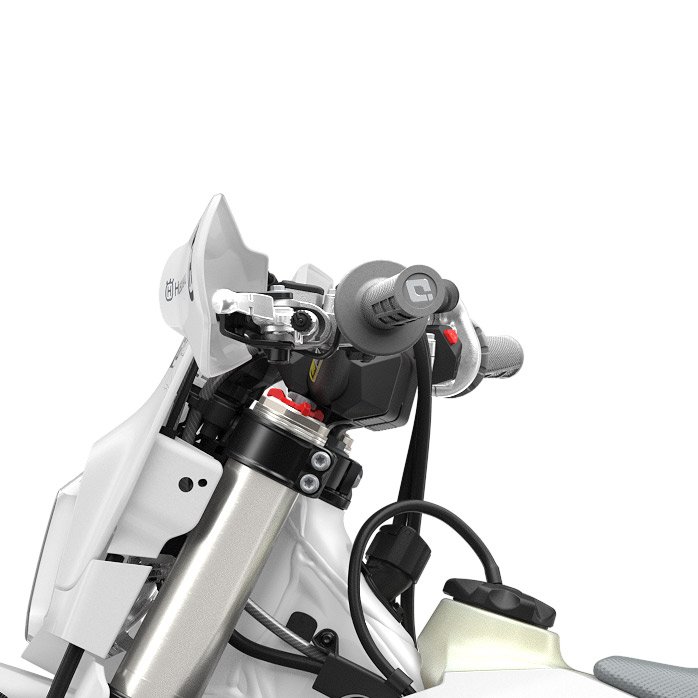

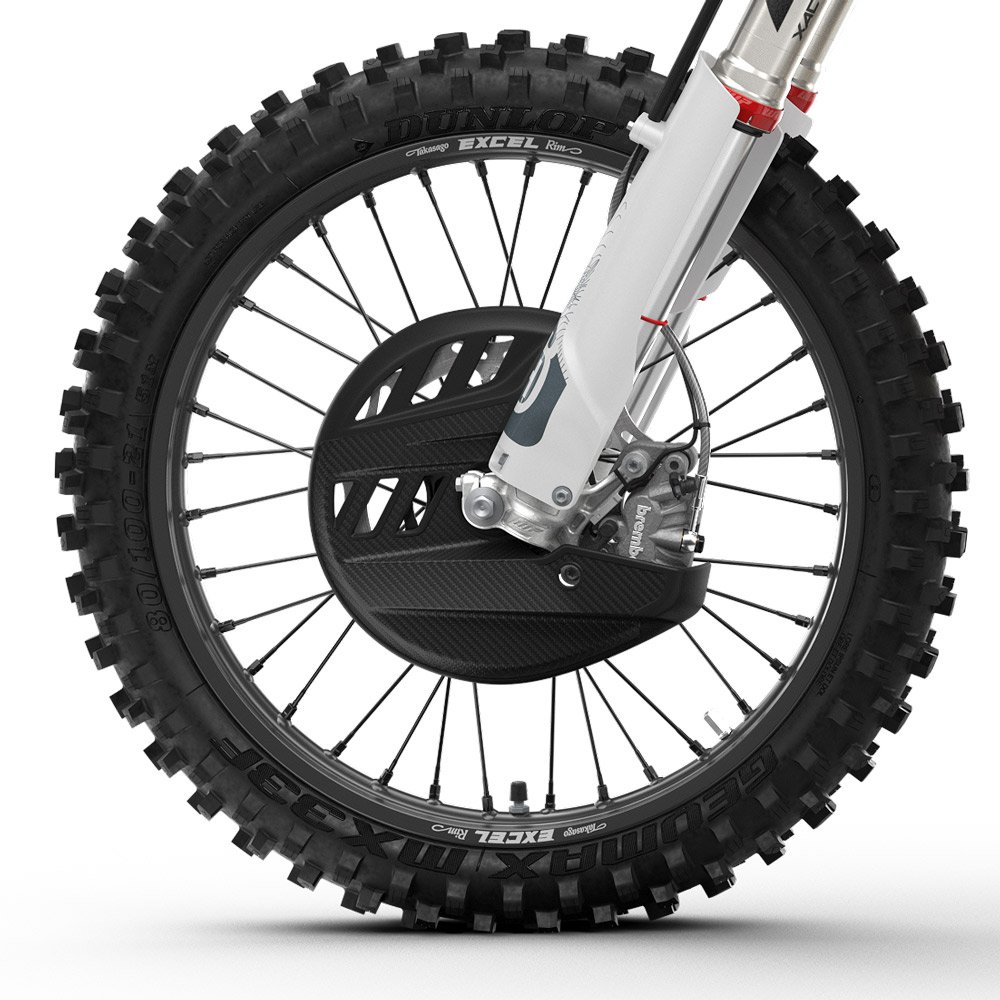

WP XACT front forks
Designed and developed for the rigours of enduro riding and racing, the WP XACT Closed Cartridge forks are updated for 2025 with the addition of a high-speed compression adjuster. The spring forks offer consistent performance thanks to the closed cartridge design, which optimises oil flow and prevents it from foaming. A hydrostop, effective in the last 68 mm of travel, is highly beneficial on heavy landings to help maintain forward momentum. Additionally, riders can alter the compression and rebound settings quickly and easily using the hands-free adjusters found at the top and bottom of each fork leg. |
WP XACT rear shock
The all-new WP XACT rear shock is 100 g lighter and 15 mm shorter than its predecessor, yet the travel remains unchanged at 300 mm. With rebound and both high- and low-speed compression adjustable by hand, setting changes can be achieved quickly and easily without tools. Complete with a CFD optimized shock piston, low friction SKF seals, and a revised linkage system, consistent damping, comfort, and traction is guaranteed. |

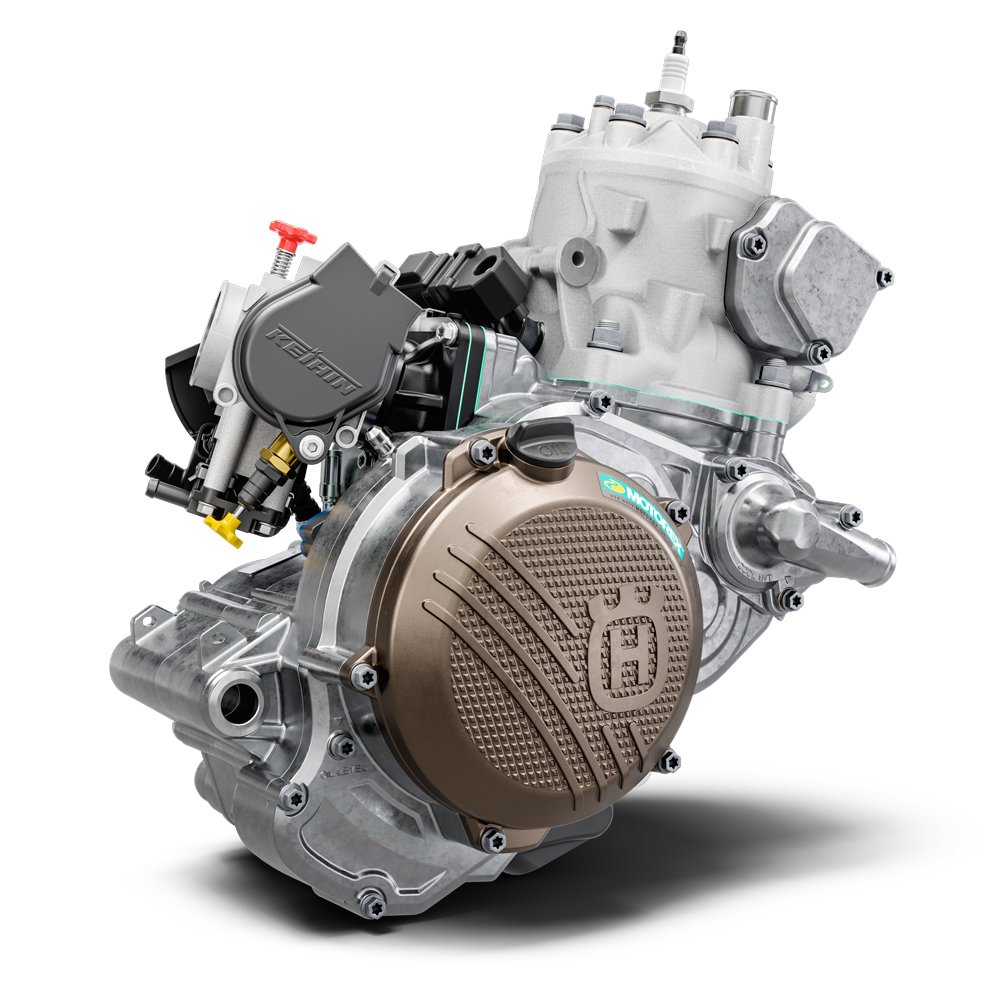

Throttle body
The TE 300 Pro Series uses a newly developed 39 mm throttle body with dual injectors positioned to optimize flow for more immediate throttle response and improved rideability. Idle is controlled by the throttle valve, with one low load injector and one top feed injector ensuring maximum performance. Additionally, a new Throttle Position Sensor (TPS) offers improved cold starting with the throttle valve now pivoting on ball bearings for a smoother throttle action. |
