horst wagons

  Back
ID # 39028646

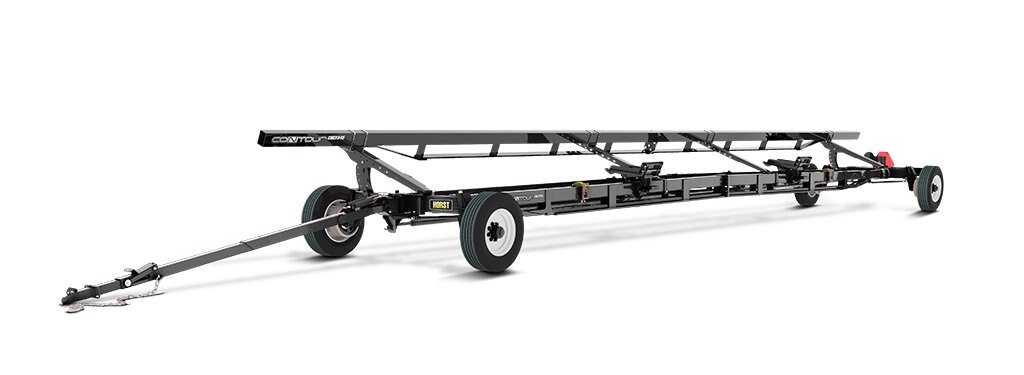

Horst Wagons CHCFX50

  • Horst Wagons CHCFX50
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

4 Wheel Steer Draper Header Wagon

  • Tapered roller bearings on king pins for absolute no sway trailing
  • Includes 2 tool free configurable universal pads
  • 2 Ratchet straps to secure load
  • 4 Wheel steering
  • Safety chains
  • 4 Wheel electric brakes (12 1/4" x 5" Drum)
  • Double spring balancer
  • Length adjustable hitch with auto lock for simple hook up
  • 235/75 R17.5 (16 ply) tires on 17.5 x 6.75 x 8 rim
  • Rear lights with brake and turn signals
  • 2 5/16" ball hitch
  • 7 Pin RV / brake light plug
  • 12,000 lbs. Axles with 8 bolt high speed automotive hubs
Specifications
Model
CHCFX50
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Horst
Wheelbase
43' (Standard) 48' (Optional)
Safety Chain
Standard
Approx. Weight
7,545 lbs. (less rims and tires)
Top Rail Length
52'
Maximum Head Size
50'
Tongue Length (Adjustable)
11'-10" to 14'-9"
Maximum Rated Gross Capacity
24,000 lbs.
options
CHCFXFK Fender kit - keep your header protected from road debris
CHCFSTC Spare tire carrier kit
HBAFK Honey Bee AirFLEX® Pad Adapter Kit
WAS8 Setup charge
rim & tire sizes
Tire Size Description GVWR Rim Size
235/75 R17.5 16 Ply 24,000 lbs. 17.5 x 6.75 x 8
