ID # 14259455

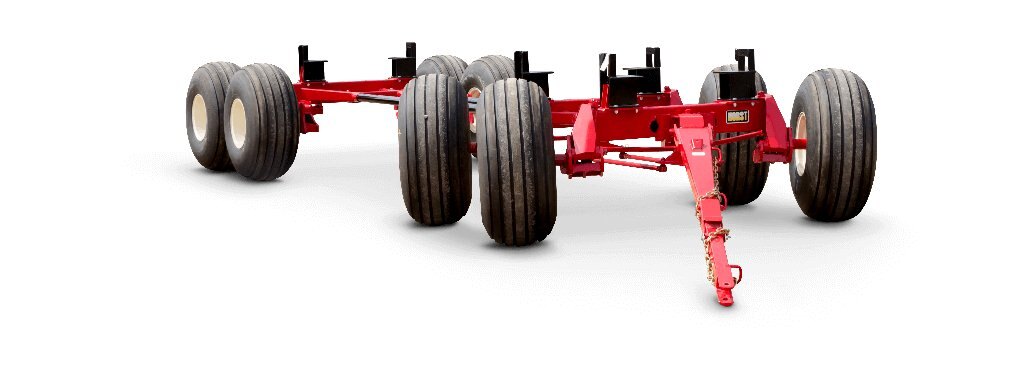

Horst Wagons 308RF (20 Ton)

  • Horst Wagons 308RF (20 Ton)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  8 Wheel Quadsteer Model
  • 20 ton double tandem wagon gear
  • Road Flex Suspension
  • Quick hitch tongue
  • Hubs - 8 Stud 12,000 LBS.
  • Front Tandem has quad steering c/w bearings on king pins
  • Standard reach length 11'
  • Safety chain (1/2" GR. 70)
  • Wheel Base Adjustable 12' 7" - 15' 1"
    (taken from the centre of the rear tandem axle to the front axle of front tandem.)
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width
Capacity
(LBS/Set of 8 Tires)
14L x 16.1 8 Ply 16.1 x W11C x 8 89" 30,880
14L x 16.1 12 Ply 16.1 x W11C x 8 89" 37,440
16.5 x 16.1 10 Ply 16.1 x W14C x 8 93" 40,000
19L x 16.1 10 Ply 16.1 x W16C x 8 95" 40,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 95" 40,000
11 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 40,000
11 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 40,000
12 or 315 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 40,000
12 or 315 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 40,000
305 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 40,000
305 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 40,000
385 x 22.5 Used Truck* 22.5 x 11.75 x 8 87" 40,000
385 x 22.5 New Recap 22.5 x 11.75 x 8 87" 40,000
425 x 22.5 Used Truck* 22.5 x 11.75 x 8 87" 40,000
425 x 22.5 New Recap 22.5 x 11.75 x 8 87" 40,000
425 x 22.5 New Truck 22.5 x 11.75 x 8 87" 40,000
425 x 22.5 Used Truck* 22.5 x 13 x 8 86" 40,000
425 x 22.5 New Recap 22.5 x 13 x 8 86" 40,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 40,000
445 x 22.5 Used Truck* 22.5 x 13 x 8 86" 40,000
445 x 22.5 New Recap 22.5 x 13 x 8 86" 40,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 40,000
400 / 55 x 22.5 16 Ply 22.5 x 13 x 8 86" 40,000



Specifications
Model
308RF (20 Ton)
Category Name
Agriculture
Year
2019
Sale Type
New
Manufacturer
Horst
Capacity
40,000 lbs.
Spindles
3'' Dia. C1045 Cold Rolled
Hubs
8 Stud 12,000 lbs.
Bearings
Taper Roller 2.165 / 1.625 (Bore Siz Inner/Outer)
Front Axle
8 x 3.5 x .250 WALL
Rear Axle
8 x 4 x .250 WALL
Tongue Bracket Mounting
1-1/2'' Bolt Bearings
Tongue Bolt
1-1/8'' dia.
Tongue Latch
Retractable Automatic Relock
Reach Poles
3'' O.D. x .188 Wall Round Tube
Bolster Stakes
42.5'' Fixed
Steering
Automative Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Height From Ground To Top Of Bunk
33" (11 x 22.5 Tires)
Approx Weight
33" (11 x 22.5 Tires)
