ID # 14259454

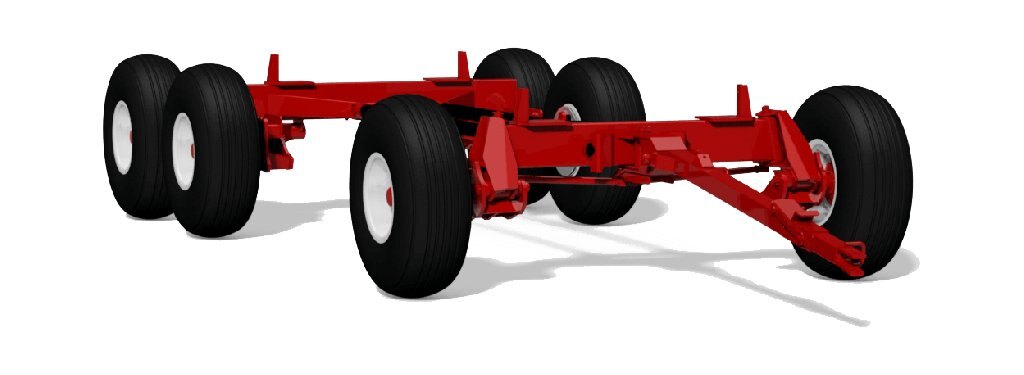

Horst Wagons 325RF (18 Ton)

  • Horst Wagons 325RF (18 Ton)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  6 Wheel Model
  • 18 ton tandem wagon gear
  • Road Flex Suspension
  • Quick hitch tongue
  • Standard reach length 11'
  • Wheel Base adjustable 8' 8" - 11' 2"
  • Hubs - 8 Bolt 6,500 LBS.
  • Safety chain (1/2" GR. 70)
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width
Capacity
(LBS/Set of 6 Tires)
14L x 16.1 12 Ply 16.1 x W11C x 8 89" 28,080
16.5 x 16.1 10 Ply 16.1 x W14C x 8 93" 31,200
19L x 16.1 10 Ply 16.1 x W16C x 8 95" 36,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 95" 36,000
11 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 36,000
11 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 36,000
12 or 315 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 36,000
12 or 315 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 36,000
305 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 36,000
305 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 36,000
385 x 22.5 Used Truck* 22.5 x 11.75 x 8 87" 36,000
385 x 22.5 New Recap 22.5 x 11.75 x 8 87" 36,000
425 x 22.5 Used Truck* 22.5 x 11.75 x 8 87" 36,000
425 x 22.5 New Recap 22.5 x 11.75 x 8 87" 36,000
425 x 22.5 New Truck 22.5 x 11.75 x 8 87" 36,000
425 x 22.5 Used Truck 22.5 x 13 x 8 86" 36,000
425 x 22.5 New Recap 22.5 x 13 x 8 86" 36,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 36,000
445 x 22.5 New Recap 22.5 x 13 x 8 86" 36,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 36,000
400/55 x 22.5 16 Ply 22.5 x 13 x 8 86" 36,000



Specifications
Model
325RF (18 Ton)
Category Name
Agriculture
Year
2019
Sale Type
New
Manufacturer
Horst
Capacity
36,000 lbs.
Spindles
3'' Diameter, C1045 Cold Rolled
Hubs
8 Stud 12,000 lbs.
Bearings
Taper Roller (2.165 / 1.625)
Front Axle
8 x 3.5 x .250 Wall
Rear Axle
8 x 4 x .250 Wall
Tongue Bracket Mounting
1-1/2'' Bolt Bearing Mtd.
Tongue Bolt
1-1/8'' Diameter
Tongue Latch
Retractable Automatic Relock
Reach Poles
3" O.D. x .188 Wall - Round Tube
Bolster Stakes
42.5'' Fixed
Steering
Automotive Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Height From Ground To Top Of Bunk
33" (11 x 22.5 Tires)
Approx Weight
2,185 lbs. (less rims and tires)
Bearings - Bore Size (Inner/Outer)
Taper Roller (2.165 / 1.625)
