horst wagons

  Back
ID # 13725953

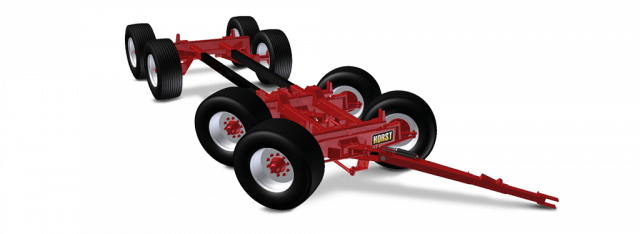

Horst Wagons 608 (40 Ton)

  • Horst Wagons 608 (40 Ton)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  8 Wheel Quadsteer Model
  • 40 ton double tandem wagon gear
  • Quick hitch tongue
  • Hubs - 10 Stud 16,000 LBS.
  • Front Tandem has quad steering c/w bearings on king pins
  • Rocking Bolster
  • Standard reach length 10'
  • Wheel Base Adjustable 15' 2" - 16' 8"
    (taken from the centre of the rear tandem axle to the front axle of front tandem.)
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
425 x 22.5 Used Truck* 22.5 x 13 x 10 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 10 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
445 x 22.5 Used Truck* 22.5 x 13 x 10 86" 12,000
445 x 22.5 New Recap 22.5 x 13 x 10 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
400/55 x 22.5 16 Ply 22.5 x 13 x 10 86" 7,820
550/45 x 22.5 16 Ply 22.5 x 16 x 10 92" 9,640



Specifications
Model
608 (40 Ton)
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Horst
Capacity
80,000 lbs.
Spindles
4'' Dia. C1045 Cold Rolled
Hubs
10 Stud 16,000 lbs.
Front Axle
10 x 4 x .500 WALL
Rear Axle
10 x 4 x .500 WALL
Tongue Bracket Mounting
1-1/2'' Bolt Bearings Mtd.
Tongue Bolt
1-1/2'' quot; dia.
Tongue Latch
Retractable Automatic Relock
Reach Poles
6 x 4 x .188 Tubes
Bolster Stakes
42.5'' Fixed
Steering
Automative Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Approx Weight
2,985 lbs. (less rims and tires)
Bearings - Bore Size (Inner/Outer)
Taper Roller 2.165 / 1.625
