ID # 13725952

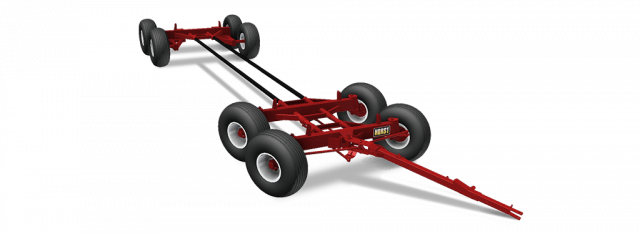

Horst Wagons 308 (20 Ton)

  • Horst Wagons 308 (20 Ton)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  8 Wheel Quadsteer Model
  • 20 ton double tandem wagon gear
  • Quick hitch tongue
  • Hubs - 8 Stud 12,000 LBS.
  • Front Tandem has quad steering c/w bearings on king pins
  • Standard reach length 11'
  • Wheel Base Adjustable 12' 7" - 15' 1"
    (taken from the centre of the rear tandem axle to the front axle of front tandem.)
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
14L x 16.1 8 Ply 16.1 x W11C x 8 89" 3,860
14L x 16.1 12 Ply 16.1 x W11C x 8 89" 4,680
16.5 x 16.1 10 Ply 16.1 x W14C x 8 93" 5,200
19L x 16.1 10 Ply 16.1 x W16C x 8 95" 6,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 95" 7,850
11 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 8,000
11 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
12 or 315 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 8,000
12 or 315 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
305 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 8,000
305 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
385 x 22.5 Used Truck* 22.5 x 11.75 x 8 87" 10,000
385 x 22.5 New Recap 22.5 x 11.75 x 8 87" 10,000
425 x 22.5 Used Truck* 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 New Recap 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 New Truck 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 Used Truck* 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
445 x 22.5 Used Truck* 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000



Specifications
Model
308 (20 Ton)
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Horst
Capacity
40,000 lbs.
Spindles
3'' Dia. C1045 Cold Rolled
Hubs
8 Stud 12,000 lbs.
Bearings
Taper Roller 2.165 / 1.625 (Bore Siz Inner/Outer)
Front Axle
8 x 3.5 x .250 WALL
Rear Axle
8 x 4 x .250 WALL
Tongue Bracket Mounting
1-1/2'' Bolt Bearings
Tongue Bolt
1-1/8'' dia.
Tongue Latch
Retractable Automatic Relock
Reach Poles
3'' O.D. x .188 Wall Round Tube
Bolster Stakes
42.5'' Fixed
Steering
Automative Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Approx Weight
2,115 lbs. (less rims and tires)
