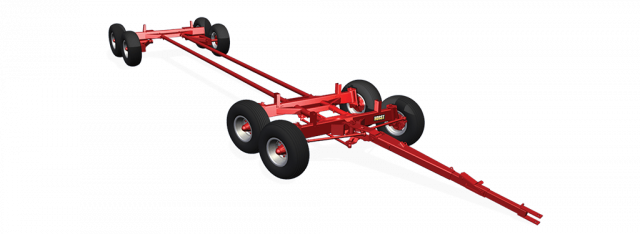

Horst Wagons 208 (16 Ton)

  • Horst Wagons 208 (16 Ton)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  8 Wheel Quadsteer Model
  • 208H has increased spacing between tandem wheels to allow for larger diameter tires.
  • 16 ton double tandem wagon gear
  • Quick hitch tongue
  • Hubs - 8 Bolt 6,500 LBS.
  • Front Tandem has quad steering c/w bearings on king pins
  • Standard reach length 11'
  • Wheel Base adjustable 11' 10" - 14' 4"
    (taken from the centre of the rear tandem axle to the front axle of front tandem.)
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
12.5L x 16 14 Ply 16 x 10 x 8 82" 4,180
12.5L x 15 F Range / Hwy Ser. 15 x 10 x 8 HD 82" 4,680
14L x 16.1 8 Ply 16.1 x W11C x 8 82" 3,860
14L x 16.1 12 Ply 16.1 x W11C x 8 82" 4,680



Specifications
Model
208 (16 Ton)
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Horst
Capacity
32,000 lbs.
Spindles
2-1/4'' Dia. C1045 Cold Rolled
Hubs
8 Bolt 6,500 lbs.
Bearings
Taper Roller 1.80/1.38 (Bore Siz Inner/Outer)
Front Axle
7 x 3 x .250 Wall
Rear Axle
7 x 3 x .313 Wall
Tongue Bracket Mounting
1-1/2'' Bolt Bearings
Tongue Bolt
1-1/8'' dia.
Tongue Latch
Retractable Automatic Relock
Reach Poles
3'' O.D. x .188 Wall Round Tube
Bolster Stakes
42.5'' Fixed
Steering
Automative Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Approx Weight
1,655 lbs. (less rims and tires)
