ID # 13725948

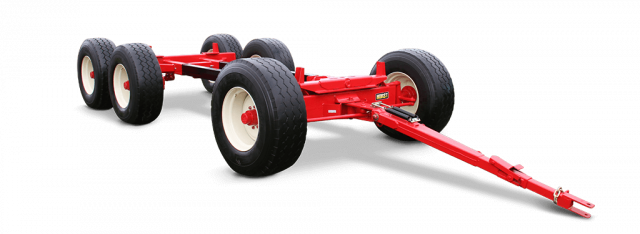

Horst Wagons 605 (30 Ton)

  • Horst Wagons 605 (30 Ton)
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  6 Wheel Model
  • 30 ton HD tandem wagon gear
  • Quick hitch tongue
  • Rocking Bolster
  • Standard reach length 10'
  • Wheel Base adjustable 10' 7" - 12' 1"
  • Hubs - 10 Stud 16,000 LBS.
  • Disc Brake Flanges
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
425 x 22.5 Used Truck* 22.5 x 13 x 10 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 10 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
445 x 22.5 Used Truck* 22.5 x 13 x 10 86" 12,000
445 x 22.5 New Recap 22.5 x 13 x 10 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 10 86" 12,000
400/55 x 22.5 16 Ply 22.5 x 13 x 10 86" 7,820
550/45 x 22.5 16 Ply 22.5 x 16 x 10 92" 9,640



Specifications
Model
605 (30 Ton)
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Horst
Capacity
60,000 lbs.
Spindles
4'' Dia. C1045 Cold Rolled
Hubs
10 Stud 16,000 lbs.
Front Axle
10 x 4 x .500 Wall
Rear Axle
10 x 4 x .500 Wall
Tongue Bracket Mounting
1-1/2'' Bolt Bearing Mtd.
Tongue Bolt
1-1/2'' Dia.
Bolster Stakes
42.5'' Fixed
Steering
Automotive Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Height From Ground To Top Of Bunk
34'' on 18 x 22.5 Tires
Approx Weight
3,260 lbs. (less rims and tires)
Reach Tubes
6 x 4 x .188 Tubes
