ID # 13725945

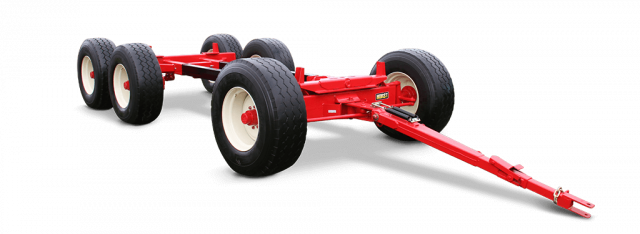

Horst Wagons 505 (22 Ton)

  • Horst Wagons 505 (22 Ton)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  6 Wheel Model
  • 22 ton HD tandem wagon gear
  • Quick hitch tongue
  • Rocking Bolster
  • Standard reach length 10'
  • Wheel Base adjustable 10' 7" - 12' 1"
  • Hubs - 8 Stud 12,000 LBS.
  • Disc Brake Flanges
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
16.5 x 16.1 10 Ply 16.1 x W14C x 8 93" 5,200
19L x 16.1 10 Ply 16.1 x W16C x 8 97" 6,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 97" 7,850
425 x 22.5 Used Truck* 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
400/55 x 22.5 16 Ply 22.5 x 13 x 8 86" 7,820
550/45 x 22.5 16 Ply 22.5 x 16 x 8 92" 9,640



Specifications
Model
505 (22 Ton)
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Horst
Capacity
44,000 lbs.
Spindles
2-3/4'' Dia C1045 Cold Rolled
Hubs
8 Stud 12,000 lbs.
Front Axle
10 x 4 x .250 Wall
Rear Axle
10 x 4 x .375 Wall
Tongue Bracket Mounting
1-1/2'' Bolt Bearing Mtd.
Tongue Bolt
1-1/8'' Dia.
Bolster Stakes
42.5'' Fixed
Steering
Automotive Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Height From Ground To Top Of Bunk
32'' on 18 x 22.5 Tires
Approx Weight
2,385 lbs. (less rims and tires)
