ID # 13725942

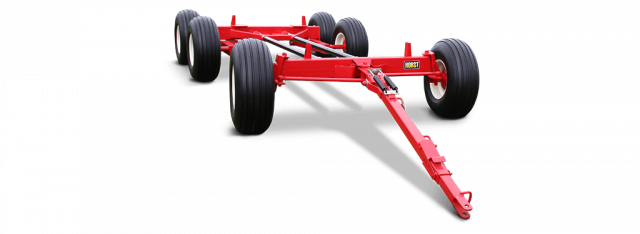

Horst Wagons 325 (18 Ton)

  • Horst Wagons 325 (18 Ton)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  6 Wheel Model
  • 14 ton tandem wagon gear
  • Quick hitch tongue
  • Standard reach length 11'
  • Wheel Base adjustable 8' 8" - 11' 2"
  • Hubs - 8 Bolt 6,500 LBS.
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
14L x 16.1 12 Ply 16.1 x W11C x 8 89" 4,680
16.5 x 16.1 10 Ply 16.1 x W14C x 8 93" 5,200
19L x 16.1 10 Ply 16.1 x W16C x 8 95" 6,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 95" 7,850
11 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 8,000
11 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
12 or 315 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 8,000
12 or 315 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
305 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 89" 8,000
305 x 22.5 New Recap 22.5 x 8.25 x 8 HD 89" 8,000
385 x 22.5 Used Truck* 22.5 x 11.75 x 8 87" 10,000
385 x 22.5 New Recap 22.5 x 11.75 x 8 87" 10,000
425 x 22.5 Used Truck* 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 New Recap 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 New Truck 22.5 x 11.75 x 8 87" 12,000
425 x 22.5 Used Truck 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
400/55 x 22.5 16 Ply 22.5 x 13 x 8 86" 7,820



Specifications
Model
325 (18 Ton)
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Horst
Capacity
36,000 lbs.
Spindles
3'' Diameter, C1045 Cold Rolled
Hubs
8 Stud 12,000 lbs.
Front Axle
8 x 3.5 x .250 Wall
Rear Axle
8 x 4 x .250 Wall
Tongue Bracket Mounting
1-1/2'' Bolt Bearing Mtd.
Tongue Bolt
1-1/8'' Diameter
Tongue Latch
Retractable Automatic Relock
Bolster Stakes
42.5'' Fixed
Steering
Automotive Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Height From Ground To Top Of Bunk
30'' (11 x 22.5 Tires)
Approx Weight
1,475 lbs. (less rims and tires)
Bearings - Bore Size (Inner/Outer)
Taper Roller (2.165 / 1.625)
