ID # 13725940

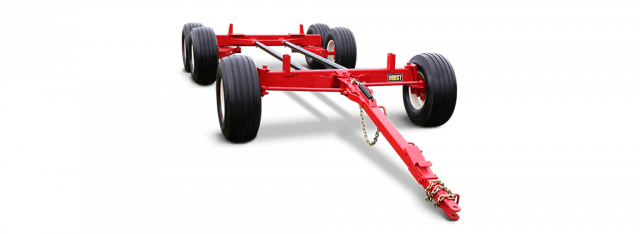

Horst Wagons 265 (14 Ton)

  • Horst Wagons 265 (14 Ton)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  6 Wheel Model
  • 14 ton tandem wagon gear
  • Quick hitch tongue
  • Standard reach length 11'
  • Wheel Base adjustable 8' 8" - 11' 2"
  • Hubs - 8 Bolt 6,500 LBS.
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
12.5L x 15 12 Ply 15 x 10 x 8 82" 3,640
12.5L x 16 14 Ply 16 x 10 x 8 82" 4,180
12.5L x 15 F Range / Hwy Ser. 15 x 10 x 8 HD 82" 4,680
14L x 16.1 8 Ply 16.1 x W11C x 8 82" 3,860
14L x 16.1 12 Ply 16.1 x W11C x 8 82" 4,680



Specifications
Model
265 (14 Ton)
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Horst
Capacity
28,000 lbs.
Spindles
2-1/4'' Dia. C1045 Cold Rolled
Hubs
8 Bolt 6,500 lbs.
Front Axle
7 x 3 x .250 Wall
Rear Axle
7 x 3 x .313 Wall
Tongue Bracket Mounting
1-1/2'' Bolt Bearing Mtd.
Tongue Bolt
1-1/8'' Dia.
Tongue Latch
Retractable Automatic Relock - Standard on all Models
Bolster Stakes
42.5'' Fixed
Steering
Automotive Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Height From Ground To Top Of Bunk
26'' (12.5 x 16 Tires) 30'' (11 x 22.5 Tires)
Approx Weight
1,135 lbs. (less rims and tires)
Bearings - Bore Size (Inner/Outer)
Taper Roller 1.80/1.38
