ID # 13725934

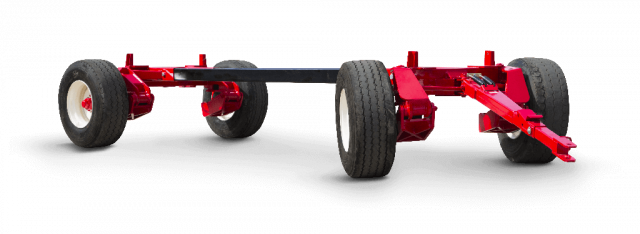

Horst Wagons 285RF (15 Ton)

  • Horst Wagons 285RF (15 Ton)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  4 Wheel Model
  • 20 ton HD wagon gear
  • Road Flex Suspension
  • Quick hitch tongue
  • Standard reach length 10'
  • Wheel Base adjustable 10' 7" - 12' 1"
  • Hubs - 8 Stud 12,000 LBS.
  • Disc brake flanges
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
16.5 x 16.1 10 Ply 16.1 x W14C x 8 93" 5,200
19L x 16.1 10 Ply 16.1 x W16C x 8 95" 6,000
21.5 x 16.1 14 Ply 16.1 x W16C x 8 95" 7,850
425 x 22.5 Used Truck* 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
425 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Recap 22.5 x 13 x 8 86" 12,000
445 x 22.5 New Truck 22.5 x 13 x 8 86" 12,000
400/55 x 22.5 16 Ply 22.5 x 13 x 8 86" 7,820



Specifications
Model
365RF (20 Ton)
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Horst
Capacity
40,000 lbs.
Spindles
3'' Dia. 1144 Stress Proof
Hubs
8 Stud 12,000 lbs.
Front Axle
10 x 4 x .250 WALL
Rear Axle
10 x 4 x .188 WALL
Tongue Bracket Mounting
1-1/2'' Bolt Bearing Mtd.
Tongue Bolt
1-1/8'' Dia.
Bolster Stakes
42.5'' Fixed
Steering
Automotive Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Height From Ground To Top Of Bunk
34'' on 445/65 x 22.5 Tires
Approx Weight
3,485 lbs. (less rims and tires)
Reach Tubes
6 x 4 x .188 Tubes
