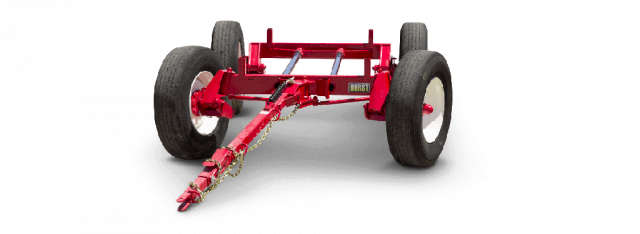

Horst Wagons 205RF (12 Ton)

  • Horst Wagons 205RF (12 Ton)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  4 Wheel Model
  • 12 ton wagon gear
  • Road Flex Suspension
  • Quick hitch tongue
  • Standard reach length 11'
  • Wheel Base adjustable 8' 8" - 11' 2"
  • Hubs - 8 Bolt 6,500 LBS.
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
12.5L x 16 14 Ply 16 x 10 x 8 82" 4,180
12.5L x 15 F Range / Hwy Ser. 15 x 10 x 8 HD 82" 4,680
14L x 16.1 8 Ply 16.1 x W11C x 8 82" 3,860
14L x 16.1 12 Ply 16.1 x W11C x 8 82" 4,680
16.5 x 16.1 10 Ply 16.1 x W14C x 8 86" 5,200
11 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 82" 8,000
11 x 22.5 New Recap 22.5 x 8.25 x 8 HD 82" 8,000
12 or 315 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 82" 8,000
12 or 315 x 22.5 New Recap 22.5 x 8.25 x 8 HD 82" 8,000
305 x 22.5 Used Truck* 22.5 x 8.25 x 8 HD 82" 8,000
305 x 22.5 New Recap 22.5 x 8.25 x 8 HD 82" 8,000
385 x 22.5 Used Truck* 22.5 x 11.25 x 8 88" 10,000
385 x 22.5 New Recap 22.5 x 11.25 x 8 88" 10,000
425 x 22.5 Used Truck* 22.5 x 11.25 x 8 88" 12,000
425 x 22.5 New Recap 22.5 x 11.25 x 8 88" 12,000
425 x 22.5 New Truck 22.5 x 11.25 x 8 88" 12,000



Specifications
Model
205RF (12 Ton)
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Horst
Capacity
24,000 lbs.
Spindles
2-1/4'' Diameter, C1045 Cold Rolled
Hubs
8 Bolt 6,500 lb
Front Axle
7 x 3 x .250 Wall
Rear Axle
7 x 3 x .250 Wall
Tongue Bracket Mounting
1-1/2'' Bolt Bearing Mtd.
Tongue Bolt
1-1/8'' Diameter
Tongue Latch
Retractable Automatic Relock
Reach Poles
3'' O.D. x .188 Wall - Round Tube
Bolster Stakes
Adjustable 38.5'' - 40.5'' - 42.5''
Steering
Automotive Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Height From Ground To Top Of Bunk
26'' (12.5 x 16 Tires) 30'' (11 x 22.5 Tires)
Approx Weight
2,030 lbs. (less rims and tires)
Bearings - Bore Size (Inner/Outer)
Taper Roller (1.80 / 1.38)
