horst wagons

  Back
ID # 13725350

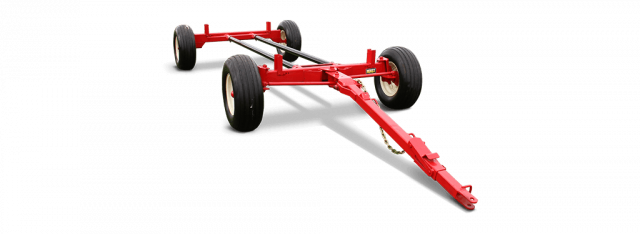

Horst Wagons185 (10 Ton)

  • Horst Wagons185 (10 Ton)
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  4 Wheel Model
  • 10 ton wagon gear
  • Quick hitch tongue
  • Standard reach length 11'
  • Wheel Base adjustable 8' 8" - 11' 2"
  • Hubs - 6 Bolt 6,000 LBS.
  Rim & Tire Sizes

Tire Size Tire Type Rim Size Track Width Capacity (LBS./Tire)
11L x 15 8 Ply 15 x 8 x 6 76" 2,540
225/75 R15 D Range 15 x 6 x 6 76" 2,540
12.5L x 15 12 Ply 15 x 10 x 6 77" 3,640
245 R16 Used Truck / New Tubes* 16 x 8 x 6 76" 3,500
11L x 15 D Range / Hwy Ser. 15 x 8 x 6 HD 76" 3,120
11L x 15 F Range / Hwy Ser. 15 x 8 x 6 HD 76" 3,690



Specifications
Model
185 (10 Ton)
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Horst
Capacity
20,000 lbs.
Spindles
2'' Diameter, C1045 Hot Rolled
Hubs
6 Bolt 6,000 lb
Bearings
Taper Roller (1.80 / 1.38)
Front Axle
6 x 3 x .250 Wall
Rear Axle
6 x 3 x .250 Wall
Tongue Bracket Mounting
1-1/2'' Bolt Bearing Mtd.
Tongue Bolt
1-1/8'' Diameter
Tongue Latch
Retractable Automatic Relock
Reach Poles
3'' O.D. x .188 Wall - Round Tube
Bolster Stakes
Adjustable 38.5'' - 40.5'' - 42.5''
Steering
Automotive Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Height From Ground To Top Of Bunk
24'' (on 11L x 15 Tires)
Approx Weight
725 lbs. (less rims and tires)
