ID # 13296458

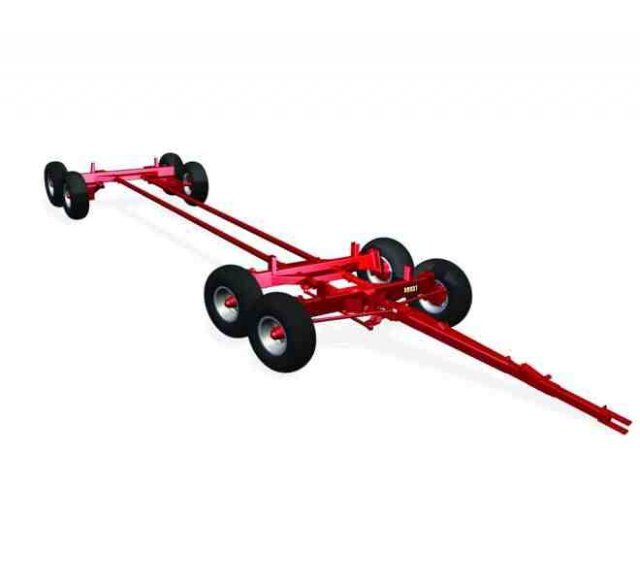

Horst Wagons 208 Quadsteer

  • Horst Wagons 208 Quadsteer
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Designed for smoother travels and minimal soil compaction

Dual front axle set

Improved floatation

Easier steering

Second steering axle provides better weight distribution at the front of the wagon

Double front axle provides a smoother ride

Built to carry up to 16 tons

Tapered roller bearings

Retractable automatic relock tongue latch
Running Gear Features and Options
Retractable Automatic Relock Tongue Latch
Take the precision work out of hooking up by freely moving the tongueRetractableTongueFeature into place and watch it lock into place as soon as it's in motion.
Tapered Roller Bearings in Main Pivot Points
Roller bearings keep pivot points tight, ensuring no trailer sway and TaperedRollerBearingsFeaturelong-lasting use.
Automotive Ball Joints
Automotive style ball joints not only keep our wagons behind you they AutomotiveBallJointsFeaturealso provide years of hard working service.
Tandem Walking Beam Axle
Ensures weight is evenly distributed on the back wheels across a TandemWalkingBeamAxlevariety of terrain. Triangulated for increased strength the tandem axle uses two mounts reducing flex under travel.
Quad Steer Front Wheels
Our dual front axle set provides better weight distribution allowing QuadSteerFrontWheelsFeatureeasier steering and a smoother ride.
Bolsters/Rocking Bolsters
Our heavy duty bolsters let you solidly attach your load from Gravity BolstersBins to Hay Racks. The Rocking Bolster design allows heavy loads some flex and movement reducing stress on the running gear and providing a better ride.
Spring Balancers
For tongue consisting of spring adjustable bolt and two bolt-on SpringSingle SpringDoublebrackets.
Brake Systems
For added safety and stopping power we have brake systems BrakeDrumavailable in drum and disc configurations.BrakeDisc
Brake Systems
Our Grade 70 safety chains in 3/8 and 1/2 inch sizes make sure your SafetyChainwagon is secure.



Specifications
Model
208 Quadsteer
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Horst
Capacity
32,000 lb
Spindles
2-1/4'' Dia. C1045 Cold Rolled
Hubs
8 Bolt 6,500 lb.
Front Axle
7 x 3 x .250 Wall
Rear Axle
7 x 3 x .313 Wall
Tongue Bracket Mounting
1-1/2'' Bolt Bearings
Tongue Bolt
1-1/8'' Dia.
Steering
Automotive Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Height From Ground To Top Of Bunk
26'' on 12.5 x 16 Tires; 30'' on 11 x 22.5 Tires (From Ground to Top of Bunk)
Approx Weight
1,720 lbs.
