ID # 13294934

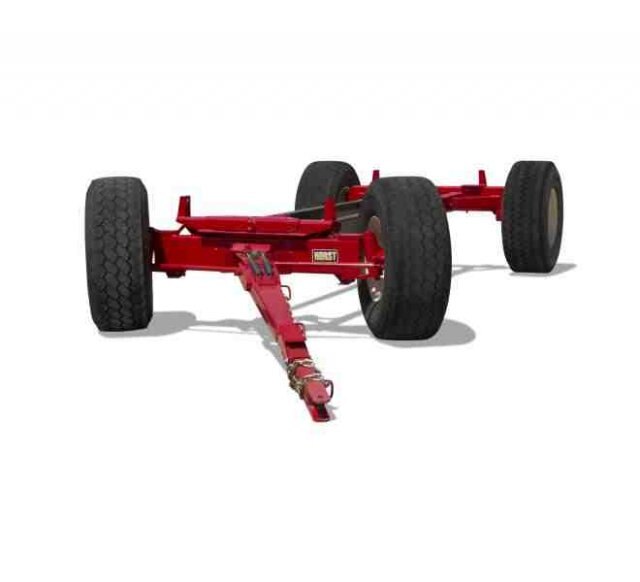

Horst Wagons Model 485

  • Horst Wagons Model 485
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Short turning radius

Wide track for extra stability

Retractable automatic re-lock standard on tongue

Oscillating front axle

Extra depth for strength

Exclusive automotive style ball-in-socket tie rod ends

Steering assembly mounted on tapered roller bearings

King pins mounted on tapered roller bearings
Running Gear Features and Options
Retractable Automatic Relock Tongue Latch
Take the precision work out of hooking up by freely moving the tongueRetractableTongueFeature into place and watch it lock into place as soon as it's in motion.
Tapered Roller Bearings in Main Pivot Points
Roller bearings keep pivot points tight, ensuring no trailer sway and TaperedRollerBearingsFeaturelong-lasting use.
Automotive Ball Joints
Automotive style ball joints not only keep our wagons behind you they AutomotiveBallJointsFeaturealso provide years of hard working service.
Tandem Walking Beam Axle
Ensures weight is evenly distributed on the back wheels across a TandemWalkingBeamAxlevariety of terrain. Triangulated for increased strength the tandem axle uses two mounts reducing flex under travel.
Quad Steer Front Wheels
Our dual front axle set provides better weight distribution allowing QuadSteerFrontWheelsFeatureeasier steering and a smoother ride.
Bolsters/Rocking Bolsters
Our heavy duty bolsters let you solidly attach your load from Gravity BolstersBins to Hay Racks. The Rocking Bolster design allows heavy loads some flex and movement reducing stress on the running gear and providing a better ride.
Spring Balancers
For tongue consisting of spring adjustable bolt and two bolt-on SpringSingle SpringDoublebrackets.
Brake Systems
For added safety and stopping power we have brake systems BrakeDrumavailable in drum and disc configurations.BrakeDisc
Brake Systems
Our Grade 70 safety chains in 3/8 and 1/2 inch sizes make sure your SafetyChainwagon is secure.



Specifications
Model
Model 485
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Horst
Capacity
48,000 lb
Hubs
10 Stud 16,000 lb
Front Axle
10 x 4 x .500 Wall
Rear Axle
10 x 4 x .375 Wall
Tongue Bracket Mounting
1-1/2'' Bolt Bearing Mtd.
Tongue Bolt
1-1/2'' Diameter
Bolster Stakes
42.5'' Fixed
Steering
Automotive Type
Tie Rod Ends
Greasable Automotive Style Ball Joints
Wheel Base
Adjustable
Height From Ground To Top Of Bunk
34'' on 18 x 22.5 Tires
Approx Weight
2450 lb
