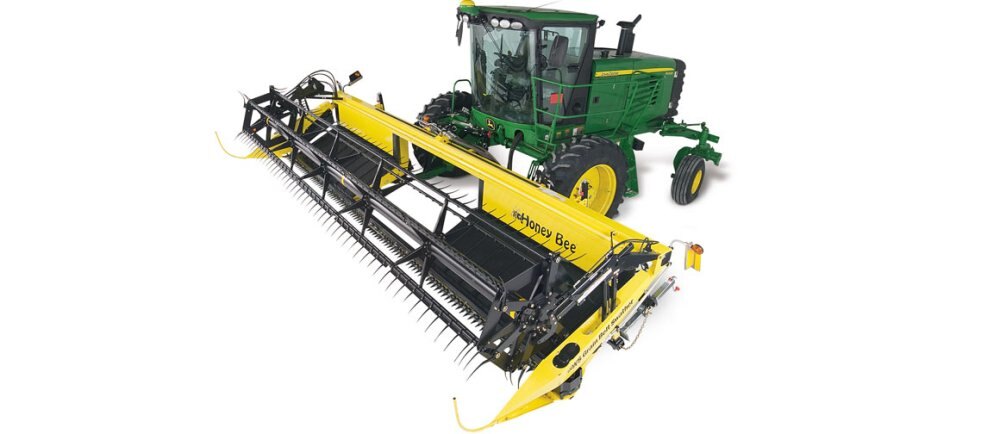

Honey Bee - WS Grain Belt Swather

  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
  • Honey Bee WS Grain Belt Swather
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Maximize Machinery Efficiency

Honey Bee lives to make harvests faster and more efficient. If you have a self-propelled haying windrower, the WS Grain Belt Swather table will turn your John Deere power unit into a high-efficiency swather, reducing machinery capital costs and increasing your farming productivity.

Built on a platform that easily attaches to a John Deere windrower, and with increased durability features such as a heavy-duty 3/16″ tubular steel header mainframe, the WS Grain Belt Swather is designed to last. Available in widths from 21’ to 36', its high capacity is optimal for improved flow of specialty crops like canola. A simple coupling and uncoupling procedure makes the swather easy to transport down narrow roads.
Specifications
Model
WS Grain Belt Swather
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Honey Bee
specs
WS21 WS25 WS30 WS36
Width 21′ (6.4 m) 25′ (7.6 m) 30′ (9.1 m) 36′ (10.9 m)
Weight*
(no reels or options included)		 2,462 lbs
(1,117 kg)		 2,869 lbs
(1,301 kg)		 3,513 lbs
(1,593 kg)		 4,852 lbs
(2,201 kg)
Hydraulic System Supplied by Windrower.
Header Floatation Supplied by Windrower.
Cutting System SCH Easy Cut, spring steel guards, bolted sections.
Crary Guard with SCH Knife.
Knife Drive SCH Epicyclic 3 5/16″ (8.4 cm) stroke, hydraulically driven, approximately 1,100 – 1,400 strokes per minute.
Double
Draper

42″ (106.7 cm) wide rubberized polyester, fibreglass reinforced rubber slats.
Hydraulically driven, speed adjustable from approximately 0 – 800 fpm (175.3 mpm).
Reel(s)

HB Reel - 6 bat, plastic fingers - standard 5" spacing - Assembled
Reel Drive Standard ‐ using Windrower Hydraulic System c/w one drive motor. Optional – Double Reel Drive motors.
Reel speed adjustable in cab.
Gauge Wheels N/A Standard
Storage Transport Standard
Tires / Wheels / Hubs / Spindles Standard
Cutterbar Poly Skid Standard
Hay Guard Standard
Double Swath Standard Optional – Hydraulic Deck Shift. Note: Some restrictions apply.
Windrower Adapters John Deere Windrower Models: 4895 – 4995 – A400 – R450
Cross Auger Size Specific N/A 25′ (7.6 m) (3pc) 30′ (9.1 m) (3pc) 36′ (10.9 m) (3pc)
Fore / Aft Standard
Hydraulic Header Tilt Standard
Dual Wheel Hitch Carrier Optional
*WS Grain Belt Swather weight Includes: Header c/w Single Swath, Double Knife, Cutterbar Poly Skid (UHMW), Castoring Gauge Wheels, Tires / Wheels / Hubs and Spindles, Hydraulic Fore/Aft, Integral Transport, Windrower Adapter, Hydraulic Header Tilt, Remote Canvas Speed Control, Hay Guard and Reel.
features

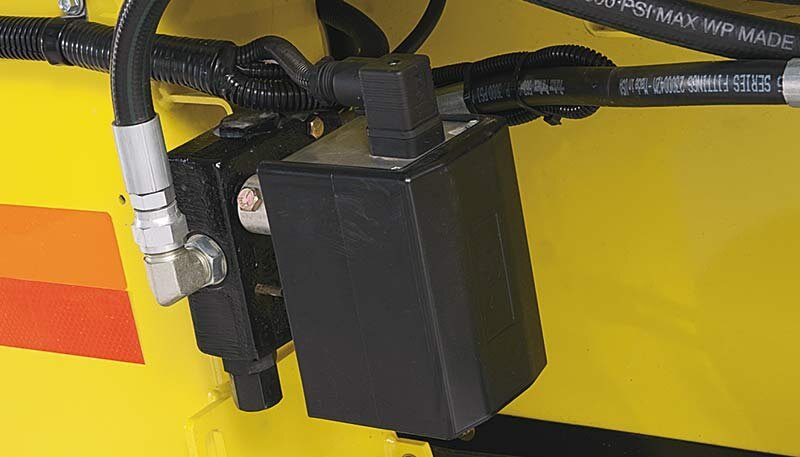

Honey Bee WS Grain Belt Swather Remote Draper Speed Control

Draper speeds are hydraulically controlled in-cab, and are adjustable up to 800 rpm. Remote draper speed control gives you the power to quickly adjust draper speeds for varying crop conditions.

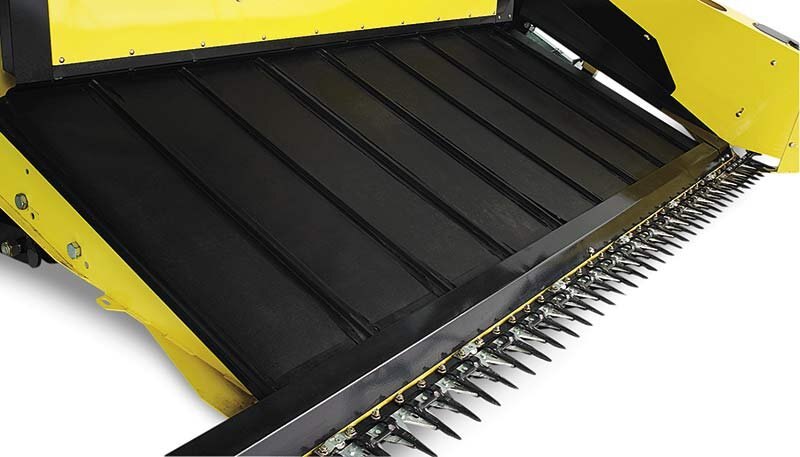

Honey Bee WS Grain Belt Swather Polyester Drapers

42″ (106.7 cm) drapers are made of long-lasting, rubberized polyester with fibreglass-reinforced slats and are V-guided to eliminate manual draper tracking.

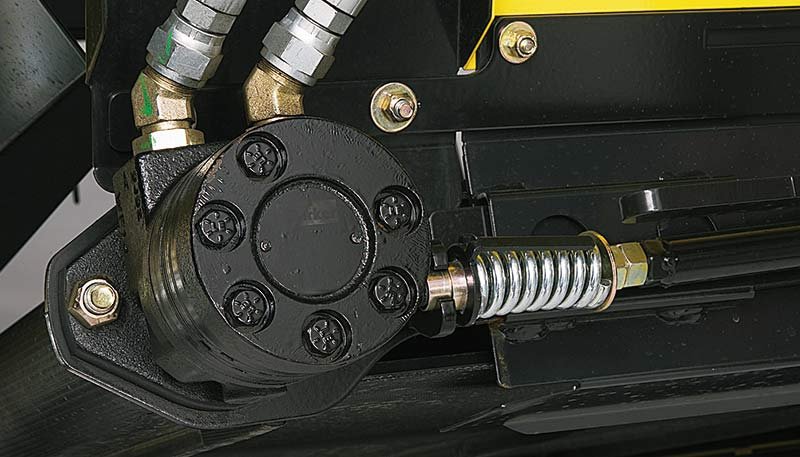

Honey Bee WS Grain Belt Swather Draper Drive

The 3″ (7.6 cm) diameter drive rollers provide traction in heavy crop conditions. Powered from the outside by a hydraulic motor, the drapers move the crop towards the centre for more uniform feeding.

Honey Bee WS Grain Belt Swather Reel Drive

The hydraulically driven reel is easily controlled using standard in-cab controls. In-cab controls allow for quick reel adjustment in changing crop conditions.

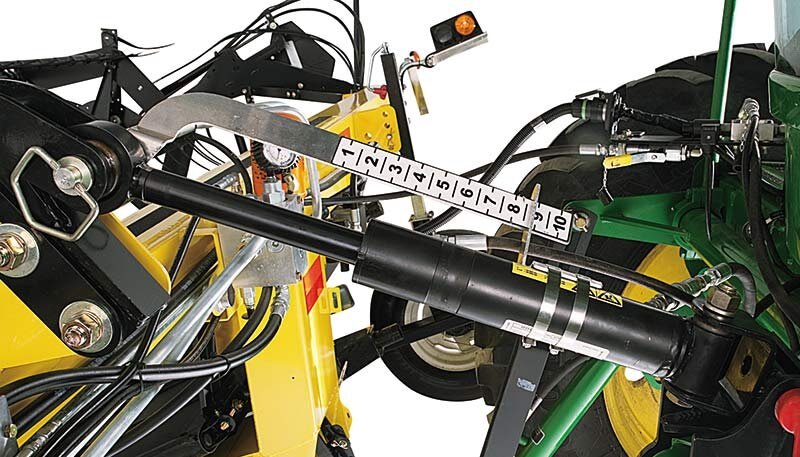

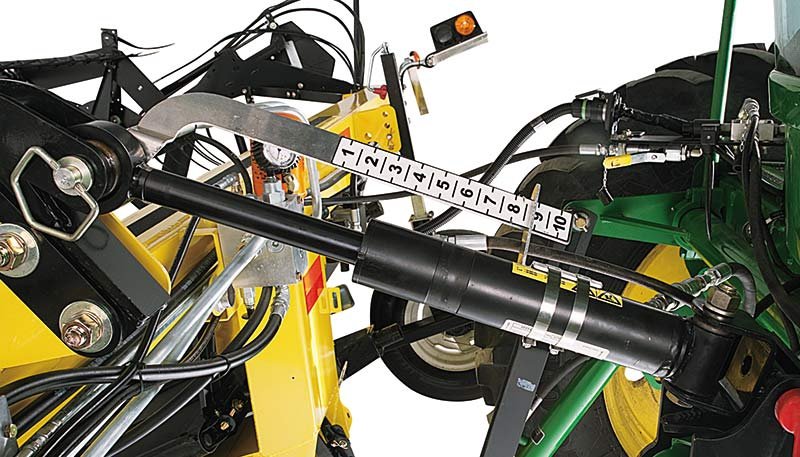

Honey Bee WS Grain Belt Swather Hydraulic Header Tilt

No-wrench header tilt adjustment for header tilt control in varying crop conditions.

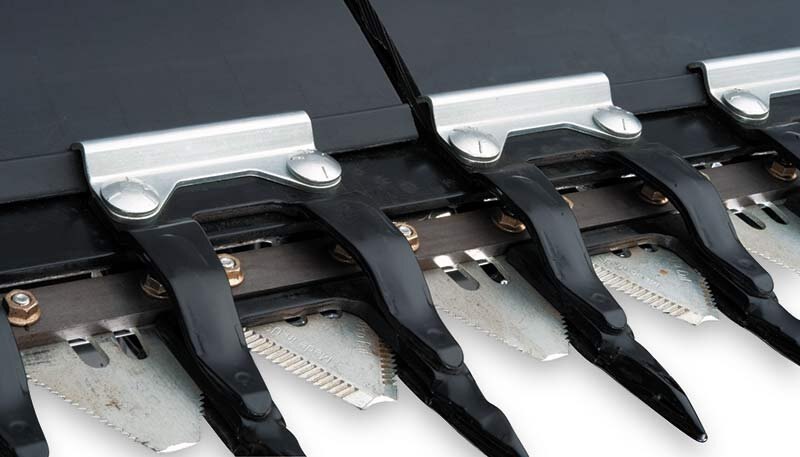

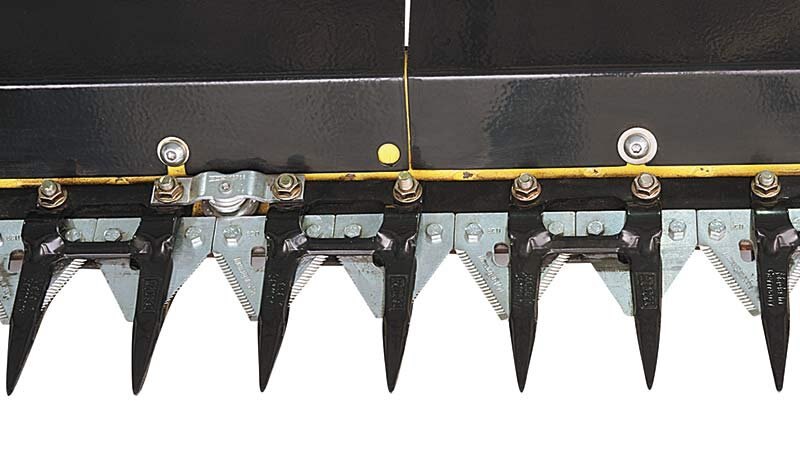

Honey Bee WS Grain Belt Swather SCH Cutting System

The SCH Easy Cut Cutting System provides smooth, superior cutting. Spring steel guards with cutting edges on top and bottom, along with alternating, bolted, heat-treated sections, eliminate the need for hold downs. The system keeps dirt and debris from accumulating under the knives for increased performance in severe cutting conditions.

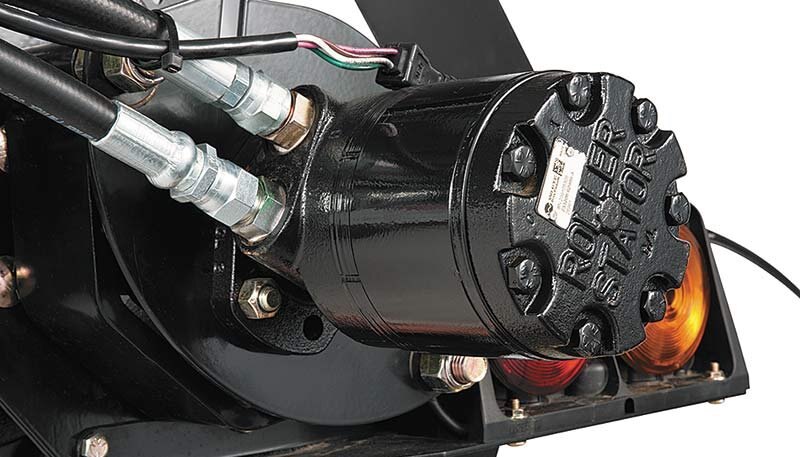

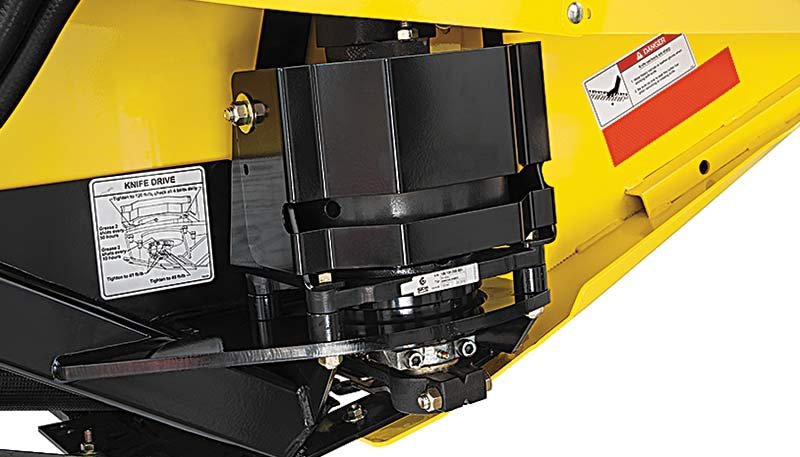

Honey Bee WS Grain Belt Swather Knife Drive

The knife is driven by a 3 5/16″ (8.4 cm) stroke, epicyclic knife drive which operates from 1,100–1,400 strokes per minute. The knife drive is driven by a low maintenance hydraulic drive motor. Double knife drive systems are available optional equipment on 25′, 30′ and 36′ models. Standard equipment on 21′.

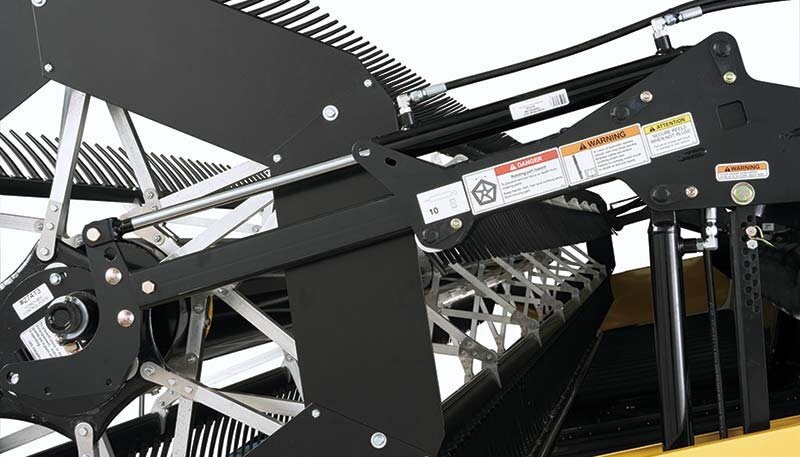

Honey Bee WS Grain Belt Swather Fore/Aft Reel Adjustment

A hydraulic adjustment with in-cab control is available for fore/aft positioning for on-the-go response to changing crop conditions with a 16″ operating range.

Honey Bee WS Grain Belt Swather Skid Plates

UHMW skid plates are standard on all models to protect the cutterbar when cutting crops close to the ground.

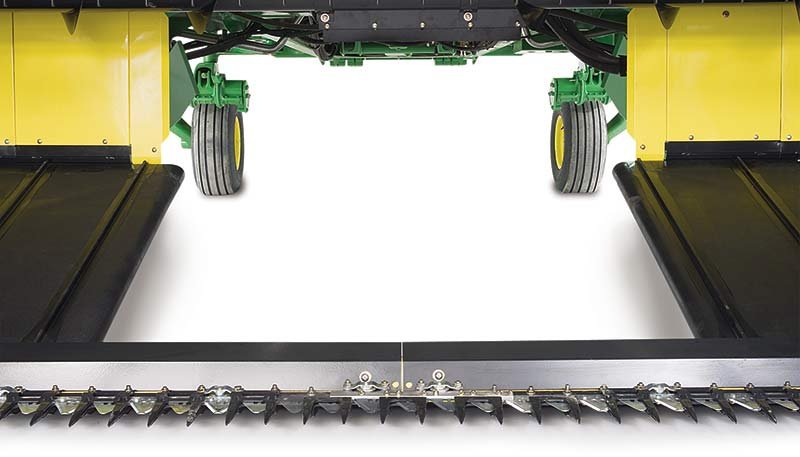

Honey Bee WS Grain Belt Swather Swath Opening

Standard swath opening is 81″ +/- 3″. Double swath standard opening of 46″ +/- 6″. Standard swath opening may be decreased by 14″ or 28″ on some models.

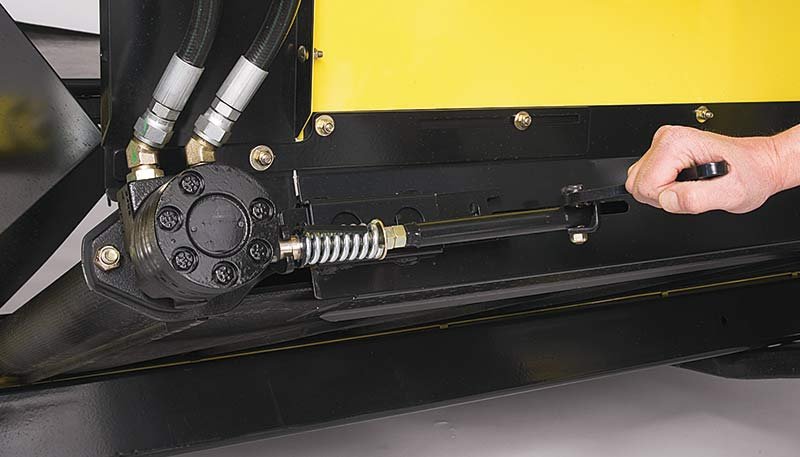

Honey Bee WS Grain Belt Swather Draper Tension and Tracking

The canvas can be adjusted for tracking and tightening, which allows for even tension on both the front and rear of the rollers. A quick release lever allows for ease of canvas and roller cleaning.

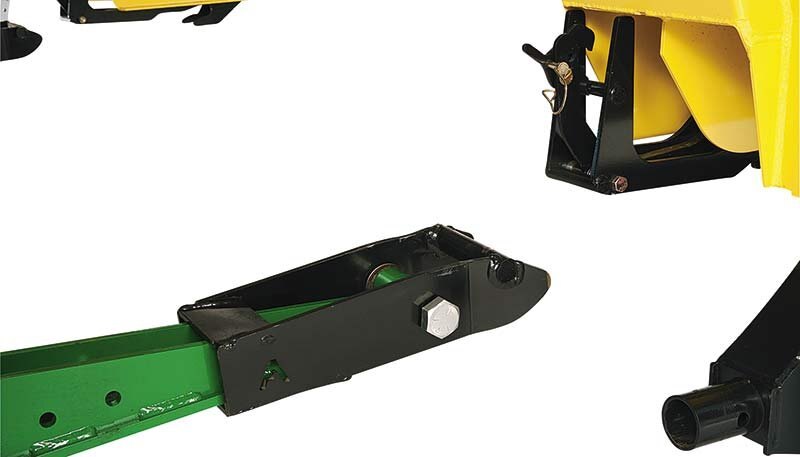

Honey Bee WS Grain Belt Swather Easy Hook-up Lift Arm Extensions

Lift arm extensions attach to the windrower lift arm using a bolt. The lift arm assembly attaches to the swather using a “no-wrench” single pin attachment. New arms provide for an easy attachment and detachment of the table.

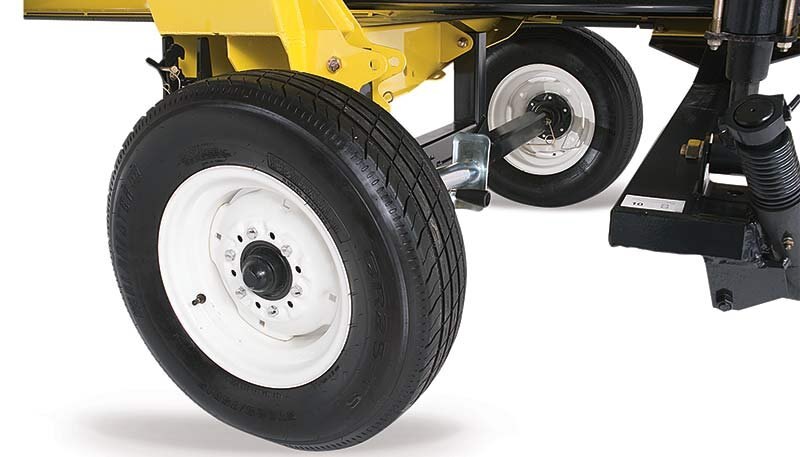

Honey Bee WS Grain Belt Swather Integral Storage Transport

The self-contained transport, including hitch, jack and axle, is conveniently stored on the swather table.

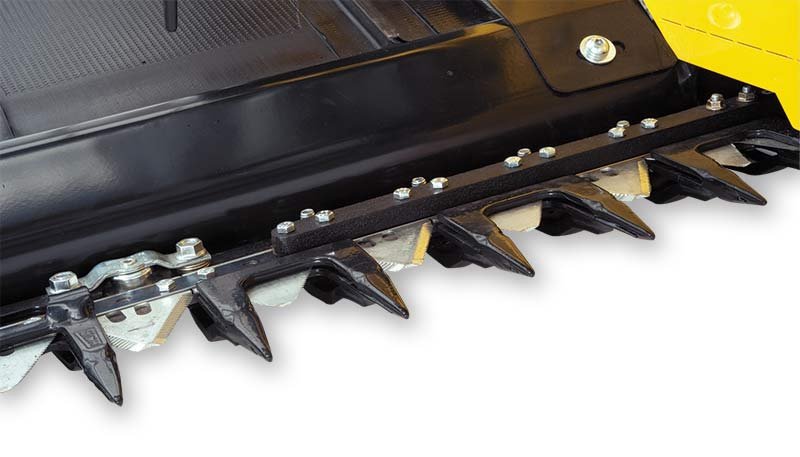

Honey Bee WS Grain Belt Swather Hay Guard

The Hay guard ensures a smooth transition from knife to draper and reduces material wrapping on the rollers.
