ID # 17798535

Honey Bee - ST Grain Belt Swather

  • Honey Bee ST Grain Belt Swather
  • Honey Bee ST Grain Belt Swather
  • Honey Bee ST Grain Belt Swather
  • Honey Bee ST Grain Belt Swather
  • Honey Bee ST Grain Belt Swather
  • Honey Bee ST Grain Belt Swather
  • Honey Bee ST Grain Belt Swather
  • Honey Bee ST Grain Belt Swather
  • Honey Bee ST Grain Belt Swather
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Harvest faster while increasing yield

Be the best in your field.

If you’re looking for fast, easy and cost-effective equipment for your farm, then look no further than the ST Grain Belt Swather from Honey Bee. Since it works on tractors with front-wheel assist, there’s no need to purchase a self-propelled windrower.

The ST Grain Belt Swather from Honey Bee is designed to lay a swath that will keep your harvesting equipment working at peak performance, no matter how heavy or light your crop is. Choose from shifting decks that switch between left, right and center delivery, or static decks that deliver from left and right. With control over the number and widths of your swaths, you’ll bale faster and pick up your forage crops more efficiently.
Specifications
Model
ST Grain Belt Swather
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Honey Bee
specs
ST15 ST21 ST25 ST30 ST36
Width 15′ (4.6 m) 21′ (6.4 m) 25′ (7.6 m) 30′ (9.1 m) 36′ (10.9 m)
Weight 3,500 lbs
(1588 kg)		 4,200 lbs
(1905 kg)		 5,100 lbs
(2313 kg)		 6,200 lbs
(2812 kg)		 8,000 lbs
(3175 kg)
Hydraulic System Supplied by Honey Bee Pump
Header Floatation Supplied by Honey Bee Leaf Springs
Cutting System SCH Easy Cut, spring steel guards, bolted sections
Knife Drive SCH Epicyclic 3 5/16" (8.4 cm) stroke, hydraulically driven, approximately 1,400 strokes per minute
Double
Draper 42" (106.7 cm) wide rubberized polyester, fibreglass reinforced rubber slats
Hydraulically driven, speed adjustable from approximately 0 – 575 fpm (175 mpm)
Reel(s) 1 - 15′ (4.6 m) 1 - 21′ (6.4 m) 1 - 25′ (7.6 m) 1 - 30′ (9.1 m) 1 - 36′ (10.9 m)
Honey Bee Reel – 6 bat, quick change plastic teeth, multiple spacing. Quick tine adjustment
Reel Drive Standard – using Tractor Hydraulic System c/w one drive motor. Reel speed adjustable in cab
Gauge Wheels Optional
Storage Transport Optional
Cutterbar Poly Skid Standard
Hay Guard Standard
Manual Header Tilt Standard
Single Swath Table approximately  131cm, or 105cm with end strut gauge wheels N/A
Double Swath Table (static decks) N/A approximately 118cm each end, or 105cm each end with end strut gauge wheels
Double Swath Table (deck shift) N/A approximately 146cm in centre delivery, or 121cm with end strut gauge wheels
(approximately 118cm each end when shifted for end delivery, or 105cm each end with end strut gauge wheels)
features

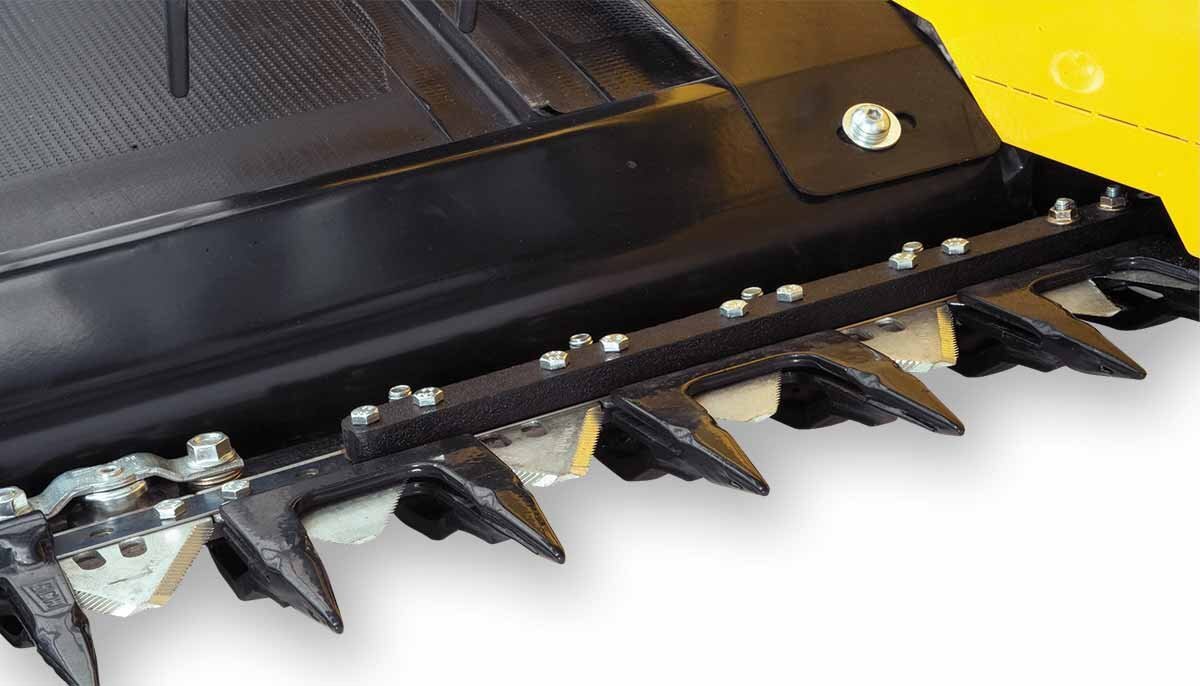

Honey Bee ST Grain Belt Swather SCH Cutting System

The SCH Easy Cut Cutting System provides smooth, superior cutting. Spring steel guards with cutting edges on top and bottom, along with alternating, bolted, heat-treated sections, eliminate the need for hold downs. The system keeps dirt and debris from accumulating under the knives for increased performance in severe cutting conditions.

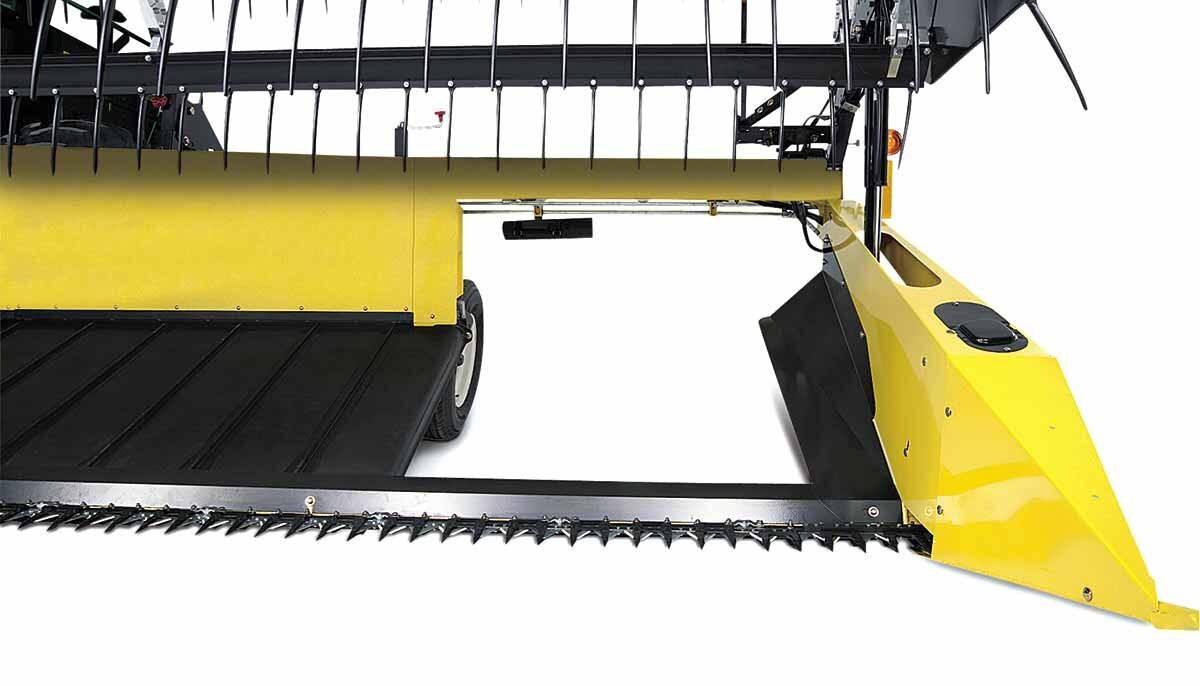

Honey Bee ST Grain Belt Swather Double Swath

Using two shifting decks, double swath gives you in-cab control for right, left and centre delivery of your windrow.

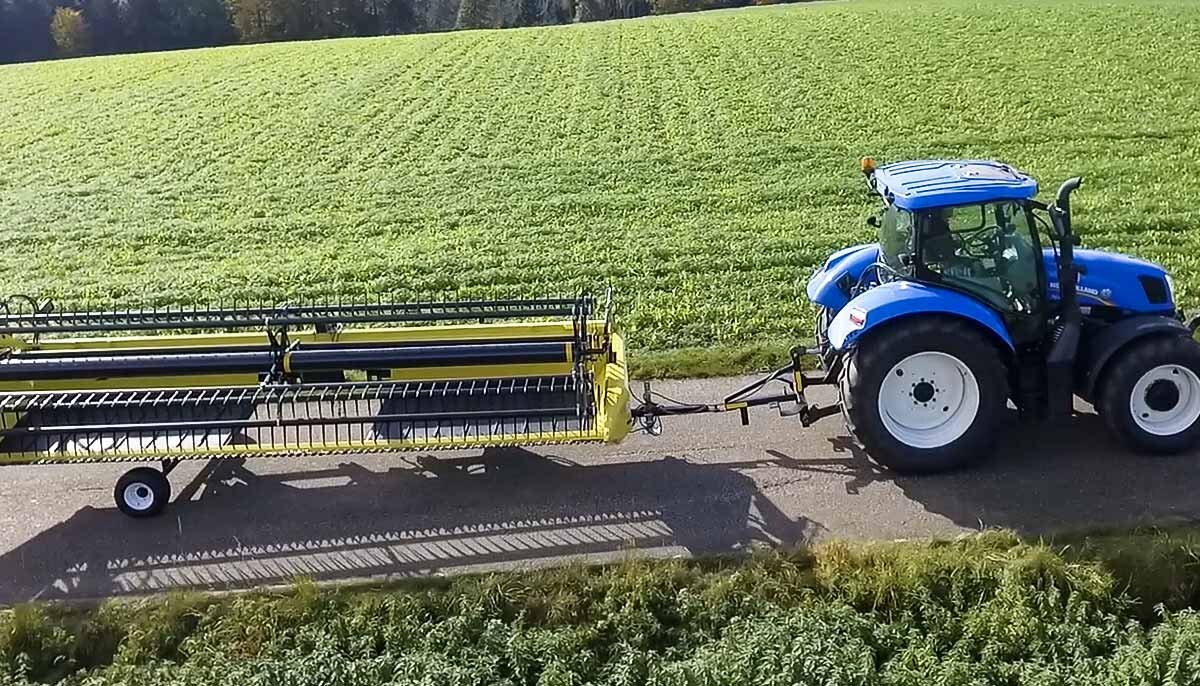

Honey Bee ST Grain Belt Swather Swather Transport

The self-contained transport, including hitch, jack and axle, is conveniently stored on the three-point tractor hitch.

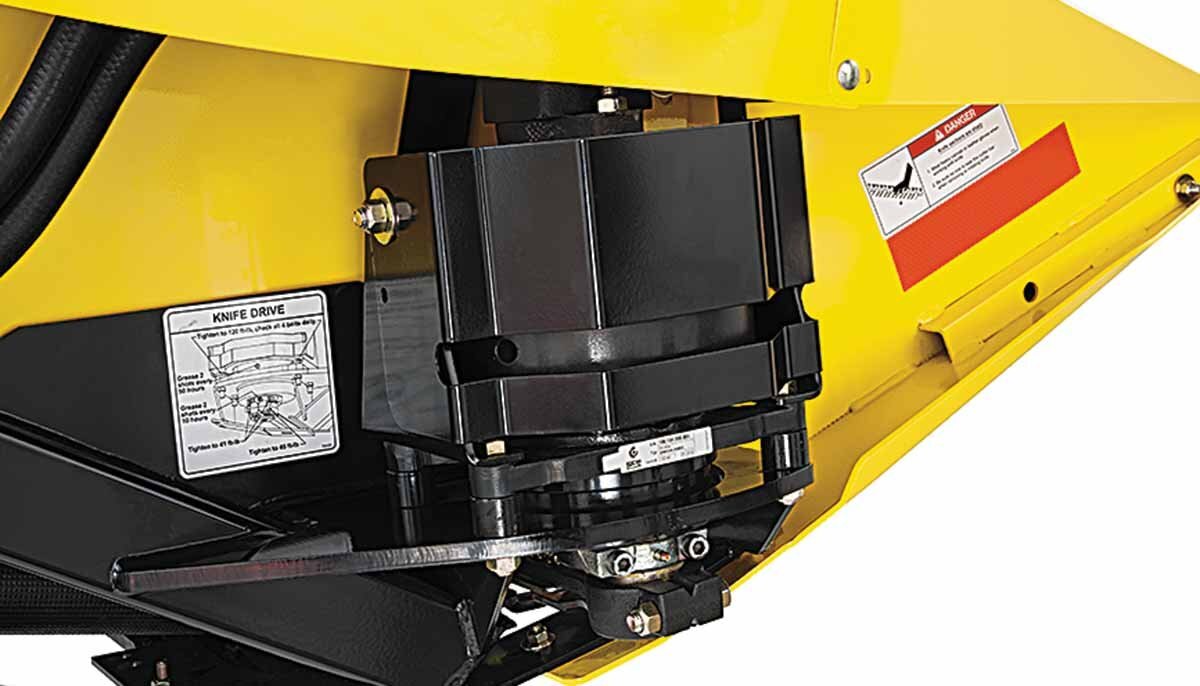

Honey Bee ST Grain Belt Swather Knife Drive

The knife is driven by a 35 /16” (8.4 cm) stroke epicyclic knife drive that operates at 1,400 strokes per minute. The knife drive is driven by a low maintenance hydraulic drive motor. Double knife drive systems are standard equipment on 15′, 21′, 25′, 30′ and 36′ models.

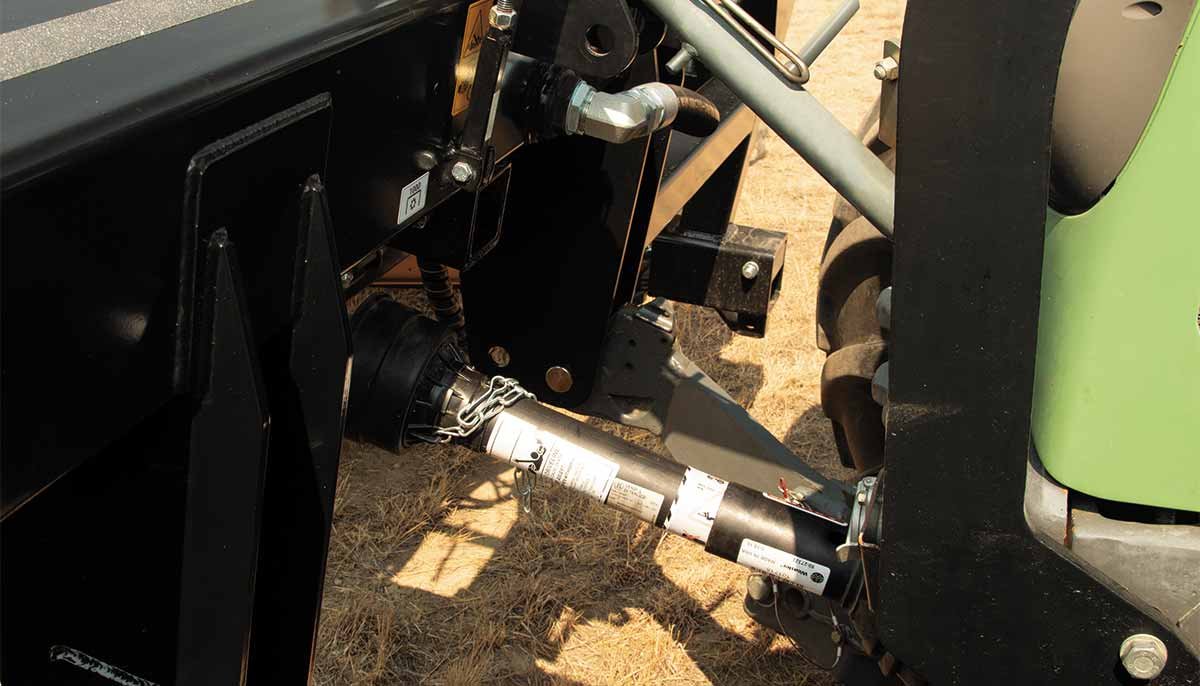

Honey Bee ST Grain Belt Swather Adapter

The adapter subframe attaches to the three-point hitch on either the front or rear of the tractor. The PTO-driven pump is integrated into the subframe and is used to power the knife drives and draper belts.

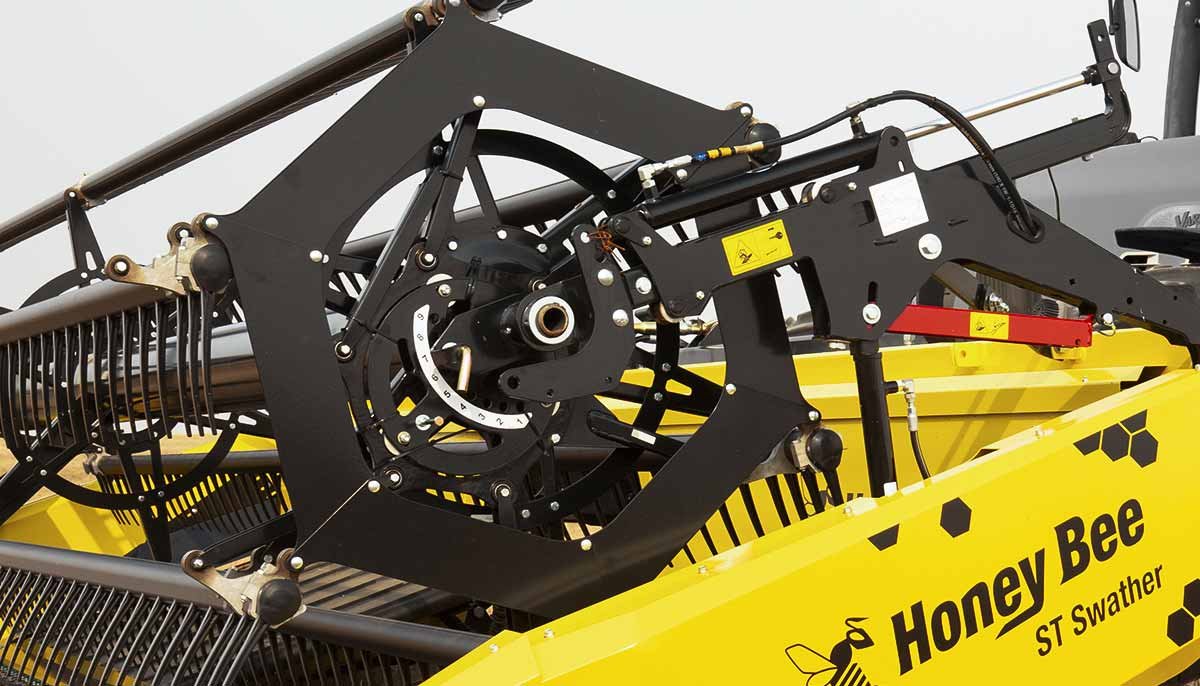

Honey Bee ST Grain Belt Swather High Performance Honey Bee Reel

The custom built, fully adjustable reel is hydraulically driven by the tractor. All reel functions are controlled through the tractor’s hydraulic control valves for quick in-cab adjustment in changing crop conditions.

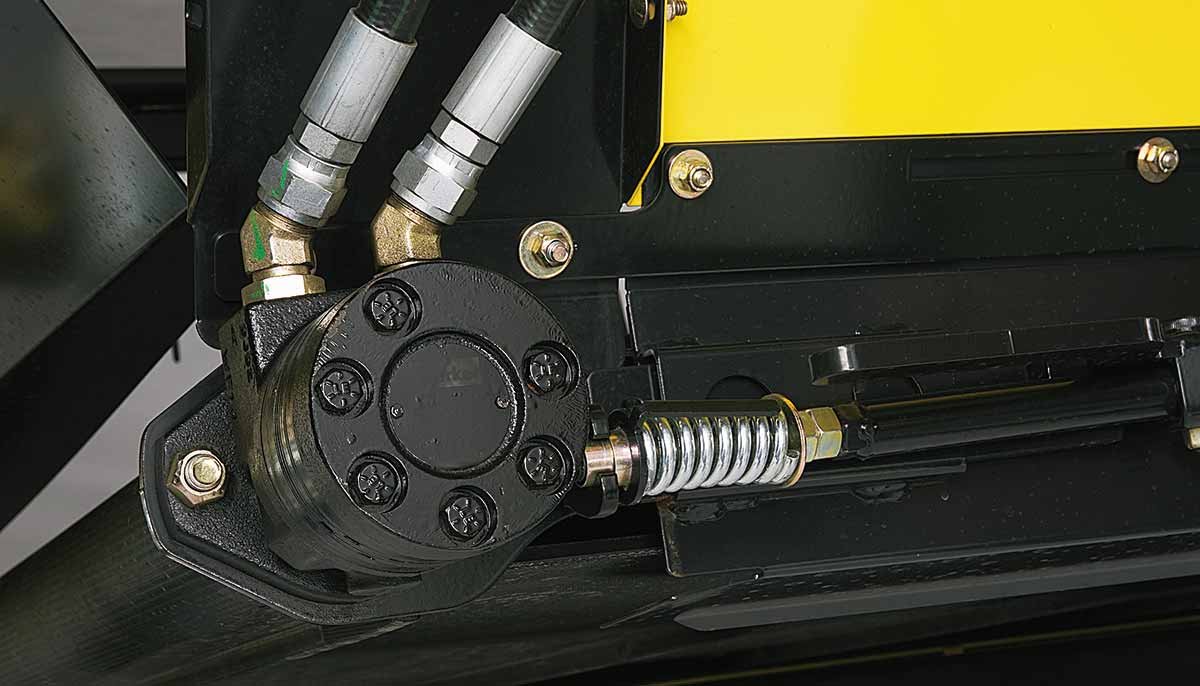

Honey Bee ST Grain Belt Swather Draper Drive

The 3” (7.6 cm) diameter drive rollers provide traction in heavy crop conditions. Powered from the outside by a hydraulic motor, the drapers move the crop towards the swath opening for more uniform feeding.

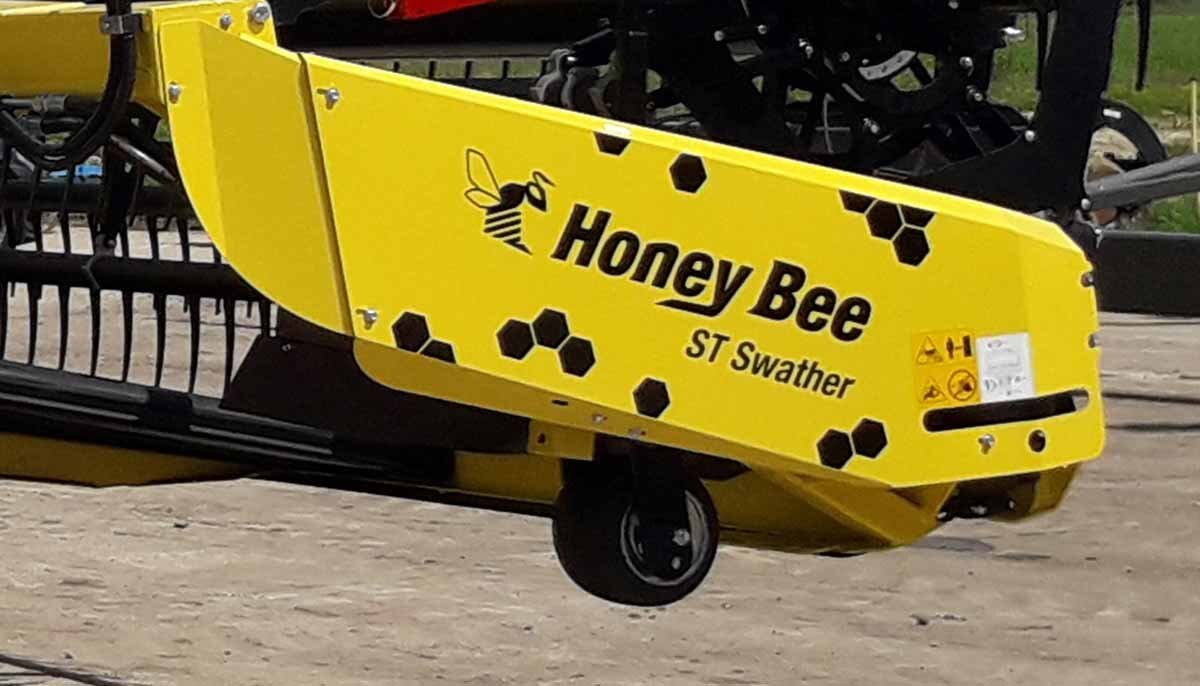

Honey Bee ST Grain Belt Swather End Strut Gauge Wheels

These smaller wheels mount on the ends of the table and help prevent them from digging in the dirt when operating in rolling terrain or going through drainage ditches.
