Overview

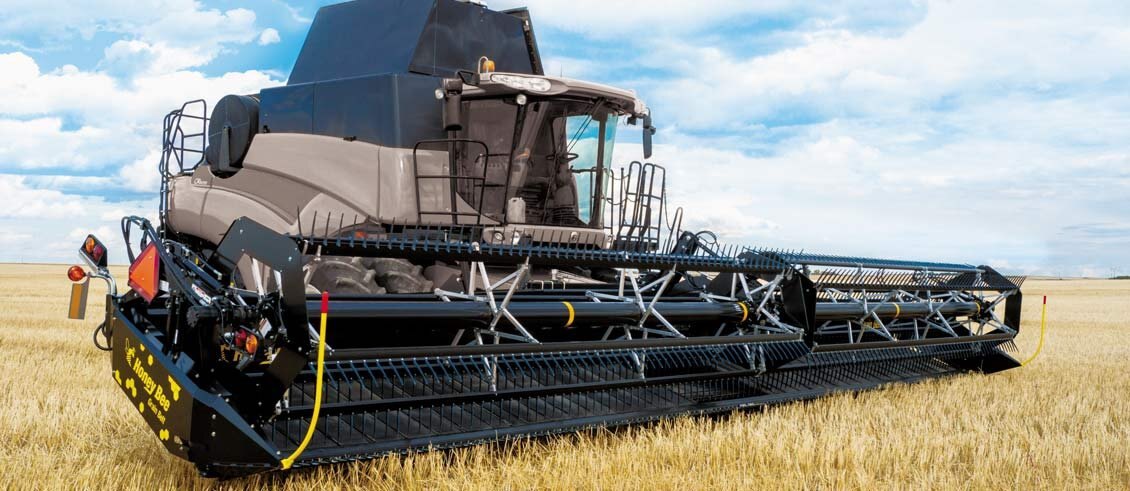

Increase Your Combine Capacity with the Honey Bee Grain Belt Header

Honey Bee lives to make harvests faster. With a keen understanding of material flow into a combine, we have engineered a superior straight-cut header built on a design that moves the crop smoothly to the feeder housing. The Grain Belt Header defines harvest efficiency.

With low maintenance features including an oversized oil cooling reservoir and heavy duty 3/16″ (0.48 cm) tubular steel header mainframe, the Grain Belt Header is designed to last. Add in our reputation for well-built, dependable equipment and you’ll have a lot more harvest time on your hands.

The Honey Bee Grain Belt Header improves combine efficiency by eliminating the twisting and tangling problems of conventional auger headers that result in poor combine performance, higher fuel costs and lower grain quality.

Using drapers and a unique feed auger, the Honey Bee Grain Belt Header uniformly feeds the crop heads first into the combine, providing constant harvest speeds, superior threshing and less down time. Depending on the crop, you can increase combine capacity by as much as 20 percent.

The Grain Belt Header not only ensures proper feeding of cereal crops, but also dramatically improves feeding of bulky crops like peas and mustard.
Specifications
Model
Grain Belt Header
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Honey Bee
specs
SP21 SP25 SP30 SP36 SP40 SP42
Width 21′ (6.4 m) 25′ (7.62 m) 30′ (9.1 m) 36′ (10.9 m) 40′ (12.2 m) 42′ (12.8 m)
Operating Weight 4,830 lbs
(2,190 kg)		 5,750 lbs
(2,608 kg)		 6,834 lbs
(3,100 kg)		 7,600 lbs
(3,450 kg)		 8,070 lbs
(3,660 kg)		 8,289 lbs
(3,760 kg)
Hydraulic System Self contained hydraulic system on the header.
Double gear pump with step-up gear box driven off bottom feeder housing shaft.
Header Floatation Leaf spring float system standard on all models.
Cutting System SCH Easy Cut, spring steel guards, bolted sections.
Knife Drive SCH Epicyclic 3 5/16″ (8.4 cm) stroke, hydraulically driven, approximately 1,284 – 1,400 strokes per minute
(depending on make of combine).
Single or Double Double
Draper 42″ (106.7 cm) wide rubberized polyester, fibreglass reinforced rubber slats.
Hydraulically driven, speed adjustable from approximately 0 – 575 fpm (175.3 mpm).
Centre Deck Hydraulically driven, 68″ (172.7 cm) wide centre canvas. Speed adjustable on header.
Feed Auger Mechanically driven, 18″ x 72″ (45.7 cm x 182.9 cm) retractable finger auger.
Reel(s) 1 – 21′ (6.4 m) 1 – 25′ (7.62 m) 1 – 30′ (9.1 m) 1 – 36′ (10.9 m) 2 – 20′ (6.1 m) 2 – 21′ (6.4 m)
Pickup Reel – Universal UII (Series 2) 6 bat plastic fingers only.
HCC Pickup Reel (flip over design c/w end tine pkg – 6 bat – assembled)
Honey Bee – 6 bat plastic fingers with either 2 1/2 inch or 5 inch spacing
Reel Drive Standard – using combine Hydraulic System. Header driven reel optional. Reel speed adjustable in cab.
Gauge Wheels N/A Standard
Header Height Control Optional
Storage Transport Integral Optional Standard
Storage Transport Detachable Optional N/A
Tires/Wheels/Hubs/Spindles Standard
Cutterbar Poly Skid Standard
Combine Adapters Available for most models of self-propelled combines.
Cross Auger
Size Specific		 21′ (6.4 m)
(1pc)		 25′ (7.62 m)
(1pc)		 30′ (9.1 m)
(3pc)		 36′ (10.9 m)
(3pc)		 40′ (12.2 m)
(3pc)		 42′ (12.8 m)
(3pc)
Hydraulic Header Fore/Aft Tilt Standard
Automatic Reel
Speed Control		 Optional – Available on most current production combines.
Combine must be equipped with Automatic Reel speed circuit.
Vertical Knife Ready Optional
Dual Wheel Hitch Carrier Optional
features

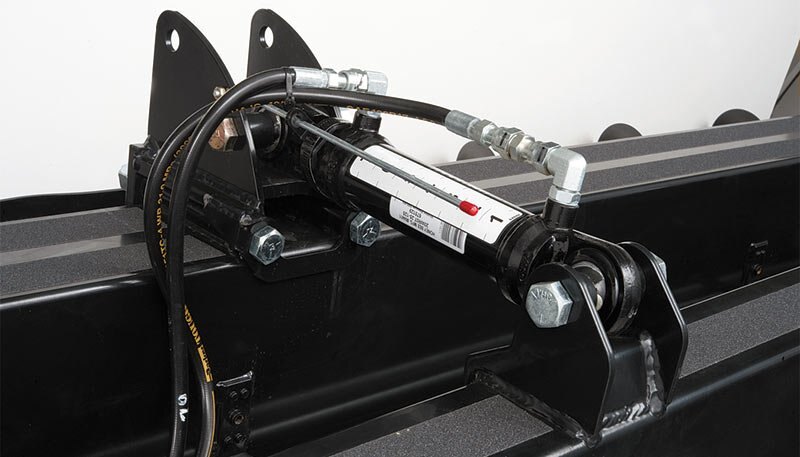

Honey Bee Grain Belt Header Hydraulic Header Tilt
The hydraulic header tilt adjustment is equipped with a ball and socket on both ends, improving header floatation.

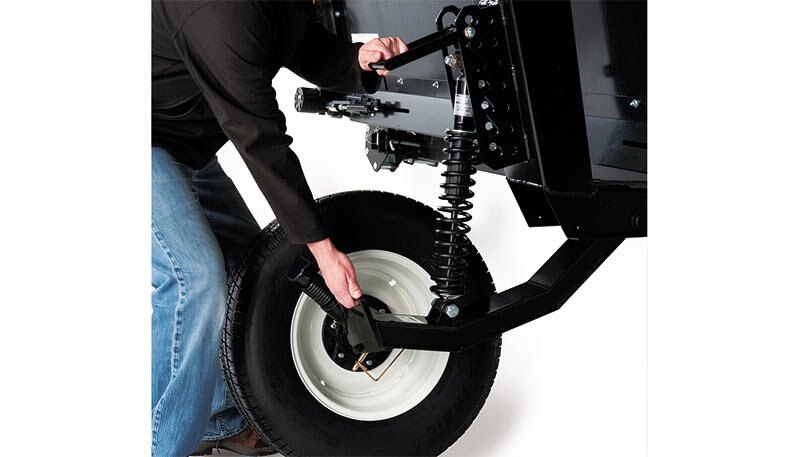

Honey Bee Grain Belt Header Adjustable Castoring Gauge Wheels

Adjustment to cutting height is now a breeze — simply pull a pin and push a lever. The Grain Belt Header also has an incredible floatation of eight inches.

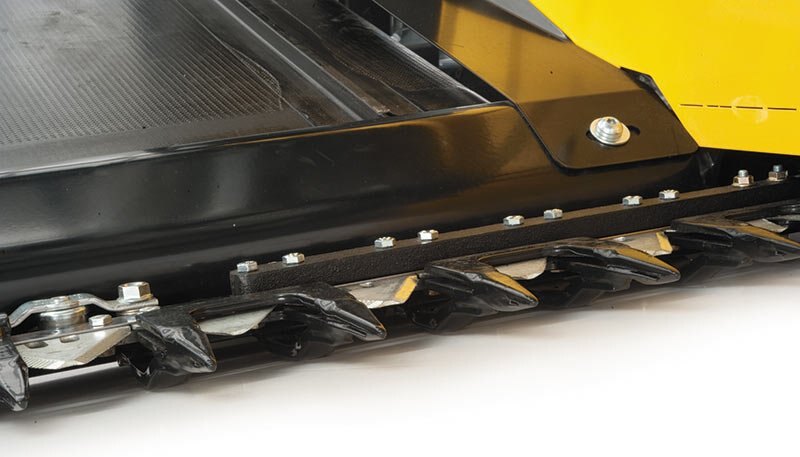

Honey Bee Grain Belt Header Low Profile Cutterbar
The cutterbar height is now the lowest in the industry. In addition, the profile has been changed to reduce the height the crop has to move from the knife to the draper by 50%.

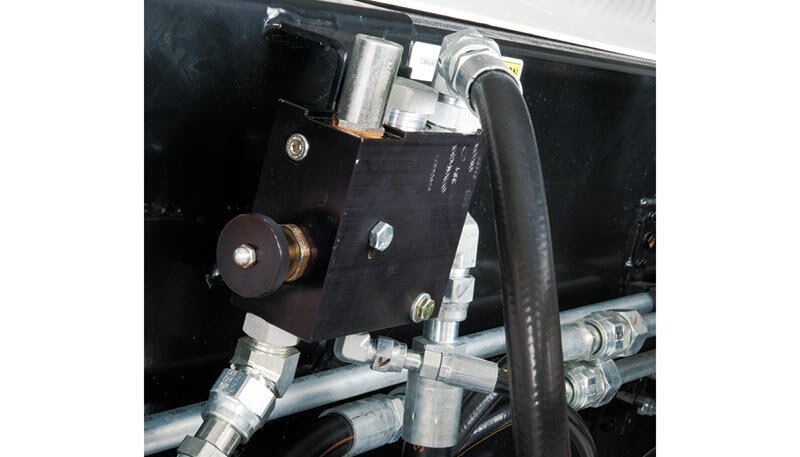

Honey Bee Grain Belt Header Draper Speed Control
Draper speeds are hydraulically controlled and adjustable. Independent control over the drapers gives you the power to move heavy material smoothly and efficiently.

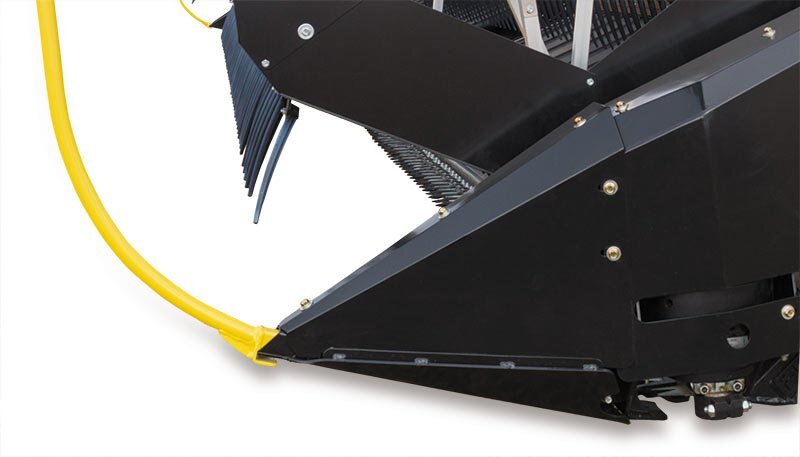

Honey Bee Grain Belt Header Crop Divider
 The improved crop divider flows seamlessly through the heaviest of crops, reducing crop trampling.

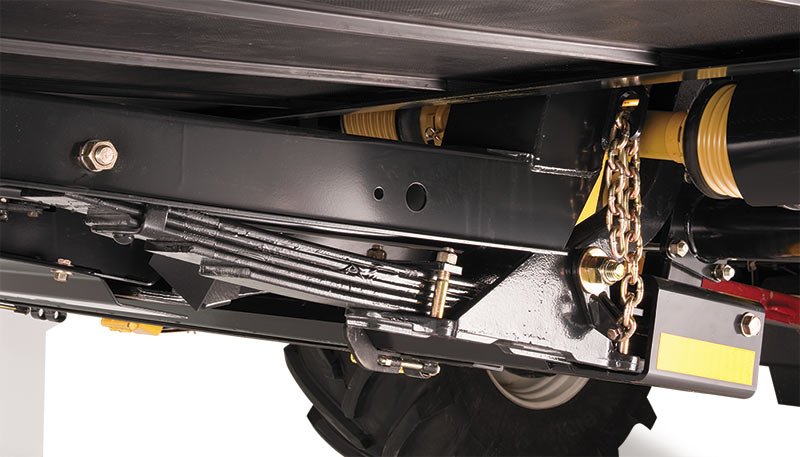

Honey Bee Grain Belt Header Lateral Leaf Spring Float System

The Grain Belt Header has excellent floatation and ground-hugging capability. Lateral and vertical leaf spring suspension allows the header to float independently of the combine’s OEM accumulator floatation system. You’ll put more crop through the combine, leave less in the field and reduce rock damage to your cutting system.

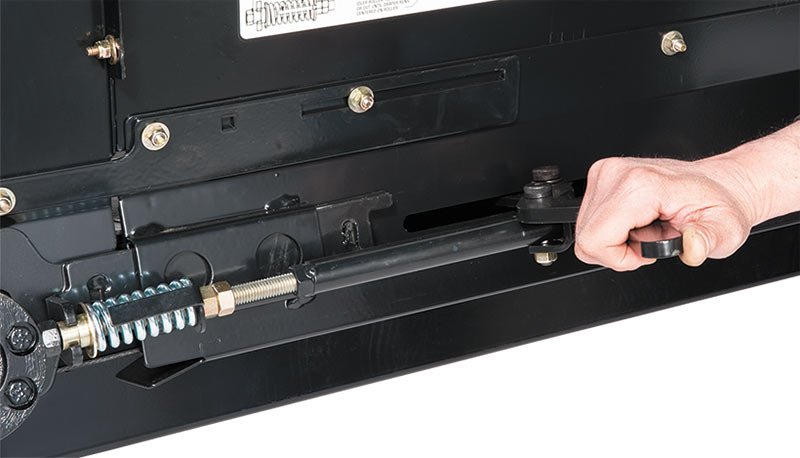

Honey Bee Grain Belt Header Draper Tension and Tracking

The canvas can be adjusted for tracking and tightening, which creates even tension on both the front and rear of the rollers. A quick-release lever allows for ease of canvas and roller cleaning.

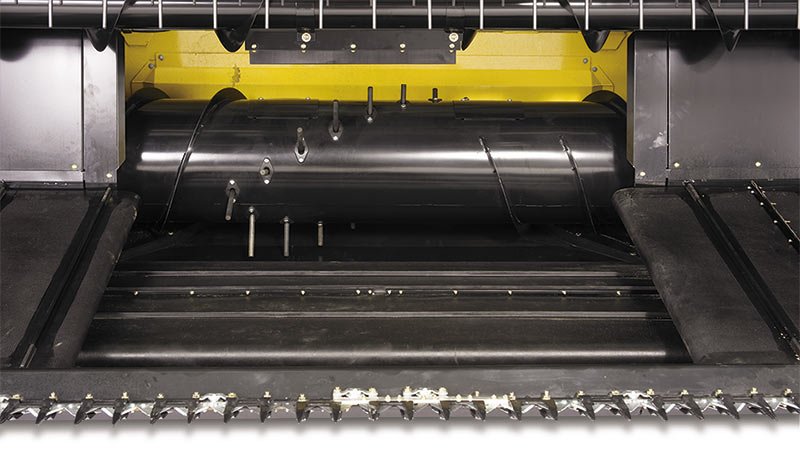

Honey Bee Grain Belt Header Deck and Feed Auger

Fasten your seat belt. The 68″ (172.7 cm) centre deck, combined with the 72″ (182.9 cm) feed auger with retractable fingers, smoothly feeds the crop into the feeder housing without twisting or tangling. A hinged door under the centre deck allows easy cleaning of foreign material like rocks and roots that might jam the feeder.

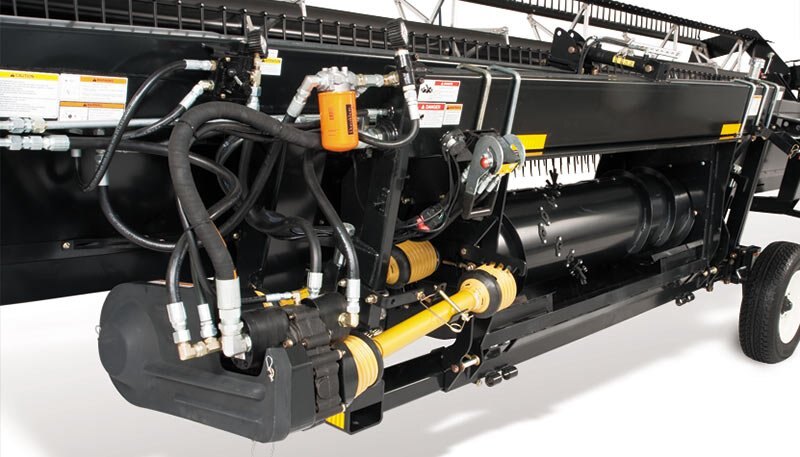

Honey Bee Grain Belt Header Independent Hydraulic System

The independent hydraulic system allows you to easily fit the Grain Belt Header to any combine. If you change combines, you can switch the header to the new combine simply by changing the adapter.

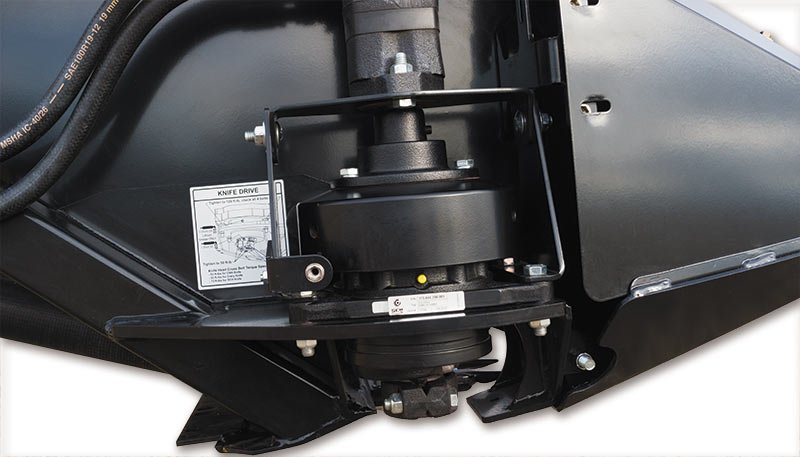

Honey Bee Grain Belt Header Knife Drive

The knife is driven by a 3 5/16″ (8.4 cm) stroke, epicyclic knife drive that ranges from 1,284–1,400 strokes per minute (depending on make of combine), eliminating fore/aft movement. The knife drive is driven by a low-maintenance hydraulic drive motor. Optional double knife drive systems are available.
