ID # 31755229

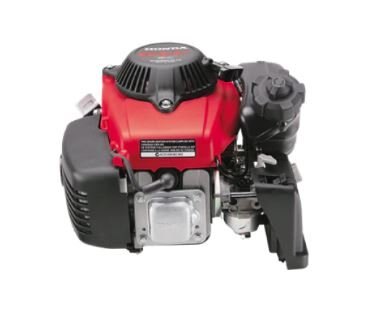

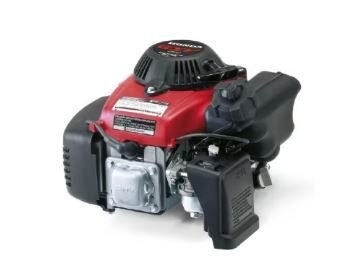

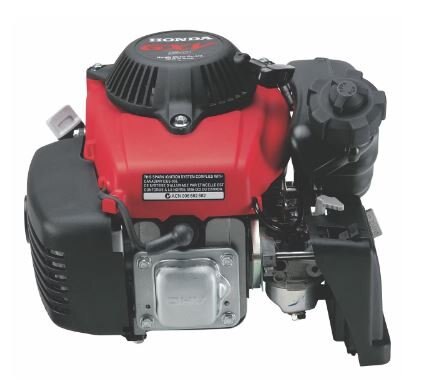

Honda GXV50

  • Honda GXV50
  • Honda GXV50
  • Honda GXV50
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Vertical Crankshaft

Whether you need an engine for commercial lawn and garden work, or for the construction site, the GXV50 is the reliable performer you’re looking for.

Common Applications

  • Commercial lawn and garden equipment
  • Construction/industrial equipment
  • Agricultural equipment
Specifications
Model
GXV50
Category Name
Engines
Year
2025
Sale Type
New
Manufacturer
Honda
Fuel
Unleaded 86 octane or higher
Carburetor
Float type
Dry Weight
5.2 kg (11.5 lbs)
Net Torque
2.0 lb-ft (2.7 Nm) @ 4,500 rpm
Air Cleaner
Semi-dry
Engine Type
Air-cooled 4-stroke OHC
Displacement
49.4 cm3
Oil Capacity
0.25 litres (0.26 U.S. qts)
Bore X Stroke
41.8 mm x 36 mm
Governor System
Centrifugal mechanical
Ignition System
Transistorized magneto
Starting System
Recoil
Compression Ratio
8.0:1
Net Power Output*
2.1 HP (1.6 kW) @ 7,000 rpm
Fuel Tank Capacity
0.27 litres (0.29 U.S. qts)
Lubrication System
Forced splash
PTO Shaft Rotation
Counterclockwise (from PTO shaft side)
features

FUEL-EFFICIENT,HIGH-OUTPUT OPERATION

  • Precision camshaft design
  • OHV design for increased efficiency and optimal power transfer
  • High compression ratio for better fuel efficiency

SMOOTH PERFORMANCE

  • Precision-engineered components result in lower vibration
  • Ball bearing supported crankshaft for greater stability

EXCEPTIONALLY QUIET

  • Large capacity, multi-chamber exhaust system
  • Reduced mechanical noise due to light-weight, noise-reducing materials
  • Forged steel crankshaft and rigid crankcase
  • Sophisticated air intake system

PROVEN RELIABILITY

  • Oil alert
  • High quality materials, fit, and finish
  • Duel element air cleaner
  • Fuel valve

EASY TO USE AND MAINTAIN

  • Large automotive-type fuel cap
  • Easily accessible spark plug

EASY STARTING

  • Heavy duty recoil starter
  • Automatic mechanical decompression system

EMISSIONS COMPLIANT

  • CARB and EPA certified
  • No catalyst necessary

AVAILABLE OPTIONS

  • Spark arrester available

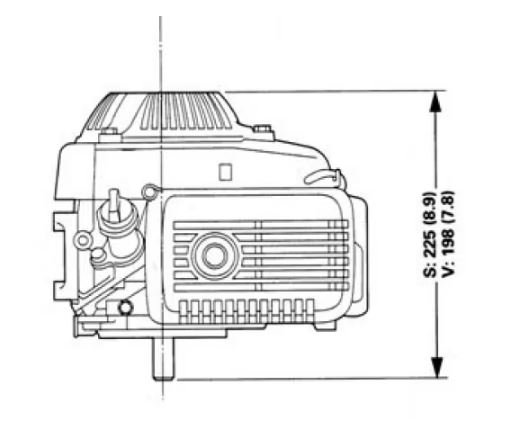

dimension diagram

Honda GXV50

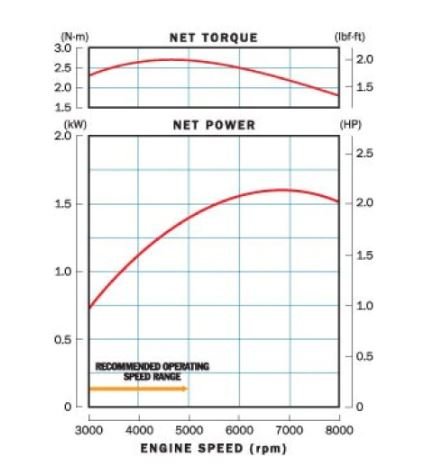

performance curve

Honda GXV50
