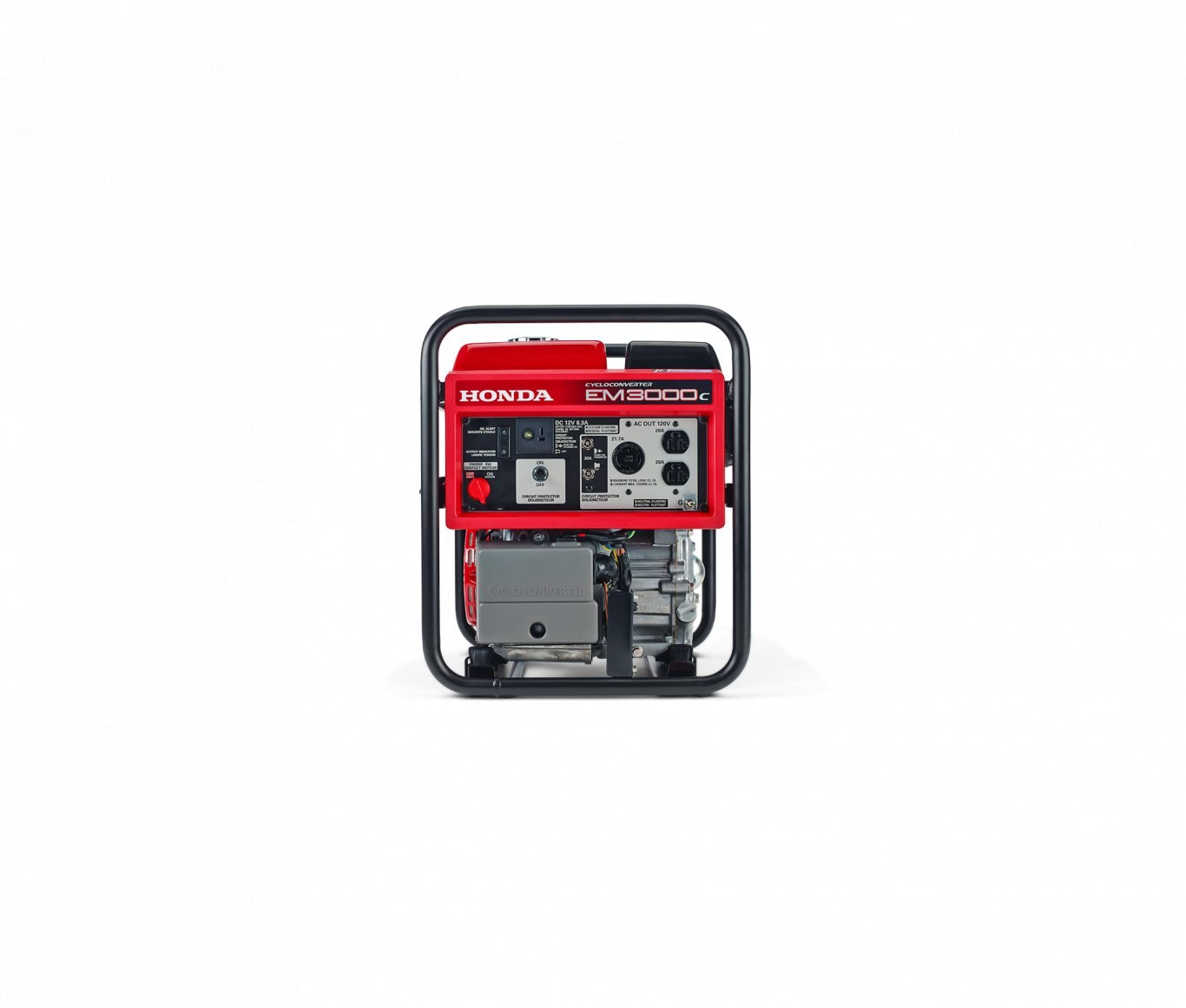

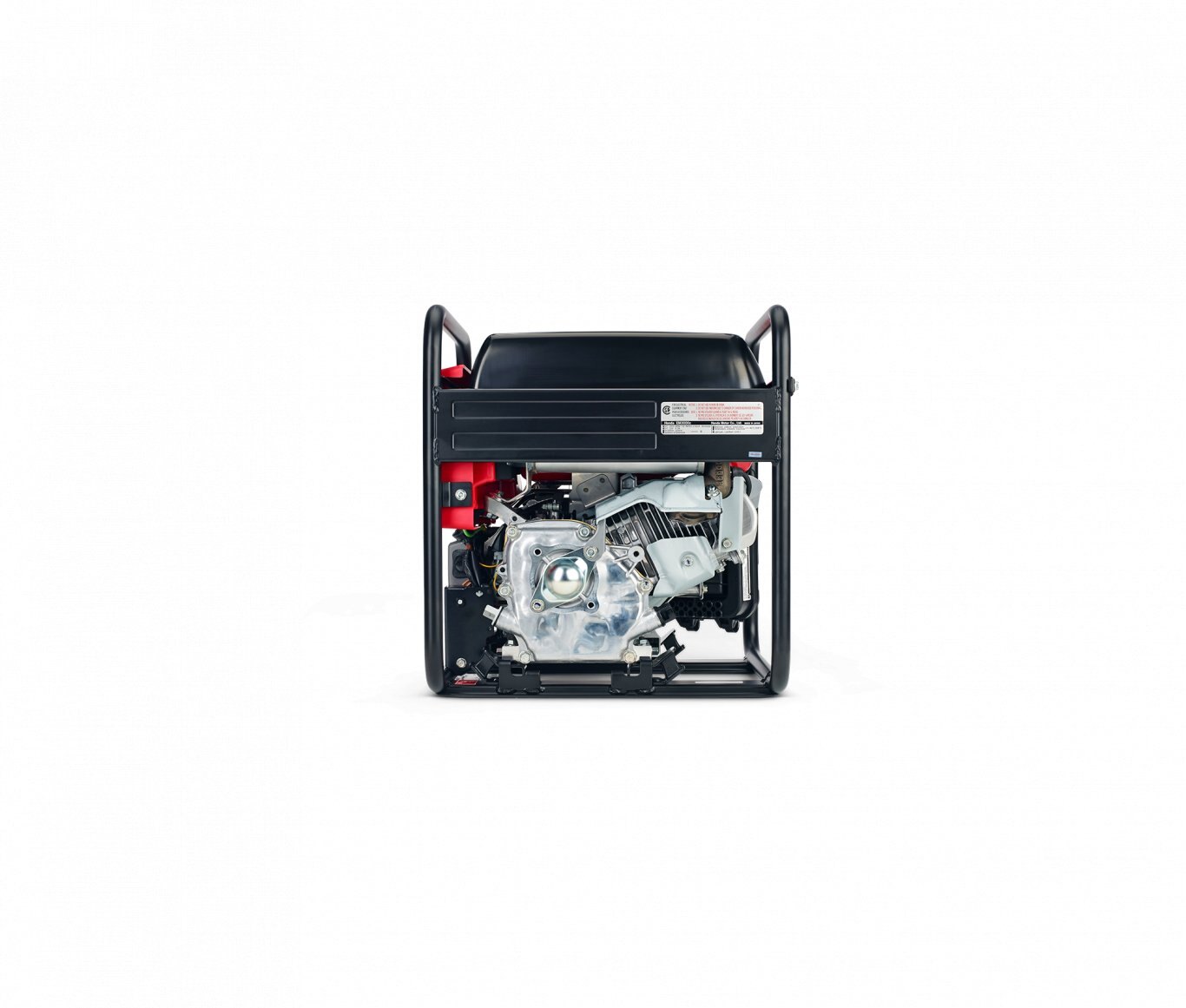

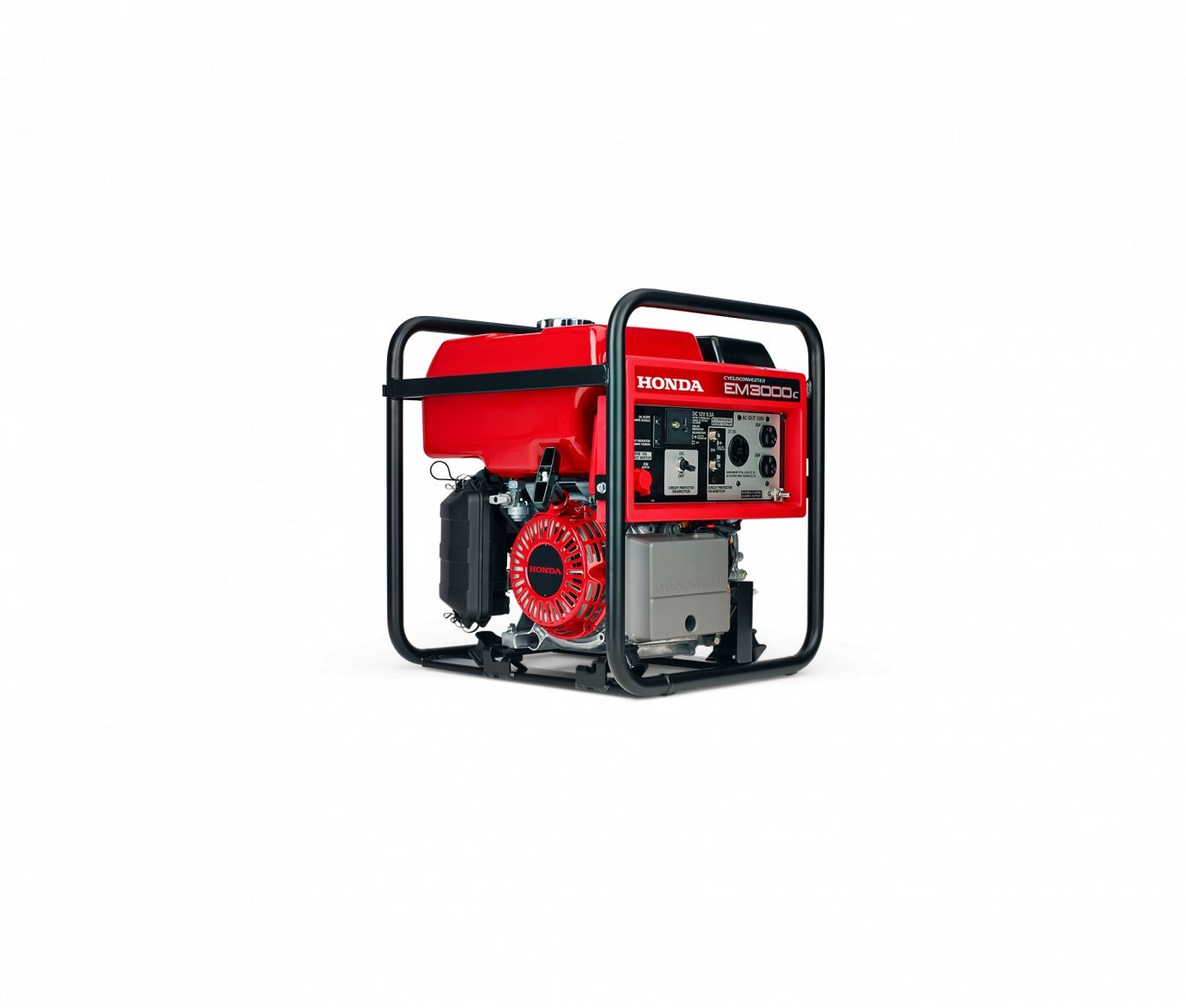

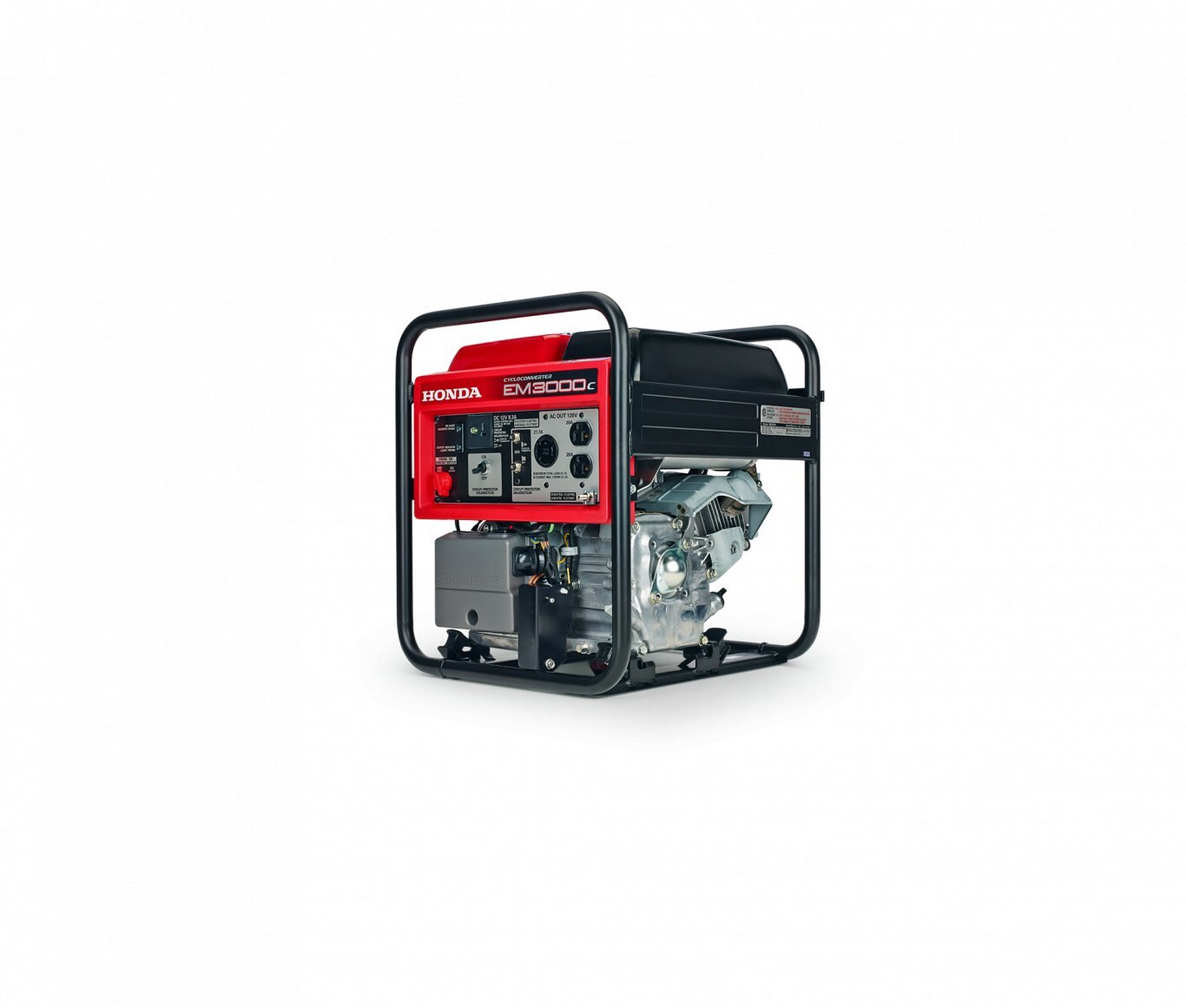

HondaCyclo-Converter 3000 EM3000C3

  • HondaCyclo Converter 3000 EM3000C3
  • HondaCyclo Converter 3000 EM3000C3
  • HondaCyclo Converter 3000 EM3000C3
  • HondaCyclo Converter 3000 EM3000C3
  • HondaCyclo Converter 3000 EM3000C3
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Cyclo-Converter 3000

EM3000C3

Delivers 3,000 watts and is approximately 30% more compact and lightweight than conventional designs.
Specifications
Model
EM3000C3
Category Name
Generators
Year
2022
Sale Type
New
Manufacturer
Honda
Engine Size
196 cc
Dry Weight
31 kg (68.3 lbs.)
AC Voltage Available
120
Cold Climate Technology
Standard
Approximate Running Time (hrs.) / Tankful
6.1**
features
12 VDC Battery-charging Capability
Large Muffler Offers 68 DB(A) Noise Level At Rated Load
3,000 Watts Of Power, Continuous-rated Output Of Over 20 Amps
Ultra-compact And Lightweight Cycloconverter Design—30% Lighter Than Conventional Models
electrical
Generator Type
Cycloconverter
DC Charging Cable
Optional (P/N 32650-892-010AH)
Frequency (Hertz)
60
AC Voltage Available
120
DC Output Volts / Amps
12 / 8.3
Maximum AC Output (Watts)
3,000
Automatic Voltage Regulator
Standard
DC Receptacle Specifications
8.3 amps/12 VDC is available from this receptacle. Important Note: AC and DC output cannot be used simultaneously. DC system uses floating N (Neutral) type.
Maximum Continuous AC Output (Watts)
2,600
Max. Rated AC Amperage @ 120 V / 240 V
21.7 / -
Common Duplex Receptacle Specifications
21.7 amps/120 VAC continuous is available as combined total from these two AC receptacles. 20 amps is maximum available from a single receptacle.
High Capacity 120, 120 / 240 VAC Twist Lock Receptacle Specifications
This receptacle (NEMA # L5-30R) will supply 21.7 amps at 120 VAC continuously.
engine
Engine Type
Honda GX200T2 OHV, 4-stroke, air-cooled
Displacement
196 cc
Starting System
Manual recoil
Fuel Tank Capacity
9.7 litres (2.13 Imp. gal.)
Remote Start Capability
Low Level Oil Alert System
Standard
additional information
** / ***
**At max. rated output (continuous) in Watts. ****At 50% rated output (continuous) in Watts.
Dry Weight
31 kg (68.3 lbs.)
Cold Climate Technology
Standard
Height (Without Lift-Hook)
480 mm (18.9 in.)
Noise Level DB(A) (1.5 M To 7 M)
68**
Width (Without Handles And Wheels)
402 mm (15.8 in.)
Rated Fuel Consumption (litres/hr)
1.58**
Length (Without Handles And Wheels)
445 mm (17.5 in.)
Approximate Running Time (hrs.) / Tankful
6.1**
