ID # 13330022

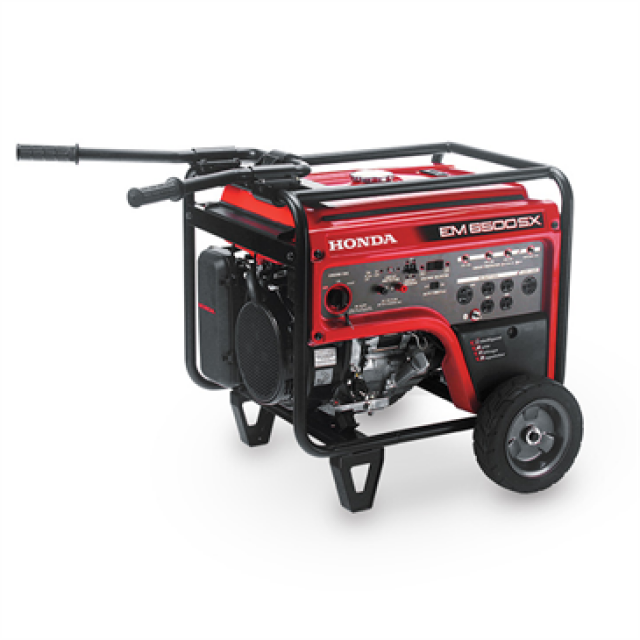

Honda EM6500S

  • Honda EM6500S
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Honda's premium series EM generators have important features for demanding work on the jobsite or for home backup. The EM6500S2C has convenient 12 VDC electric start with enclosed low maintenance battery, and the Honda exclusive iAVR (Intelligent Auto Voltage Regulation) system for stable power delivery and available extra wattage for special conditions (7000 watts for 10 seconds to start larger equipment). A voltage Selector Switch allows both 120 V and 240 V output, or total output to a single 120 V outlet for powering devices with larger wattage requirements, and the EM6500S2C runs all day without stopping (up to 10.4 hours continuous running time @ 50% load, 6.9 hours at full load with large 24 litre tank). Safety and protection features include a full tubular steel frame with isolation mounts, Oil Alert™ system, USDA-Qualified Spark Arrestor/Muffler and a full 3 year residential and commercial warranty.

Additional Features:
• Powerful, easy-start Honda iGX390 commercial-grade engine
• Auto-throttle further extends running time by automatically adjusting engine speed to idle when under no load
• 12 VDC battery charging capability with optional charge cable
• Standard Wheel kit with Positive Lock Folding Handles for easy transportation and convenient, compact storage
• Cold Climate Technology aids continuous running in cold weather conditions
  Features
  • Portable power with premium features and traditional Honda durability and performance
  • 6500 watts maximum AC output
 Uses
  • Home backup and Commercial usage (for non-GFCI applications)
  • Suitable for rental applications



Specifications
Model
EM6500S
Category Name
Generators
Year
2016
Sale Type
New
Manufacturer
Honda
Engine Size
389 cc
MAXIMUM AC OUTPUT (WATTS)
6500
VAC VOLTAGE AVAILABLE
120/240
ENGINE TYPE
Honda iGX390T2 OHV, 4-stroke, air-cooled
DC OUTPUT (VOLTS / AMPS)
12/8.0
FREQUENCY (HERTZ)
60
MAX RATED AC AMPERAGE @ 120 V / 240 V
45.8/22.9 (58.3/29.2 for 10 sec. iAVR)
MAXIMUM CONTINUOUS AC OUTPUT (WATTS)
5,500 7,000 (iAVR)
FUEL TANK CAPACITY (LITRES)
23.5
WIDTH - WITHOUT HANDLES AND WHEELS
530 mm (20.9 in.)
HEIGHT - WITHOUT LIFT-HOOK
719 mm (28.3 in.)
DRY WEIGHT
104.8 kg (231.0 lb.)
Height (With Lift-Hook)
773 mm (30.4 in.) Optional lift hook
