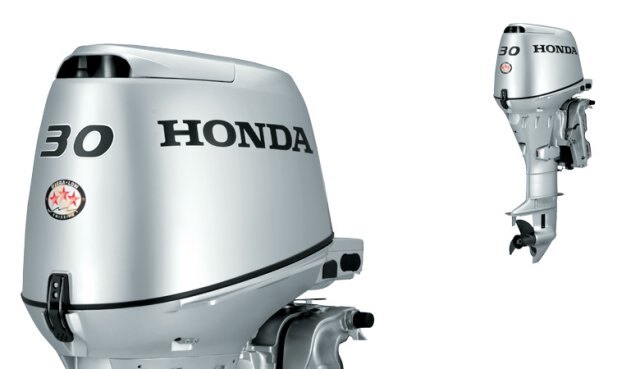

Honda BF30

  • Honda BF30
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The BF30 delivers big power and torque thanks to its whopping 552 cc displacement, making it ideal for 14-16 ft. fishing boats, pontoon boats or small runabouts. It has an ultra-smooth 3-cylinder design, remote control for convenience and precision, a Fresh Water Flushport and Power Tilt and Trim.
Specifications
Model
BF30
Category Name
Outboard Engines
Year
2021
Sale Type
New
Manufacturer
Honda
Engine Size
552 cc
Gear Ratio
2.08:1
Gear Shift
F-N-R
Tilt Range
-4° to 64°
Trim Range
-4° to +12°
Engine Type
4-Stroke SOHC; 3 Cylinders / 6 Valves
Oil Capacity
1.70 L (1.80 Imp. qt) with oil filter repl.
Bore & Stroke
61 mm x 63 mm (2.40 x 2.48 in.)
Fuel Delivery
3 Carburetors
Overall Width
375 mm / 14.8 in.
Cooling System
Water Cooled
Propeller Type
3-blade (Aluminum)
Starting System
Electric
Oil Pressure Alert
Standard
Full Throttle RPM Range
5,000-6,000 RPM
Transom Height (S-Type)
431 mm 17.0 in
Alternator (Electric Start)
10 amp / 126 watts
Propshaft Rated Horsepower (HP)
30 hp @ 6,000 RPM
features
 Performance and Efficiency
Four-Stroke Engine Design
World-renowned Honda quality, proven reliability with no oil mixing.
 Reliability and Durability
Over-Rev Protection
Standard rev-limiter protects the engine from severe damage caused by over-revving.
Over-Rev and Overheat Warning Systems
Standard over-rev and overheat warning systems offer peace of mind and protect your investment.
Fresh Water Flushport
Allows easy hook-up to fresh water supply to flush debris and salt water out of the engine, extending the life of the outboard (optional Flush Kit required).
Shallow-Water Drive
Allows you to run in shallow water with the engine raised to reduce the risk of damage to the lower gearcase.
Sacrificial Anodes
The BF30 has 1 internal and 2 external sacrificial anodes to protect metal components from corrosion.
Ultra Low 3 Star CARB Emissions
Environmentally conscious technology. All Honda Marine engines exceed the highest CARB 3-Star rating to meet the rigorous California Air Resource Board's standards.
Three-Year Warranty
The best outboards are backed by the best warranty, 3 years parts and labour.
 Convenience and Ease of Use
Emergency Stop Switch/Safety Lanyard
The boat operator clips the lanyard to his or her wrist, which will activate the safety stop switch if the operator leaves the helm.
Regulated, High-Output Charging System
A 10-amp charging system is standard on the electric-start model. Each system is equipped with a solid-state regulator/rectifier for easy hook-up.
Standard Fuel Tank, Hose and Propeller
A 25-litre fuel tank, fuel hose and aluminum propeller are included as standard equipment.
