ID # 13483995

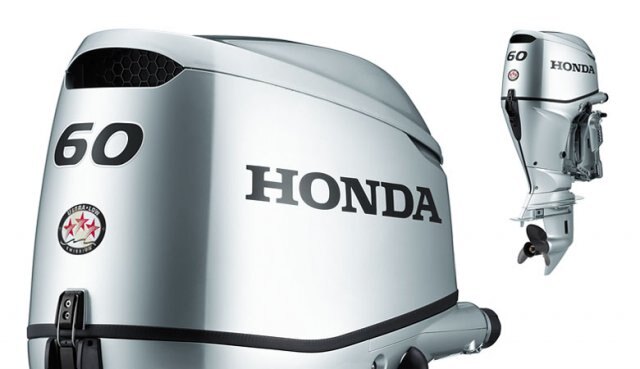

Honda BF60

  • Honda BF60
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Lightweight yet powerful, the BF60 has proven itself as both a fishing boat engine (aluminum bass) and a recreational outboard (small-centre consoles, inflatables). Enjoy best in class fuel efficiency along with the big performance that comes with BLAST® Technology (Boosted Low Speed Torque).

The BF60 does not come with a propeller. Please consult with your Honda Dealer for propeller application assistance.
 Performance and Efficiency
Four-Stroke Design
   World-renowned Honda quality combines proven reliability and superior fuel efficiency, with no oil mixing.
Lightweight
   Weighing in at only 110 kg (243 lb)(with propeller mounted), the BF60 (LRTC model) is one of the lightest motors in its class. It's perfect for inflatables, skifs, and fishing boats.
Easy Dock Steering®
   Easy Dock Steering® on the standard BF60 tiller version (with optional tiller kit) offers a full 50 degrees of steering to port and again to starboard. Combine this with the Variable Speed Trolling and fishermen have tremendous control.
BLAST® System
   Boosted Low Speed Torque, or BLAST®, improves acceleration at low speeds. A quick movement of the throttle control activates the BLAST® system, advancing the ignition curve aggressively. "Hole Shot" is vastly improved as more horsepower gets the hull up on plane quicker.
Lean Burn Control®
   Lean Burn Control® increases fuel efficiency by allowing combustion to operate on a leaner air/fuel mixture. At cruising speed, this engine runs on up to 10% less fuel* than others in its class.
    *Based on EPA Specific Fuel Consumption Mode.
Variable Speed Trolling
   For fisherman who want to slow troll, Honda's variable speed control is the right fit. The system adjusts in 50 RPM increments between 750 rpm and 1,000 rpm. Variable speed control is standard on the tiller model and optional on remote model.
Programmed Fuel Injection
   Programmed Fuel Injection PGM-FI® delivers the precise amount of fuel/air to each cylinder. The result is easy starts and instant throttle response with superior fuel efficiency.
Mikuni® Intake System
   The lightweight Mikuni® long tube intake track system helps build low end torque.
 Reliability and Durability
Engine Alert System
   The Engine Alert System uses visual, audio and rpm reduction circuits to alert the operator of over-heating, low oil PSI and over-revving. This helps to prevent engine damage.
Four-Front Corrosion Protection
   The Corrosion Protection System is a patented "Double Sealed" multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, internally painted cooling passages, and a freshwater flushing device, all enhance corrosion protection.
Corrosion Tolerance
   A fresh water flushport flushes debris and saltwater out of the engine. Painted interior cooling passages help extend the life of the outboard.
Ultra Low 3-Star CARB Emissions
   Environmentally conscious technology. All Honda Marine engines exceed the highest CARB 3-Star rating to meet the rigorous California Air Resource Board's standards.
Three-Year Warranty
The best outboards are backed by the best warranty, 3 years parts and labour.
 Convenience and Ease of Use
Superior battery charging
   There's always plenty of electric power with the 60 hp. Honda's exclusive neodymium magnet flywheel enables these engines to produce nearly twice as many charging amps as some competitors. The high output helps keep battery banks charged all day, even when running multiple accessories. The BF60 develops a total 27 amps and 22 charging amps.
Centre Mount Tiller (with Optional Tiller Kit)
   The ergonomically designed tiller handle is longer for improved handling. Adjustments for throttle and steering friction allow easier control. Up front shift lever, PTT switch, and engine alert lamps provide added convenience.
Optional Convenience
   An optional tilt limit kit keeps the motor from rubbing against the bottom of a pontoon boat's sun deck.
Easy Maintenance
   Easy access side-mounted oil filter and oil fillers simplify maintenance, while "screw-type" valve adjusters reduce maintenance costs.
Meets NMEA 2000 Standards
   NMEA 2000 protocols allow engine data to be displayed on NMEA 2000 compliant dashboard electronics, like sonar and GPS.



Specifications
Model
BF60
Category Name
Outboard Engines
Year
2016
Sale Type
New
Manufacturer
Honda
Engine Size
998 cc
Overall Width
417 mm / 16.4 in.
EngineType
4-Stroke SOHC; 3 Cylinder / 12 Valves
Bore & Stroke
73 mm x 79.5 mm (2.9 x 3.1 in.)
Full Throttle RPM Range
5,000-6,000 RPM
Propshaft Rated Horsepower (HP)
60 hp @ 5,500 RPM
Oil Capacity
2.70 L (2.40 Imp. qt) with oil filter repl.
Trim Range
-4° to +16°
Tilt Range
60°
Steering Angle
30° remote **, 50° tiller (with optional tiller kit)
Gear Ratio
2.07:1
Gear Shift
F-N-R
Alternator (Electric Start)
27 amp
