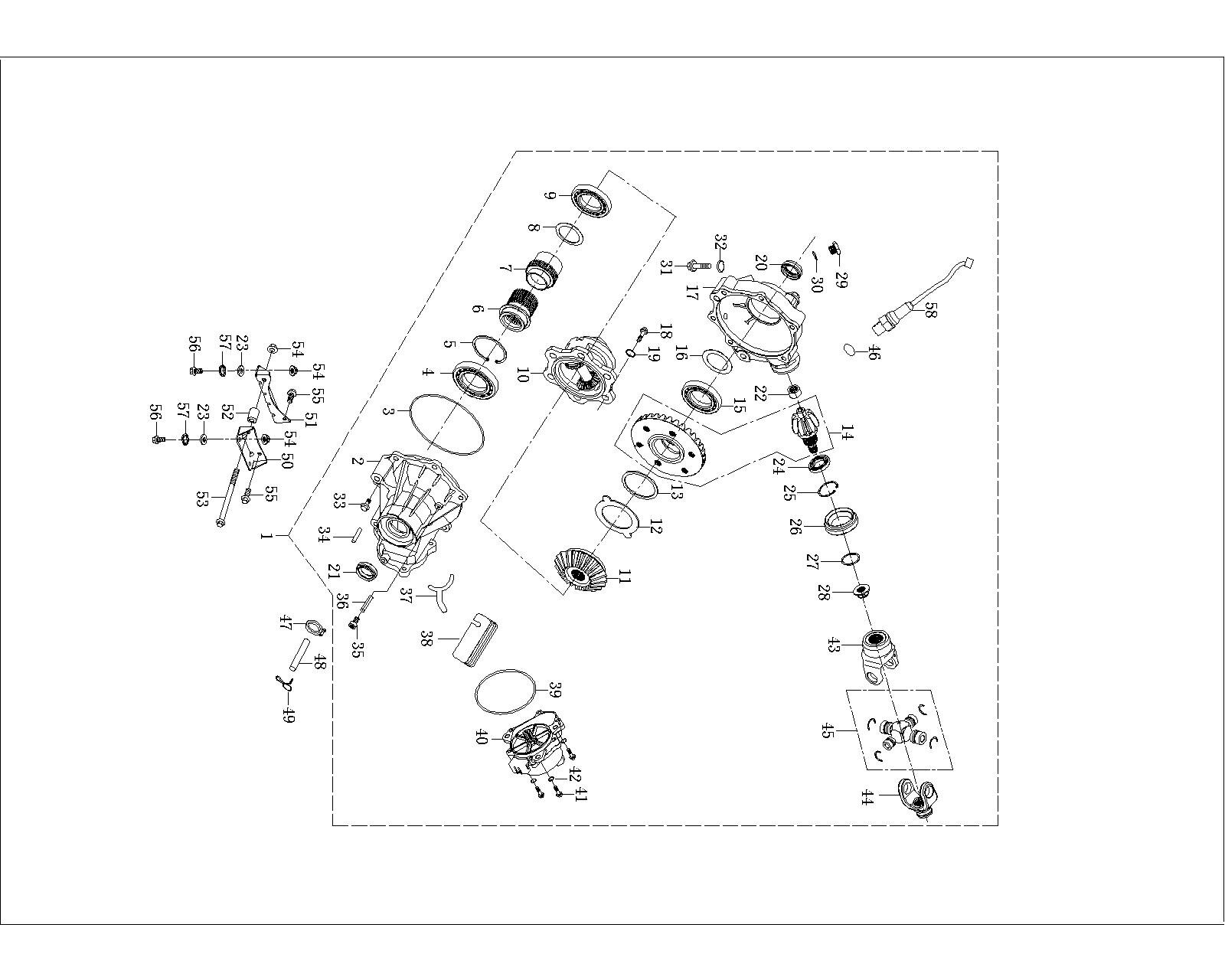

Utility 1000cc 2019-2020 Frame - FRONT GEARCASE
Parts
Overview
Contact Information
Location
No: 3
Old Part No:
New Part No: BGB3452.1-?140×?2.65
Description: O-Ring ?140×?2.65
Pieces:
1
Price: 0
Retail:
0
No: 4
Old Part No:
New Part No: BGB276-16007
Description: Deep Groove Ball Bearing ?35×?62×9
Pieces:
1
Price: 0
Retail:
0
No: 9
Old Part No:
New Part No: BGB276-61912
Description: Deep Groove Ball Bearing 61912
Pieces:
1
Price: 0
Retail:
0
No: 11
Old Part No:
New Part No: P115000271110000
Description: Bevel Gear?Front Axle
Pieces:
1
Price: 0
Retail:
0
No: 12
Old Part No:
New Part No: P115000271080000
Description: Anti-Rotation Gasket
Pieces:
1
Price: 0
Retail:
0
No: 13
Old Part No:
New Part No: PJ00000273000600
Description: Adjustment Gasket ?40×?57×0.1
Pieces:
1
Price: 0
Retail:
0
No: 14
Old Part No:
New Part No: P107000271510000
Description: Drive&Driven Gears Assy, Front Axle
Pieces:
1
Price: 0
Retail:
0
No: 18
Old Part No:
New Part No: BGB5783-M10×1.25×16
Description: Bolt M10×1.25×16
Pieces:
6
Price: 0
Retail:
0
No: 23
Old Part No:
New Part No: BGB97.1-10
Description: Plain washer ?10
Pieces:
4
Price: 0
Retail:
0
No: 24
Old Part No:
New Part No: GBG276-1994-6007
Description: Deep Groove Ball Bearing 6007
Pieces:
1
Price: 0
Retail:
0
No: 25
Old Part No:
New Part No: BGB893.1-d0=62
Description: Circlip D0=62
Pieces:
1
Price: 0
Retail:
0
No: 28
Old Part No:
New Part No: BGB6187-M14×1.5-C
Description: Hexagon Flange Locked Nut M14×1.5
Pieces:
1
Price: 0
Retail:
0
No: 30
Old Part No:
New Part No: BGB6659-?12.5×?1.5
Description: Rubber O-Ring ?12.5×?1.5
Pieces:
1
Price: 0
Retail:
0
No: 31
Old Part No:
New Part No: BGB16674-M10×1.25×16
Description: Hexagon Flange Bolt M10×1.25×16
Pieces:
1
Price: 0
Retail:
0
No: 33
Old Part No:
New Part No: BGB16674-M8×25
Description: Hexagon Flange Bolt M8×25
Pieces:
6
Price: 0
Retail:
0
No: 34
Old Part No:
New Part No: P107000271220000
Description: Air Tap,Front Axle
Pieces:
1
Price: 0
Retail:
0
No: 35
Old Part No:
New Part No: P103000271170000
Description: Inner Hexagon Screw With Flat Head M8×10
Pieces:
1
Price: 0
Retail:
0
No: 41
Old Part No:
New Part No: BGB70.1-M8×20
Description: Hexagon Socket Cap Screw M8×20
Pieces:
3
Price: 0
Retail:
0
No: 42
Old Part No:
New Part No: BGB97.1-8
Description: Plain washer 8
Pieces:
4
Price: 0
Retail:
0
No: 48
Old Part No:
New Part No: PJ00000274000000
Description: Pipe A
Pieces:
1
Price: 0
Retail:
0
No: 49
Old Part No:
New Part No: PJ00000907400000
Description: Steel Clip ?10
Pieces:
1
Price: 0
Retail:
0
No: 52
Old Part No:
New Part No: PJ00000929004000
Description: Cylindrical Bush ?10.5×?22×36.5
Pieces:
1
Price: 0
Retail:
0
No: 53
Old Part No:
New Part No: BGB16674-M10×1.25×145
Description: Hexagon Flange Bolt M10×1.25×145
Pieces:
1
Price: 0
Retail:
0
No: 54
Old Part No:
New Part No: BGB6187-M10×1.25
Description: Hexagon Flange Locked Nut M10×1.25
Pieces:
5
Price: 0
Retail:
0
No: 56
Old Part No:
New Part No: BGB16674-M10×1.25×20
Description: Hexagon Flange Bolt M10×1.25×20
Pieces:
4
Price: 0
Retail:
0
Front Differential Assy .
Front Differential Assy of #:DRIVE TRAIN - FRONT GEARCASEFront Axle Gear Box Cover .
Front Axle Gear Box Cover of #:DRIVE TRAIN - FRONT GEARCASEO-Ring ?140×?2.65 .
O-Ring Φ140×Φ2.65 of #:DRIVE TRAIN - FRONT GEARCASEDeep Groove Ball Bearing ?35×?62×9 .
Deep Groove Ball Bearing φ35×φ62×9 of #:DRIVE TRAIN - FRONT GEARCASEDivide Device Connection .
Divide Device Connection of #:DRIVE TRAIN - FRONT GEARCASESliding Sleeve .
Sliding Sleeve of #:DRIVE TRAIN - FRONT GEARCASEAdjustment Gasket ?71×?83×0.1 .
Adjustment Gasket Φ71×Φ83×0.1 of #:DRIVE TRAIN - FRONT GEARCASEDeep Groove Ball Bearing 61912 .
Deep Groove Ball Bearing 61912 of #:DRIVE TRAIN - FRONT GEARCASETransfer Gear .
Transfer Gear of #:DRIVE TRAIN - FRONT GEARCASEBevel Gear?Front Axle .
Bevel Gear，Front Axle of #:DRIVE TRAIN - FRONT GEARCASEAnti-Rotation Gasket .
Anti-Rotation Gasket of #:DRIVE TRAIN - FRONT GEARCASEAdjustment Gasket ?40×?57×0.1 .
Adjustment Gasket Φ40×Φ57×0.1 of #:DRIVE TRAIN - FRONT GEARCASEDrive&Driven Gears Assy, Front Axle .
Drive&Driven Gears Assy, Front Axle of #:DRIVE TRAIN - FRONT GEARCASEAdjustment Gasket ??50×?61.5 .
Adjustment Gasket Ⅰφ50×Φ61.5 of #:DRIVE TRAIN - FRONT GEARCASEFront Axle Gear Box .
Front Axle Gear Box of #:DRIVE TRAIN - FRONT GEARCASEBolt M10×1.25×16 .
Bolt M10×1.25×16 of #:DRIVE TRAIN - FRONT GEARCASEFront Diff. Output Shaft Oil Seal?24×?38×8 .
Front Diff. Output Shaft Oil Sealφ24×Φ38×8 of #:DRIVE TRAIN - FRONT GEARCASENeedle Bearing ?15×?21×12 .
Needle Bearing Φ15×Φ21×12 of #:DRIVE TRAIN - FRONT GEARCASEPlain Washer ?10 .
Plain washer Φ10 of #:DRIVE TRAIN - FRONT GEARCASEDeep Groove Ball Bearing 6007 .
Deep Groove Ball Bearing 6007 of #:DRIVE TRAIN - FRONT GEARCASECirclip D0=62 .
Circlip D0=62 of #:DRIVE TRAIN - FRONT GEARCASEOil Seal ?48×?65×9, Driving Tooth .
Oil Seal Φ48×Φ65×9, Driving Tooth of #:DRIVE TRAIN - FRONT GEARCASEO-Ring ?14×?7 , Driving Tooth .
O-Ring Φ14×Φ7 , Driving Tooth of #:DRIVE TRAIN - FRONT GEARCASEHexagon Flange Locked Nut M14×1.5 .
Hexagon Flange Locked Nut M14×1.5 of #:DRIVE TRAIN - FRONT GEARCASEBolt M14×1.5×10 .
Bolt M14×1.5×10 of #:DRIVE TRAIN - FRONT GEARCASERubber O-Ring ?12.5×?1.5 .
Rubber O-Ring Φ12.5×Φ1.5 of #:DRIVE TRAIN - FRONT GEARCASEHexagon Flange Bolt M10×1.25×16 .
Hexagon Flange Bolt M10×1.25×16 of #:DRIVE TRAIN - FRONT GEARCASEOil Drain Plug O-Ring ?1.5×?9 .
Oil drain plug O-Ring φ1.5×φ9 of #:DRIVE TRAIN - FRONT GEARCASEHexagon Flange Bolt M8×25 .
Hexagon Flange Bolt M8×25 of #:DRIVE TRAIN - GEAR SHIFTAir Tap,Front Axle .
Air Tap,Front Axle of #:DRIVE TRAIN - FRONT GEARCASEInner Hexagon Screw With Flat Head M8×10 .
Inner Hexagon Screw With Flat Head M8×10 of #:DRIVE TRAIN - FRONT GEARCASECylindrical Pin ?5×75 .
Cylindrical Pin Φ5×75 of #:DRIVE TRAIN - FRONT GEARCASEFork .
Fork of #:DRIVE TRAIN - FRONT GEARCASESpline .
Spline of #:DRIVE TRAIN - FRONT GEARCASEO-Ring ?80×?1.8 .
O-Ring Φ80×Φ1.8 of #:DRIVE TRAIN - FRONT GEARCASETransfer Case Assembly .
Transfer Case Assembly of #:DRIVE TRAIN - FRONT GEARCASEHexagon Socket Cap Screw M8×20 .
Hexagon Socket Cap Screw M8×20 of #:DRIVE TRAIN - FRONT GEARCASEPlain Washer 8 .
Plain washer 8 of #:DRIVE TRAIN - GEAR SHIFTConnection Fork E .
Connection Fork E of #:DRIVE TRAIN - FRONT GEARCASEConnection Fork C .
Connection Fork C of #:DRIVE TRAIN - FRONT GEARCASEUniversal Joint Assy .
Universal Joint Assy of #:DRIVE TRAIN - FRONT GEARCASERubber O-Ring ?19×?1.8 .
Rubber O-Ring Φ19×Φ1.8 of #:DRIVE TRAIN - FRONT GEARCASEElastic Hoop C .
Elastic Hoop C of #:DRIVE TRAIN - FRONT GEARCASEPipe A .
Pipe A of #:DRIVE TRAIN - FRONT GEARCASESteel Clip ?10 .
Steel Clip Φ10 of #:DRIVE TRAIN - FRONT GEARCASELeft Mounting Plate .
Left Mounting Plate of #:DRIVE TRAIN - FRONT GEARCASERight Mounting Plate .
Right Mounting Plate of #:DRIVE TRAIN - FRONT GEARCASECylindrical Bush ?10.5×?22×36.5 .
Cylindrical Bush Φ10.5×Φ22×36.5 of #:DRIVE TRAIN - FRONT GEARCASEHexagon Flange Bolt M10×1.25×145 .
Hexagon Flange Bolt M10×1.25×145 of #:DRIVE TRAIN - FRONT GEARCASEHexagon Flange Locked Nut M10×1.25 .
Hexagon Flange Locked Nut M10×1.25 of #:DRIVE TRAIN - FRONT GEARCASEHexagon Flange Bolt M10×1.25×20 .
Hexagon Flange Bolt M10×1.25×20 of #:DRIVE TRAIN - FRONT GEARCASESpring Washer?10 .
Spring Washerφ10 of #:DRIVE TRAIN - FRONT GEARCASESpeed Sensor .
Speed Sensor of #:DRIVE TRAIN - FRONT GEARCASE
