  • Crankshaft & Piston Assembly

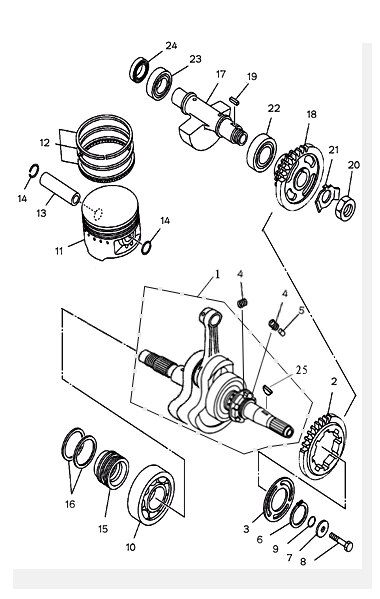

2019 550 cc Engine Manual - Crankshaft & Piston Assembly

No: 1
New Part No: P015000132000100
Description: Crankshaft assembly
Pieces: 1
Price: $536.89
Retail: 0
No: 2
New Part No: P004000133220000
Description: Driving Gear,Balance Shaft
Pieces: 1
Price: $74.48
Retail: 0
No: 3
New Part No: P004000133230000
Description: Locating Plate,Balance Gear,Outer
Pieces: 1
Price: $3.99
Retail: 0
No: 4
New Part No: P004000133250000
Description: Buffer Spring,Balance Gear
Pieces: 8
Price: $3.92
Retail: 0
No: 5
New Part No: P004000133260000
Description: Spacer Pin,Balance Gear
Pieces: 4
Price: $7.28
Retail: 0
No: 6
New Part No: BGB894135
Description: Circlip For Shaft ?35
Pieces: 1
Price: 0
Retail: 0
No: 7
New Part No: PJ00000906000700
Description: Washer 10325
Pieces: 1
Price: $7.30
Retail: 0
No: 8
New Part No: BGB5783M1012540
Description: Hexagon Head Bolts M101.2540
Pieces: 1
Price: 0
Retail: 0
No: 9
New Part No: PJ00000912012000
Description: O-Ring 163
Pieces: 1
Price: $3.92
Retail: 0
No: 10
New Part No: BGB2766307
Description: Bearing 6307
Pieces: 1
Price: 0
Retail: 0
No: 11
New Part No: P015000131010000
Description: Piston
Pieces: 1
Price: $83.71
Retail: 0
No: 12
New Part No: P0100001311A0000
Description: Piston Ring Set
Pieces: 1
Price: $32.39
Retail: 0
No: 13
New Part No: P010000131020000
Description: Piston Pin
Pieces: 1
Price: $18.62
Retail: 0
No: 14
New Part No: P010000131070000
Description: Circlip,Piston Pin
Pieces: 2
Price: $6.10
Retail: 0
No: 15
New Part No: P004000110230000
Description: Bushing,Sealing Ring
Pieces: 1
Price: $27.93
Retail: 0
No: 16
New Part No: P003000110240000
Description: Sealing Ring
Pieces: 2
Price: $8.74
Retail: 0
No: 17
New Part No: P0150001331A0000
Description: Balance Shaft Assy
Pieces: 1
Price: 0
Retail: 0
No: 18
New Part No: P0040001332A0000
Description: Balance Driven Gear Assy
Pieces: 1
Price: $62.06
Retail: 0
No: 19
New Part No: BGB1096B5124
Description: Key B512
Pieces: 1
Price: 0
Retail: 0
No: 20
New Part No: PJ00000904021000
Description: Hexagon Nut M181
Pieces: 1
Price: $6.10
Retail: 0
No: 21
New Part No: PJ00000906030400
Description: Tab Washer A
Pieces: 1
Price: $7.30
Retail: 0
No: 22
New Part No: BGB2766305
Description: Bearing 6305
Pieces: 1
Price: 0
Retail: 0
No: 23
New Part No: BGB2766304
Description: Bearing 6304
Pieces: 1
Price: 0
Retail: 0
No: 24
New Part No: PJ00000911012100
Description: Oil Seal 20307
Pieces: 1
Price: $9.22
Retail: 0
No: 25
New Part No: P004000130010000
Description: Key
Pieces: 1
Price: $6.30
Retail: 0
