ID # 18309900

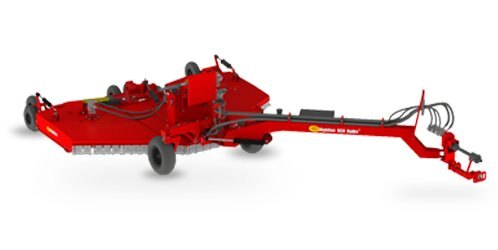

Highline Mfg. RCHTM Hydro

  • Highline Mfg. RCHTM Hydro
  • Highline Mfg. RCHTM Hydro
  • Highline Mfg. RCHTM Hydro
  • Highline Mfg. RCHTM Hydro
  • Highline Mfg. RCHTM Hydro
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
ReaCH into more places with your RCH™ Hydro!
An industry exclusive feature of a Highline® mower is the integrated Radial Contouring Hitch (RCH™). The RCH™ is designed to keep the tractor on the road and the Operator safe while achieving a quality cut.

Save Time and Increase Productivity
Greasing and maintenance have always been time consuming and cumbersome tasks. Traditional mechanically-driven ditch mowers typically have 16 grease points. Care and greasing on these units can take from 30 minutes up to an hour of preparation time every day! With the RCH™ Hydro Mower greasing and maintenance takes approximately 5 minutes.
In a mowing season of 100 days this translates into an extra 100 miles of mowing!

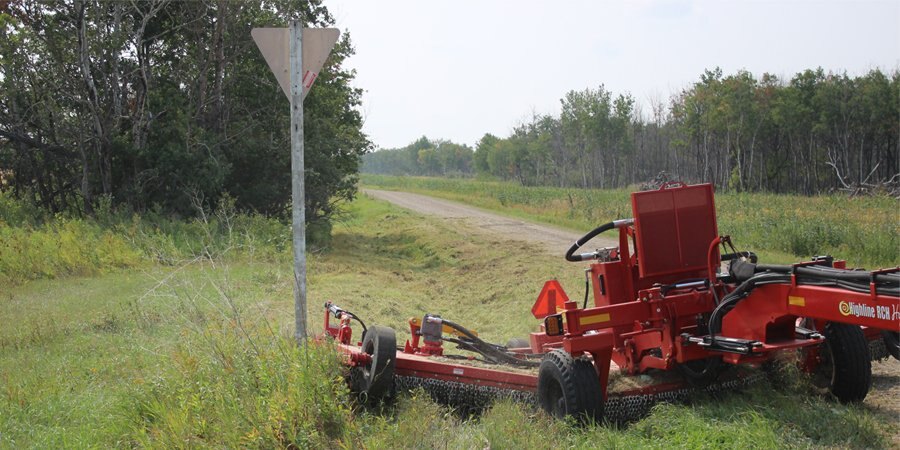

"The Highline® RCH™ Hydro mower has great movability when mowing in and around sign posts, culverts, and is easy to back around and into approaches. The mower has great flotation in wet area conditions. Our servicing time and repair costs are minimal with very few grease zerks, we are using 50% less blades compared to what we used on our other mowers giving us more mowing hours in a season. Features I would recommend are

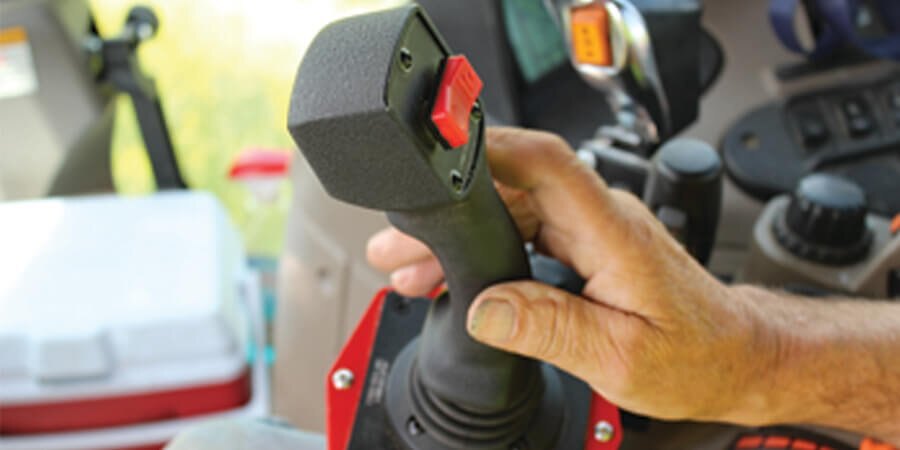

the joystick control, foam filled tires, walking axles, gradient steering and front gauge wheels.

Mike Wiggins, Mower Operator

RM of Fillmore, SK

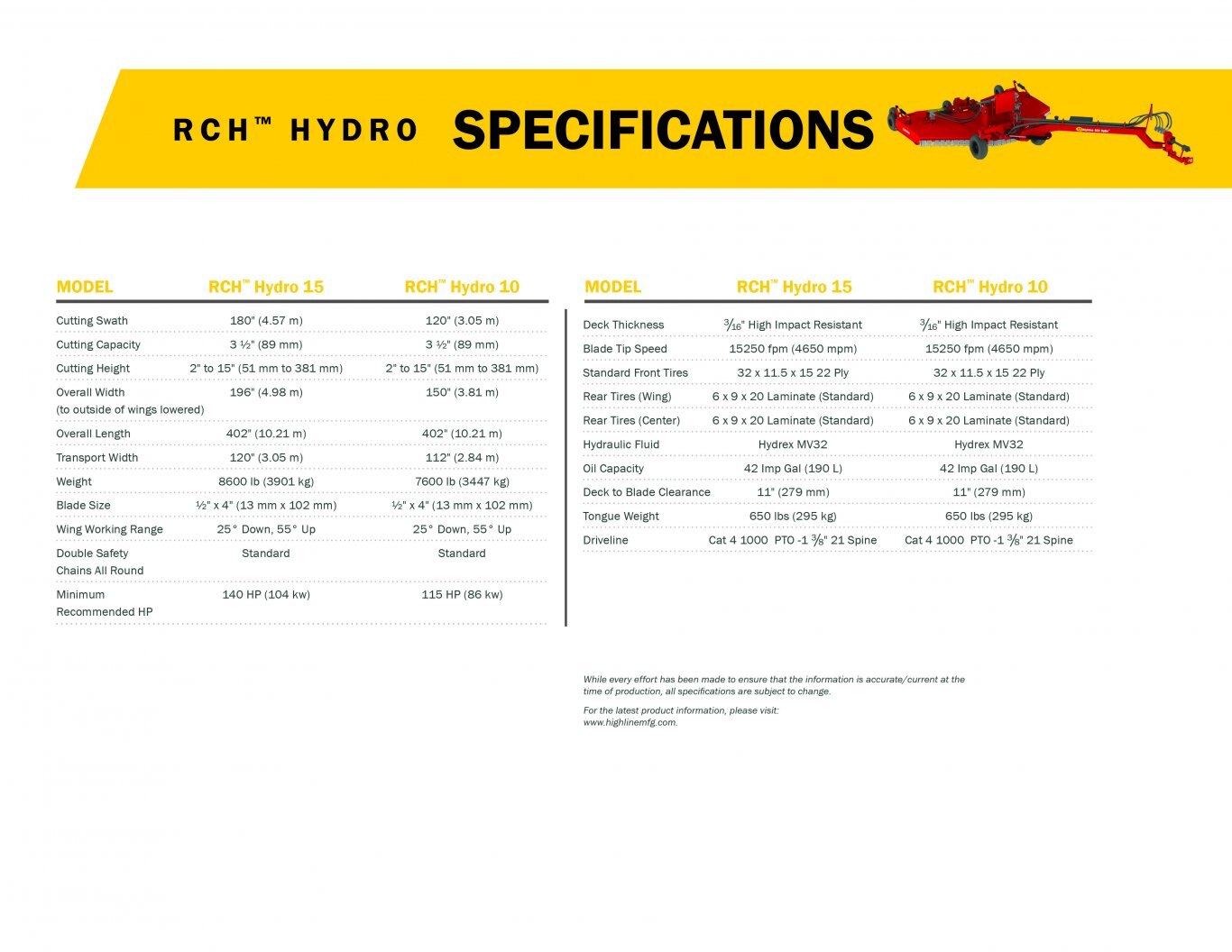

Specifications
Model
RCHTM Hydro
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Highline Mfg
Weight
8600 LBS (3901 Kg)
Driveline
Cat 4 1000 PTO -1 3/8" 21 Spine
Blade Size
½” x 4” (13mm x 102 mm)
Rear Tires
6 x 9 x 20 Laminate
Oil Capacity
42 Imp Gal (190 Litre) (50 US Gallons)
Cutting Swath
180”(4978 mm)
Tongue Weight
650Lbs (295 Kg)
Cutting Height
2” to 15” (51mm to (381 mm)
Deck Thickness
3/16” High Impact Resistant
Overall Length
402" (33'6") (10.21 m)
Blade Tip Speed
16568 fps (5050 mpm)
Hydraulic Fluid
Hydrex MV36
Transport Width
120” (3048 mm)
Cutting Capacity
3.5” (89 mm)
Wing Working Range
25° Down 55° Up
Standard Front Tires
32 x 11.5 x 15 22Ply
Minimum Recommended HP
140
Deck To Blade Clearance
9" (22.9 cm)
Operating Temperature Range
129° - 185° F (54° - 85° C)
Double Safety Chains All Round
Standard
Overall Width (to Outside Of Wings Lowered)
196”(4572 mm)
the rch™ hydro mower is a practical design with many convenience features.

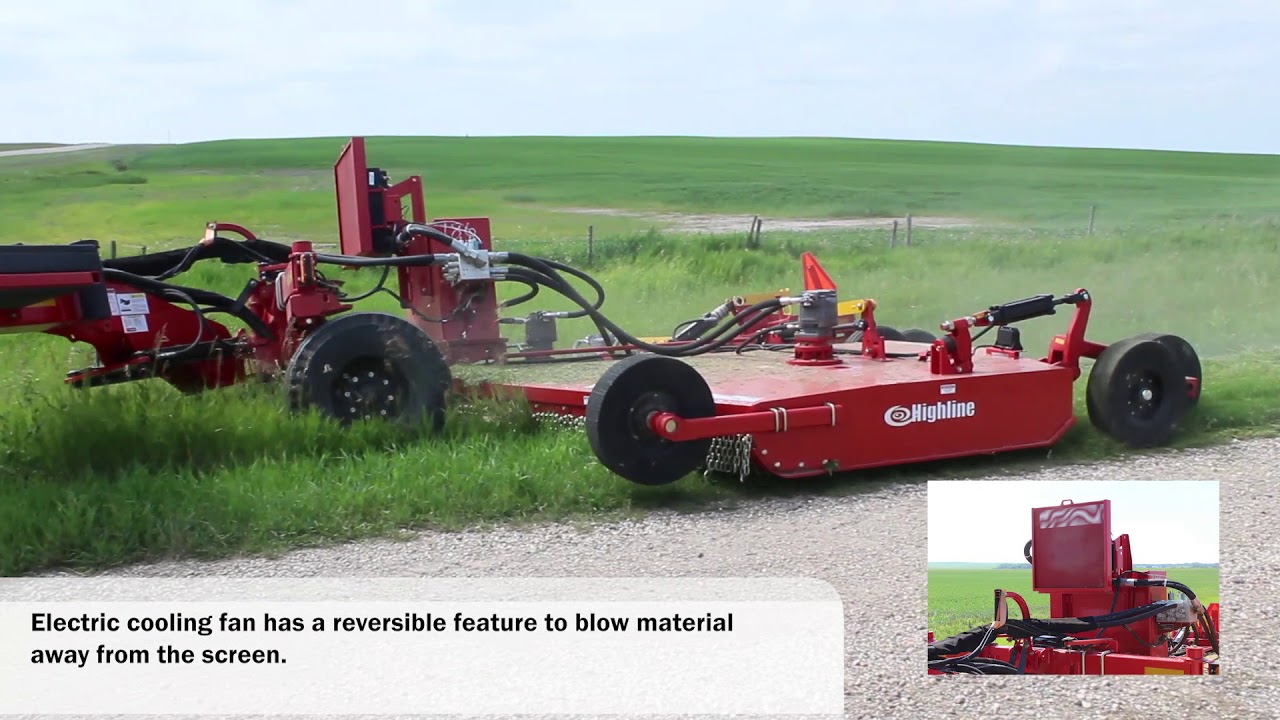

  • High Capacity Cooling Unit: The high capacity, 20 hp cooling unit efficiently cools the oil. Reversible electric cooling fan keeps the radiator clean by blowing out debris.

  • Easily view oil levels with oil gauge.

  • The Hitch’s Low Pull Pointt - minimal downward force improves flotation.

  • Hose Cradle: The simple design of the hose cradle allows for flexibility when attaching hoses to tractor. Also, since the hoses are not tightly secured, the hoses can move when turning. The hose cradle keeps the hoses neatly in place.

  • Replaceable Caster Shaft and Spindles: Accidents happen! Highline caster shafts are designed to be replaced simply and easily. Instead of having to replace the entire caster wheel assembly, individual component shaft parts are available and can be easily changed out.

  • The Chrome Shaft and Fibre Bushings mean no greasing for less maintenance.

  • 2:1 Speed Increaser: The RCH™ mower is equipped with a 2:1 Speed Increaser. This is valuable as it allows for higher speeds with a more compact pump. Competitors' hydraulic pump designs are much larger and attach directly to the tractor making initial setup awkward.

  • A low, 650 lb of weight on the jack

  • Large Wings allow for greater ditch contour-ability compared to competitors.

  • Replaceable Skid Plates are made from durable abrasion resistant steel. Skid Plates can be installed on either side of the machine, which is an advantage as it tends to have greater wear on the outside than the inside.

  • The Large Tool Kit conveniently stores extra blades and tools for easy access when maintenance is required.

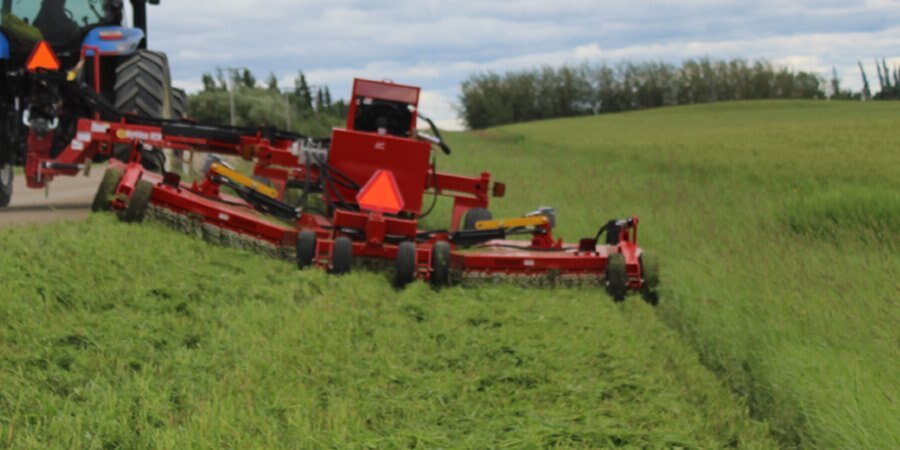

  • Walking Axle - experience a smoother ride and better contouring with the walking axle on the wings.
