ID # 15498353

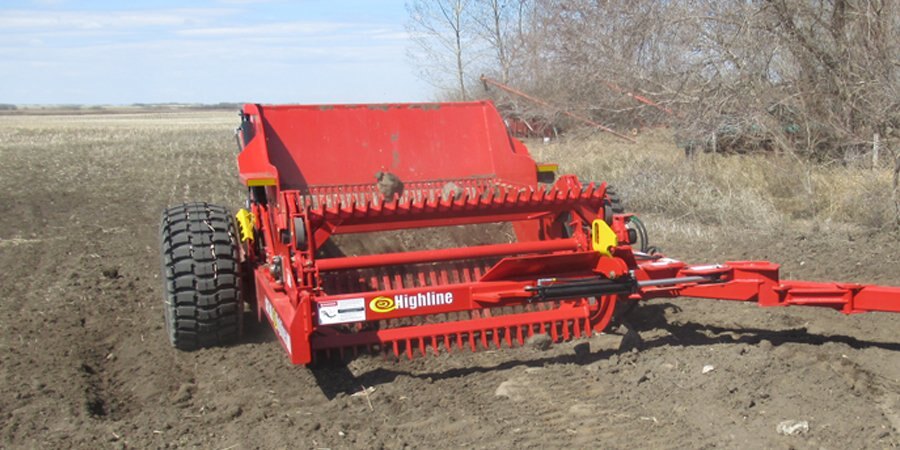

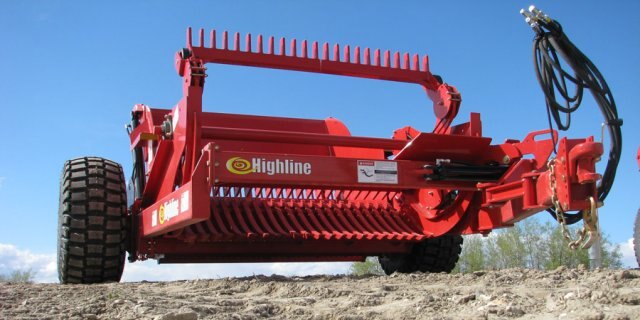

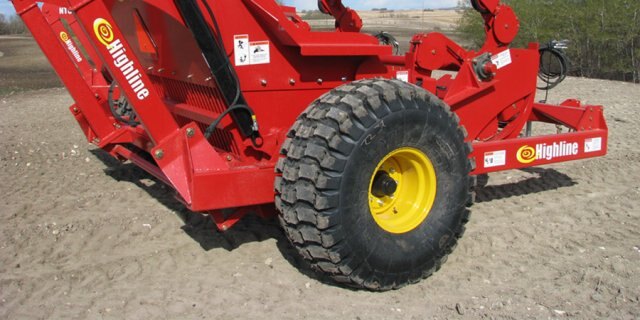

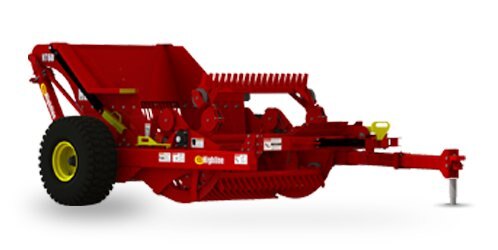

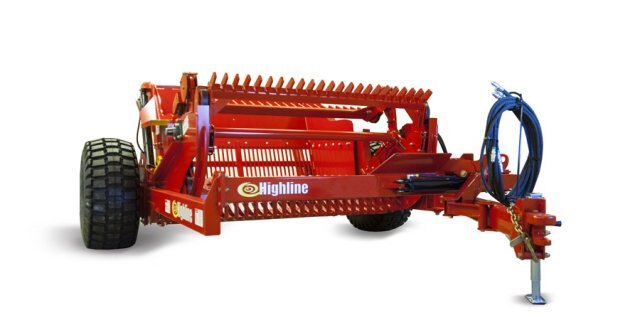

Highline Mfg. NT78 Rock Picker

  • Highline Mfg. NT78 Rock Picker
  • Highline Mfg. NT78 Rock Picker
  • Highline Mfg. NT78 Rock Picker
  • Highline Mfg. NT78 Rock Picker
  • Highline Mfg. NT78 Rock Picker
  • Highline Mfg. NT78 Rock Picker
  • Highline Mfg. NT78 Rock Picker
  • Highline Mfg. NT78 Rock Picker
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Just HOOK UP & GO

For over 20 years, the Highline Rock Picker has proven itself as a machine that delivers year in, year out. Designed with few moveable parts, as well as extremely durable components, the Highline Rock Picker remains rock solid. Highline offers the all new NT Rock Picker (available in 78”, 60” and 44” sizes), an upgraded unit with a fresh focus on safety and design features that will make your life even easier when taking care of cleaning up your fields.


To ensure rocks are firmly picked out of the soil and placed into the bucket, a raking reel is a must. Without a reel and track system, rocks will sling shot past the bucket wasting time back tracking to pick rocks up a second time. Only Highline rock pickers come standard equipped with the advanced track and reel system making a tough job as gentle as possible on the equipment.

Hitch Redesign

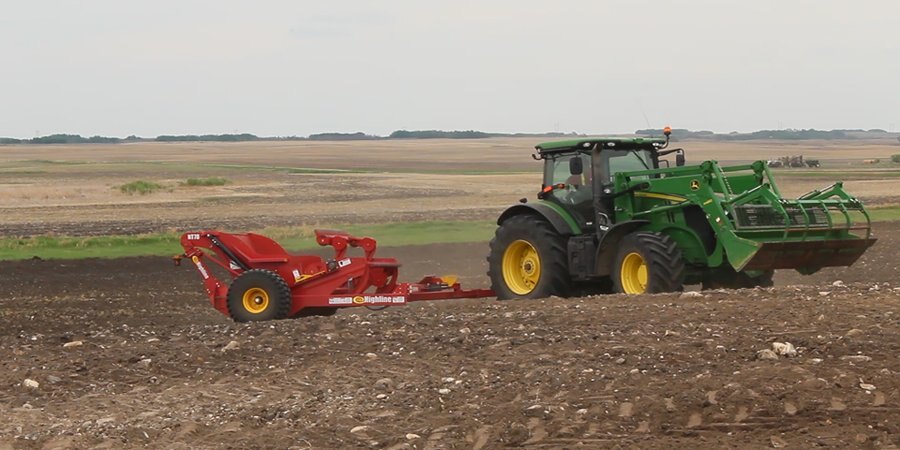

The Highline hitch moves the rock picker fully into view of the operator and out of the way of the tractor (even a tractor with duals). The hitch also advances the rock picker to a new level of transport convenience with a self-locking hitch. The self-locking design doesn’t require any pins or wedges, when you get to the field, the transport lock is opened, when going back to transport the lock is automatic.

NT Hitch
Durable Box Frame Construction
Highline is the only rock picker with a box frame construction. The front frame is built high to let rocks in, yet ensure the structure is strong enough to withstand the most difficult conditions.

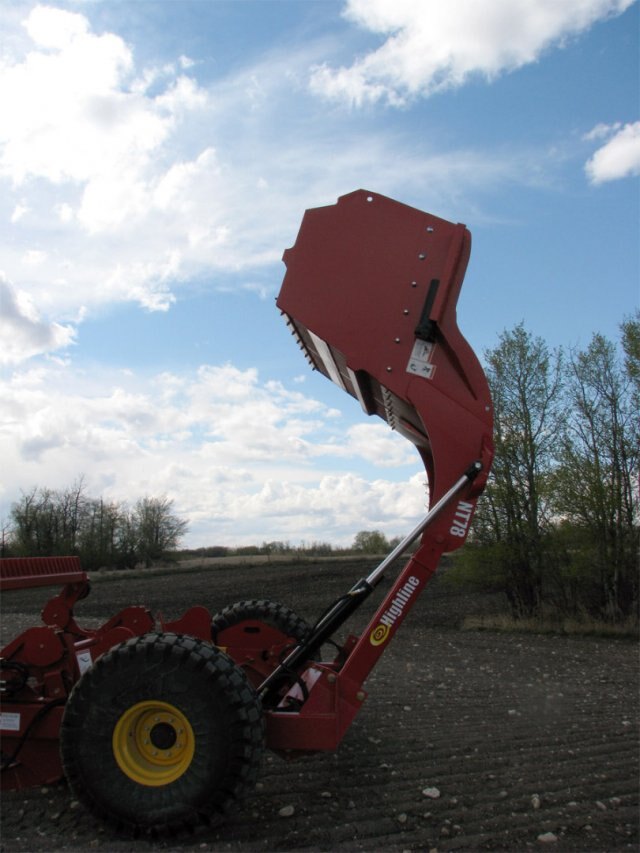

Hi-Lift Design

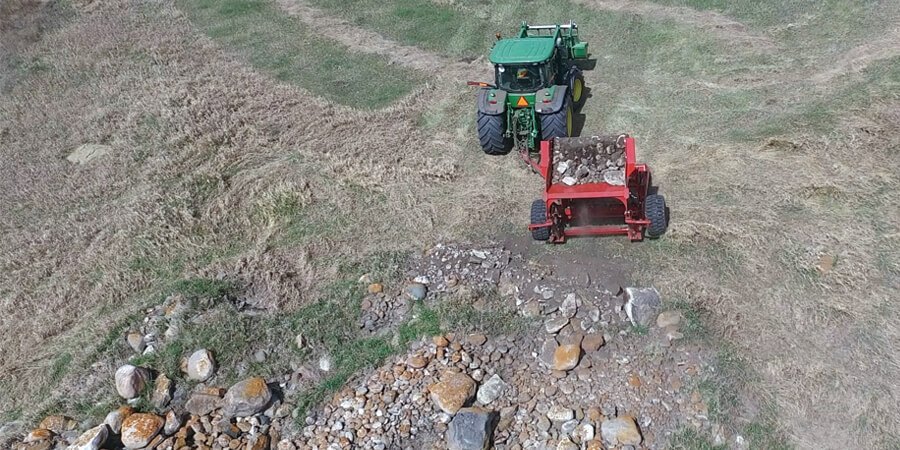

The Hi-Lift design feature allows operators to get rocks out of the way or off the field. The Hi-Lift minimizes wasted space from low flat rock piles by allowing taller more compact piles to be made, or, rocks can be transferred directly to a truck for removal. For fast and convenient rock removal, Highline rock pickers (NT44, NT60 and NT78) have a standard dumping height of 84".
  Specifications

Model NT78
Picking Width: 78 in. (1.98 m)
Transport Width: (with tires) machine centered with tractor 149.5in (3.80m)
Working Width: to center of tractor (machine is offset to right of tractor) 186.5in (4.74m)
Transport Length 222.25" (5.64m)
Operating Length 206" (5.23m)
Height 71.25" (1.80m)
Dumping Height: 84 in. (2.1 m)
Weight: 8000 lbs. (3629 kg)
Tongue Weight: 750 lbs. (340 kg)
Bucket Capacity: 3.35 cu. yd. (2.56 cu m)
Tire Size: 21.5L-16.1
Tire Pressure 27 psi (186 kPa)
Required Horsepower: 90-150
Hydraulic Outlets Required 3
Hydraulic Pressure 2500 psi (17236 kPa)
Hydraulic Flow Required 18gpm (68 l/min)
Lift Cylinder: 3.5" x 34"
Hydraulic Hitch: Yes
Hydraulic Drive: Yes
Picking Style: Reel
Number of Bats: 3
Minimum Rock Diameter : 2" (50mm)
Maximum Rock Diameter : 24" (.61 m)
Frame: 6" x 4" x ¼" Rectangular Tubing
Replaceable Tynes: Main Apron Tynes are replaceable to allow for high acre usage.
Hard Surfacing: Reel Arm Teeth and Apron Tynes (Standard)
Recommended Reel Speed 23rpm@2mph
  47@4mph
Hopper Bottom is grated Yes
Hopper Back is grated Yes



Specifications
Model
NT78 Rock Picker
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Highline Mfg
