ID # 15498307

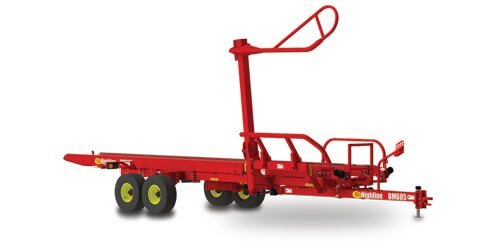

Highline Mfg. BM605 Bale Mover

  • Highline Mfg. BM605 Bale Mover
  • Highline Mfg. BM605 Bale Mover
  • Highline Mfg. BM605 Bale Mover
  • Highline Mfg. BM605 Bale Mover
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

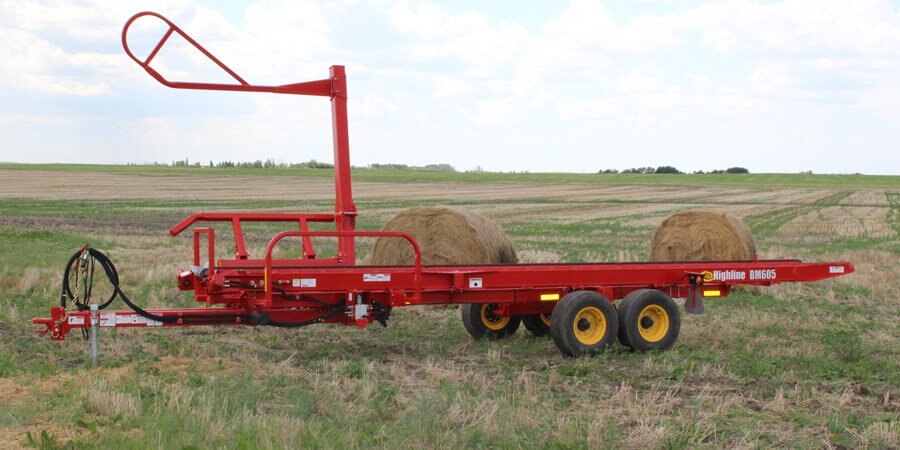

Highline makes picking bales a breeze!

We are pleased to announce the release of the new single row bale movers. The BM605 has all the heavy duty design features that we have used in our BM1400 for many years as well as some new added improvements. We have added some unique advantages to the new mover like Auto Bale Shuttle™ that automatically shifts the last loaded bale back exactly one position so you can load the next bale without shuttling the load manually.

The NEW Highline bale mover allows you to unload and re-load using fully adjustable frame rails on 4 foot to 6 foot bales.
  Features
All Bale Mover Models have a standard ¼ turn bale fork to automatically turn bales for non-stop loading from virtually any angle.
In-cab electric over hydraulic controls give full hydraulic control with only two hydraulic outlets on your tractor

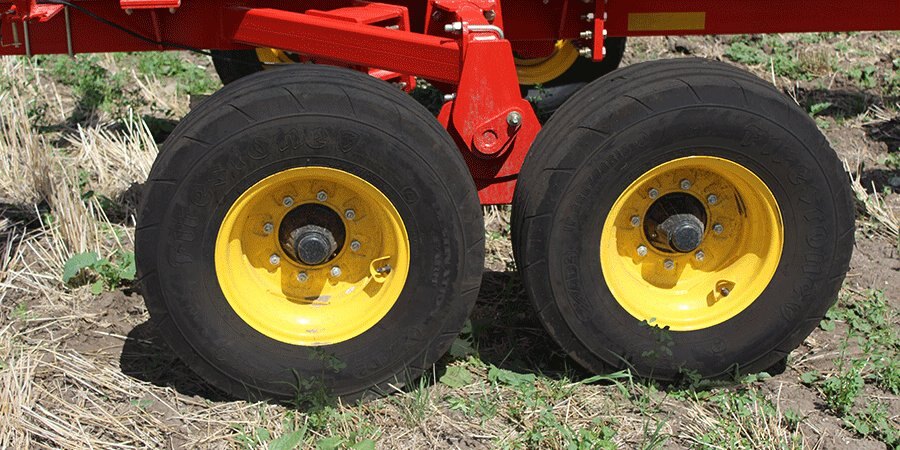

Undercarriage that walks both side to side and front to back
As the quarter turn lift arm begins to lift the bale, the forward motion slides the bale precisely into position for accurate placement on main bed.
Load soft or wet bales with ease.

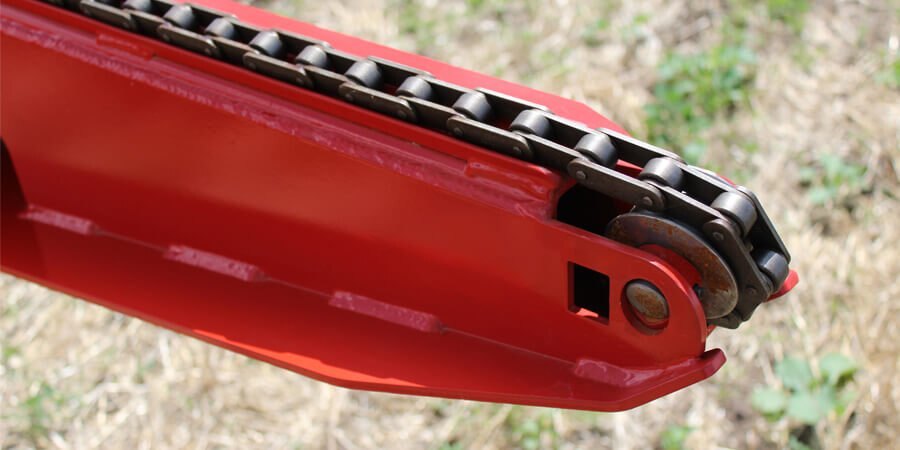

From the cab of the tractor, the deck is lifted hydraulically. The bale chains transfer the bales onto the ground without ripping twine or damaging the bales.The tail of the Bale Mover is designed to skid over the ground during the unloading process without damage.
Fiber wound bushings on chrome shafts.
  Specification

Model BM605
Configuration Single Row
Horsepower Required 80HP
Hydraulic Outlets Required 2
Bale Capacity                                       6 of 4' long bales, 5 of 5' long bales
Tongue Weight (Unloaded)                                               1380lb (626 kg)
Tongue Weight (Partially Loaded - worst case)                                               3160lb (1433 kg)
Tires              Four 280-70R15 12ply
GVW                                          15840 lbs (7191 kg)
Bed Length 26' 8 3/4" (8.14 m)
Overall Length 33' 5 1/4" (10.19 m)
Transport Width 8' 4 1/4" (2.54 m)
Transport Width (with axle extension) 9' 0" (2.74 m)
Width Unloaded  8' 4"(2.54 m)
Width Unloaded (with axle extension) 9' 0" (2.74 m)
Transport Height (Max) 13' 1 3/4"(4.0 m)
Bed Height 3' 4 3/4" (1.03 m)
Frame Rails  8"x 3" .250w
Load Arm  6"x 6"
Cylinders Bale Lift 5"x14"
Cylinders Bed Lift 3" x 10"
Bale Chain 2062HD
Lights & Safety Chain Standard
Shipping Weight 5285 lb (2385 kg)
Each model uses convenient in cab 12v 15amp control.
Lights and safety chain are standard equipment on all models.
Note: Right/left hand is determined by sitting in the tractor seat looking forward



Specifications
Model
BM605 Bale Mover
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
Highline Mfg
